HAZARD FUNCTION

DLK-741

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD FUNCTION

Component Function Check

INFOID:0000000010672356

1.

CHECK FUNCTION

1.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2.

Select “FLASHER” in “ACTIVE TEST” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-741, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010672357

1.

CHECK HAZARD OPERATION

Refer to

EXL-26, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Description"

 (LED

headlamp models) or

EXL-195, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Descrip-

tion"

 (halogen headlamp models).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

EXL-146, "Symptom Table"

 (LED headlamp models) and

EXL-303, "Symptom Table"

(halogen headlamp models).

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Monitor item

Status

FLASHER

LH

Front turn signal lamp LH

Turns ON

RH

Front turn signal lamp RH

Turns ON

OFF

Front turn signal lamp

Turns OFF

DLK-742

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

INFORMATION DISPLAY

INFORMATION DISPLAY

Diagnosis Procedure

INFOID:0000000010672358

1.

CHECK COMBINATION METER

Refer to

MWI-28, "Description"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

INTELLIGENT KEY BATTERY

DLK-743

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Component Inspection

INFOID:0000000010672359

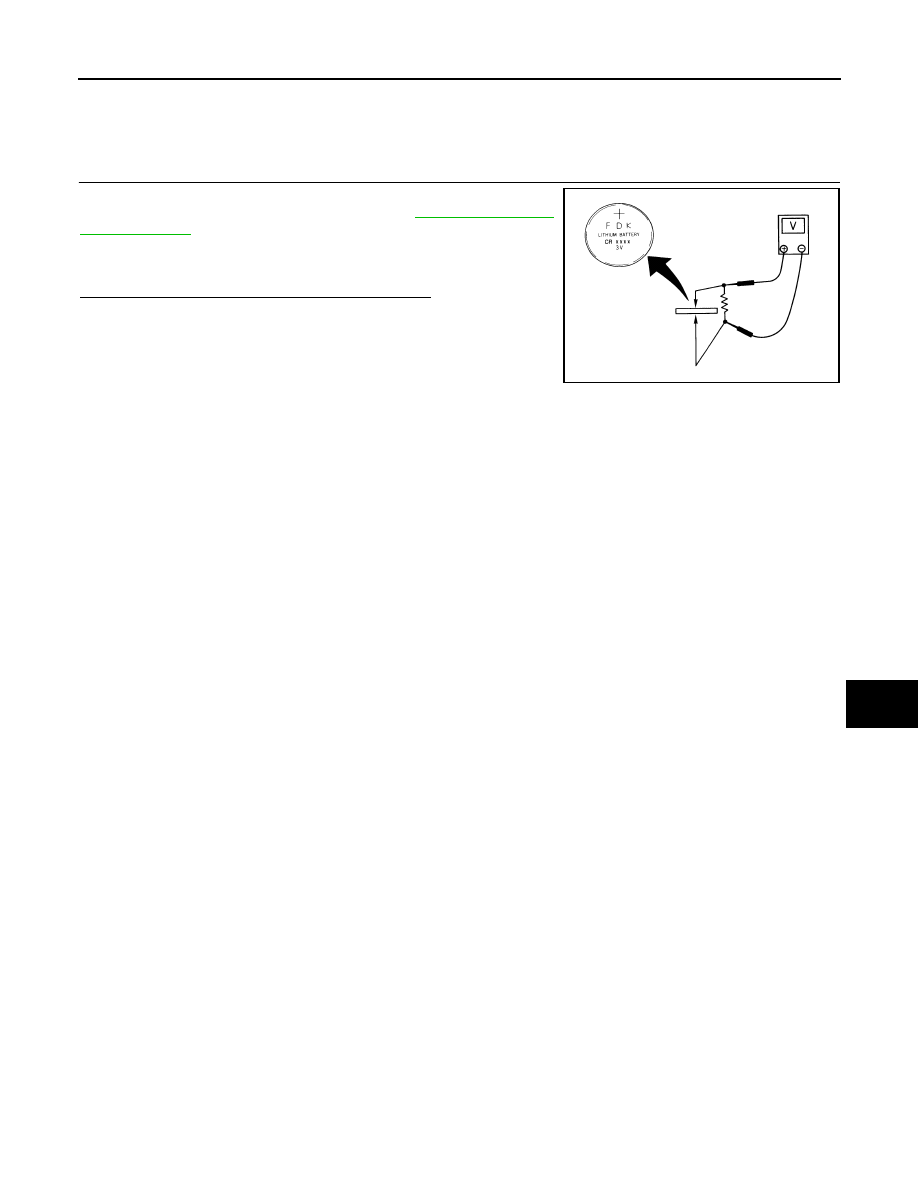

1.

CHECK INTELLIGENT KEY BATTERY

Check by connecting a resistance (approximately 300

) so that the

current value becomes about 10 mA. Refer to

DLK-199, "Removal

and Installation"

.

Is the measurement value within the specification?

YES

>> INSPECTION END

NO

>> Replace Intelligent Key battery.

Standard

: Approx. 2.5 - 3.0 V

OCC0607D

DLK-744

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Component Function Check

INFOID:0000000010672360

1.

CHECK FUNCTION

1.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2.

Select “OUTSIDE BUZZER” in “ACTIVE TEST” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Intelligent Key warning buzzer is OK.

NO

>> Refer to

DLK-744, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010672361

1.

CHECK INTELLIGENT KEY WARNING BUZZER POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect Intelligent Key warning buzzer connector.

3.

Check voltage between Intelligent Key warning buzzer harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK INTELLIGENT KEY WARNING BUZZER CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector and Intelligent Key warning buzzer harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK GROUND CIRCUIT

Check continuity between Intelligent Key warning buzzer harness connector and ground.

Monitor item

Status

OUTSIDE BUZZER

ON

Outside warning buzzer

Buzzer sounds

OFF

Buzzer does not sound

(+)

(–)

Condition

Voltage

Intelligent Key warning buzzer

Connector

Terminal

E7

1

Ground

Operate Intelligent Key
buzzer

9 – 16 V

BCM

Intelligent Key warning buzzer

Continuity

Connector

Terminal

Connector

Terminal

E60

164

E7

1

Existed

BCM

Ground

Continuity

Connector

Terminal

E60

164

Not existed
