SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-661

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

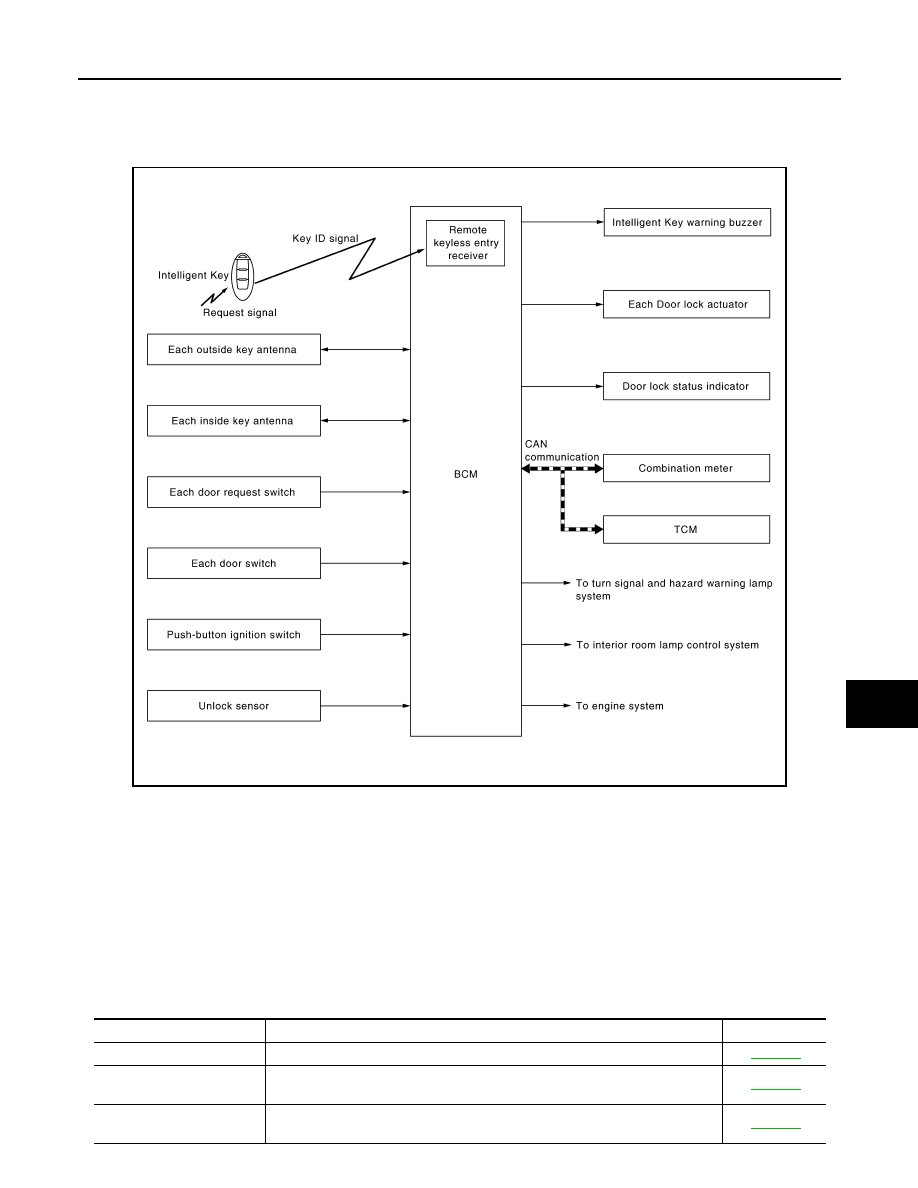

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000010672304

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000010672305

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIB3316GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-662

Back door open

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch.

DLK-665

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key

DLK-666

DLK-662

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (INTELLIGENT KEY SYSTEM)

DOOR LOCK FUNCTION

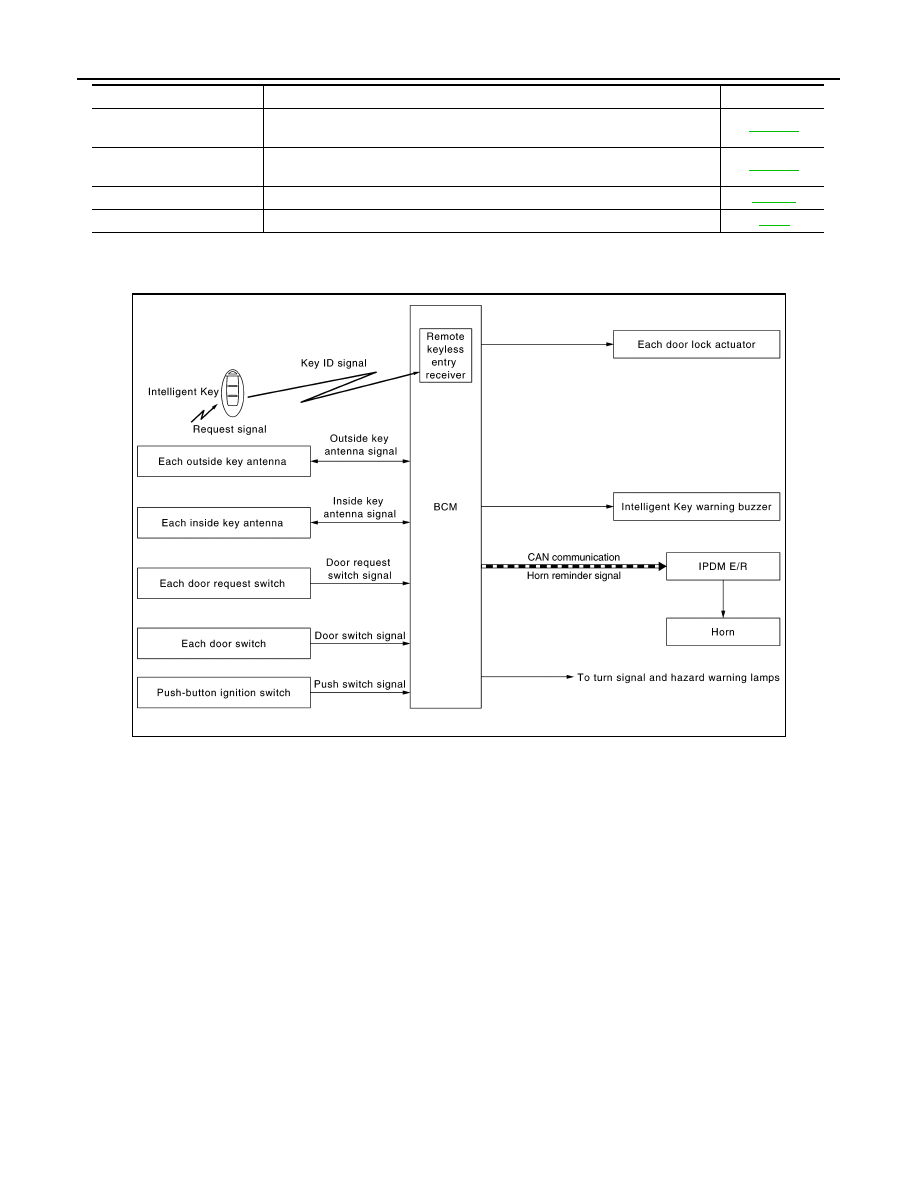

DOOR LOCK FUNCTION : System Diagram

INFOID:0000000010672306

DOOR LOCK FUNCTION : System Description

INFOID:0000000010672307

When pressing the door request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it starts the outside key antenna and inside

key antenna corresponding to the pressed door request switch and transmits the request signal to the Intelli-
gent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM lock/unlock each door lock actuator.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is
operated.

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-668

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-669

Engine start

The engine can be turned on while carrying the Intelligent Key

SEC-15

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

INL-8

Function

Description

Refer

JMKIB3553GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-663

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

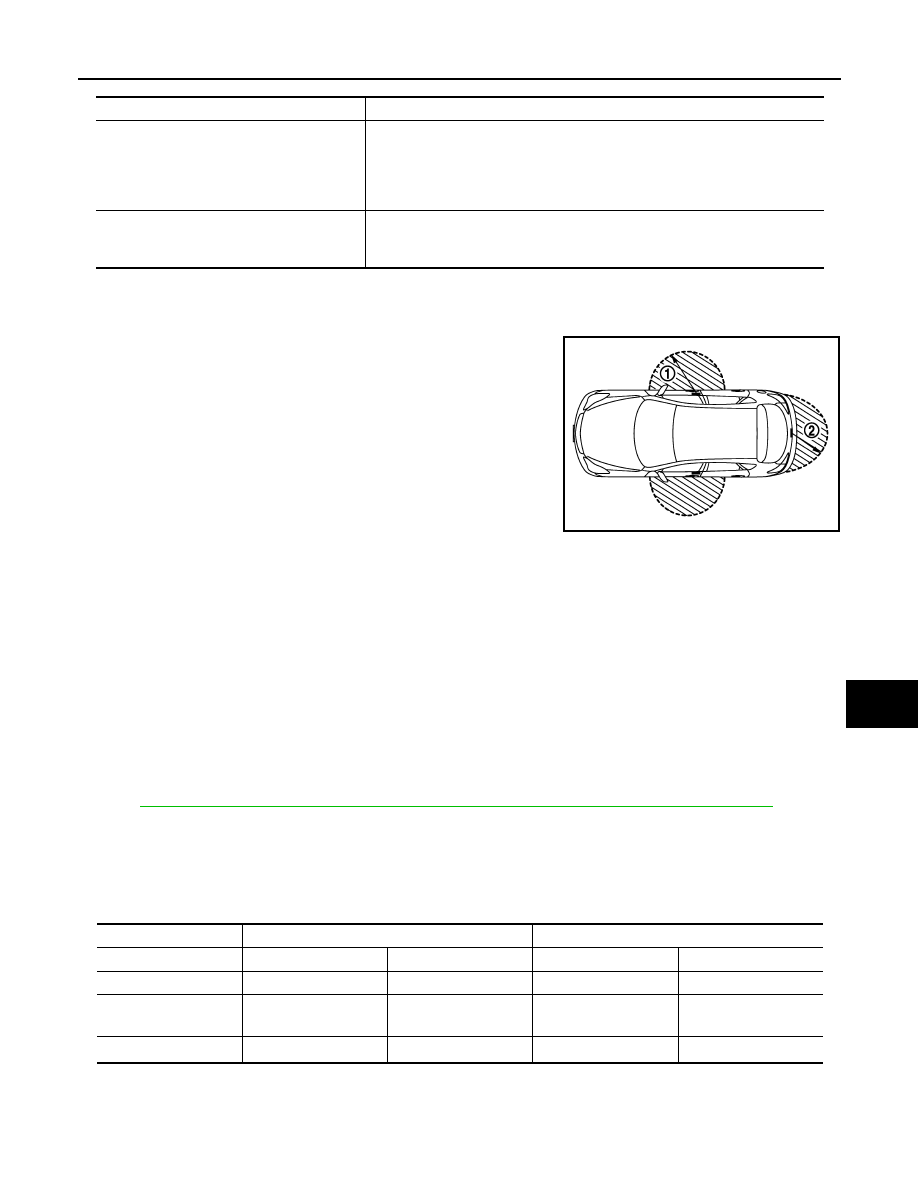

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver, passenger door handles (1) and back door handle (2). How-
ever, this operating range depends on the ambient conditions.

SELECTIVE UNLOCK FUNCTION (DOOR REQUEST SWITCH)

Lock Operation

When lock signal is sent from door request switch, all doors are locked.

Unlock Operation

• When unlock signal from front door request switch (driver side) is transmitted, driver door unlocks. When

front door request switch (driver side) is operated again within 60

*

 seconds, passenger door and rear door

unlock.

• When unlock signal from front door request switch (passenger side) is transmitted, passenger door unlock.

When front door request switch (passenger side) is operated again within 60

*

 seconds, all doors unlocks.

*

: Default value is 60 seconds. This time changes according to auto door lock function operation time.

How to Change Selective Unlock Function Operation Mode

Selective unlock function operation mode can be changed using CONSULT.
Refer to

DLK-676, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 5)"

.

REMINDER FUNCTION (DOOR REQUEST SWITCH)

When doors are locked or unlocked by door request switch, BCM blinks hazard warning lamps as a reminder
and transmits Intelligent Key warning buzzer request signal to Intelligent Key warning buzzer or horn reminder
signal to IPDM E/R via CAN communication. Reminder function does not operate if ignition switch in ON posi-
tion. The reminder function has C mode and S mode.

*1

: Work support mode [ANSWER BACK I-KEY LOCK UNLOCK] setting is [BUZZER]

*2

: Work support mode [ANSWER BACK I-KEY LOCK UNLOCK] setting is [HORN]

How to Change Reminder Function Operation Mode

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Selective unlock function is not operating
• P position warning is not activated
• Intelligent Key is outside the vehicle

• Intelligent Key is within outside key antenna detection area

*

Unlock
(One touch unlock function is setting in OFF)

• Vehicle speed: 0 km/h
• Intelligent Key is outside the vehicle

• Intelligent Key is within outside key antenna detection area

*

JMKIA4534ZZ

Operation

C mode

S mode

Door request switch

Lock

Unlock

Lock

Unlock

Hazard warning lamp

Twice

Once

Twice

Intelligent Key warning

buzzer

*1

Twice

Once

Horn

*2

Once

DLK-664

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (INTELLIGENT KEY SYSTEM)

 With CONSULT

Reminder function operation mode can be changed using CONSULT.
Refer to

DLK-676, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 5)"

.

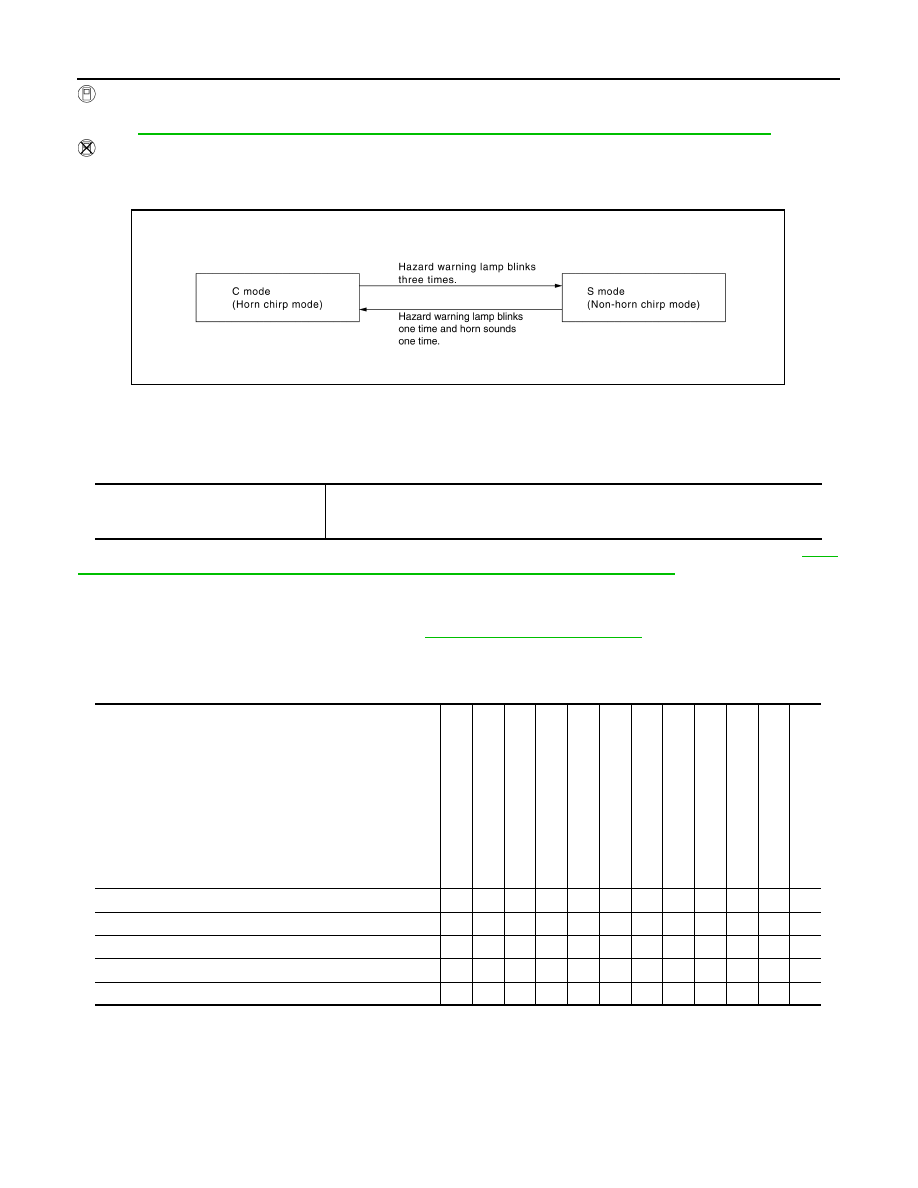

 Without CONSULT

When lock and unlock signal are sent from the Intelligent Key for more than 4 seconds at the same time, the
hazard and buzzer reminder mode is changed and hazard warning lamp blinks and horn sounds as per the fol-
lowing items:

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 60 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

676, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 5)"

.

DOOR LOCK STATUS INDICATOR OPERATION

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-658, "System Description"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

BACK DOOR OPEN FUNCTION

JMKIB1365GB

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

Door lock function

In

te

lli

ge

nt K

e

y

Rem

o

te

ke

yle

s

s e

n

tr

y re

ce

iv

er

Do

or swi

tch

Doo

r re

qu

es

t s

w

itc

h

Do

or lo

ck

 ac

tu

at

o

r

In

si

de

 key an

ten

n

a

O

u

tsi

d

e

 ke

an

ten

n

a

CAN c

o

m

m

uni

ca

tio

n

 sy

st

em

BCM

Hazard warning

lamp

Pu

sh

-bu

tto

n i

g

n

iti

on

 swi

tch

Com

b

ina

tio

n me

ter

Door lock/unlock function

×

×

×

×

×

×

×

×

Reminder function

×

×

×

×

Door lock status indicator operation

×

Selective unlock function

×

×

×

×

×

×

Auto door lock function

×

×

×

×
