COMPONENT PARTS

DLK-657

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Component Description

INFOID:0000000010672301

Item

Function

Door lock and unlock switch

• Transmits door lock/unlock operation to BCM.
• Integrated in the power window main switch and center console assembly.

Combination meter

• Performs operation method guide and warning with buzzer.
• Transmits vehicle speed signal to CAN communication line.

Push-button ignition switch

• BCM transmits the change in the power supply position with the push-button ignition switch

to IPDM E/R via CAN communication line. IPDM E/R transmits the power supply position
status via CAN communication line to BCM.

• Immobilizer antenna amp checks Intelligent Key transponder.

BCM

BCM detects the vehicle status according to signals from each door switch and each outside/
inside key antenna. BCM transmits drive signal to door lock actuator when BCM receives op-
eration signal from remote keyless entry receiver and each switch.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed in-

stallation location.

Door lock actuator

• Inputs locks/unlocks signal from BCM and locks/unlocks each door.
• Integrated in each door lock assembly.

Door request switch

• Transmits door lock/unlock operation to BCM.
• Integrated in the outside handle (driver side, passenger side and back door).

Door switch

Detects door open/close condition.

Inside key antenna

• Detects whether Intelligent Key is inside the vehicle.
• Installed in the instrument center, consol and luggage room.

Intelligent Key warning buzzer

Warns for an inappropriate operation.

Outside key antenna

• Detects whether Intelligent Key is outside the vehicle.
• Integrated in the outside handle.

Intelligent Key

The following functions are available when having and carrying electronic ID.
• Door lock/unlock
• Engine start
• Remote control entry function is available when operating on button.

Unlock sensor

Built-in in driver side door lock assembly
• Detects door lock condition of driver door

DLK-658

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (POWER DOOR LOCK SYSTEM)

SYSTEM (POWER DOOR LOCK SYSTEM)

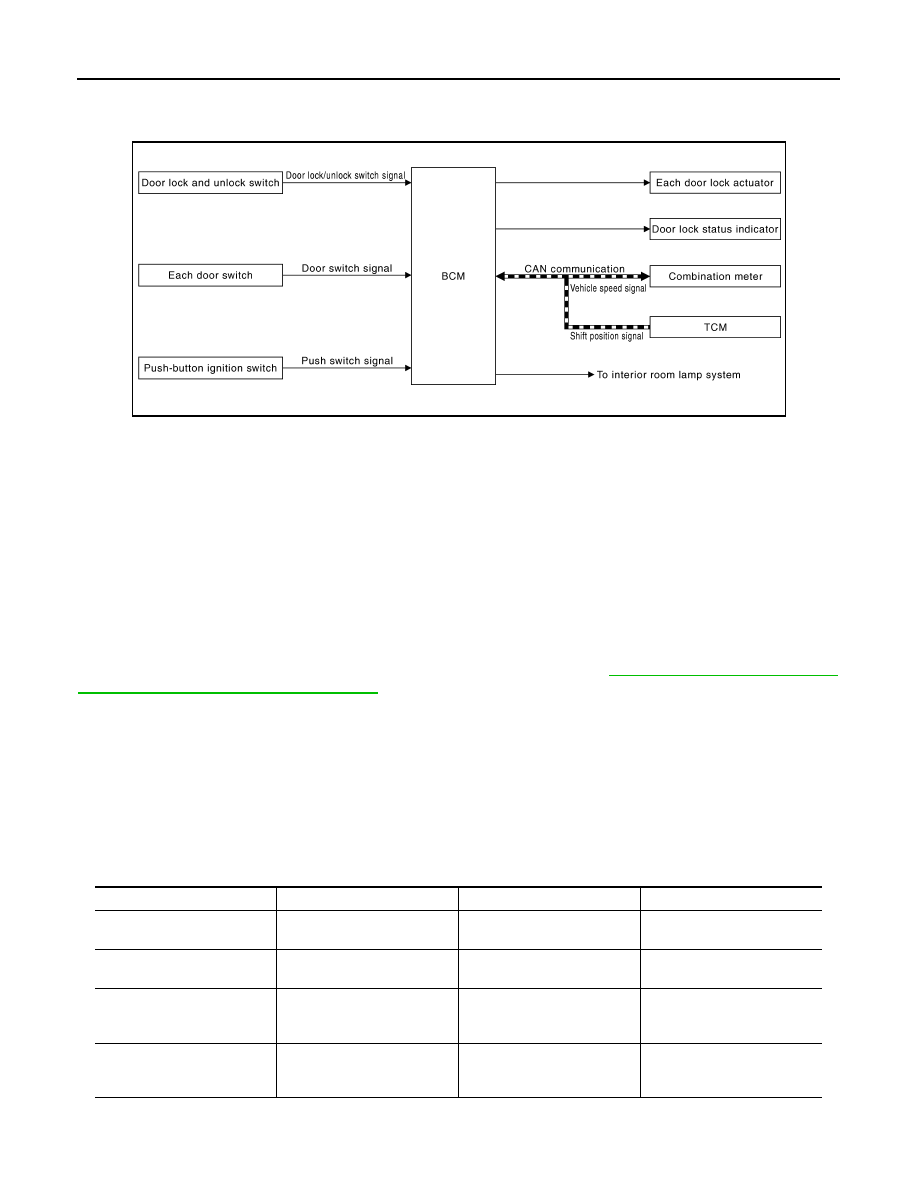

System Diagram

INFOID:0000000010672302

System Description

INFOID:0000000010672303

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is built into power window main switch.
• The door lock and unlock switch (passenger side) is built into front power window switch (passenger side).
• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock /unlock state, refer to

INL-8, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

AIR BAG INTERLOCK UNLOCK FUNCTION

When ignition switch is ON and BCM receives shock status signal, it operates automatically to unlock all
doors. Air bag diagnosis sensor unit sends the shock status signal to BCM via CAN communication.

IGNITION POSITION WARNING FUNCTION

When ignition switch position is ON or ACC and any door is open, all doors cannot locked when door lock and
unlock switch is operated in lock direction.

DOOR LOCK STATUS INDICATOR OPERATION

The door lock status indicator indicates door lock status under the following condition.

JMKIB3634GB

Indicator operation

Ignition position

Door status

Lock operation

ON (30 minutes timer)

OFF

All doors are closed and door
is locked

Door lock and unlock switch

ON

ON

All doors are closed and door
is locked

Door lock and unlock switch

ON (1 minute timer)

OFF

All doors are closed and door
is locked

Intelligent Key, door request

switch or auto door lock func-

tion

ON

ON

All doors are closed and door
is locked

Intelligent Key, door request

switch or auto door lock func-

tion

SYSTEM (POWER DOOR LOCK SYSTEM)

DLK-659

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (LOCK OPERATION)

The interlock door lock function is the function that locks all doors linked with the vehicle speed or shift posi-
tion. It has 2 types as per the following items.

Vehicle Speed Sensing Auto Door Lock

All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more
BCM outputs the lock signal to all door lock actuators when it detects all doors are closed and the vehicle
speed received from the combination meter via CAN communication becomes 24 km/h (15 MPH) or more.

P Range Interlock Door Lock

All doors are locked when shifting the selector lever from the P position to any position other than P.
BCM outputs the lock signal to all door lock actuators when it detects the shift position signal received from the
TCM via CAN communication is shifted from the P position to any position other than P.

Setting Change of Automatic Door Lock/Unlock Function

The lock operation setting of the automatic door lock/unlock function can be changed.

 With CONSULT

Automatic door lock/unlock function operation mode can be changed using CONSULT.
Refer to

DLK-675, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 5)"

.

 Without CONSULT

The automatic door lock/unlock function (lock operation) ON/OFF can be switched by performing the following
operation.

1.

Close all doors (door switch OFF)

2.

Ignition switch: OFF

→

ON

3.

Press and hold the door lock and unlock switch for 5 seconds or more in the lock direction within 20 sec-
onds after turning the ignition switch ON.

4.

The switching complete when the hazard lamp blinks.

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (UNLOCK OPERATION)

The automatic door lock/unlock function is the function that unlocks all doors linked with the key position or
shift position. It has 2 types as per the following items.

IGN OFF Interlock Door Unlock

All doors are unlocked when the ignition position is changed from ON to OFF.
BCM outputs the unlock signal to all door lock actuators when it detects that the ignition position is changed
from ignition switch ON to OFF.

P Range Interlock Door Unlock

All doors are unlocked when shifting the selector lever from any position other than the P to P position.
BCM outputs the unlock signal to all door lock actuators when it detects the shift position signal received from
TCM via CAN communication is shifted from any position other than the P to P position.

Setting Change of Automatic Door Lock/Unlock Function

The unlock operation setting of the automatic door lock/unlock function can be changed.

 With CONSULT

Automatic door lock/unlock function operation mode can be changed using CONSULT.

ON

→

 OFF

–

(All doors are closed

→

 any

door is open) or (All doors are
locked

→

 any door is un-

locked)

–

ON (timer is running)

→

 ON

(timer is stop)

OFF

→

 ON

–

–

ON

→

 ON (30 minutes timer)

ON

→

 OFF

–

Door lock and unlock switch

ON

→

 ON (1 minute timer)

ON

→

 OFF

–

Intelligent Key, door request

switch or auto door lock func-

tion

Indicator operation

Ignition position

Door status

Lock operation

OFF

→

 ON

: 2 blinks

ON

→

 OFF

: 1 blink

DLK-660

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (POWER DOOR LOCK SYSTEM)

Refer to

DLK-675, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 5)"

.

 Without CONSULT

The automatic door lock/unlock function (unlock operation) ON/OFF can be switched by performing the follow-
ing operation.

1.

Close all doors (door switch OFF)

2.

Ignition switch: OFF

→

ON

3.

Press and hold the door lock and unlock switch for 5 seconds or more in the unlock direction within 20
seconds after turning the power supply position ON.

4.

The switching is complete when the hazard lamp blinks.

OFF

→

 ON

: 2 blinks

ON

→

 OFF

: 1 blink
