Nissan Qashqai J11. Manual - part 1308

REAR DOOR LOCK

DLK-501

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

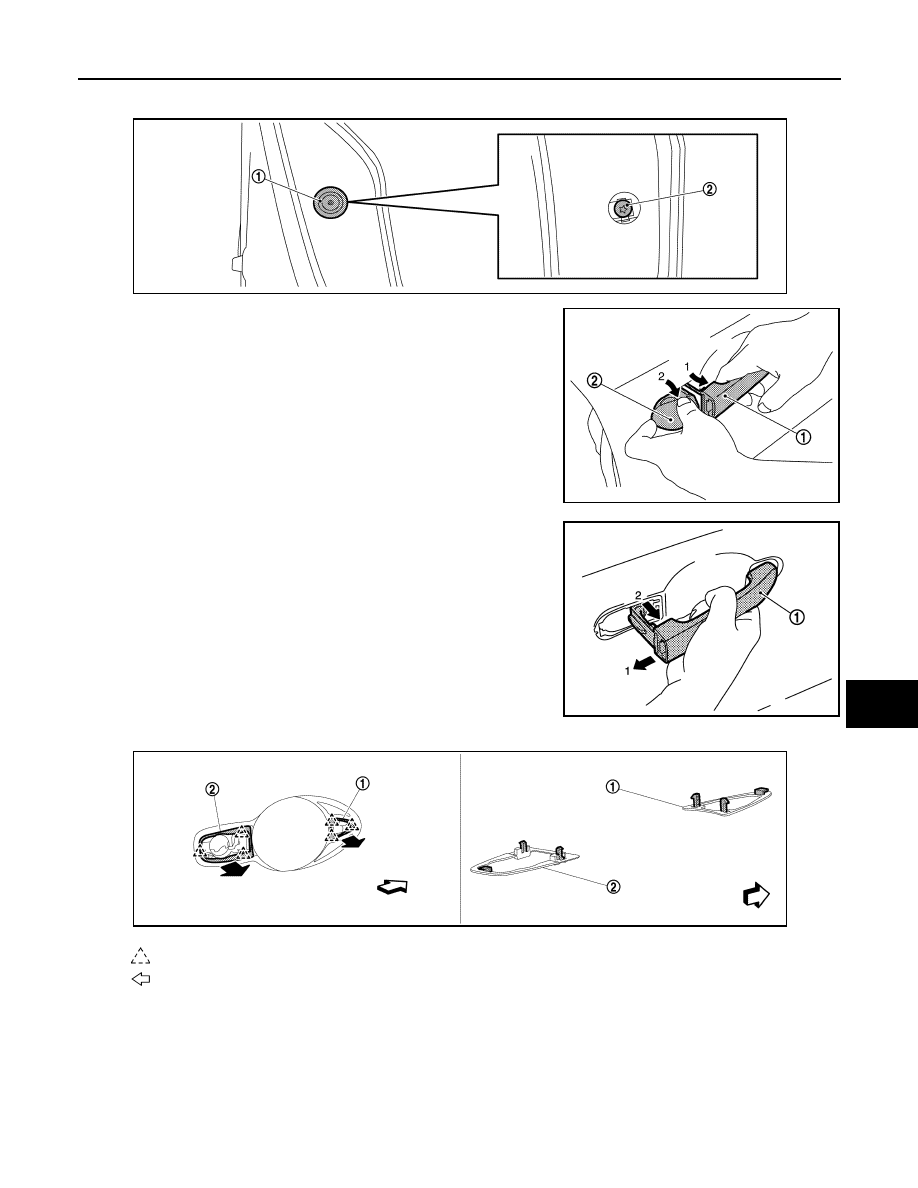

4.

Remove grommet (1) of door side. Loosen, through grommet hole, TORX bolt (2) that fixes outside handle
escutcheon.

5.

While pulling outside handle (1) according to the numerical order
1

→

2 indicated by arrows as shown in the figure, remove outside

handle escutcheon (2).

6.

While pulling outside handle (1) according to the numerical order
1

→

2 indicated by arrows as shown in the figure, slide toward

rear of vehicle to remove outside handle.

7.

Remove front gasket (1) and rear gasket (2).

JMKIB0588ZZ

JMKIA9526ZZ

JMKIA2948ZZ

: Pawl

: Vehicle front

JMKIB2240ZZ

DLK-502

< REMOVAL AND INSTALLATION >

[TYPE 3]

REAR DOOR LOCK

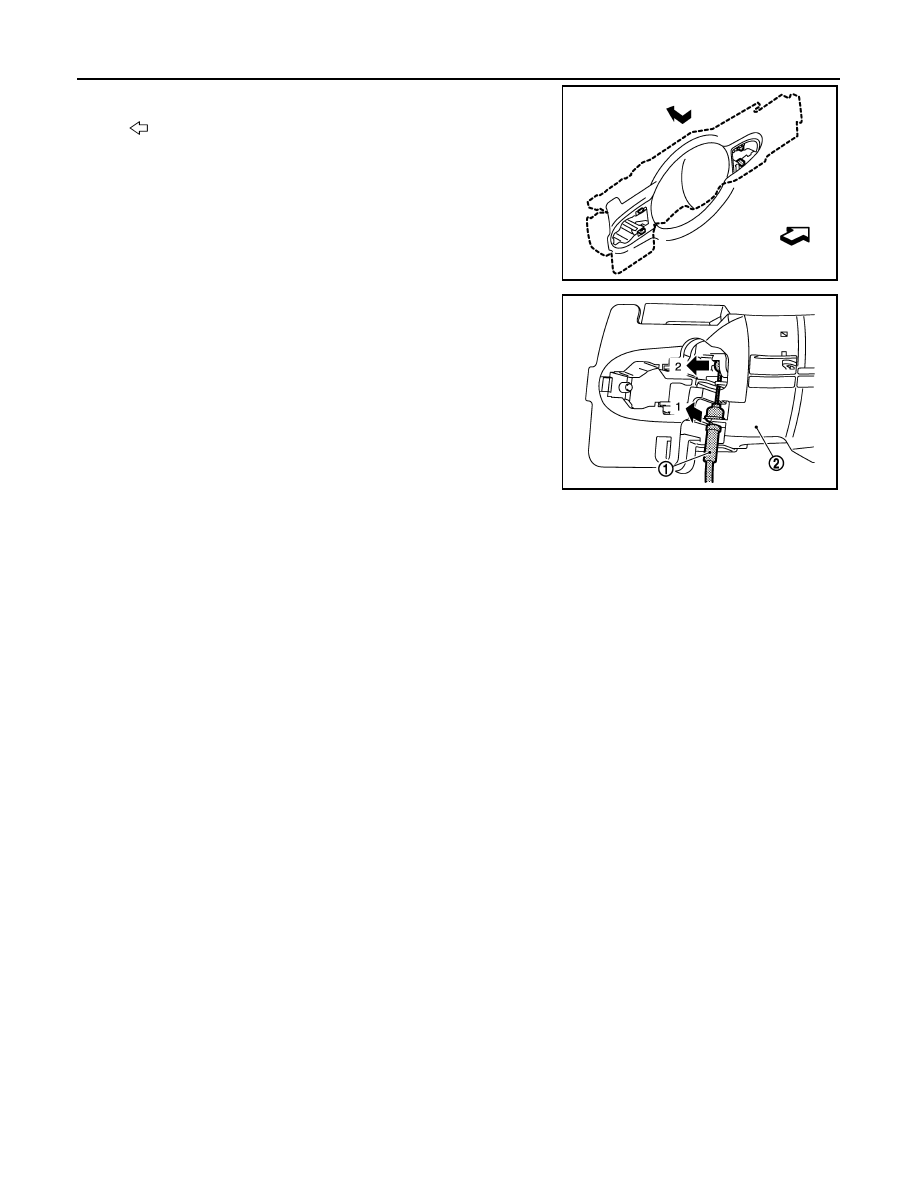

8.

Slide outside handle bracket toward rear of vehicle to remove.

9.

Disconnect outside handle cable (1) from outside handle bracket
(2) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

CAUTION:

Never bend the outside handle cable end.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check that door lock cables are normally engaged with inside handle and outside handle.
• After installation, check door open/close, and lock/unlock operation.

: Vehicle front

JMKIA5935ZZ

JMKIA5936ZZ

BACK DOOR LOCK

DLK-503

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

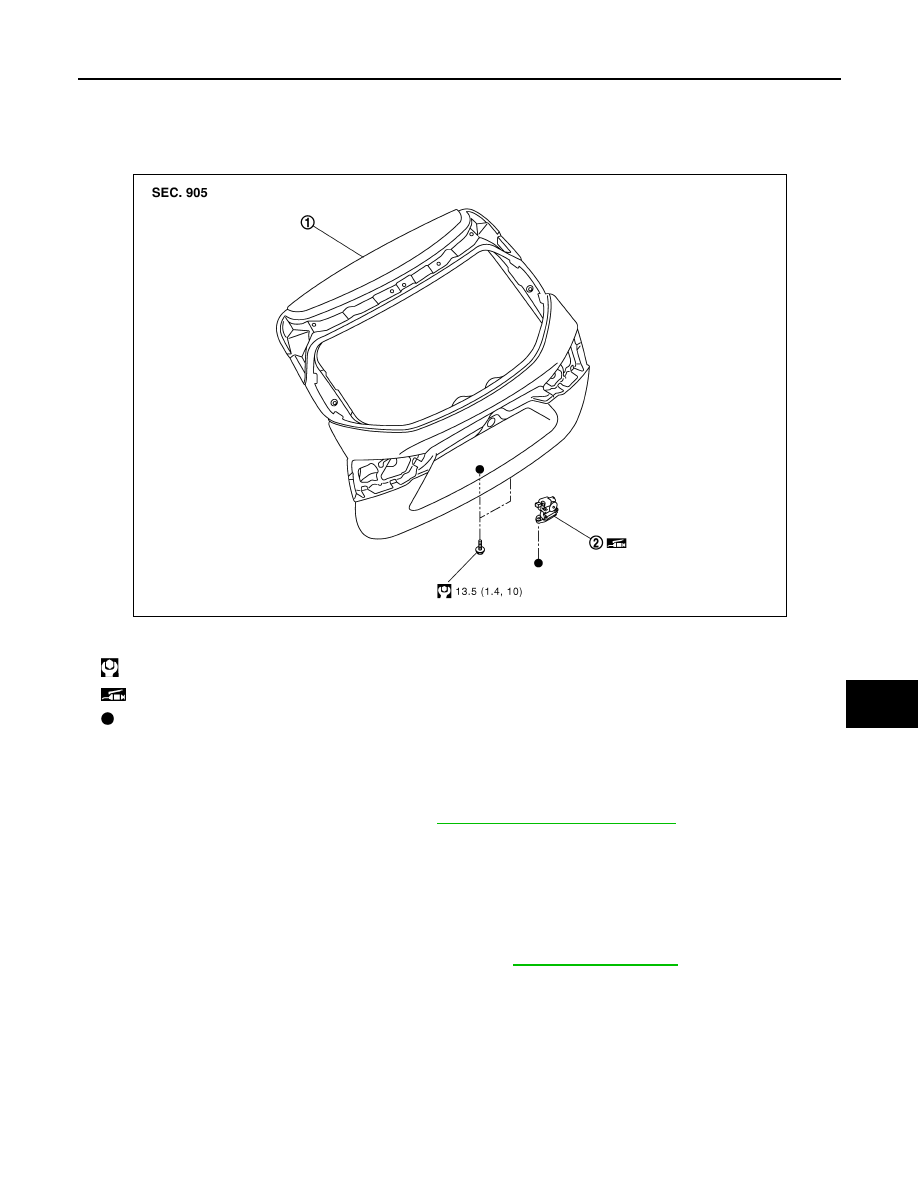

BACK DOOR LOCK

Exploded View

INFOID:0000000010479395

Removal and Installation

INFOID:0000000010479396

REMOVAL

1.

Remove back door trim finisher lower. Refer to

INT-31, "Removal and Installation"

.

2.

Disconnect back door lock harness connector.

3.

Remove back door assembly mounting bolts, and then remove back door lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check back door open/close, and lock/unlock operation.
• Check door lock assembly for poor lubrication. Refer to

DLK-504, "Inspection"

.

1.

Back door panel

2.

Back door lock assembly

: N·m (kg-m, ft-lb)

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3271GB

DLK-504

< REMOVAL AND INSTALLATION >

[TYPE 3]

BACK DOOR LOCK

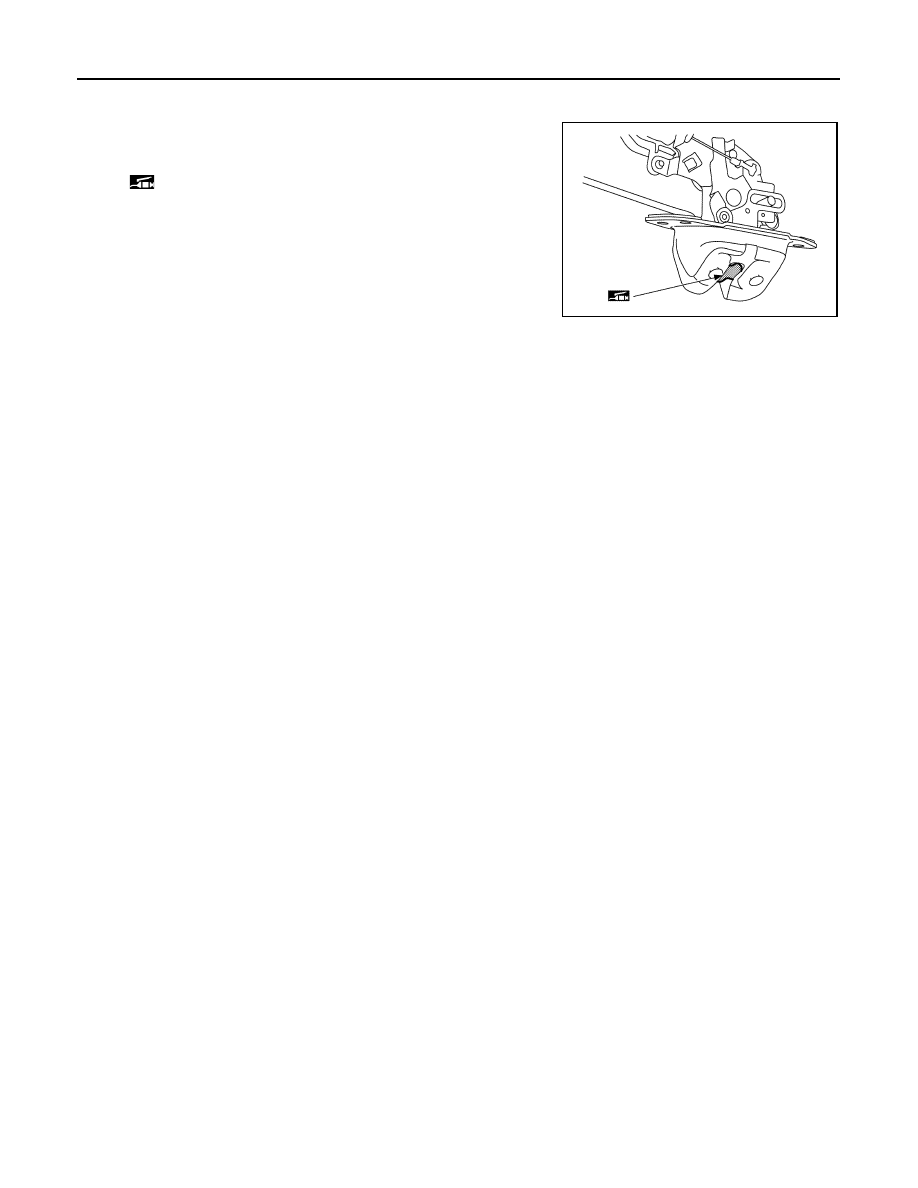

Inspection

INFOID:0000000010479397

Check door lock assembly for poor lubrication. Apply body grease if
necessary.

: Body grease

JMKIB0629ZZ
