REAR DOOR

DLK-481

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR

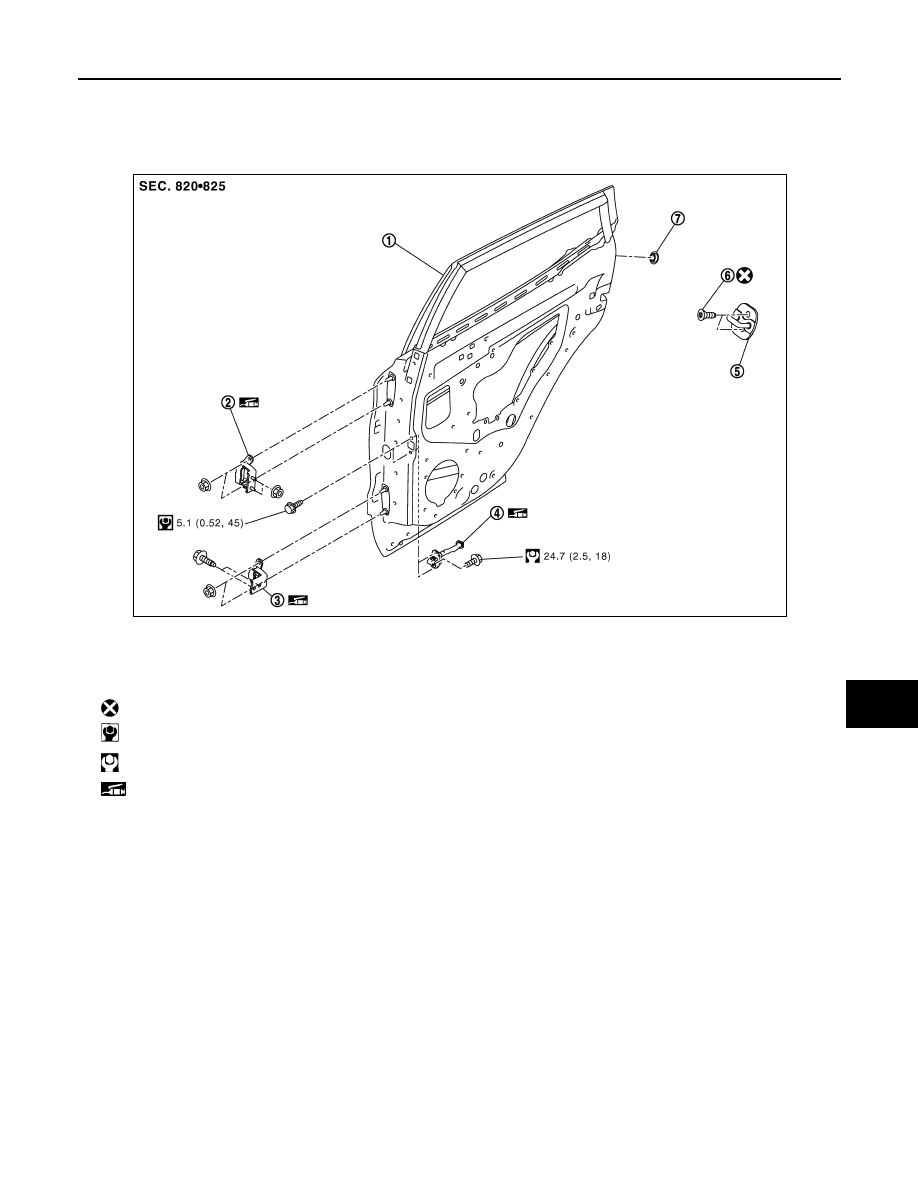

Exploded View

INFOID:0000000010479362

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010479363

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door harness grommet from vehicle body side, and then pull out rear door harness.

2.

Disconnect rear door harness connector.

3.

Remove mounting bolt of door check link on the vehicle.

4.

Remove door hinge mounting nuts of door side, and then remove rear door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

1.

Rear door panel

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Door check link

5.

Door striker

6.

TORX bolt

7.

Grommet

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3249GB

DLK-482

< REMOVAL AND INSTALLATION >

[TYPE 3]

REAR DOOR

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-482, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• Check door hinge and door check link rotating part for poor lubrication.
- Door hinge: Refer to

DLK-484, "DOOR HINGE : Inspection"

.

- Door check link: Refer to

DLK-485, "DOOR CHECK LINK : Inspection"

.

DOOR ASSEMBLY : Adjustment

INFOID:0000000010479364

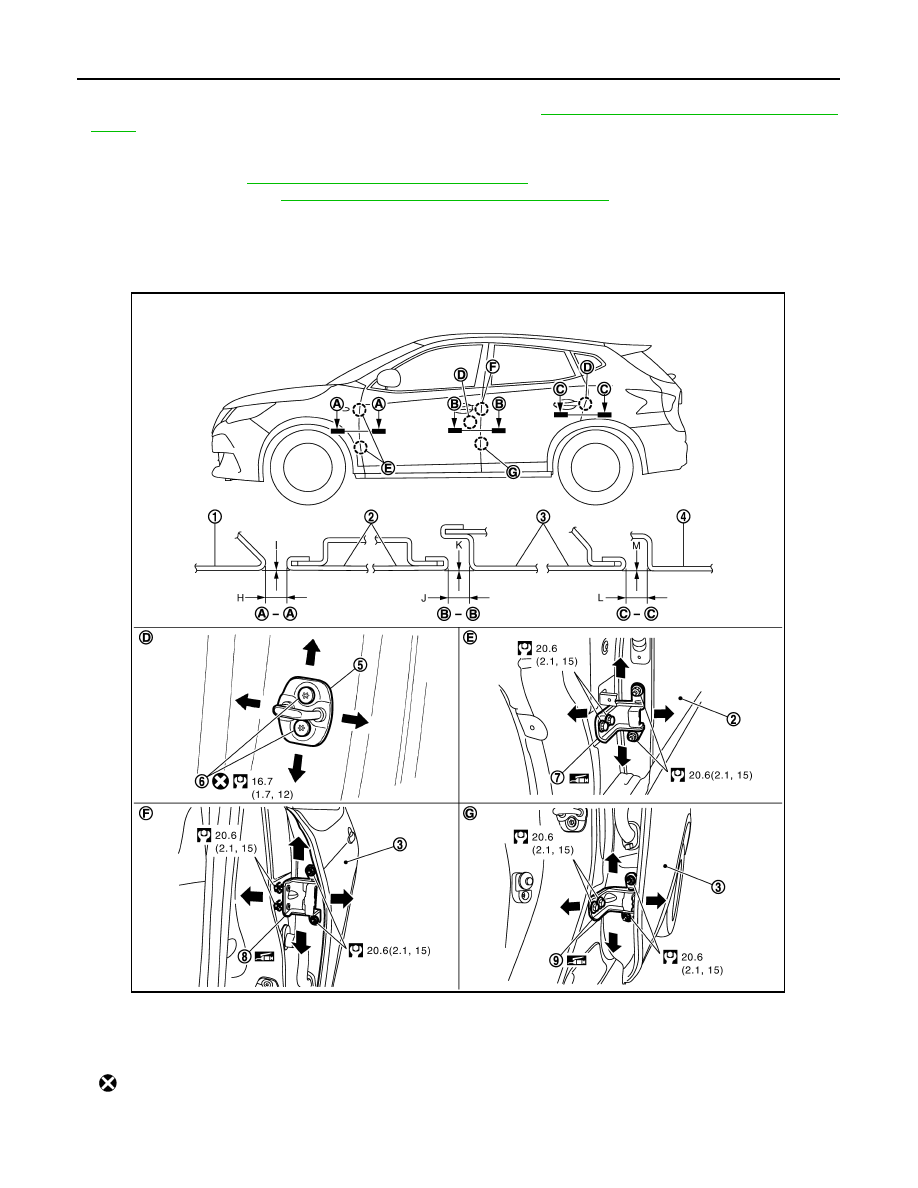

FITTING ADJUSTMENT

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

TORX bolt

7.

Front door hinge

8.

Rear door hinge (upper)

9.

Rear door hinge (lower)

: Always replace after every disassembly.

JMKIB3256GB

REAR DOOR

DLK-483

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Fitting Adjustment Standard

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm [in]

Fitting Adjustment Procedure

1.

Remove center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting nuts and bolts on body side.

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts

and nuts.

• Check door hinge rotating part for poor lubrication. Refer to

DLK-479, "DOOR HINGE : Inspec-

tion"

.

8.

Install center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000010479365

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse mounting TORX bolt. Always replace it with a new one when it is removed.
• Check rear door open/close, lock/unlock operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-482, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000010479366

CAUTION:

• Perform work with 2 workers, because of its heavy weight.

: N·m (kg-m, ft-lb)

: Body grease

Portion

Standard

Front door – Rear door

B – B

J

Clearance

3.3 – 5.3

[0.130 – 0.209]

K

Surface

height

(

−

1.0) – (+1.0)

[(

−

0.039) – (+0.039)]

Rear door – Body side panel

C – C

L

Clearance

3.5 – 5.5

[0.138 – 0.217]

M

Surface

height

(

−

1.0) – (+1.0)

[(

−

0.039) – (+0.039)]

DLK-484

< REMOVAL AND INSTALLATION >

[TYPE 3]

REAR DOOR

• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door assembly. Refer to

DLK-481, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove door hinge mounting bolts of vehicle body side, and then remove door hinge (lower).

3.

Remove center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

4.

Remove door hinge mounting nuts of vehicle body side, and then remove door hinge (upper).

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-477, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check door hinge rotating part for poor lubrication. Refer to

DLK-484, "DOOR

HINGE : Inspection"

.

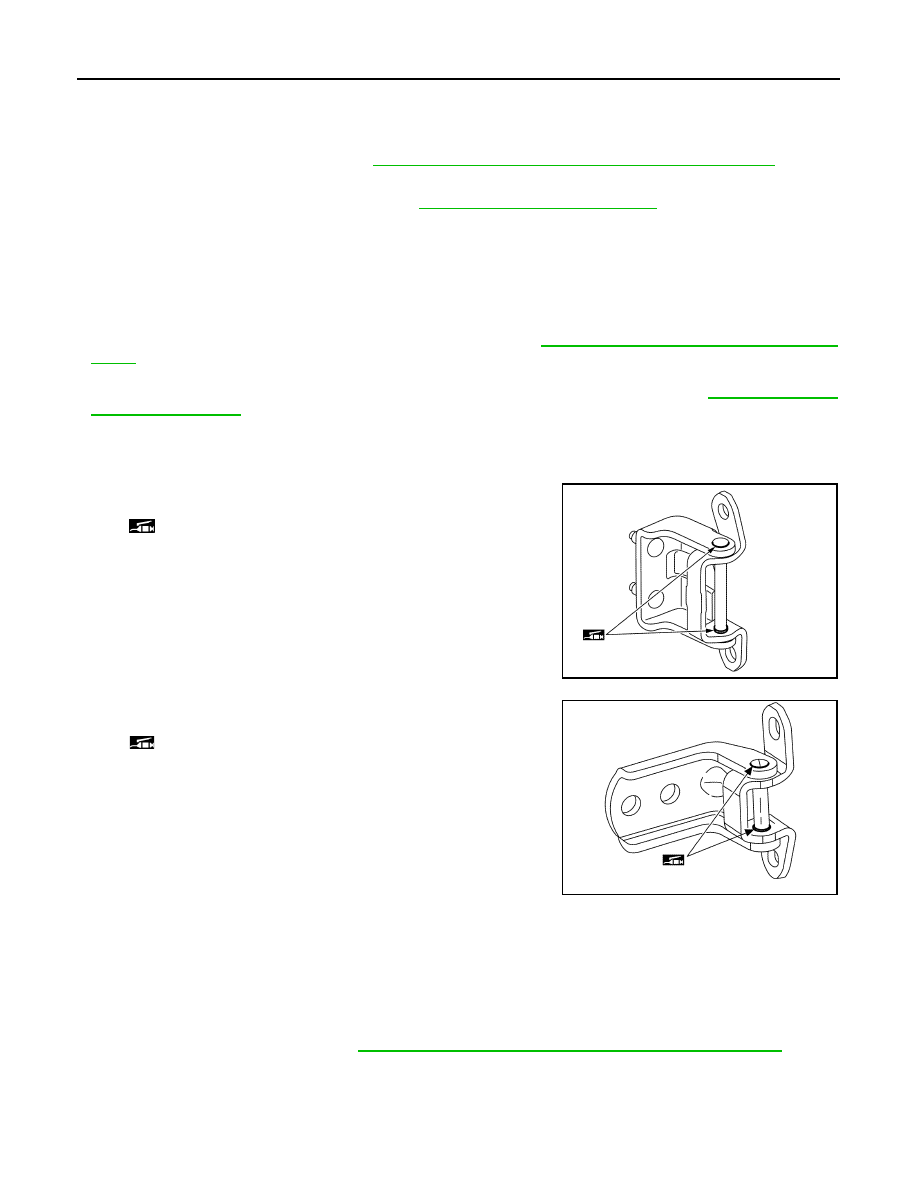

DOOR HINGE : Inspection

INFOID:0000000010479367

Check door hinge rotating part for poor lubrication. Apply body grease if necessary.
• Door hinge (upper)

• Door hinge (lower)

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000010479368

REMOVAL

1.

Fully close the rear door glass.

2.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Removal and Installation"

.

3.

Remove rear door speaker.

a.

Disconnect rear door speaker harness connector.

b.

Remove rear door speaker mounting bolts, and then remove rear door speaker.

4.

Remove check link mounting bolts of vehicle body side.

: Body grease

JMKIB0329ZZ

: Body grease
