RADIATOR CORE SUPPORT

DLK-473

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CVT models

R9M : Removal and Installation

INFOID:0000000010479351

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-528, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-492, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-492,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-125, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-77, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

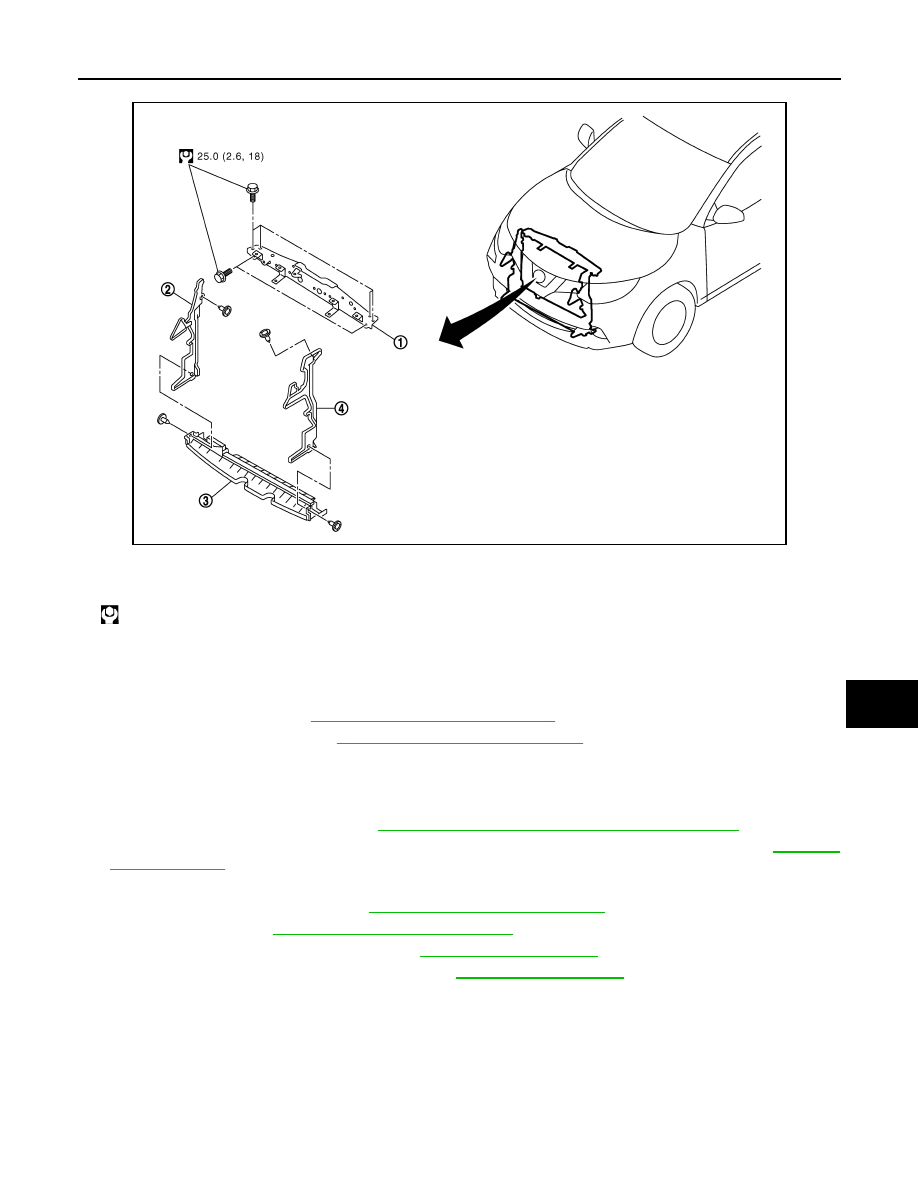

JMKIB3300GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

DLK-474

< REMOVAL AND INSTALLATION >

[TYPE 3]

FRONT FENDER

FRONT FENDER

Exploded View

INFOID:0000000010479352

Removal and Installation

INFOID:0000000010479353

CAUTION:

Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Remove fillet molding. Refer to

EXT-38, "Removal and Installation"

.

2.

Remove fender protector. Refer to

EXT-33, "Removal and Installation"

.

3.

Remove front bumper fascia assembly and bumper side bracket. Refer to

EXT-20, "Removal and Installa-

tion"

.

4.

Remove front combination lamp. Refer to

EXL-319, "Removal and Installation"

.

5.

Remove front fender seal.

6.

Remove front fender assembly mounting bolts.

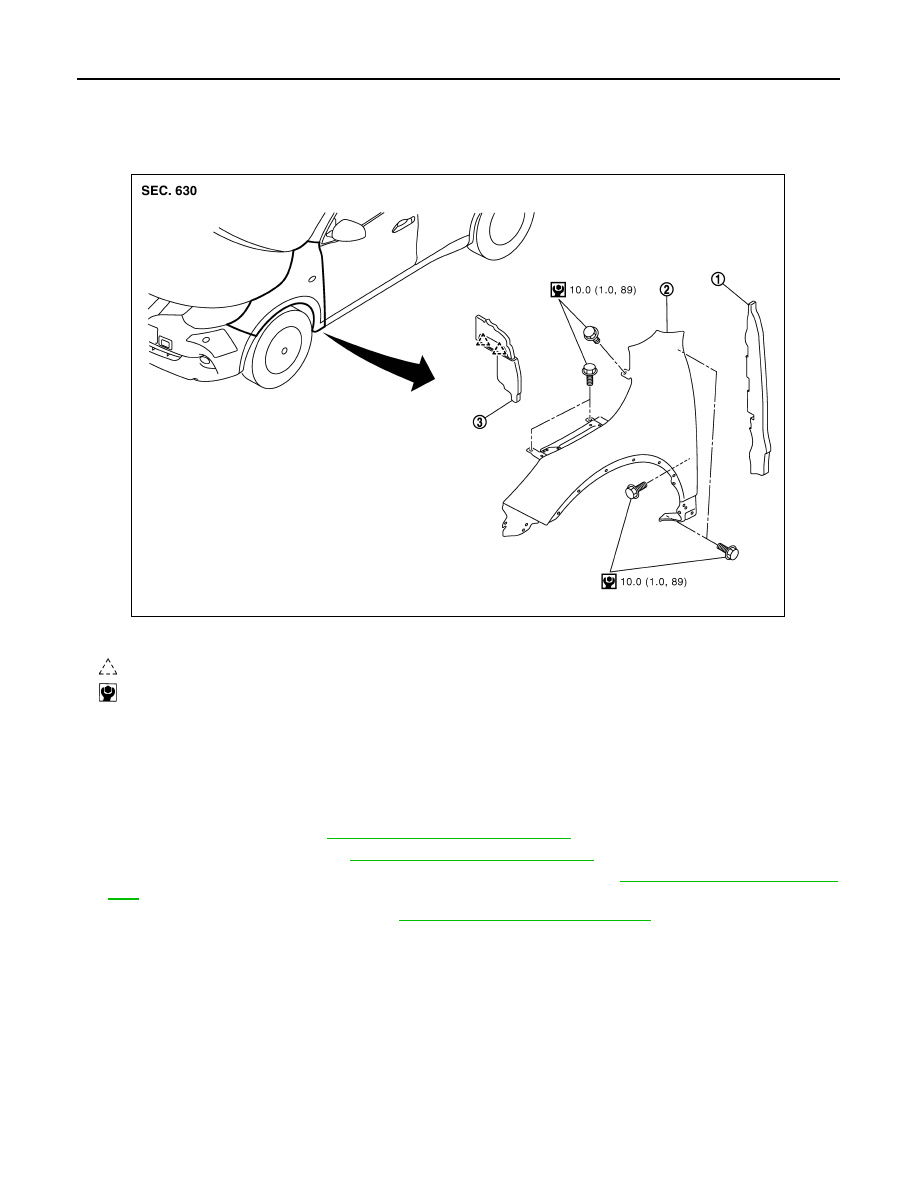

1.

Front fender seal

2.

Front fender assembly

3.

Hoodledge cover

: Pawl

: N·m (kg-m, in-lb)

JMKIB3315GB

FRONT FENDER

DLK-475

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

7.

Remove front fender stiffener (2) from the vehicle body while
carefully pulling upper portion of front fender (1) toward vehicle
outside.

8.

Remove front fender assembly.

CAUTION:

An viscous urethane foam is installed on the back surface of front fender. When removing the
front fender, be careful to not deform the front fender while performing the procedure and remov-
ing the viscous urethane foam a little at a time.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, apply the touch-up paint (the body color) onto the head of front fender mounting

bolts.

• After installation, adjust the following part.
- Hood assembly: Refer to

DLK-465, "HOOD ASSEMBLY : Adjustment"

.

- Front door: Refer to

DLK-477, "DOOR ASSEMBLY : Adjustment"

.

: Vehicle front

JMKIA5633ZZ

DLK-476

< REMOVAL AND INSTALLATION >

[TYPE 3]

FRONT DOOR

FRONT DOOR

Exploded View

INFOID:0000000010479354

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010479355

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove front door harness grommet from vehicle body side, and then pull out front door harness.

2.

Disconnect front door harness connector.

3.

Remove mounting bolt of door check link on the vehicle body.

4.

Remove door hinge mounting nuts of door side, and then remove door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

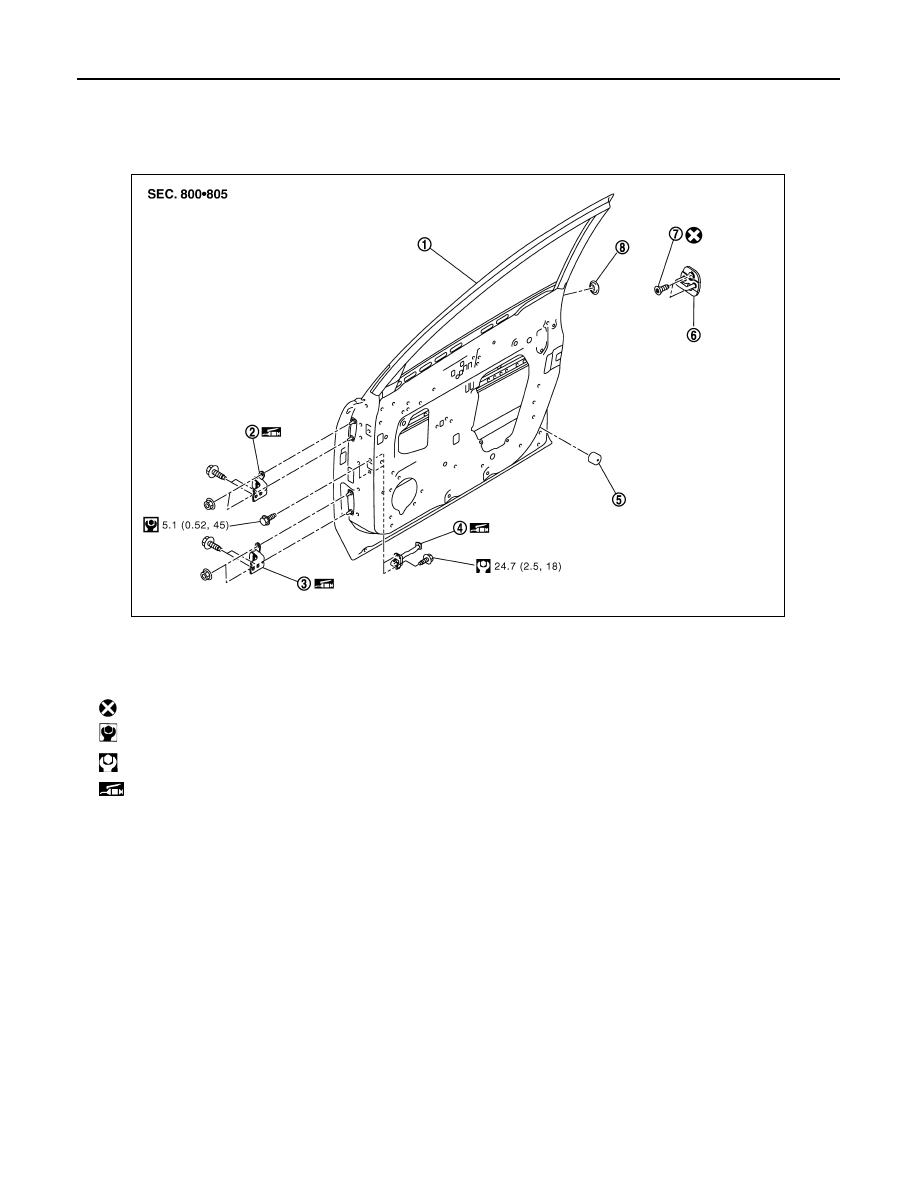

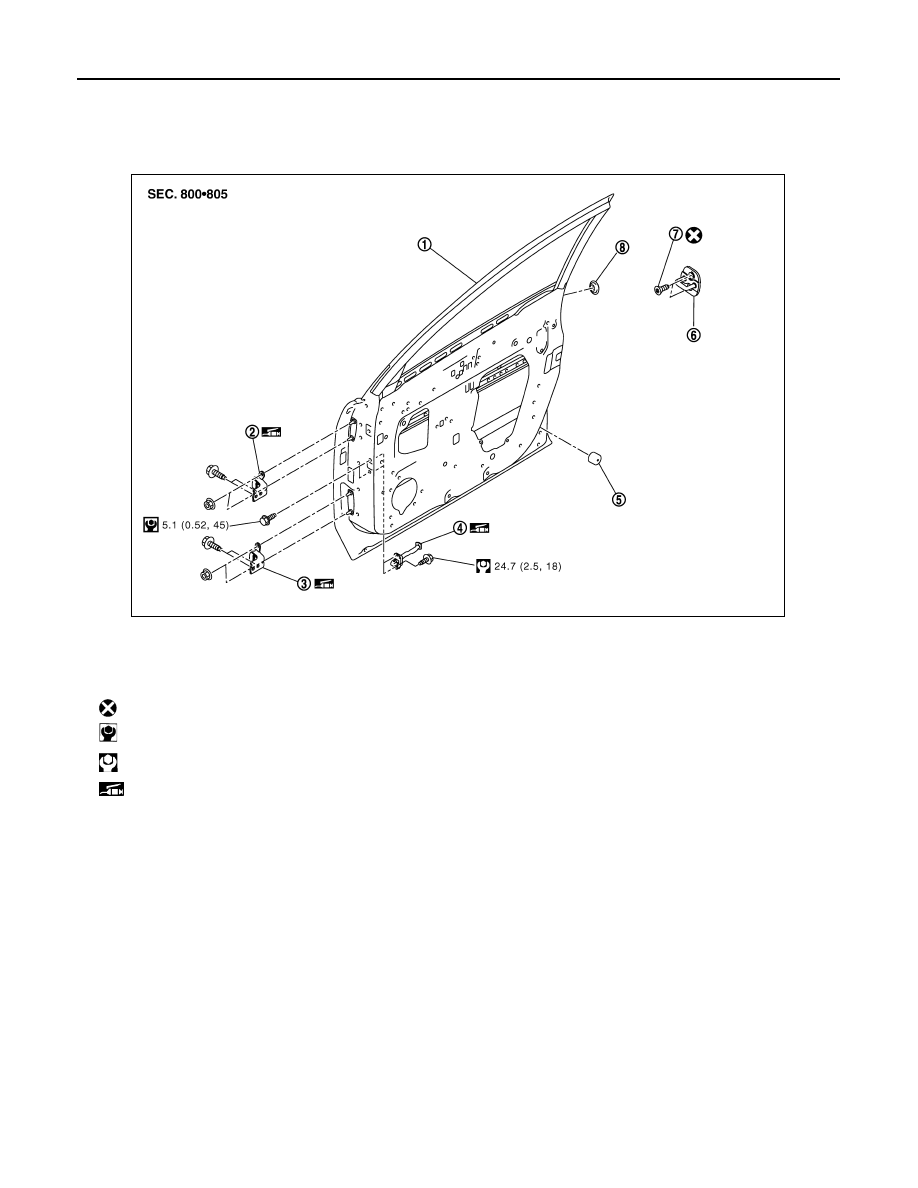

1.

Front door panel

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Door check link

5.

Bumper rubber

6.

Door striker

7.

TORX bolt

8.

Grommet

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3247GB
