Nissan Qashqai J11. Manual - part 1300

RADIATOR CORE SUPPORT

DLK-469

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

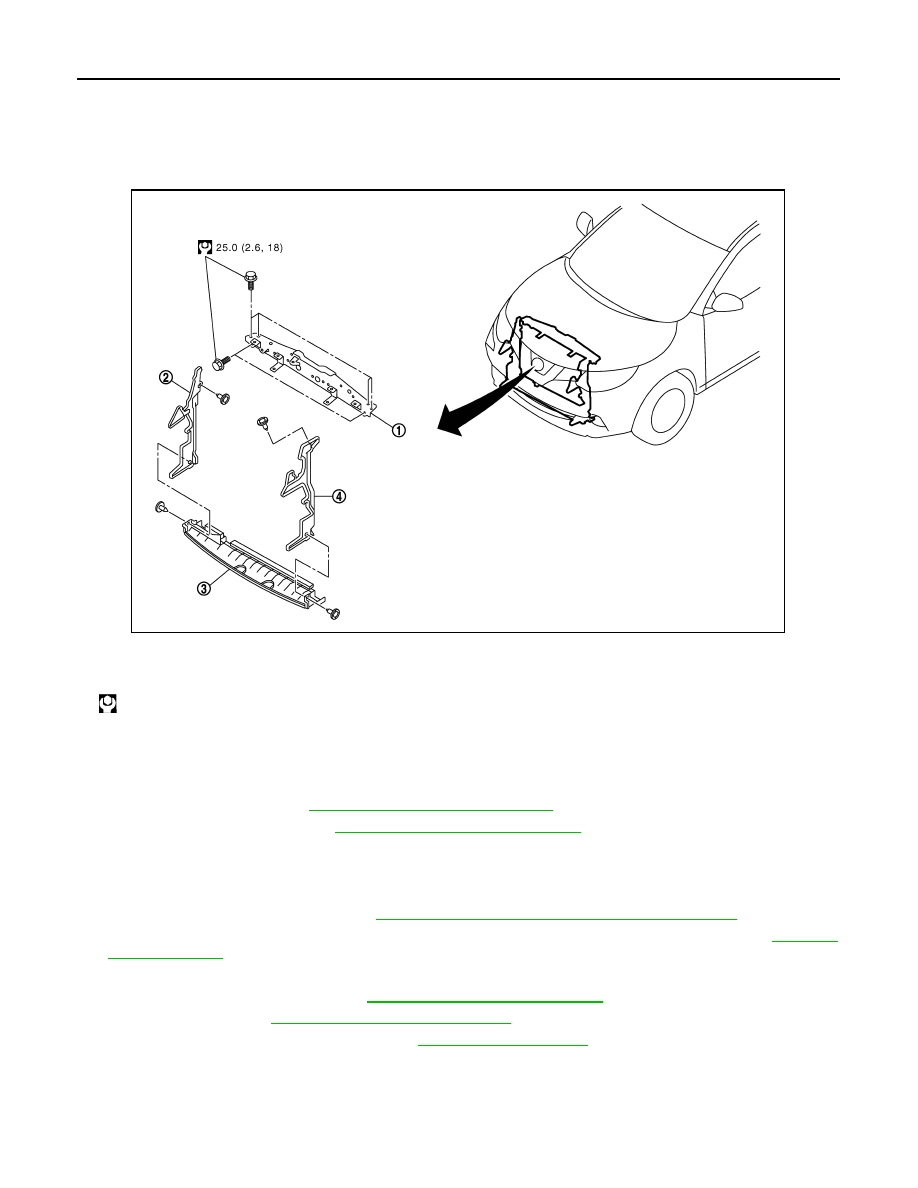

RADIATOR CORE SUPPORT

HRA2DDT

HRA2DDT : Exploded View

INFOID:0000000010479346

HRA2DDT : Removal and Installation

INFOID:0000000010479347

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-24, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-492, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-492,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-18, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-33, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3298GB

DLK-470

< REMOVAL AND INSTALLATION >

[TYPE 3]

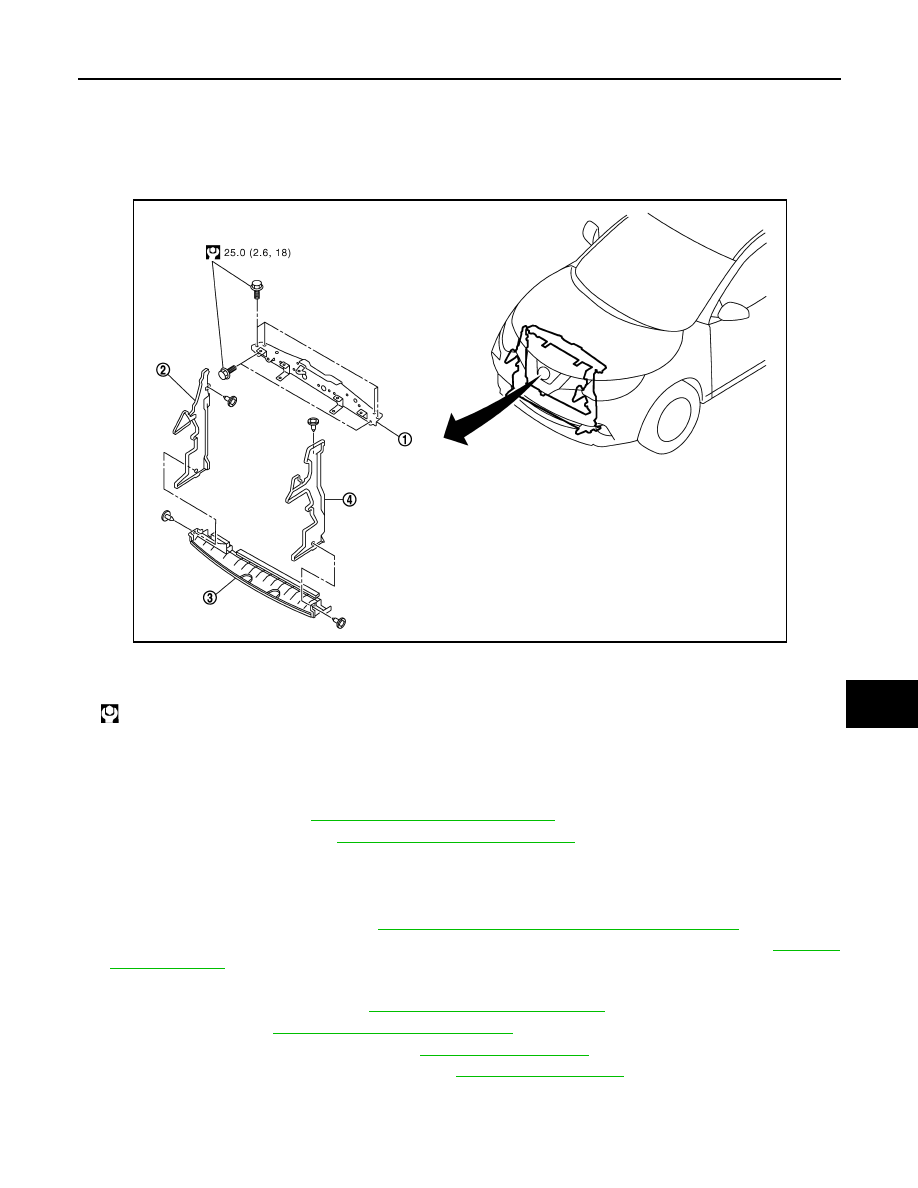

RADIATOR CORE SUPPORT

Install in the reverse order of removal.

MR16DDT

MR16DDT : Exploded View

INFOID:0000000011733752

MR16DDT : Removal and Installation

INFOID:0000000011733753

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-149, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-179, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-179,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-48, "Exploded View"

.

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3299GB

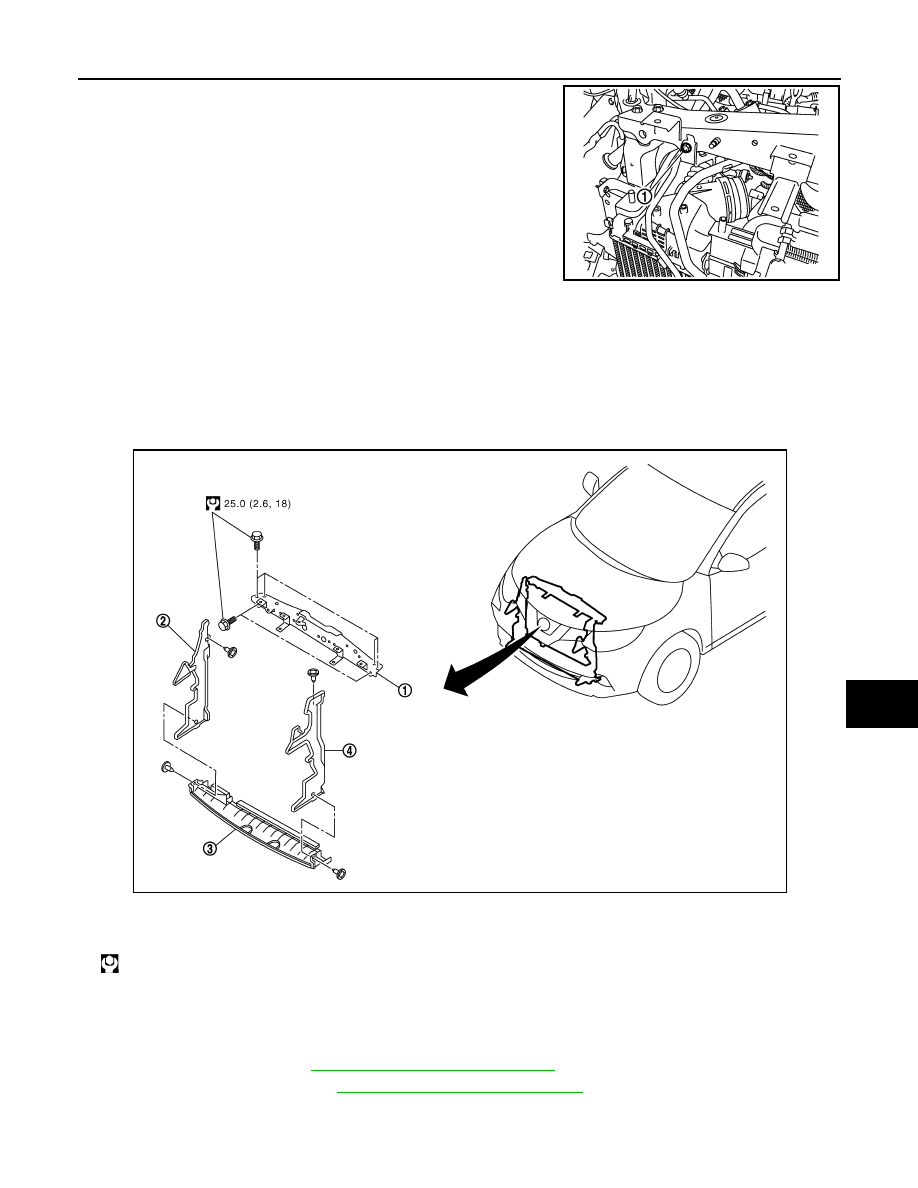

RADIATOR CORE SUPPORT

DLK-471

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

10. Remove A/C pipe bracket mounting bolt (1).

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

K9K

K9K : Exploded View

INFOID:0000000010479348

K9K : Removal and Installation

INFOID:0000000010479349

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-426, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

E1BIA1725ZZ

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3298GB

DLK-472

< REMOVAL AND INSTALLATION >

[TYPE 3]

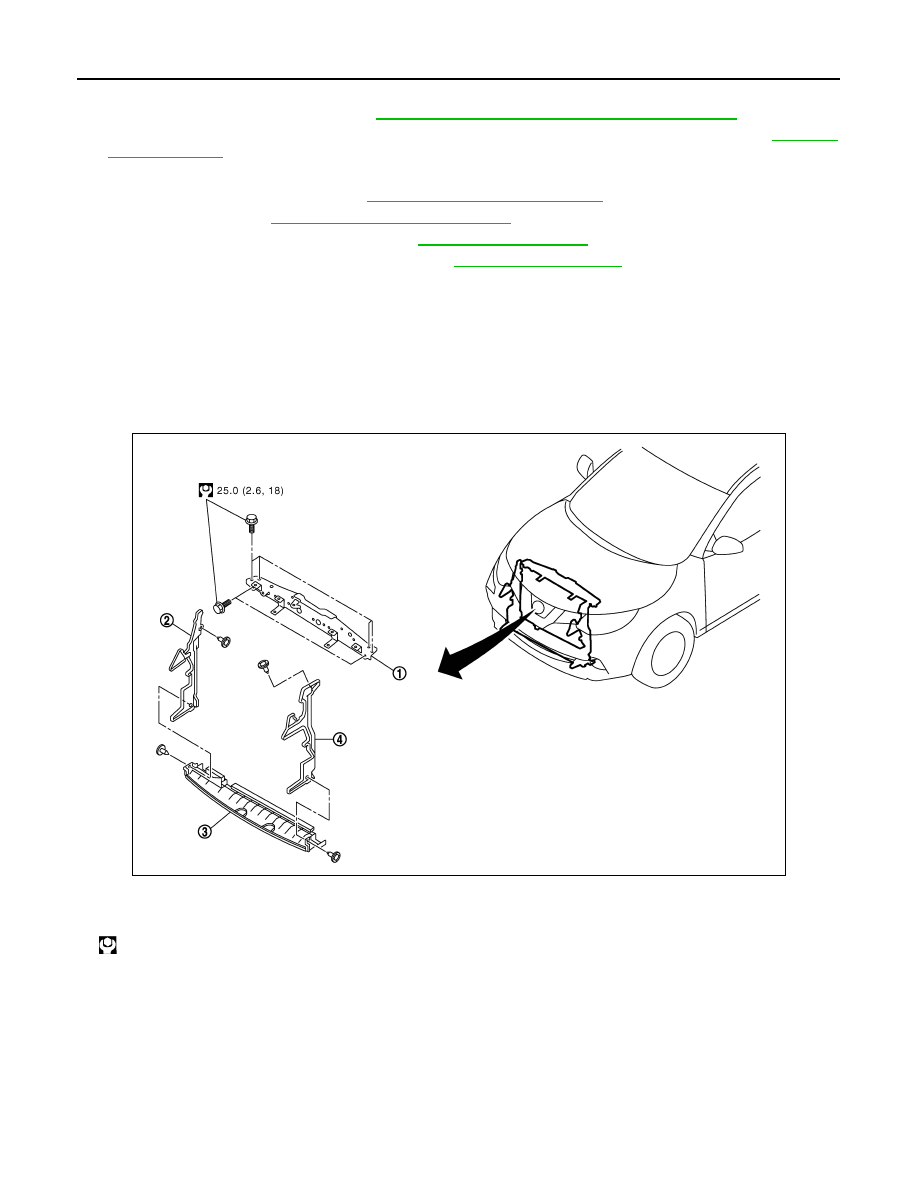

RADIATOR CORE SUPPORT

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-492, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-492,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-99, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-77, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

R9M

R9M : Exploded View

INFOID:0000000010479350

T/M models

JMKIB3299GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)
