DOOR & LOCK SYSTEM

DLK-401

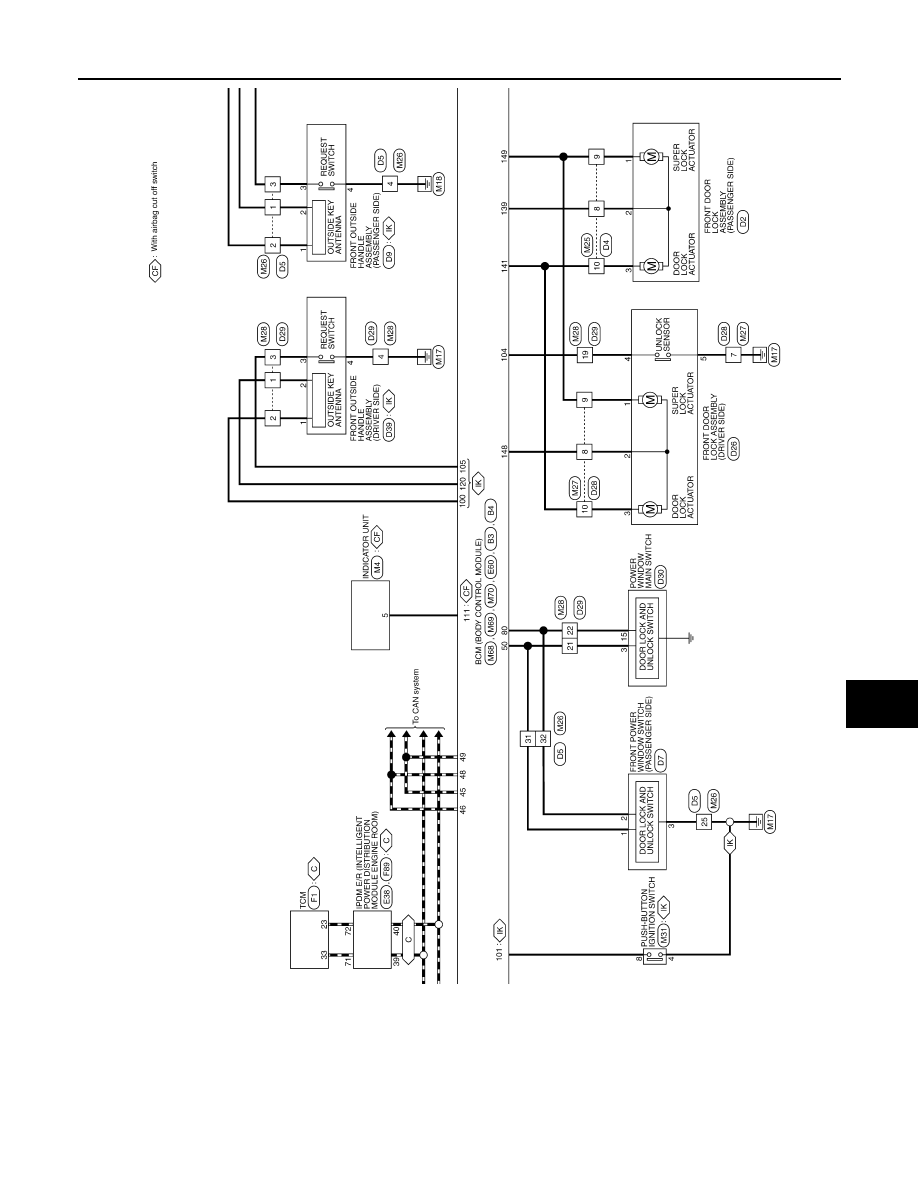

< WIRING DIAGRAM >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3972GB

DLK-402

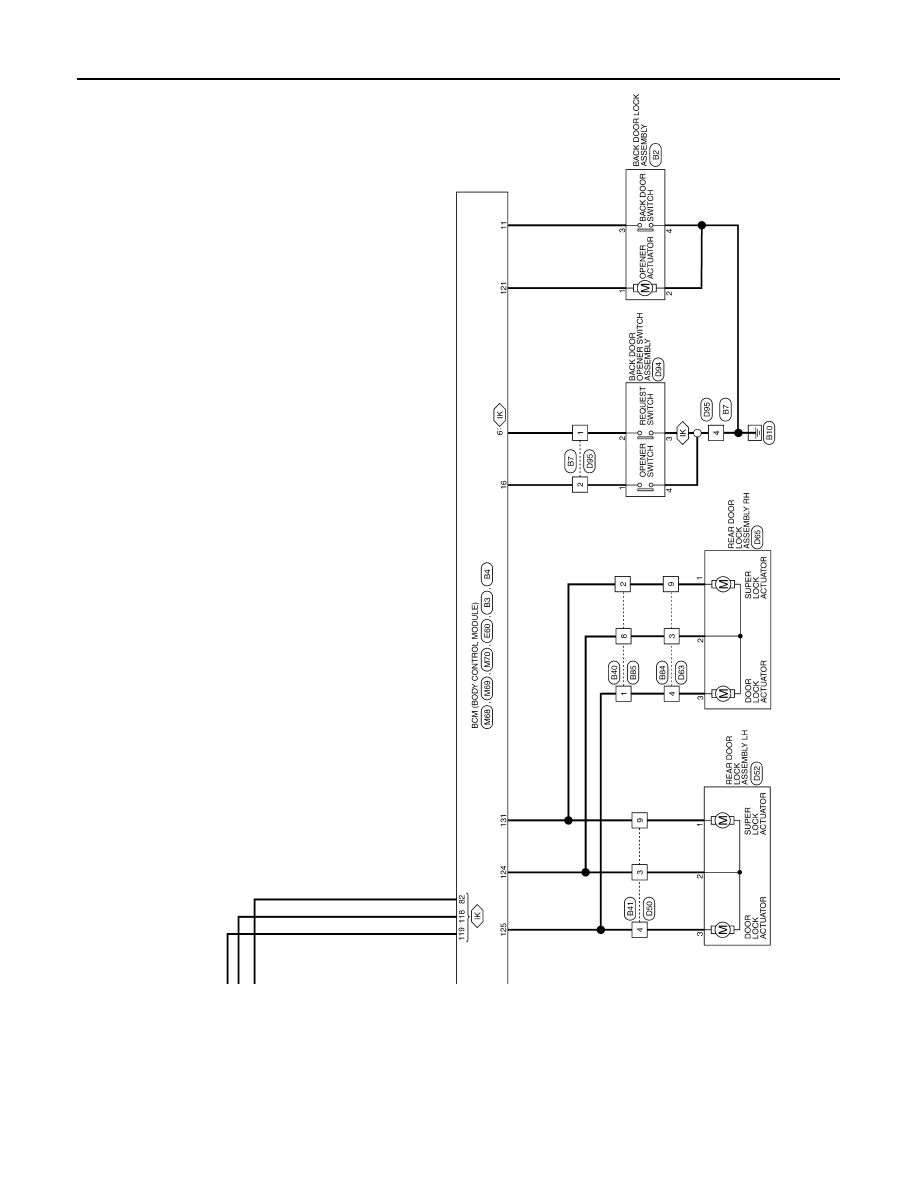

< WIRING DIAGRAM >

[TYPE 3]

DOOR & LOCK SYSTEM

JRKWE3973GB

DOOR & LOCK SYSTEM

DLK-403

< WIRING DIAGRAM >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3974GB

DLK-404

< WIRING DIAGRAM >

[TYPE 3]

DOOR & LOCK SYSTEM

JRKWE3975GB
