REMOTE KEYLESS ENTRY SYSTEM

DLK-393

< SYSTEM DESCRIPTION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OFF

→

 ON

: 1 blinks

ON

→

 OFF

: 3 blink

DLK-394

< SYSTEM DESCRIPTION >

[TYPE 3]

BACK DOOR OPENER SYSTEM

BACK DOOR OPENER SYSTEM

System Description

INFOID:0000000010479504

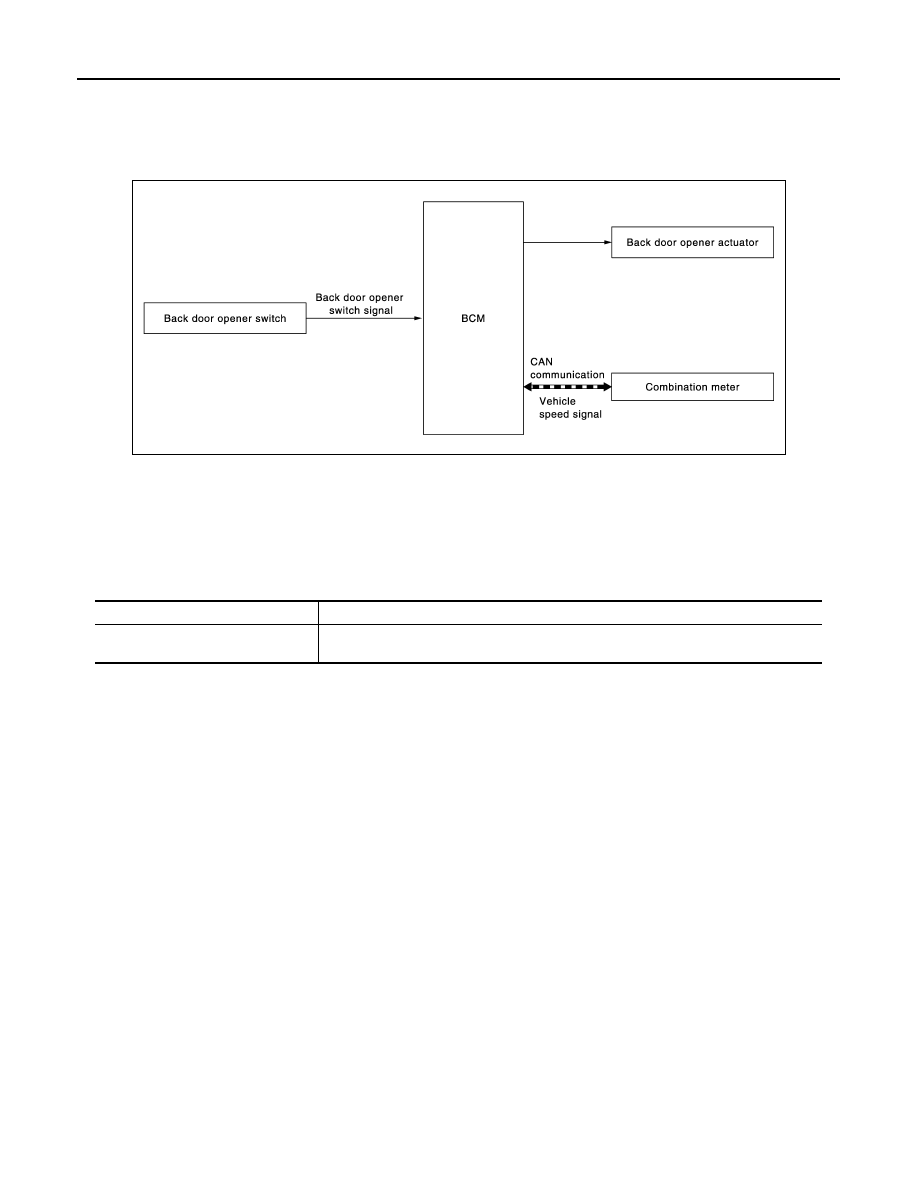

SYSTEM DIAGRAM

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM operates back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are satisfied, back door opener operation is performed.

NOTE:
• When battery terminal is disconnected and reconnected during all doors unlock state, back door may not

open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When battery terminal is reconnected and back door does not open, have BCM recognize that all doors are

in unlock state.

JMKIA6011GB

Back door opener switch operation

Operation condition

Back door open

• All doors are unlocked.
• Vehicle speed is less than 5 km/h (3 MPH)

DIAGNOSIS SYSTEM (BCM)

DLK-395

< SYSTEM DESCRIPTION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010434964

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:
*: This item is displayed, but is not used.

DOOR LOCK

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp control

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Manual A/C

AIR CONDITONER

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

—

IMMU*

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

—

THEFT  ALM*

×

×

×

—

RETAINED PWR*

×

×

Signal buffer system

SIGNAL BUFFER

×

×

Panic alarm

PANIC ALARM

×

DLK-396

< SYSTEM DESCRIPTION >

[TYPE 3]

DIAGNOSIS SYSTEM (BCM)

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 3)

INFOID:0000000010434965

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

MULTI REMOTE ENT

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 3)

INFOID:0000000010737880

WORK SUPPORT

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

SHOCK SENSOR

NOTE:
This item is displayed, but cannot be monitored

KEY SW

Indicated [On/Off] condition of key switch

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLOCK” on CONSULT screen is touched

SUPER LOCK

This test is able to check super lock actuator operation
• The all door lock actuators are set when “LOCK” on CONSULT screen is touched
• The all door lock actuators are released when “UNLOCK” on CONSULT screen is touched

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation
