Nissan Qashqai J11. Manual - part 1280

POWER DOOR LOCK SYSTEM

DLK-389

< SYSTEM DESCRIPTION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER DOOR LOCK SYSTEM

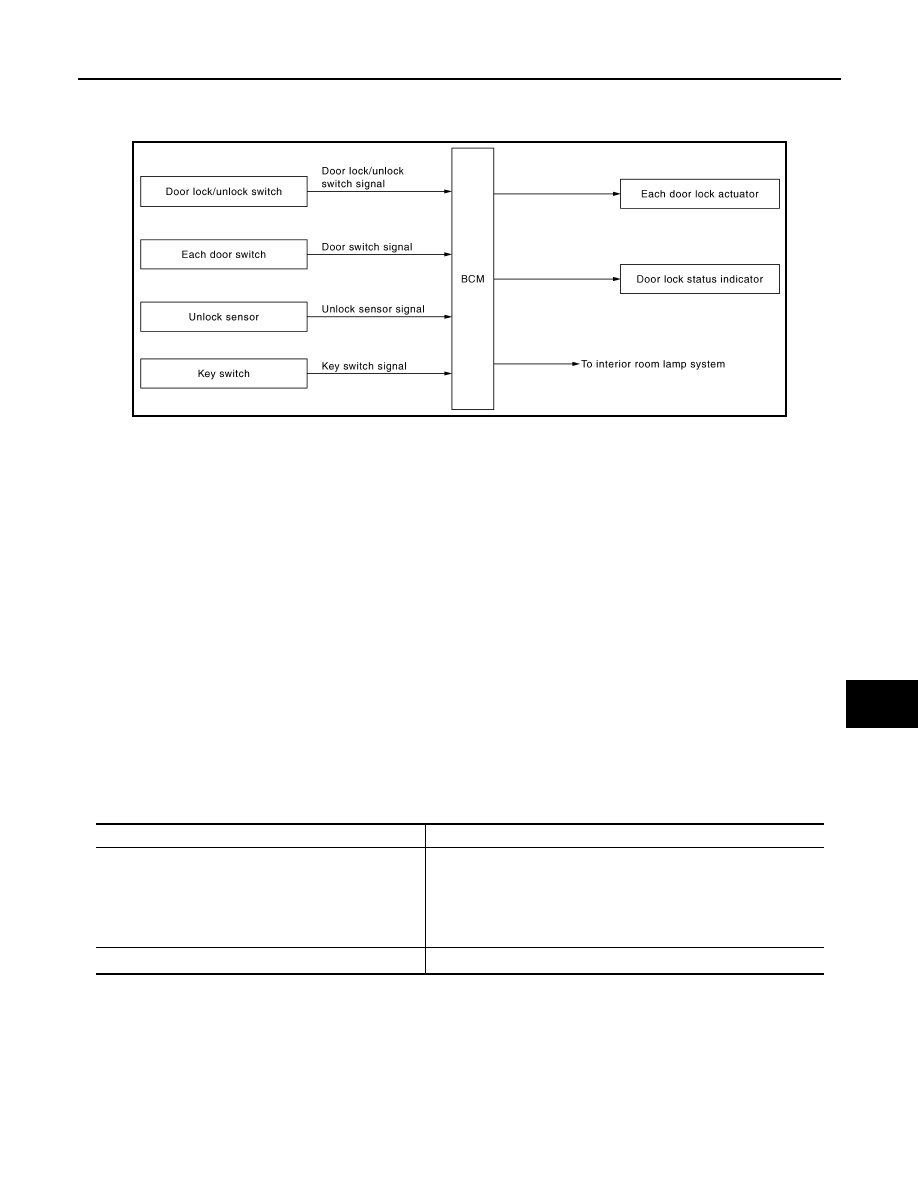

System Diagram

INFOID:0000000010434958

System Description

INFOID:0000000010434959

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is built into power window main switch.
• The door lock and unlock switch (passenger side) is built into front power window switch (passenger side).
• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

Unlock Sensor

• BCM locks all doors or unlocks all doors, when driver door lock knob is operated.
• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position, locks door

lock actuator of all doors.

• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position, unlocks

door lock actuator of all doors.

Operation Condition

If all of the following conditions are satisfied, door lock and unlock operation is performed using the door lock
and unlock switch.

*

1

: While door lock and unlock switch is pressed in the lock direction during this state, combination meter buzzer sounds and warns.

*

2

: When this item becomes OK according to keyfob ID verification, door lock/unlock operation is allowed.

KEY REMINDER FUNCTION

• While ignition key is inserted in ignition key cylinder and driver door is open, door is not locked when door

lock and unlock switch is pressed in the lock direction. This prevents keyfob from being left in the vehicle.

• While door lock and unlock switch is pressed in the lock direction, combination meter buzzer sounds and

warns.

DOOR LOCK STATUS INDICATOR OPERATION

JMKIB2483GB

Door lock and unlock switch operation

Operation condition

LOCK

• Ignition Key is removed from ignition key cylinder and closed driver

side door*

1

• Doors other than drivers door are closed*

1

• Door are not locked by keyfob*

2

• Door lock that is requested is not auto door lock*

2

UNLOCK

Door are not locked by keyfob*

2

DLK-390

< SYSTEM DESCRIPTION >

[TYPE 3]

POWER DOOR LOCK SYSTEM

The door lock status indicator indicates door lock status under the following condition.

UNLOCK LINK FUNCTION

When driver door or passenger door is opened using the override function, all doors are unlocked.
Unlock function operates when driver door or passenger door is open while all of the following conditions are
satisfied.

NOTE:
When anti-hijack function is activated, only the applicable door is unlocked.

Indicator operation

Ignition position

Door status

Lock operation

ON (30 minutes timer)

OFF

All doors are closed and door
is locked

Door lock and unlock switch

ON

ON

All doors are closed and door
is locked

Door lock and unlock switch

ON (1 minute timer)

OFF

All doors are closed and door
is locked

Keyfob or auto door lock func-

tion

ON

ON

All doors are closed and door
is locked

Keyfob or auto door lock func-

tion

ON

→

 OFF

–

(All doors are closed

→

 any

door is open) or (All doors are
locked

→

 any door is un-

locked)

–

ON (timer is running)

→

 ON

(timer is stop)

OFF

→

 ON

–

–

ON

→

 ON (30 minutes timer)

ON

→

 OFF

–

Door lock and unlock switch

ON

→

 ON (1 minute timer)

ON

→

 OFF

–

Keyfob or auto door lock func-

tion

Operation condition

• Doors are locked by door lock/unlock switch or by automatic lock/unlock function
• Driver or passenger door switch is switched from OFF to ON
• Anti-hijack function is not activated
• Vehicle speed is 5 km/h (3 MPH) or less

REMOTE KEYLESS ENTRY SYSTEM

DLK-391

< SYSTEM DESCRIPTION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY SYSTEM

REMOTE KEYLESS ENTRY FUNCTION

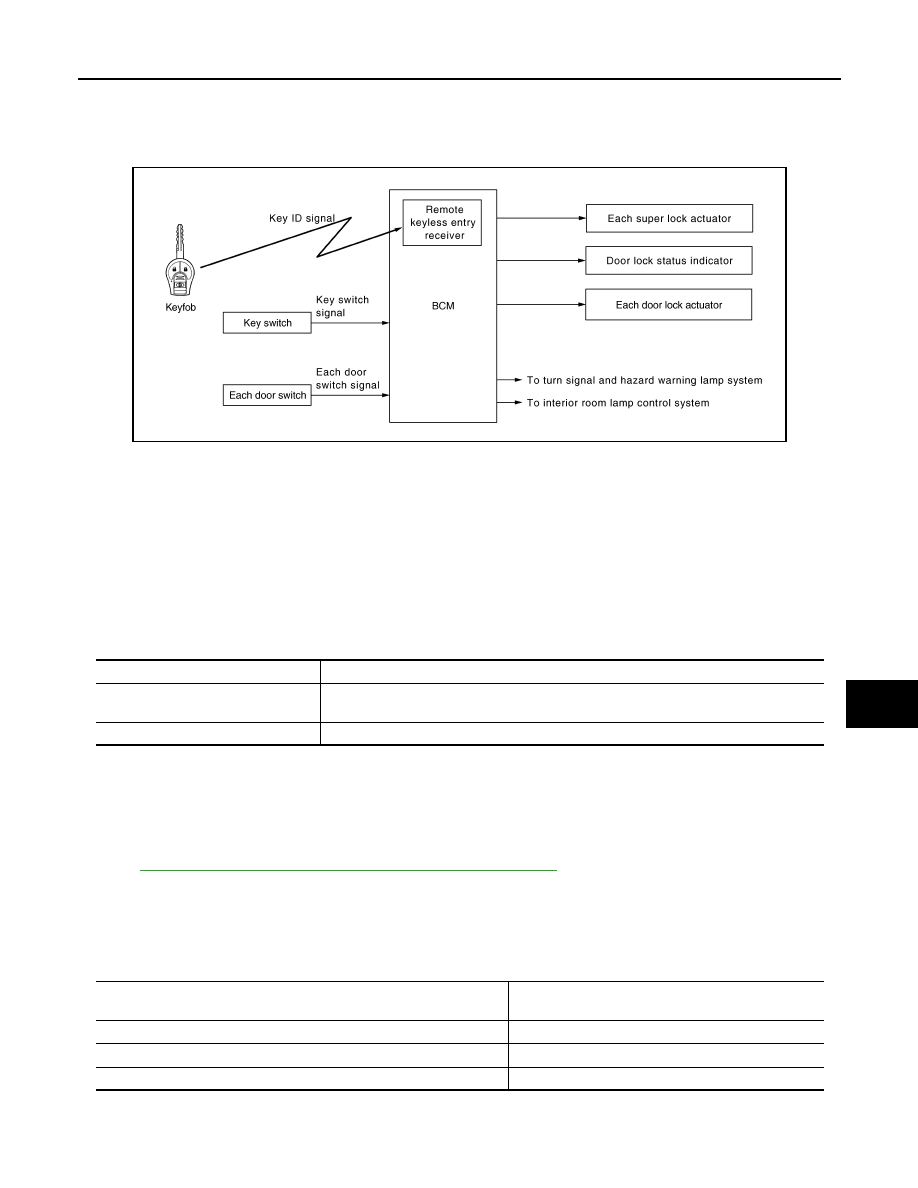

REMOTE KEYLESS ENTRY FUNCTION : System Diagram

INFOID:0000000010434960

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000010434961

DOOR LOCK AND UNLOCK OPERATION

• When door lock and unlock button of keyfob is pressed, door lock and unlock signal transmits from keyfob to

BCM via remote keyless entry receiver.

• When BCM receives the door lock and unlock signal, it operates door lock actuator, blinks the hazard lamp

at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the keyfob is operated.

OPERATION AREA

To ensure that the keyfob works effectively, use within 100 cm (3 ft) range of each door, however the operable
range may differ according to surroundings.

ANTI-HIJACK FUNCTION

Information of super lock function with anti-hijack function.
Refer to

DLK-392, "SUPER LOCK FUNCTION : System Description"

.

HAZARD REMINDER FUNCTION

Operation Description

When doors are locked or unlocked by keyfob button operation, BCM blinks hazard warning lamps as a
reminder.

AUTO DOOR LOCK FUNCTION

JMKIB3322GB

Remote controller operation

Operation condition

Lock

• Key switch is off
• All doors are closed

Unlock

Key switch is off

Door lock operation

(With keyfob button)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

DLK-392

< SYSTEM DESCRIPTION >

[TYPE 3]

REMOTE KEYLESS ENTRY SYSTEM

After door is unlocked by keyfob button operation and if 30 seconds or more passes without performing the fol-
lowing operation, all doors are automatically locked. However, operation check function does not activate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

396, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 3)"

.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock/unlock state, refer to

INL-8, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

SUPER LOCK FUNCTION

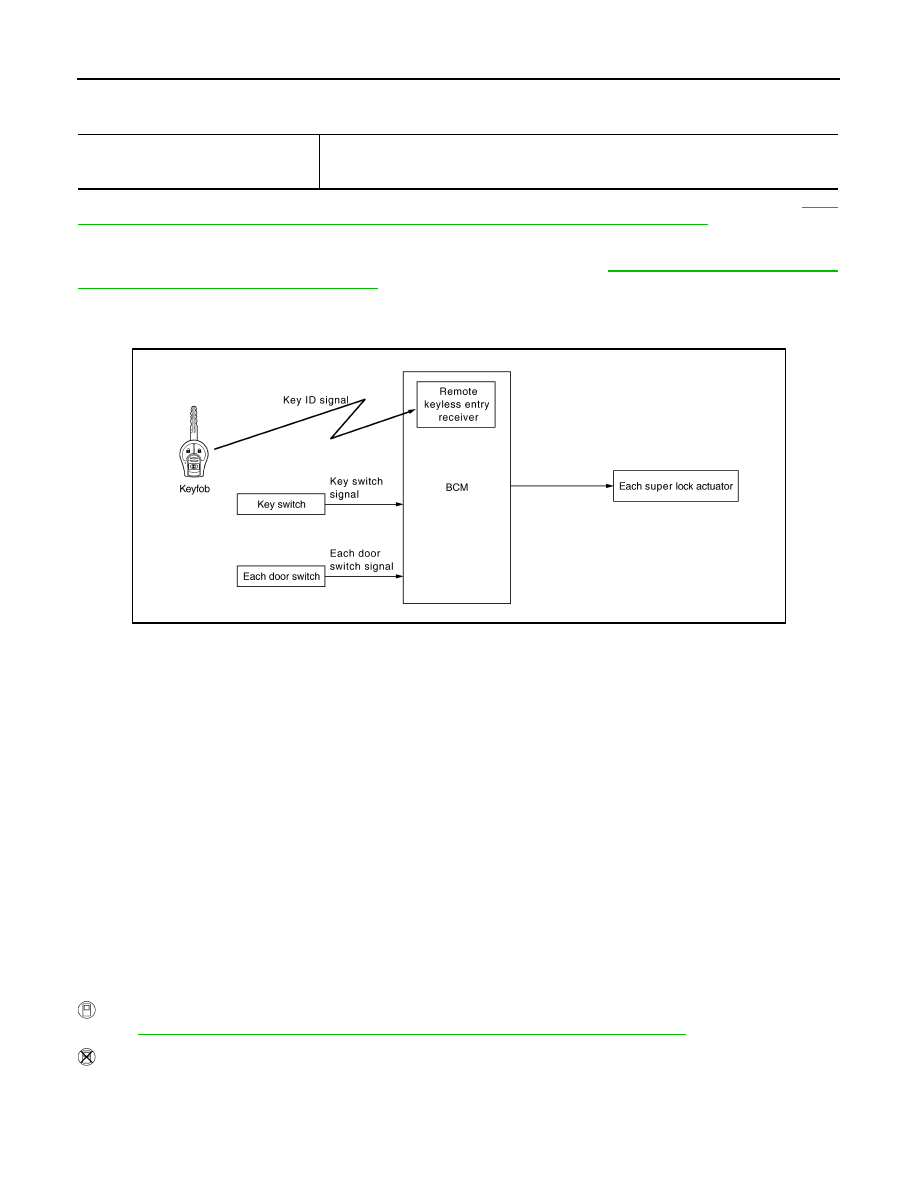

SUPER LOCK FUNCTION : System Diagram

INFOID:0000000010434962

SUPER LOCK FUNCTION : System Description

INFOID:0000000010434963

• Super lock provides a higher anti-theft performance than a conventional door lock function.
• BCM controls the super lock system.
• When all doors are closed super lock system can be set/release by keyfob.
• When super lock is set, inside handle of doors do not work.

SUPER LOCK SET OPERATION (LOCK OPERATION)

When Keyfob lock button is operated while all doors are in unlock state, super lock of all doors is set, and
simultaneously, all doors are locked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) WITH ANTI-HIJACK MODE

When Keyfob unlock button is operated while super lock of all doors is set, super lock of all doors is released,
and simultaneously, driver door are unlocked. When Keyfob unlock button is operated again, all doors are
unlocked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) WITHOUT ANTI-HIJACK MODE

When keyfob unlock button is operated while super lock of all doors is set, super lock of all doors is released,
and simultaneously, all doors are unlocked.

ANTI-HIJACK FUNCTION SETTING

 With CONSULT

Refer to

DLK-396, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 3)"

.

 Without CONSULT

• ON/OFF can be switched when keyfob lock button and unlock button are pressed simultaneously for 4 sec-

onds or more while steering lock is locked.

• When mode is switched, hazard warning lamp blinks.

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Key switch is ON

JMKIB3323GB
