CYLINDER BLOCK

EM-447

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Refer to

GI-4, "Components"

 for symbols shown in the figure.

Disassembly and Assembly

INFOID:0000000010282025

Disassembly

1.

Remove oil level sensor.

CAUTION:

Handle it carefully and avoid impacts.

2.

Remove crankshaft position sensor.

CAUTION:

• Handle it carefully and avoid impacts.
• Never place sensor in a location where it is exposed to magnetism.

3.

Remove rear oil seal retainer.

4.

Remove pilot bushing using the pilot bushing puller (commercial service tool), if necessary.

5.

Remove oil pan (upper). Refer to

EM-437, "Exploded View"

.

6.

Remove oil pump related parts. Refer to

EM-412, "Exploded View"

.

7.

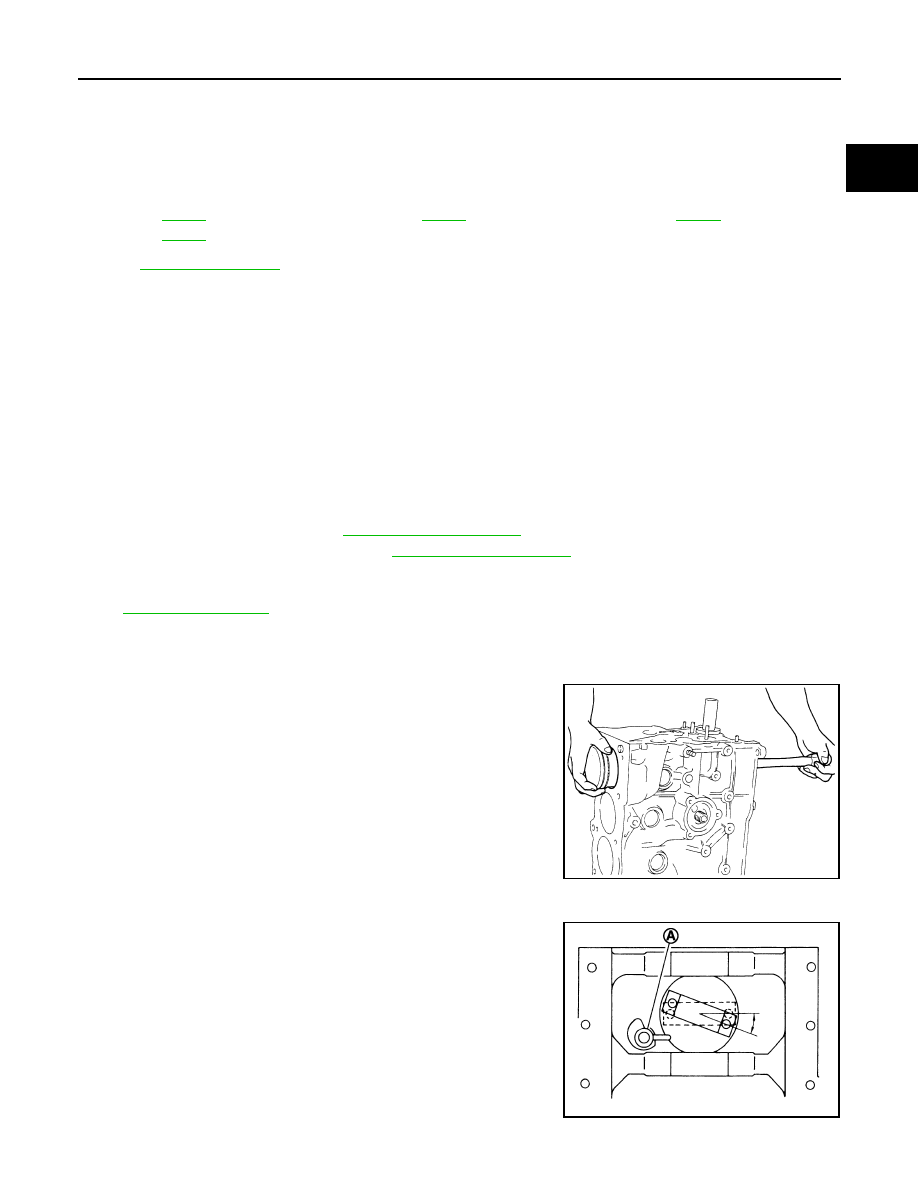

Remove piston and connecting rod assembly with the following procedure:
• Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer to

EM-459, "Inspection"

.

a.

Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.

b.

Remove connecting rod cap.
• Put a paint mark on cap to identify each cylinder.

c.

Using a hammer handle or similar tool, push piston and connect-
ing rod assembly out to the cylinder head side.

CAUTION:

• Be careful not to damage oil jets (A), cylinder wall and

crankshaft pin, resulting from an interference of the con-
necting rod big end.

• Never disassemble oil jets.

10. Piston pin

11.

Con rod bearing shell

12.

Con rod bolt

13. crankshaft thrust washer

14.

Flywheel bolts (M/T Models)

15.

Flywheel (M/T Models)

16. Crankshaft seal on gearbox end bolt

17.

Crankshaft seal on gearbox end

18.

Crankshaft bearing shell

19. Crankshaft bearing cap

20.

Crankshaft bearing cap bolt

21.

Crankshaft

22. Timing sprocket

23.

Oil pan upper

24.

Oil pan upper bolts

25. Drive plate (CVT Models)

26.

Pilot bushing

A.

Refer to

EM-447

B.

Refer to

EM-447

C.

Refer to

EM-447

D.

Refer to

EM-447

PBIC0259E

JPBIA1817ZZ

EM-448

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

CYLINDER BLOCK

8.

Remove connecting rod bearings.

CAUTION:

When removing them, note the installation position. Keep them in the correct.

9.

Remove piston rings from piston.
• Before removing piston rings, check the piston ring side clearance. Refer to

EM-459, "Inspection"

.

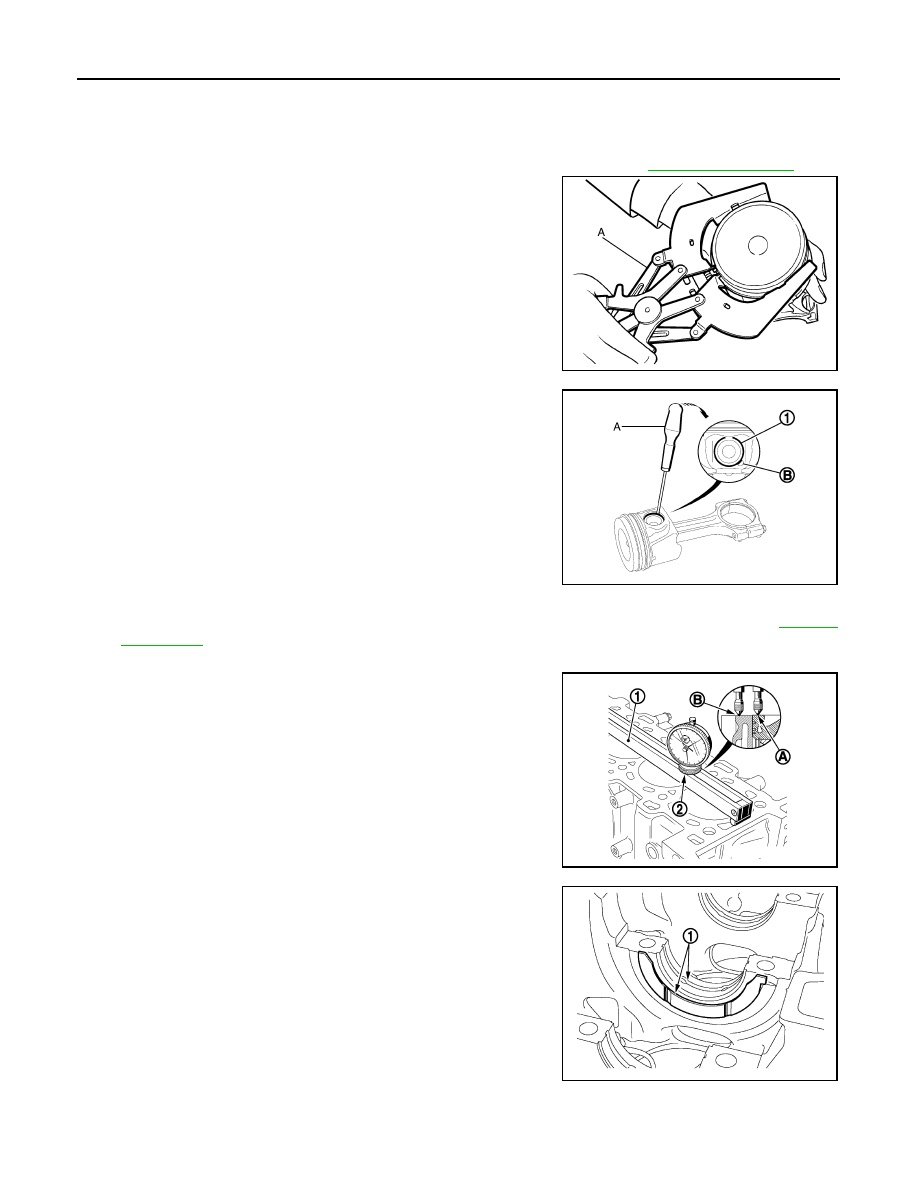

• Use a piston ring expander (commercial service tool) (A).

CAUTION:

• When removing piston rings, be careful not to damage

the piston.

• Be careful not to damage piston rings by expanding

them excessively.

10. Remove the snap rings (1) using a screwdriver (A), and then

release the piston pin.

11. Remove main bearing cap mounting bolts with the following procedure:

• Measure crankshaft end play before loosening main bearing cap mounting bolts. Refer to

EM-459,

"Inspection"

.

a.

NOTE:
Always mark the position of each crankshaft bearing shell using
an indelible marker pen, in relation to the crankshaft bearing
number

Remove:

• the crankshaft bearing cap bolts,
• the crankshaft bearing caps,
• the crankshaft,
• the cranshaft bearing shells.

NOTE:
Always mark the position of each crankshaft bearing shell using an
indelible marker pen, in relation to the crankshaft bearing number
12. Remove the crankshaft thrust washer (1)

JPBIA0194ZZ

B

: Channel

JPBIA0639ZZ

E1BIA0530ZZ

E1BIA0531ZZ

CYLINDER BLOCK

EM-449

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

13.

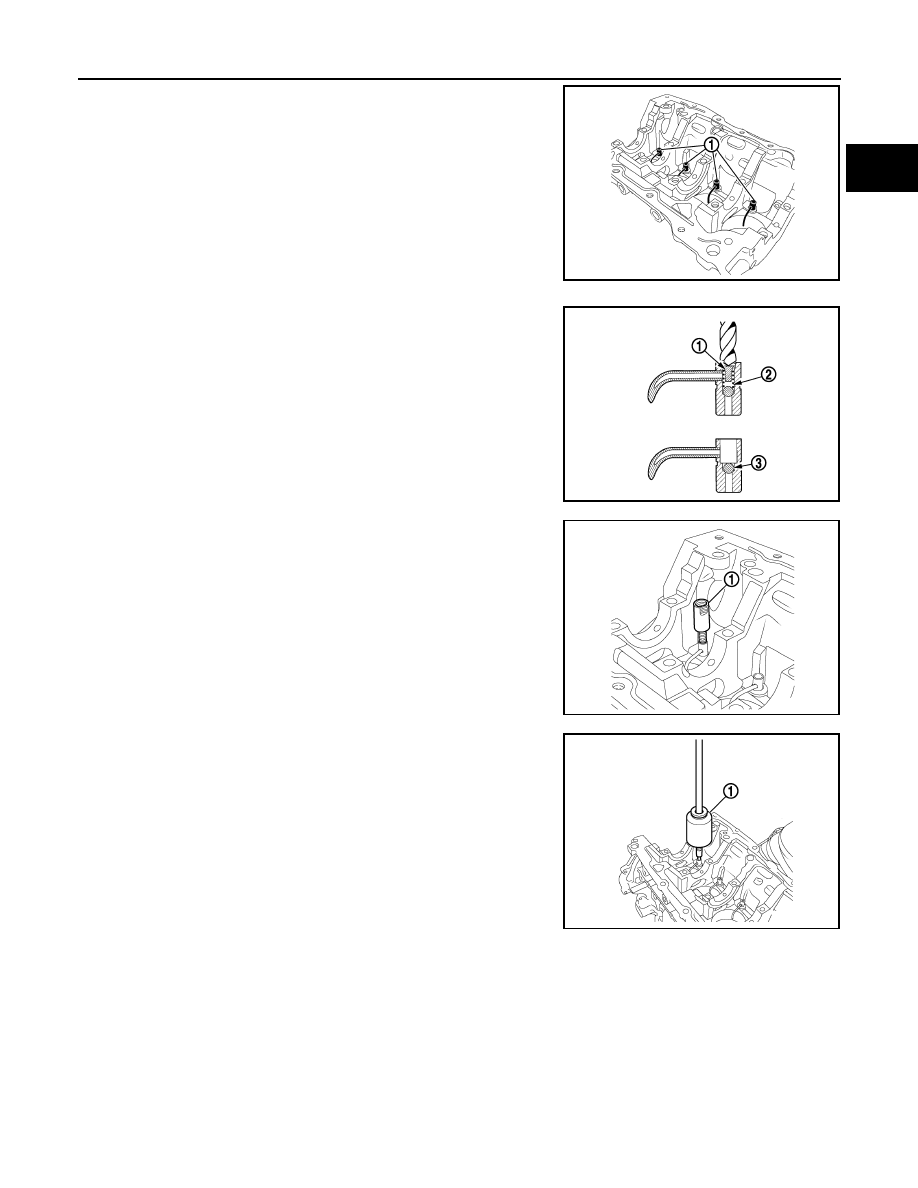

Remove piston base cooling jets (1) following this procedure:

CAUTION:

Wear goggles with side protectors for this operation.

a.

• Drill the piston base coolibg jets using a [7 mm (0.3in)] diame-

ter drill bit.

NOTE:
Do not take out the ball from the piston base cooling nozzle, oth-
erwise swarf may enter the lubrification circuit
• Remove the spring tappet (1) and the springs (2) without tak-

ing out the ball (3).

• Remove any swarf present with a brush with non abrasive

bristles and a compressed air nozzle.

b.

• Screw the tool [SST: Mot. 1485-01] (1) into the drilled piston

base cooling jets using a [6 mm (0.2 in)] Allen key, which
slides into the tool [SST: Mot. 1485-01].

c.

• Screw the tool [SST: Emb. 880] (1) on the tool [SST: Mot.

1485-01].

• Remove the piston base cooling jets.
• Fit a blanking plug whenever a piston base cooling jet is

removed.

Assembly

1.

Fully air-blow engine coolant and engine oil passages in the cylinder block, cylinder bore and crankcase
to remove any foreign matter.

CAUTION:

Use a goggles to protect your eye.

2.

Install the new piston base cooling jet following procedure:

a.

Remove the blanking plugs.

b.

Use pressurised air and clean cloths to clean the oil circuit, the cylinders and the joint faces to ensure
there is no swarf present.

E1BIA0555ZZ

E1BIA0556ZZ

E1BIA0557ZZ

E1BIA0558ZZ

EM-450

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

CYLINDER BLOCK

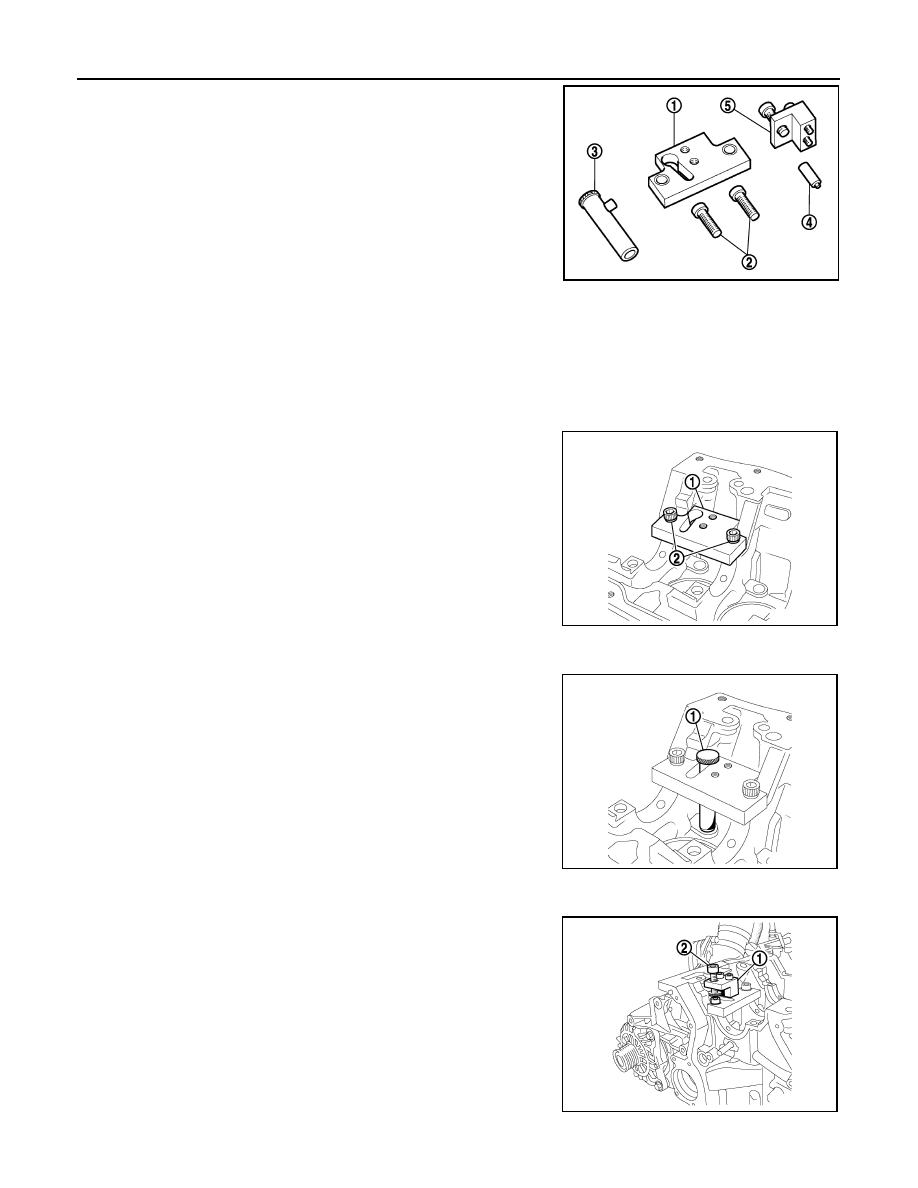

c.Description of the tool [SST: Mot. 1972]

The tool [SST: Mot. 1972] consists of :

• a plate (1),
• a plate bolt (2),
• a pushrod (3),
• an end piece (4),
• a system nut-screw (5).

d.

• Fit the plate (1) of the tool [SST: Mot. 1972] on the cylinder

block without tihten the bolts (2)

e.

• Fit the piece of the tool [SST: Mot. 1972] in the push-rod of the

tool [SST: Mot. 1972].

• Place the "end piece - pushrod" (1) assembly of the tool [SST:

Mot. 1972] in the plate to centre the plate above the opening of
the piston base cooling jet.

• Tighten the plate bolts.
• Remove the "end piece - pushrod" assembly from the plate.

f.

• Insert the piston base cooling jet in the pushrod.
• Place the "pushrod - piston base cooling jet" assembly in the

plate by presenting the jet in front of its opening.

• Fit the system nut-screw (1) on the plate.
• Tighten the bolt (2) to has retaining wall of the pushrod on the

plate.

• Remove the tool [SST: Mot. 1972].

3.

Install main bearings and thrust bearings with the following procedure:

E1BIA0559ZZ

E1BIA0560ZZ

E1BIA0561ZZ

E1BIA0562ZZ
