OUTSIDE KEY ANTENNA

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010434747

REMOVAL

Remove the outside handle grip. Refer to

DLK-183, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER

REAR BUMPER : Removal and Installation

INFOID:0000000010434749

REMOVAL

1.

Remove the rear bumper fascia assembly. Refer to

EXT-24, "Removal and Installation"

.

2.

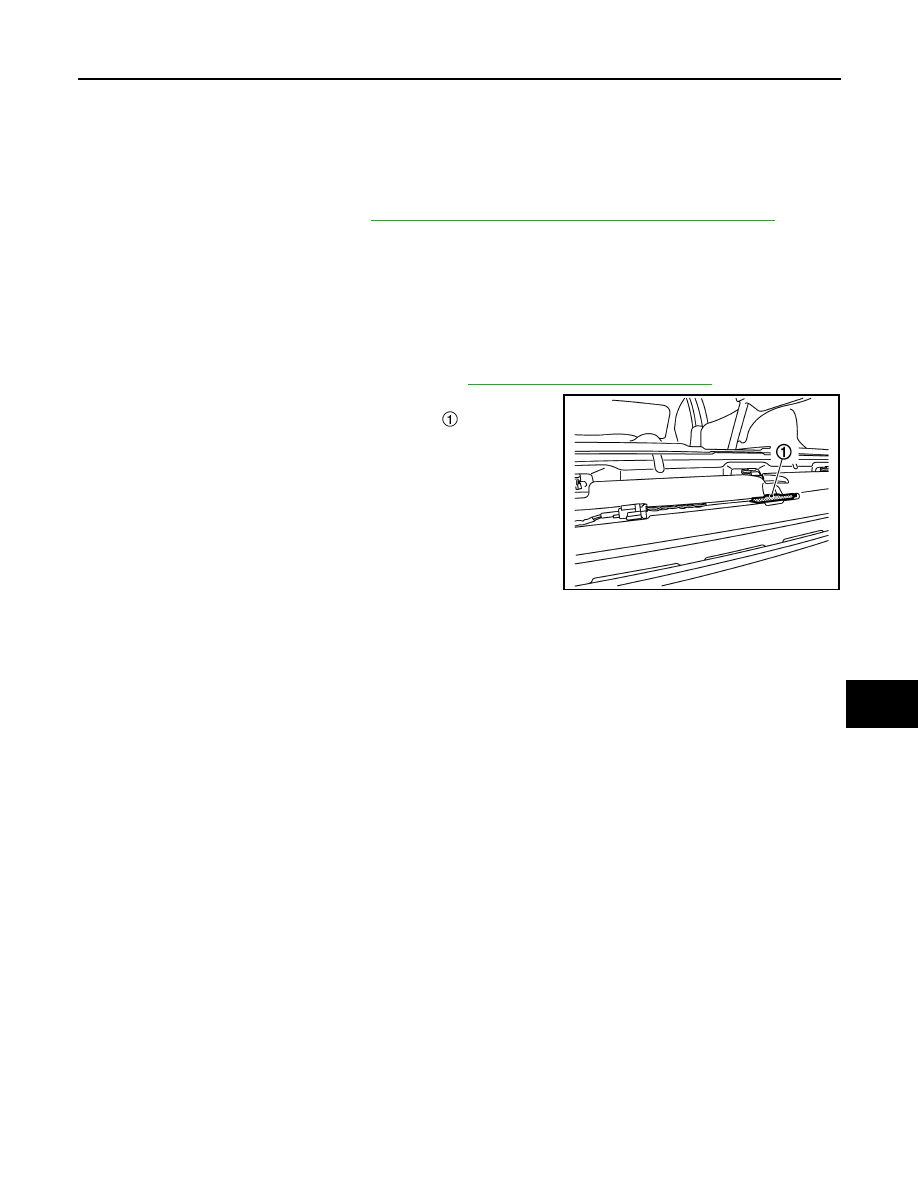

Disconnect outside key antenna (rear bumper) connector, and
then remove outside key antenna (rear bumper)

.

INSTALLATION

Install in the reverse order of removal.

JMKIB3259ZZ

DLK-198

< REMOVAL AND INSTALLATION >

[TYPE 1]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Removal and Installation

INFOID:0000000010434750

REMOVAL

1.

Remove the front bumper fascia assembly. Refer to

EXT-20, "Removal and Installation"

.

2.

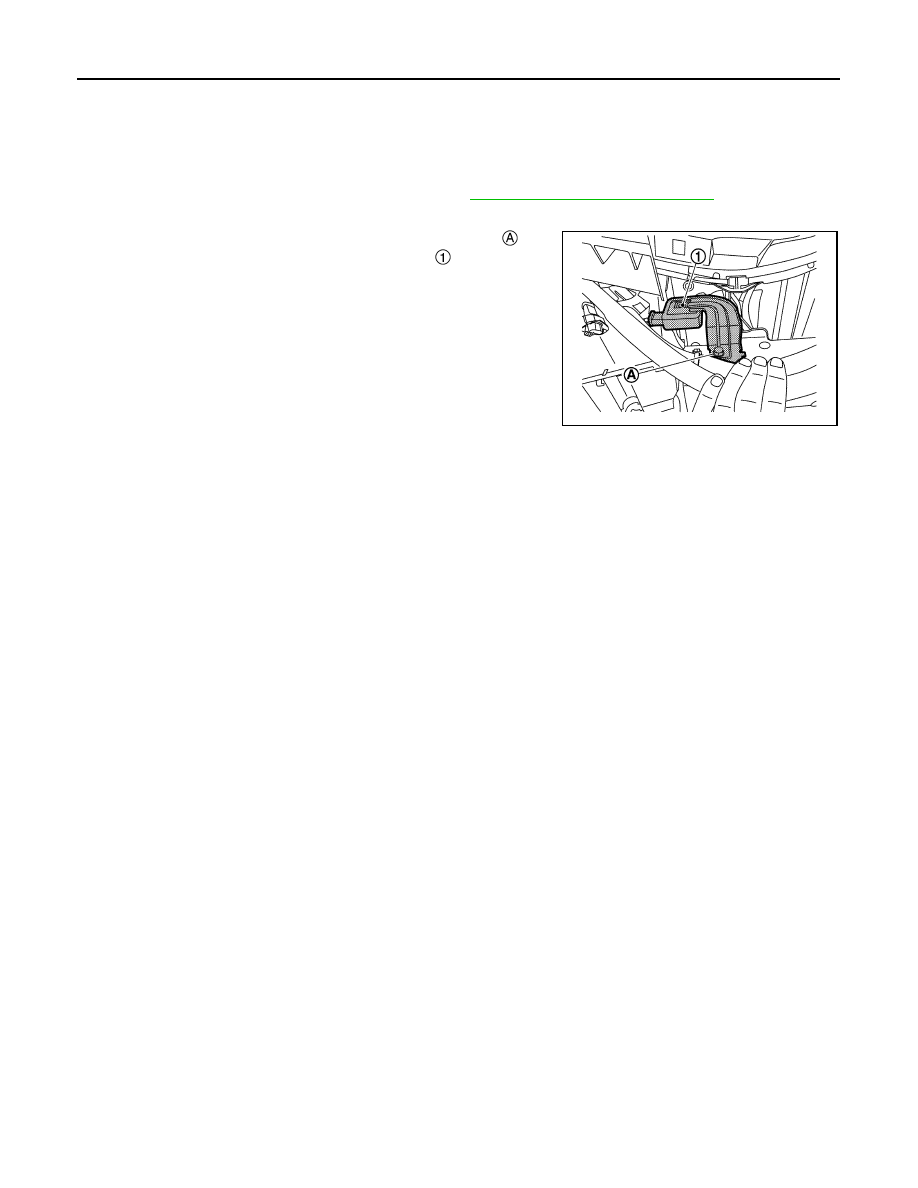

Disconnect Intelligent Key warning buzzer connector.

3.

Remove the Intelligent Key warning buzzer mounting bolt

, and

then remove the Intelligent Key warning buzzer

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2758ZZ

INTELLIGENT KEY BATTERY

DLK-199

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000010434751

1.

Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2.

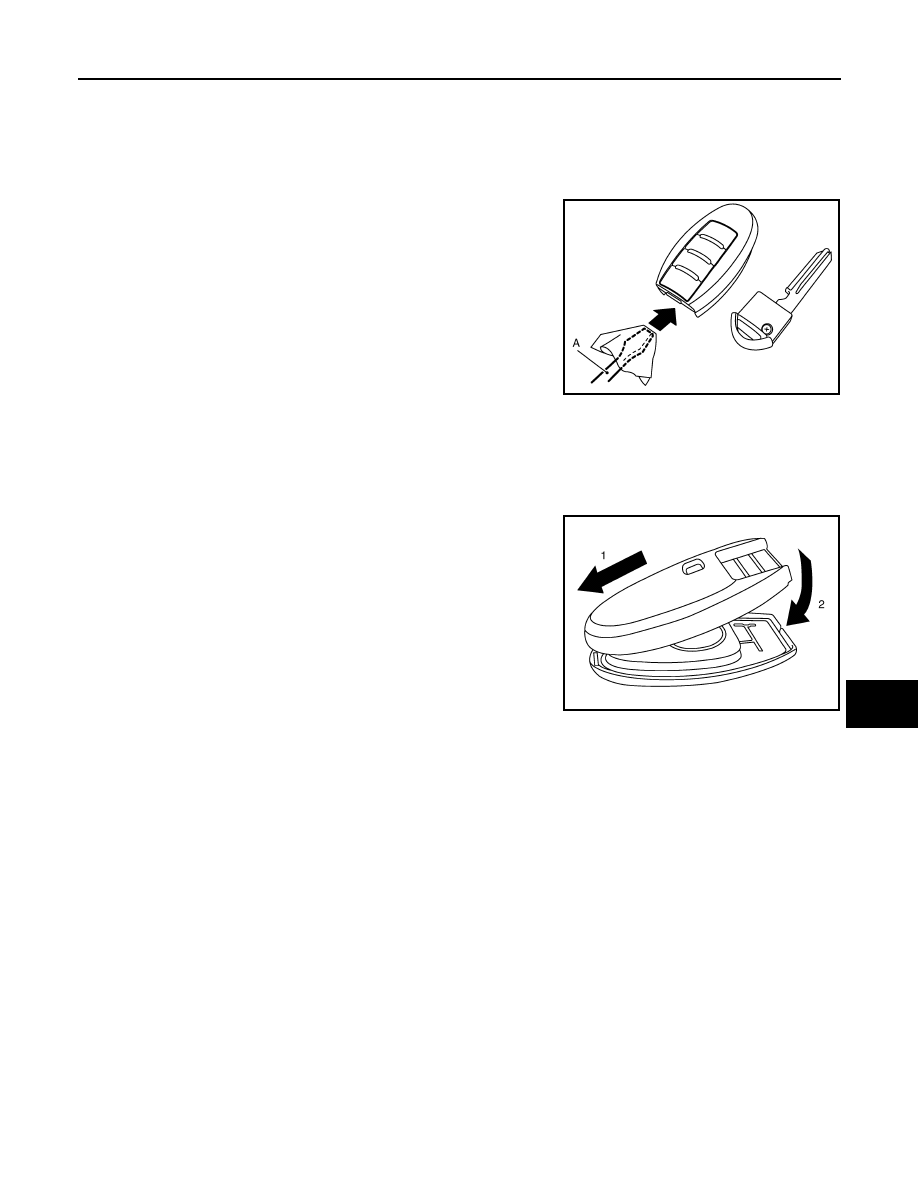

Insert a flat-blade screwdriver (A) wrapped with a cloth into the
slit of the corner and twist it to separate the upper part from the
lower part.

CAUTION:

• Do not touch the circuit board or battery terminal.
• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3.

Replace the battery with new one.

4.

Align the tips of the upper and lower parts, and then push them
together until it is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery
(CR2032)

PIIB6222E

DLK-200
