FRONT FENDER

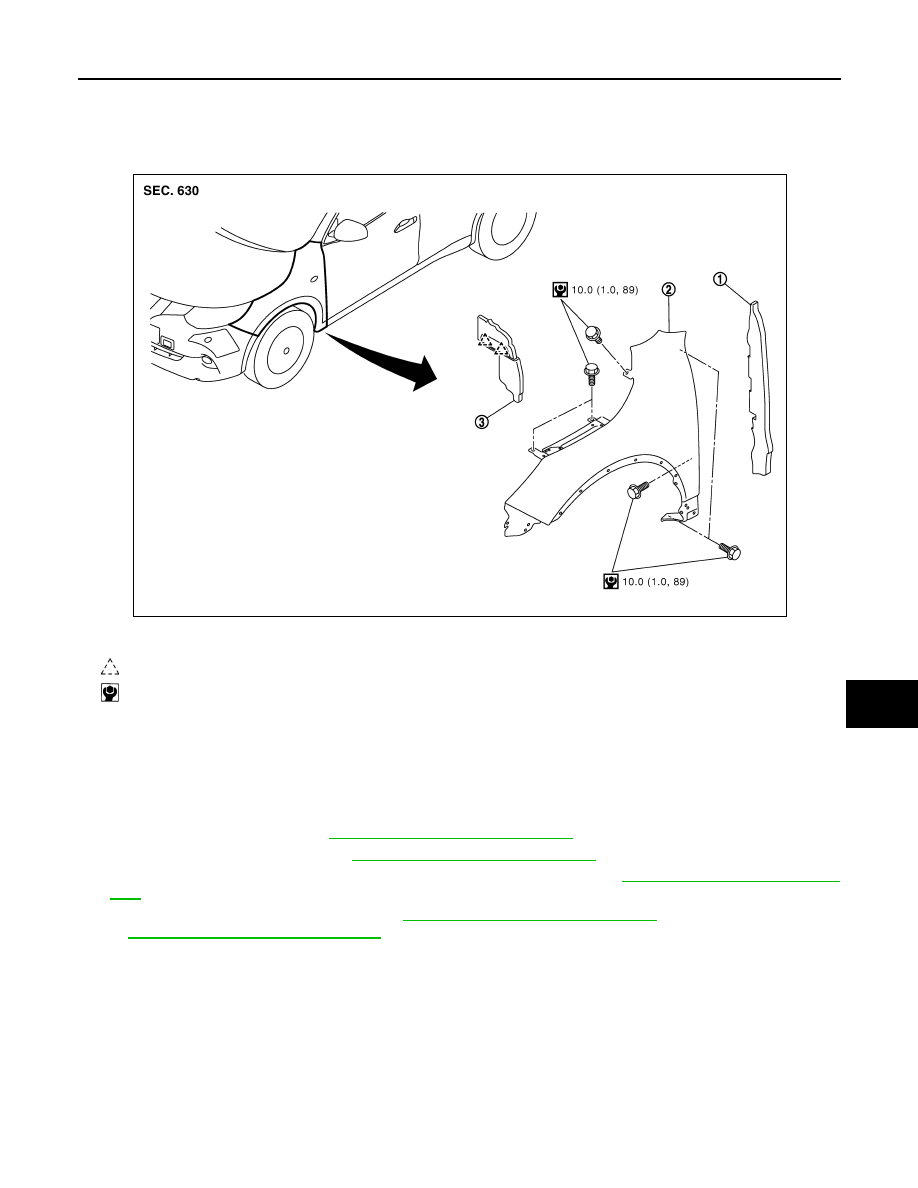

Exploded View

INFOID:0000000010434689

Removal and Installation

INFOID:0000000010434690

CAUTION:

Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Remove fillet molding. Refer to

EXT-38, "Removal and Installation"

.

2.

Remove fender protector. Refer to

EXT-33, "Removal and Installation"

.

3.

Remove front bumper fascia assembly and bumper side bracket. Refer to

EXT-20, "Removal and Installa-

tion"

.

4.

Remove front combination lamp. Refer to

EXL-319, "Removal and Installation"

 (HALOGEN HEADLAMP)

or

EXL-162, "Removal and Installation"

 (LED HEADLAMP).

5.

Remove front fender seal.

6.

Remove front fender assembly mounting bolts.

1.

Front fender seal

2.

Front fender assembly

3.

Hoodledge cover

: Pawl

: N·m (kg-m, in-lb)

JMKIB3315GB

DLK-162

< REMOVAL AND INSTALLATION >

[TYPE 1]

FRONT FENDER

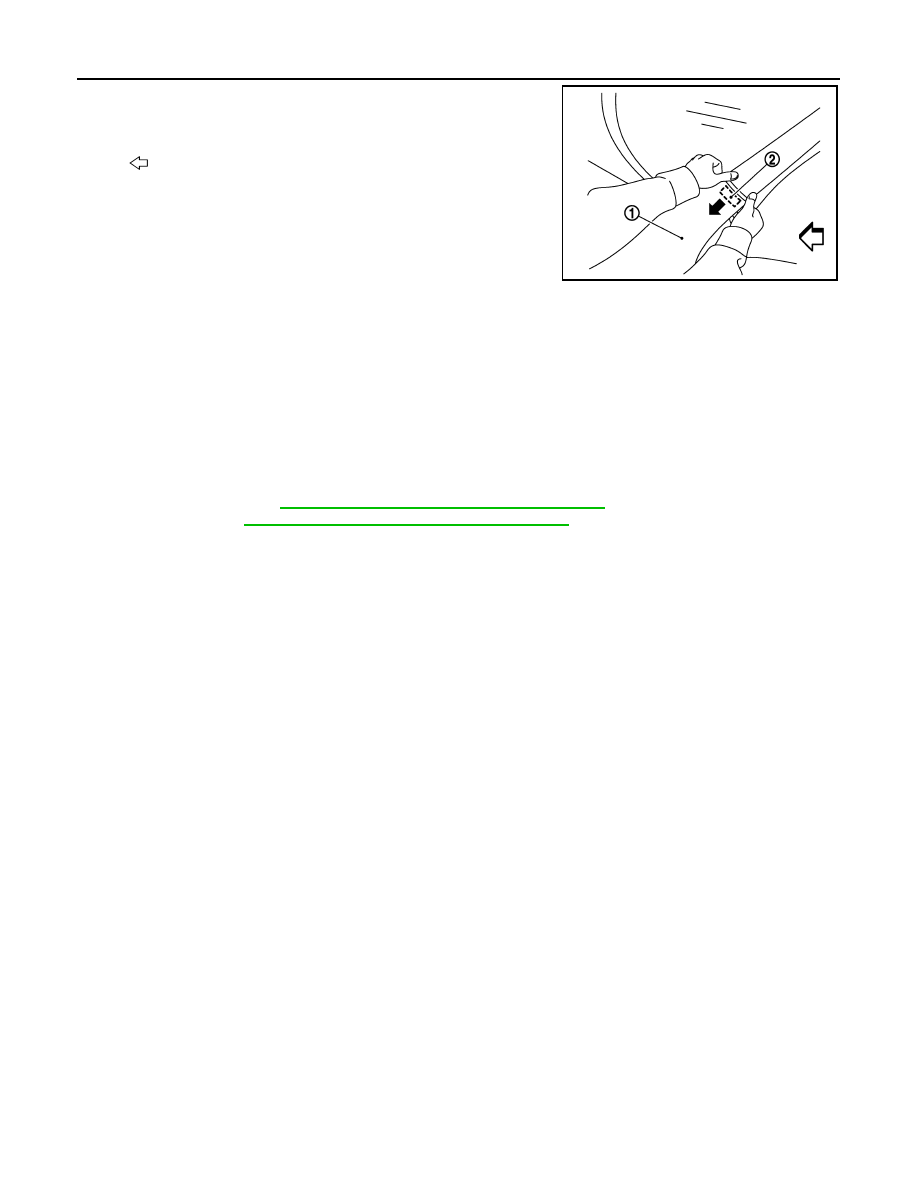

7.

Remove front fender stiffener (2) from the vehicle body while
carefully pulling upper portion of front fender (1) toward vehicle
outside.

8.

Remove front fender assembly.

CAUTION:

An viscous urethane foam is installed on the back surface of front fender. When removing the
front fender, be careful to not deform the front fender while performing the procedure and remov-
ing the viscous urethane foam a little at a time.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, apply the touch-up paint (the body color) onto the head of front fender mounting

bolts.

• After installation, adjust the following part.
- Hood assembly: Refer to

DLK-152, "HOOD ASSEMBLY : Adjustment"

.

- Front door: Refer to

DLK-164, "DOOR ASSEMBLY : Adjustment"

.

: Vehicle front

JMKIA5633ZZ

FRONT DOOR

DLK-163

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR

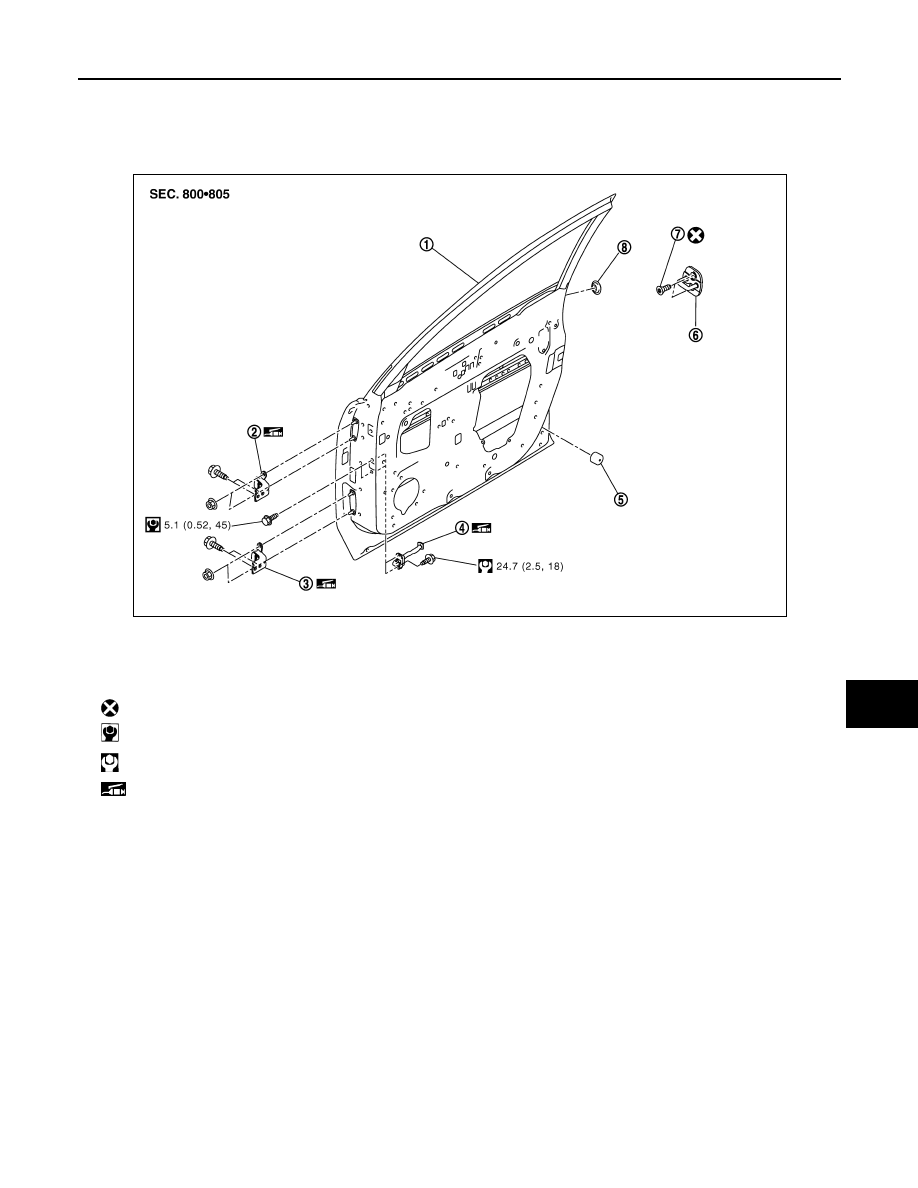

Exploded View

INFOID:0000000010434692

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010434693

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove front door harness grommet from vehicle body side, and then pull out front door harness.

2.

Disconnect front door harness connector.

3.

Remove mounting bolt of door check link on the vehicle body.

4.

Remove door hinge mounting nuts of door side, and then remove door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

1.

Front door panel

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Door check link

5.

Bumper rubber

6.

Door striker

7.

TORX bolt

8.

Grommet

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3247GB

DLK-164

< REMOVAL AND INSTALLATION >

[TYPE 1]

FRONT DOOR

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-164, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• Check door hinge and door check link rotating part for poor lubrication.
- Door hinge: Refer to

DLK-166, "DOOR HINGE : Inspection"

.

- Door check link: Refer to

DLK-166, "DOOR CHECK LINK : Removal and Installation"

.

DOOR ASSEMBLY : Adjustment

INFOID:0000000010434694

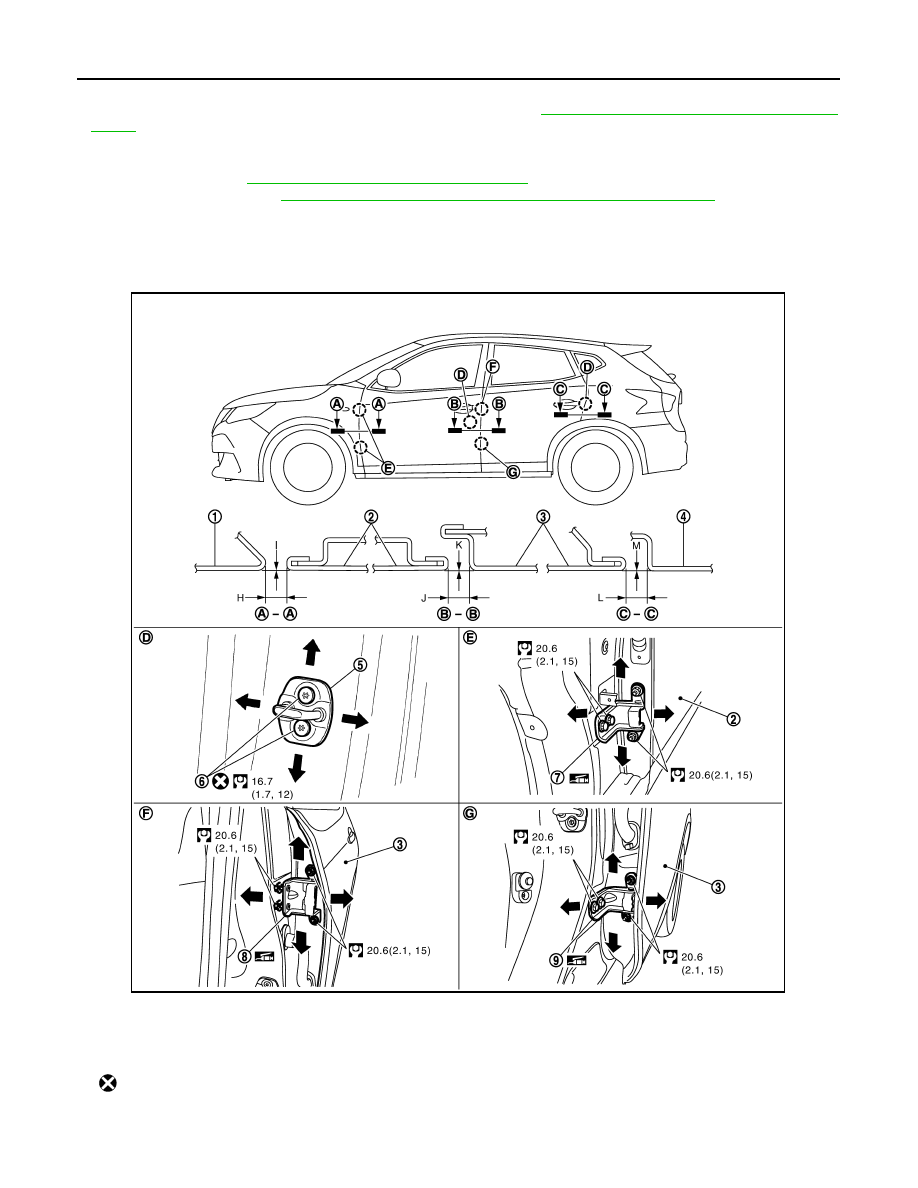

FITTING ADJUSTMENT

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

TORX bolt

7.

Front door hinge

8.

Rear door hinge (upper)

9.

Rear door hinge (lower)

: Always replace after every disassembly.

JMKIB3256GB
