HOOD

DLK-153

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

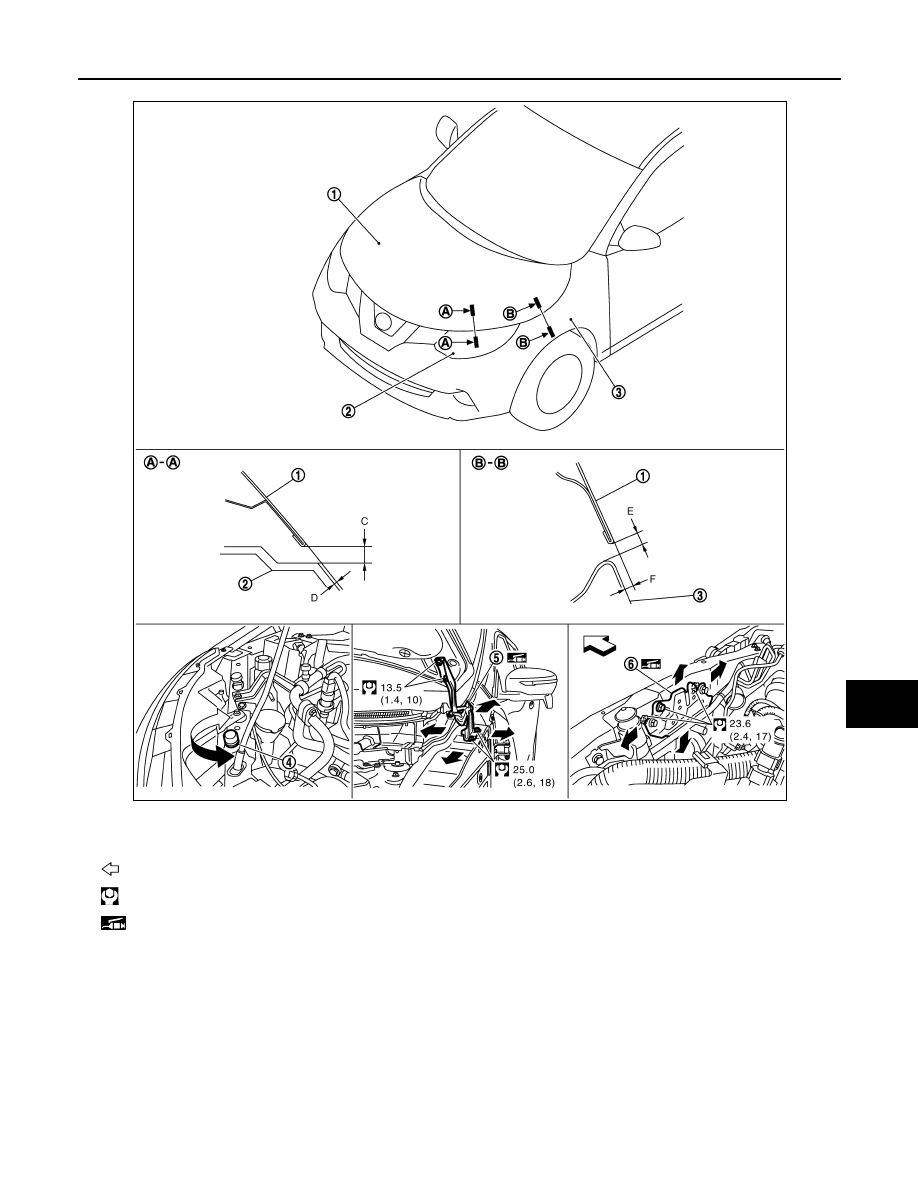

Fitting Adjustment Standard

Check the clearance and the surface height between hood and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Hood assembly

2.

Front combination lamp

3.

Front fender assembly

4.

Hood bumper rubber

5.

Hood hinge

6.

Hood lock assembly

: Vehicle front

:N·m (kg-m, ft-lb)

:Body grease

JMKIB4355GB

DLK-154

< REMOVAL AND INSTALLATION >

[TYPE 1]

HOOD

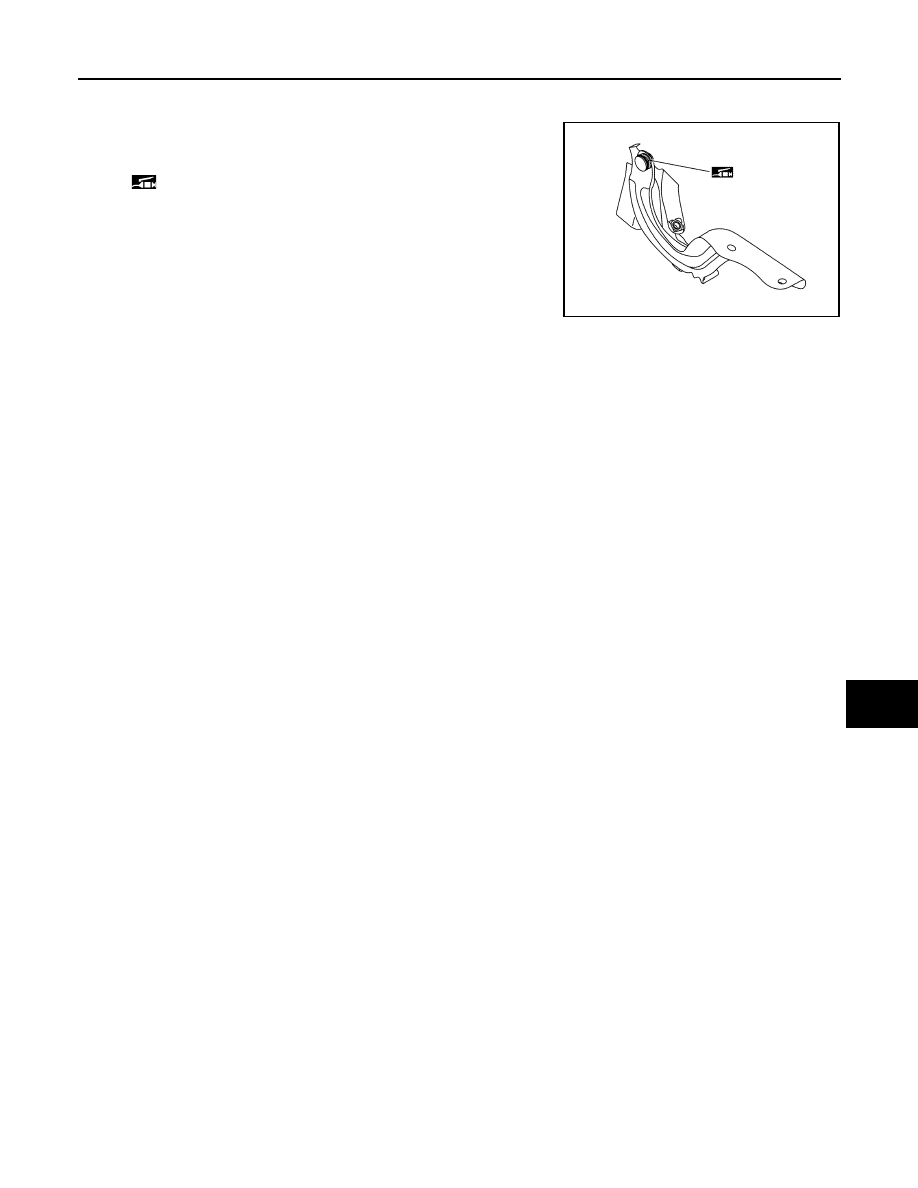

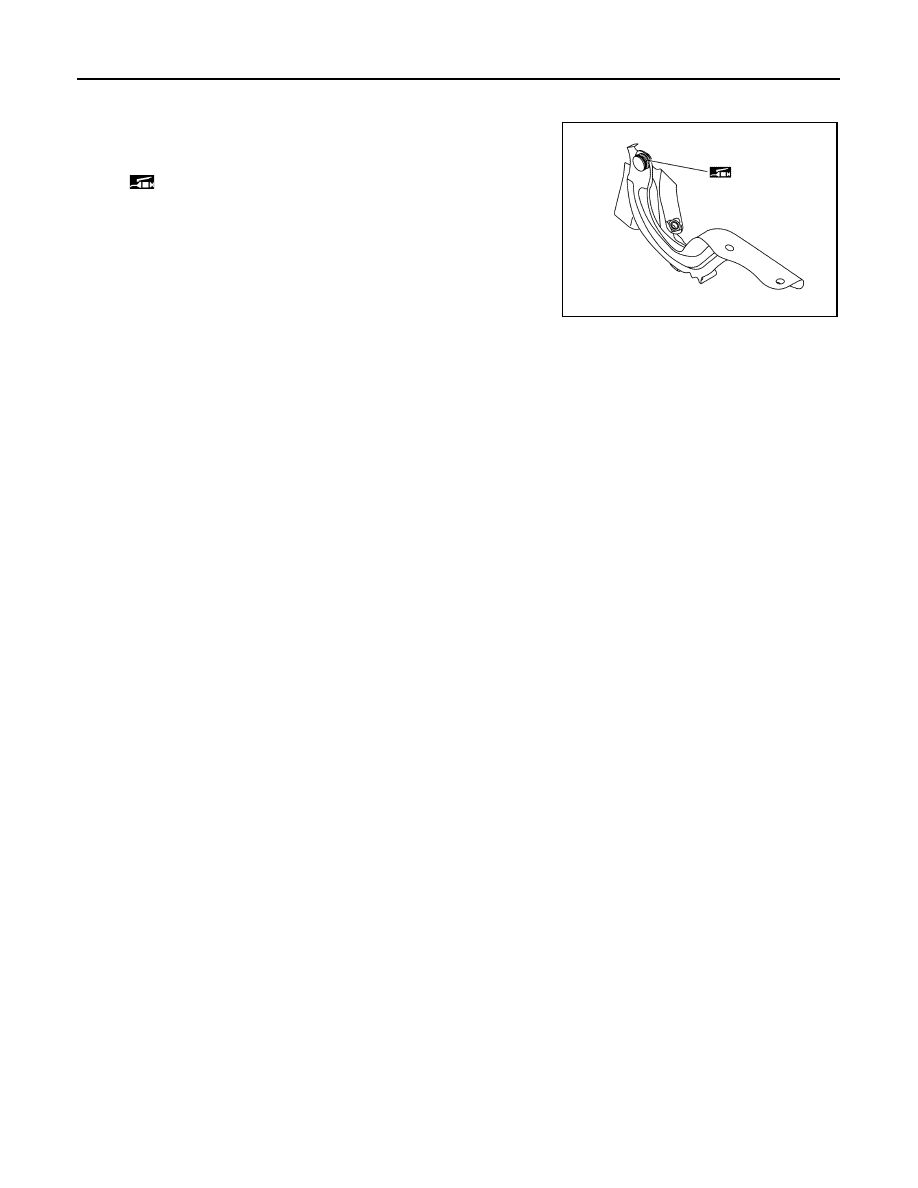

HOOD HINGE : Inspection

INFOID:0000000010434680

Check hood hinge rotating part for poor lubrication. Apply body
grease if necessary.

HOOD SUPPORT ROD

HOOD SUPPORT ROD : Removal and Installation

INFOID:0000000010434681

REMOVAL

CAUTION:

Two workers are required to support the hood.

1.

Support hood assembly with a suitable material to prevent it from falling.

WARNING:

Injury may occur if hood assembly is not supported with appropriate material when removing
hood assembly.

2.

Remove hood support rod from hood rod grommet.

3.

Remove hood rod grommet from hood assembly.

INSTALLATION

Install in the reverse order of removal.

HOOD INSULATOR

HOOD INSULATOR : Removal and Installation

INFOID:0000000010434682

REMOVAL

1.

Fully open hood assembly.

2.

Remove hood rod clamp from hood assembly.

3.

Remove hood insulator clips, and then remove hood insulator.

INSTALLATION

Install in the reverse order of removal.

: Body grease

JMKIB2933ZZ

HOOD

DLK-155

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOOD HINGE : Inspection

INFOID:0000000010434680

Check hood hinge rotating part for poor lubrication. Apply body
grease if necessary.

HOOD SUPPORT ROD

HOOD SUPPORT ROD : Removal and Installation

INFOID:0000000010434681

REMOVAL

CAUTION:

Two workers are required to support the hood.

1.

Support hood assembly with a suitable material to prevent it from falling.

WARNING:

Injury may occur if hood assembly is not supported with appropriate material when removing
hood assembly.

2.

Remove hood support rod from hood rod grommet.

3.

Remove hood rod grommet from hood assembly.

INSTALLATION

Install in the reverse order of removal.

HOOD INSULATOR

HOOD INSULATOR : Removal and Installation

INFOID:0000000010434682

REMOVAL

1.

Fully open hood assembly.

2.

Remove hood rod clamp from hood assembly.

3.

Remove hood insulator clips, and then remove hood insulator.

INSTALLATION

Install in the reverse order of removal.

: Body grease

JMKIB2933ZZ

DLK-156

< REMOVAL AND INSTALLATION >

[TYPE 1]

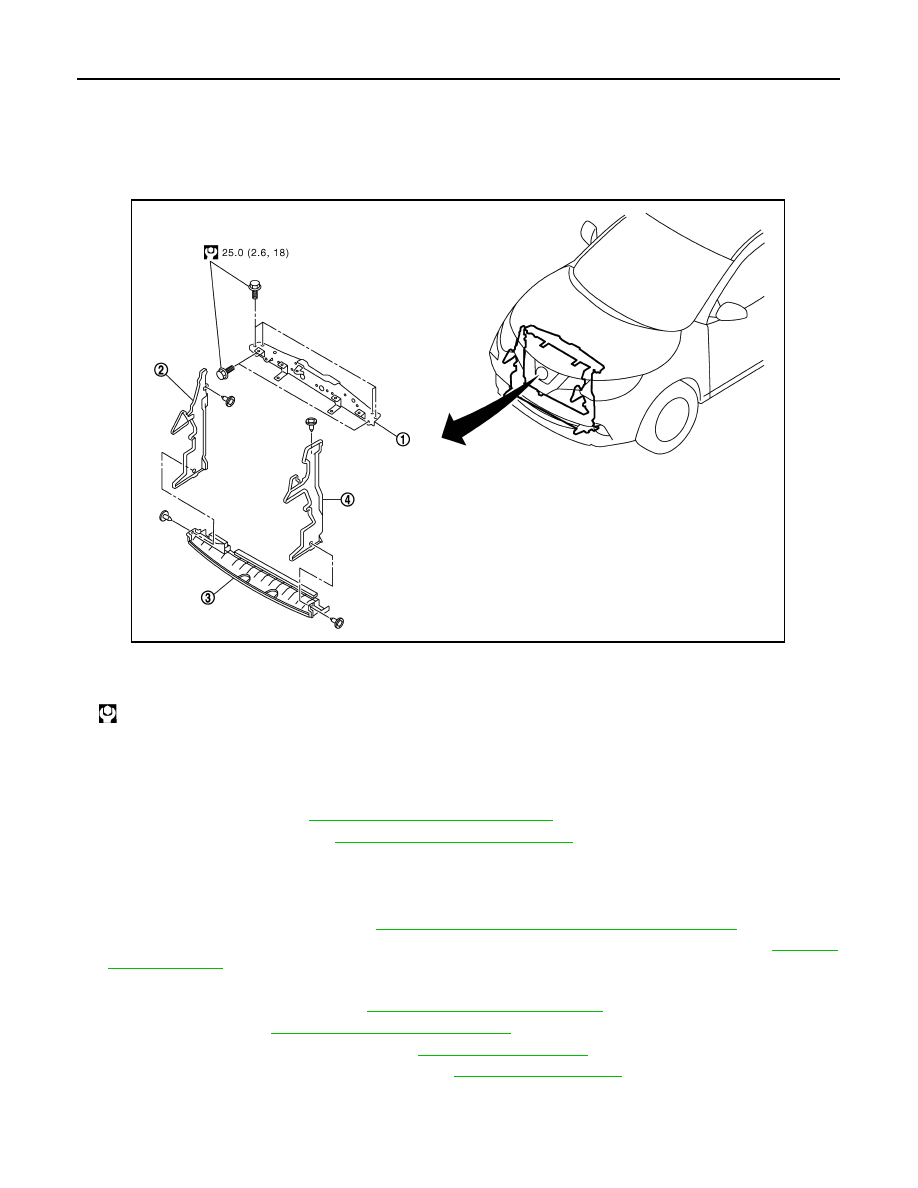

RADIATOR CORE SUPPORT

RADIATOR CORE SUPPORT

HRA2DDT

HRA2DDT : Exploded View

INFOID:0000000010434683

HRA2DDT : Removal and Installation

INFOID:0000000010434684

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-24, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-179, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-179,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-18, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-33, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3298GB
