Nissan Qashqai J11. Manual - part 1220





SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-149

< SYMPTOM DIAGNOSIS >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

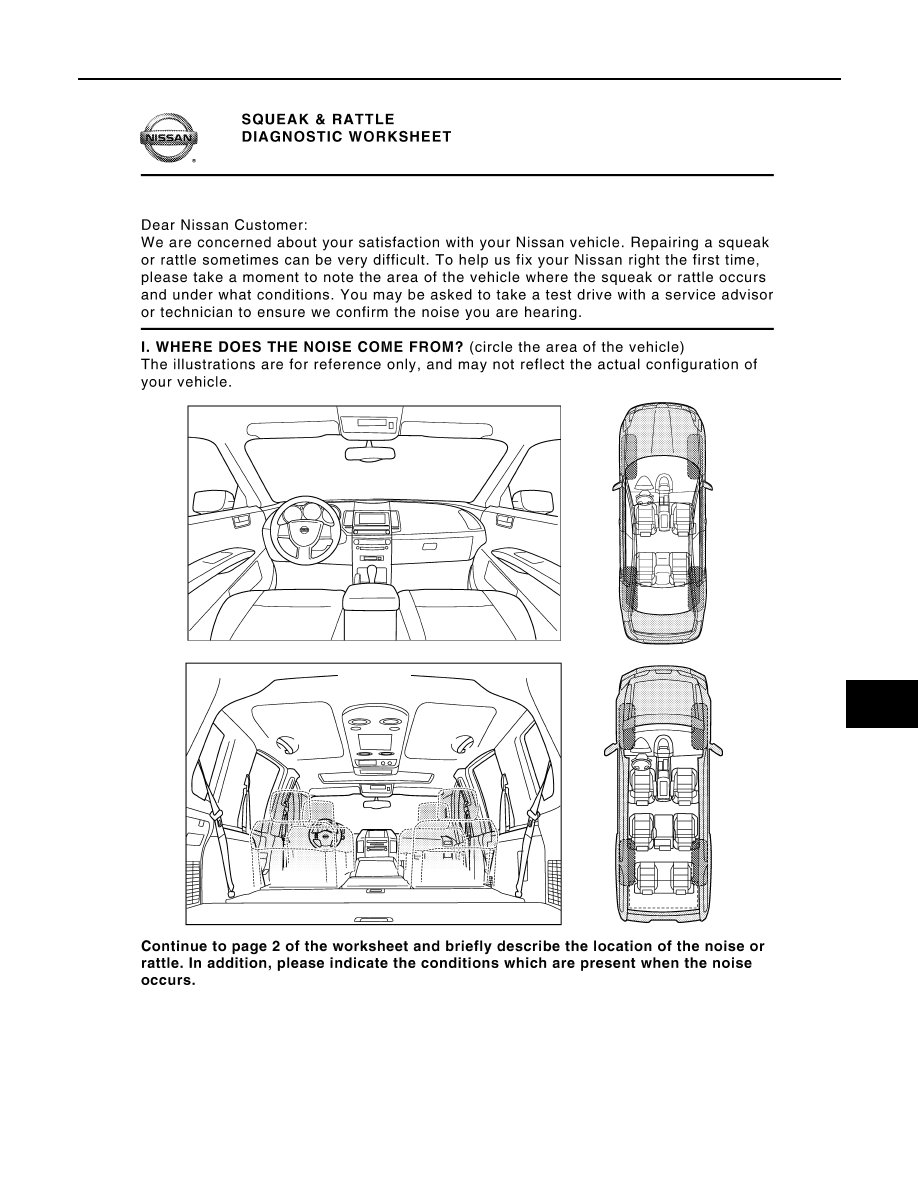

Diagnostic Worksheet

INFOID:0000000010434675

PIIB8740E

DLK-150

< SYMPTOM DIAGNOSIS >

[TYPE 1]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

HOOD

DLK-151

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOVAL AND INSTALLATION

HOOD

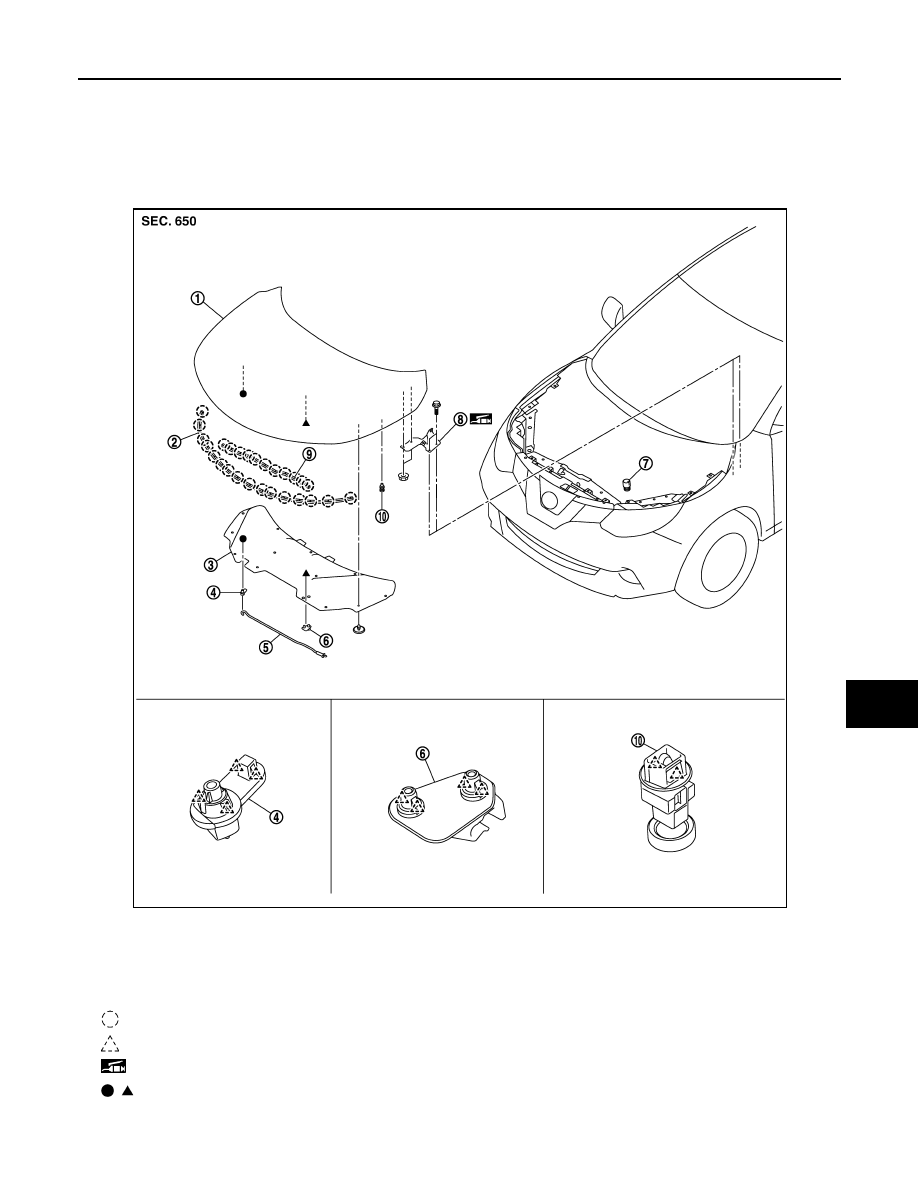

Exploded View

INFOID:0000000010434676

HOOD ASSEMBLY

1.

Hood assembly

2.

Hood front seal

3.

Hood insulator

4.

Hood rod grommet

5.

Hood support rod

6.

Hood rod clamp

7.

Hood bumper rubber

8.

Hood hinge

9.

Radiator core seal

10. Hood bumper rubber

: Clip

: Pawl

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3292ZZ

DLK-152

< REMOVAL AND INSTALLATION >

[TYPE 1]

HOOD

HOOD ASSEMBLY : Removal and Installation

INFOID:0000000010434677

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Support hood assembly with the proper material to prevent it from falling.

WARNING:

Injury may occur if hood assembly is not supported with appropriate material when removing
hood assembly.

2.

Remove hood hinge mounting nuts, and then remove hood assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply touch-up paint to the body color if the paint around the hinge is peeled off during removal.
• After installing, perform hood fitting adjustment. Refer to

DLK-152, "HOOD ASSEMBLY : Adjust-

ment"

.

• Before installation of hood, apply anticorrosive agent onto the mounting surface of the hood hinge.
• Check hood hinge rotating part for poor lubrication. Refer to

DLK-155, "HOOD HINGE : Inspection"

.

HOOD ASSEMBLY : Adjustment

INFOID:0000000010434678

FITTING ADJUSTMENT
