Nissan Qashqai J11. Manual - part 1171

BODY SIDE TRIM

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

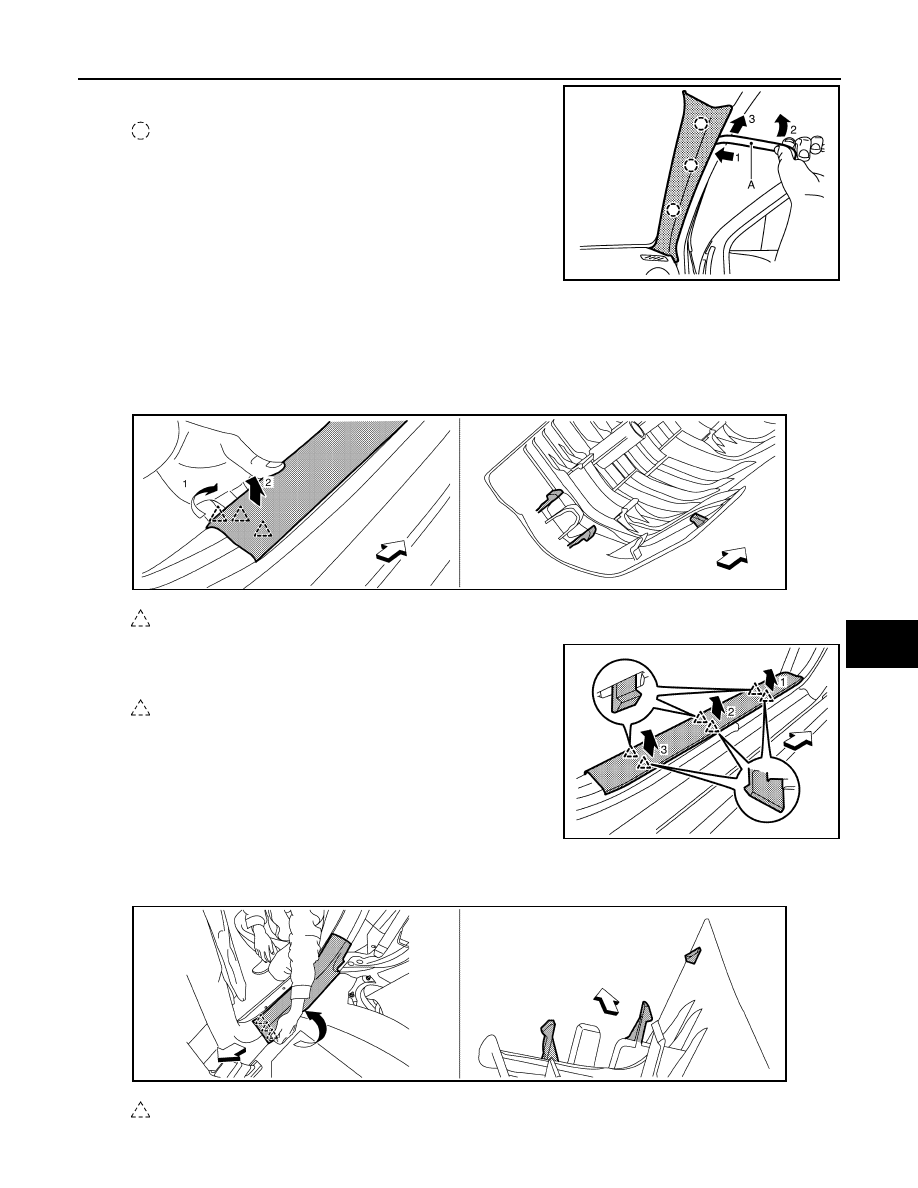

Do not re-use clips, if part is removed.

3.

Once free, pull front pillar garnish upwards to disengage the lower locating tab from instrument panel.

4.

Remove front pillar garnish.

FRONT KICKING PLATE INNER

1.

Disengage front kicking plate fixing pawls from front end portion according to numerical order as shown in
the figure.

2.

Disengage front kicking plate fixing pawls from center portion,
according to numerical order as shown in the figure.

REAR KICKING PLATE INNER

1.

Disengage rear kicking plate fixing pawls of front end portion indicated by arrow as shown in the figure.

: Clip

E1JIA0273ZZ

JMJIA9606ZZ

: Pawl

: Pawl

JMJIA9607ZZ

JMJIA8922ZZ

: Pawl

INT-20

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

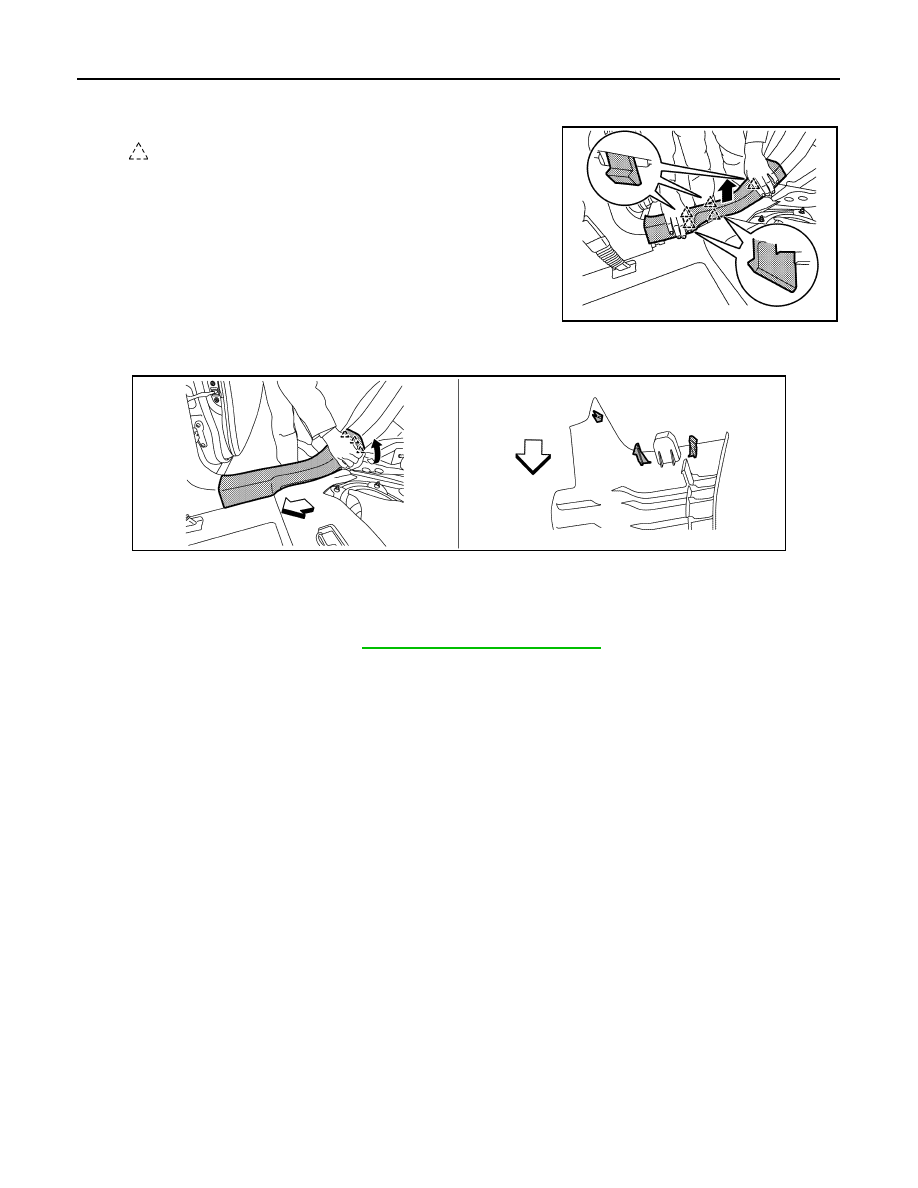

2.

Disengage rear kicking plate fixing pawls from center portion as shown in the figure.

3.

Disengage rear kicking plate fixing pawls of rear end portion as shown in the figure.

4.

Remove rear kicking plate.

DASH SIDE FINISHER

1.

Remove front kicking plate. Refer to

INT-18, "Removal and Installation"

2.

Release dash side finisher portion of front body side welt.

3.

Remove dash side finisher fixing clip.

4.

Remove dash side finisher.

CENTER PILLAR LOWER GARNISH

1.

Fully open front door and rear door.

2.

Move front seat to the frontmost position.

3.

Remove front and rear kicking plate inner.

4.

Release center pillar lower garnish portion of front body side welt and rear body side welt.

5.

Disengage outer cover fixing pawls and then remove outer cover.

: Pawl

JMJIA8923ZZ

JMJIA8921ZZ

BODY SIDE TRIM

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

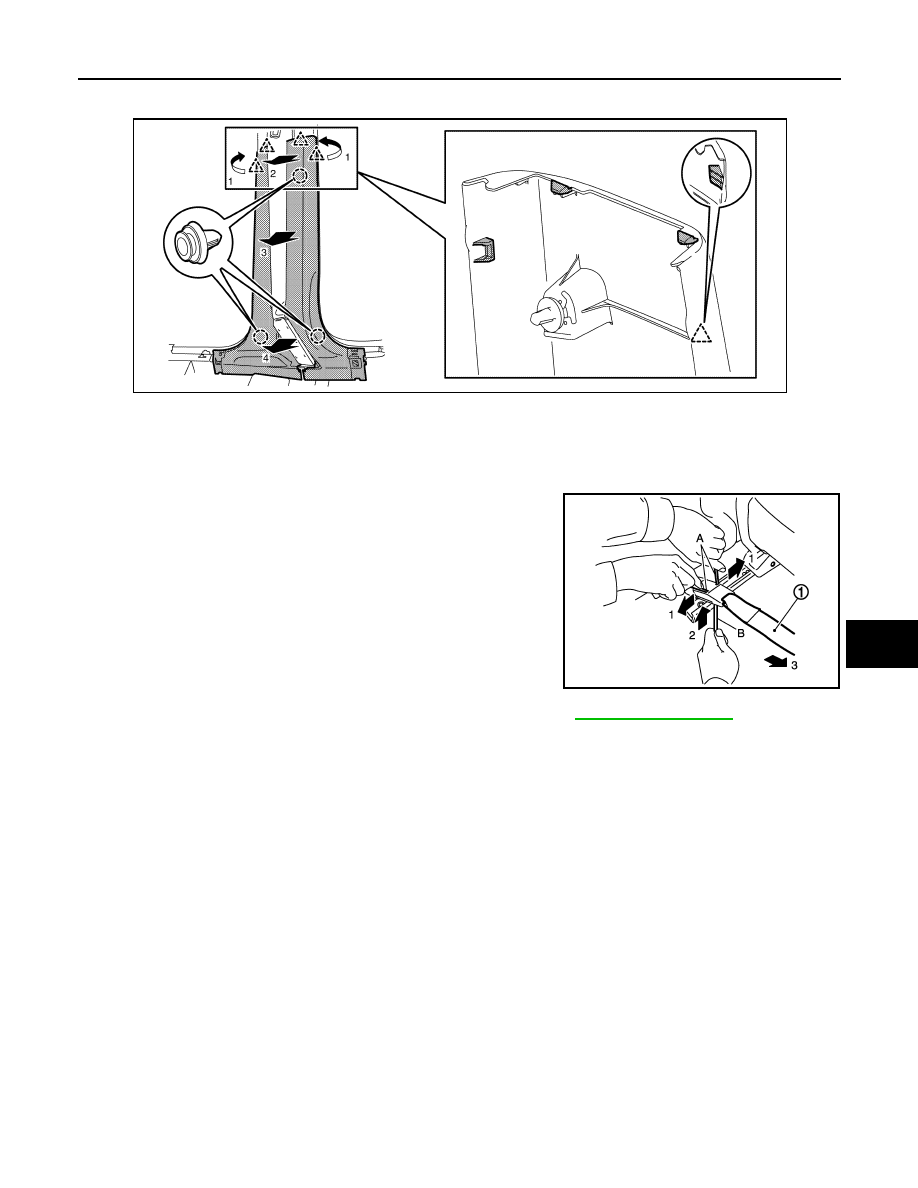

6.

Disengage center pillar lower garnish fixing pawls and clips according to numerical ordet indicated by
arrows as shown in the figure.

CENTER PILLAR UPPER GARNISH

1.

Remove center pillar lower garnish.

2.

Release center pillar upper garnish portion of front body side welt and rear body side welt.

3.

Remove front kicking plate and rear kicking plate.

4.

Insert remover tool (A) into each hole on lap pre-tensionner
buckle back side, spread the inner metal portion as shown in the
figure, and pull out lap pre-tensionner tongue (1) while inserting
remover tool (B) into the hole on lap pre-tensioner buckle (with
lap pre-tensioner).

5.

Remove mounting anchor bolt (without lap pre-tensioner). Refer to

SB-6, "Exploded View"

6.

Disengage center pillar upper garnish lower side fixing metal clips.

7.

Disengage center pillar upper garnish upper side fixing pawls.

CAUTION:

Never apply excessive force when removing center pillar upper garnish. Otherwise pawl may be
damaged and fragments may drop in panel holes on body.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check that pawls are securely fitted in panel holes on body when installing, and then press them in.

JMJIA9613ZZ

JMHIA1649ZZ

INT-22

< REMOVAL AND INSTALLATION >

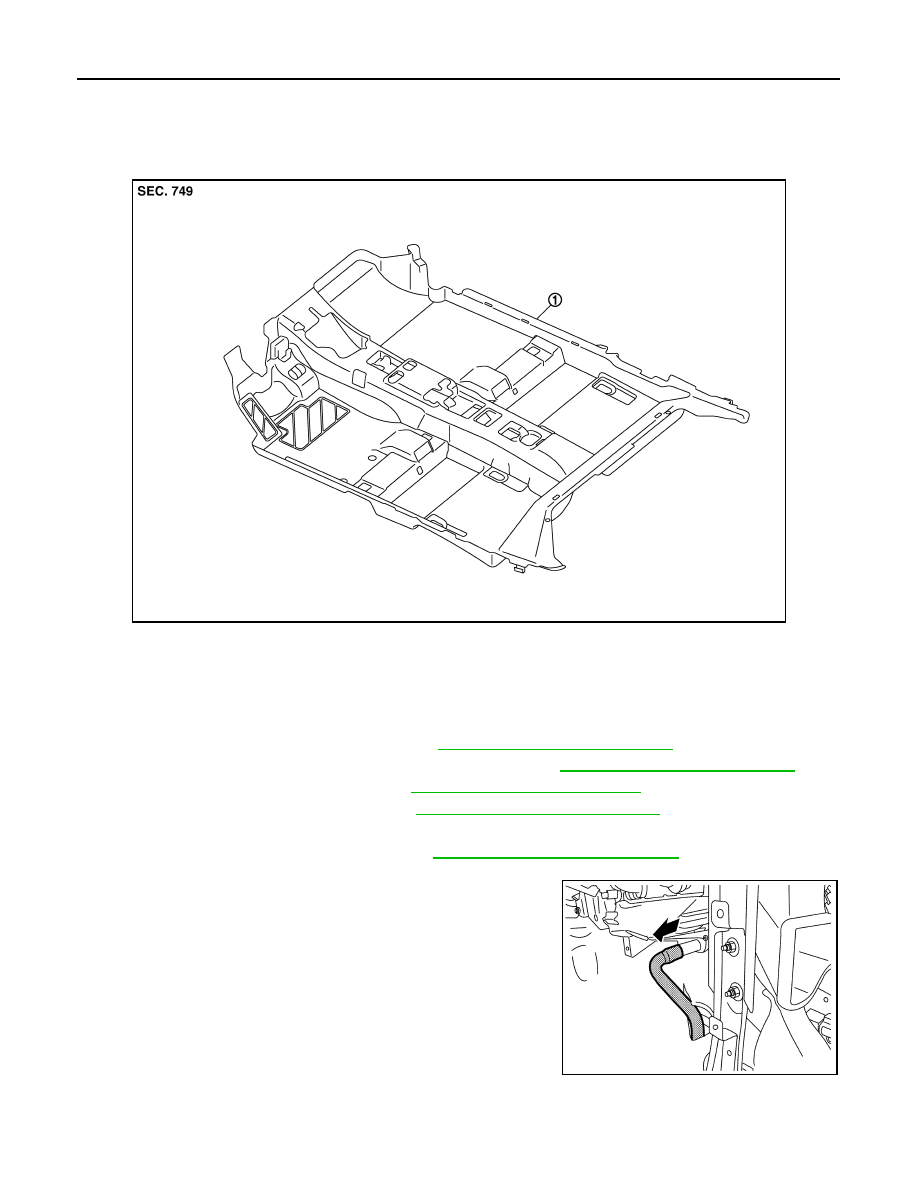

FLOOR TRIM

FLOOR TRIM

Exploded View

INFOID:0000000010350943

Removal and Installation

INFOID:0000000010500838

REMOVAL

1.

Remove front seat assembly (LH/RH). Refer to

SE-29, "Removal and Installation"

.

2.

Remove rear seat cushion and rear seatback assembly. Refer to

SE-35, "Removal and Installation"

.

3.

Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

4.

Remove parking brake control unit. Refer to

PB-142, "Removal and Installation"

 .

5.

Disconnect G sensor harness connector (CVT models only).

6.

Remove CVT shift selector assembly. Refer to

TM-617, "Removal and Installation"

.

7.

Disconnect drain hose.

JMJIA0731ZZ

1.

Floor carpet

JMJIA9632ZZ
