Nissan Qashqai J11. Manual - part 1136

HAC-180

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

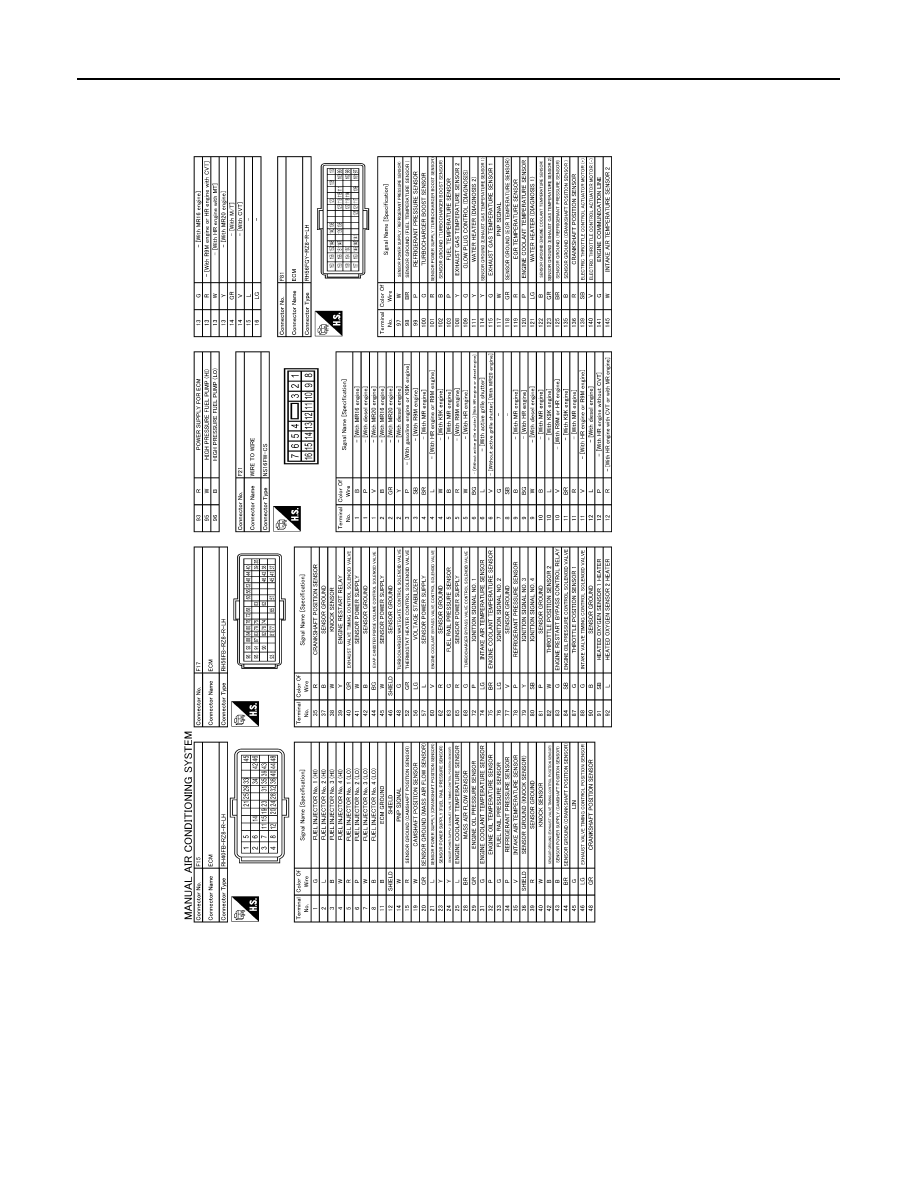

MANUAL AIR CONDITIONER SYSTEM

JRIWC4100GB

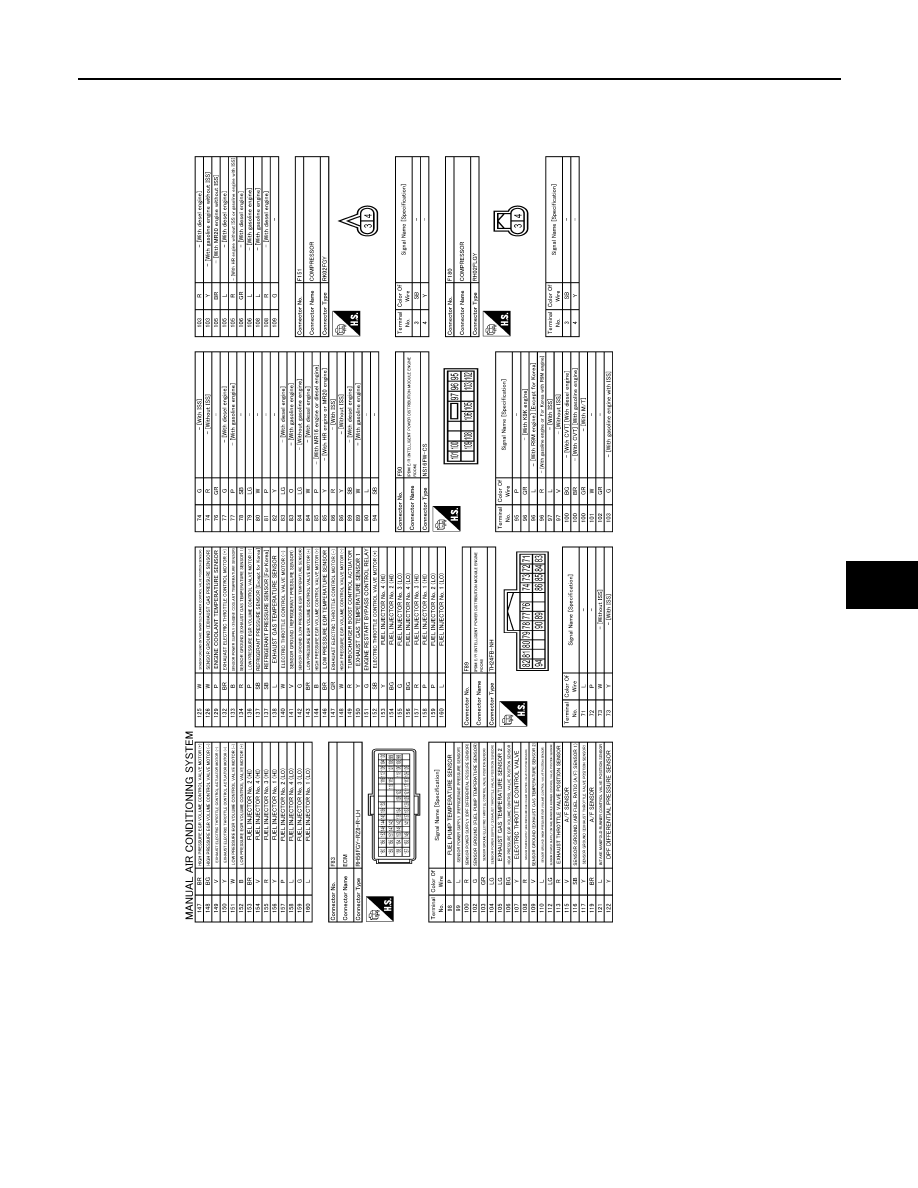

MANUAL AIR CONDITIONER SYSTEM

HAC-181

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

JRIWC4101GB

HAC-182

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

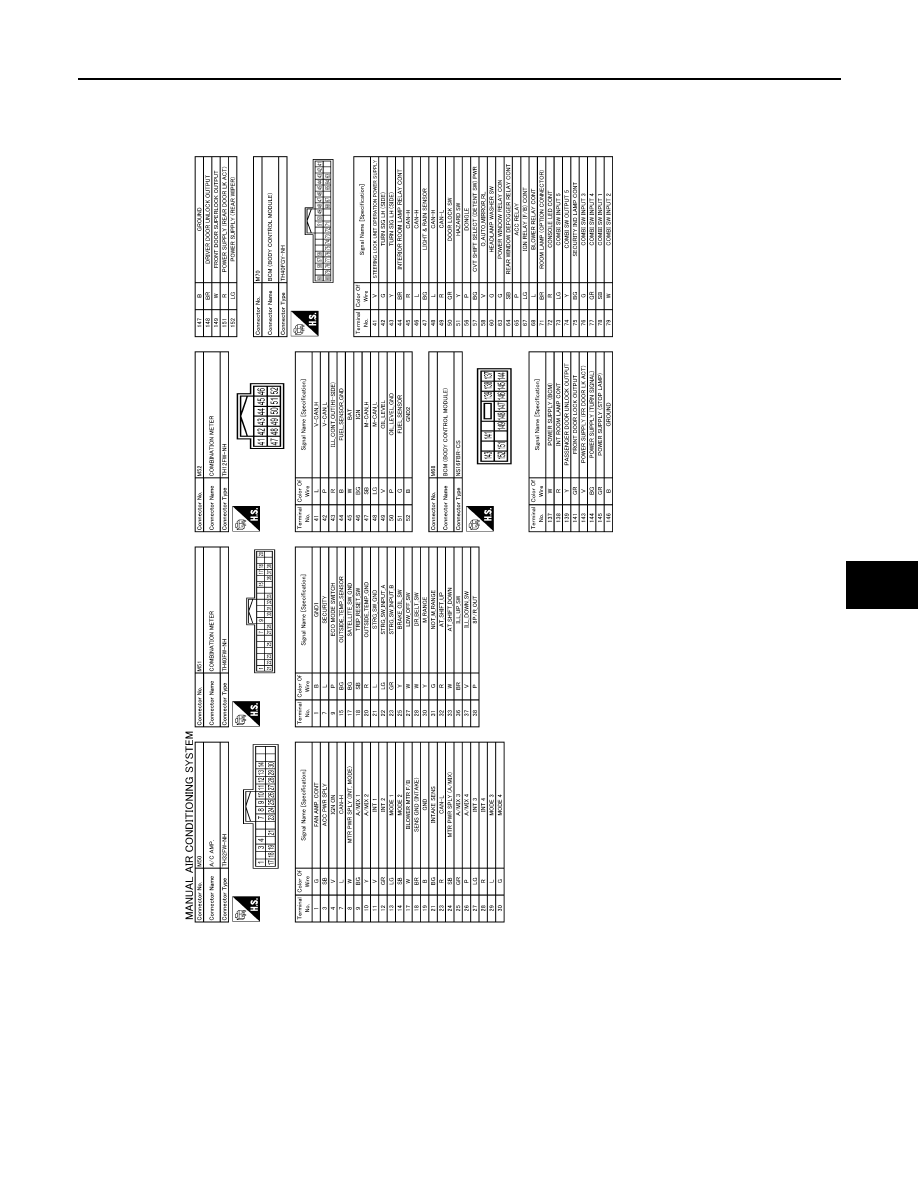

MANUAL AIR CONDITIONER SYSTEM

JRIWC4102GB

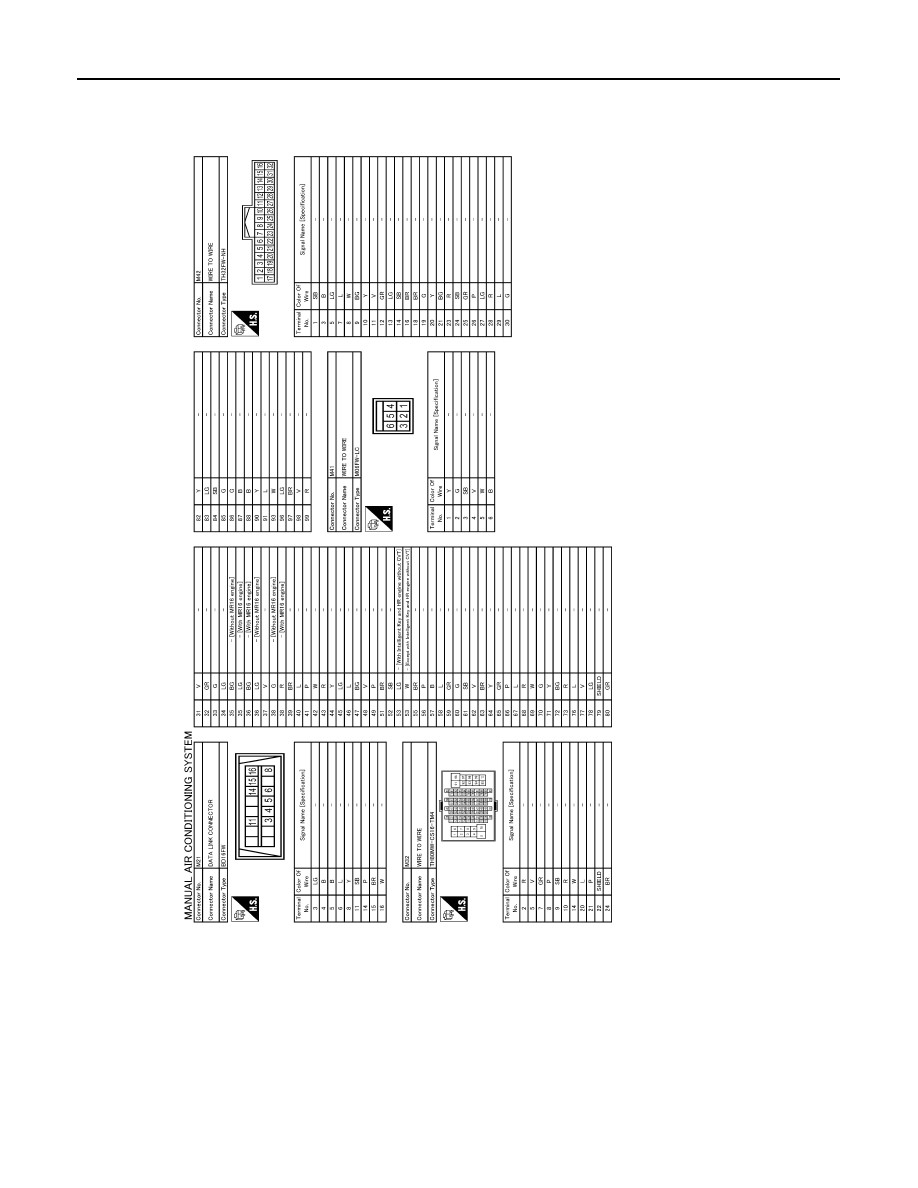

MANUAL AIR CONDITIONER SYSTEM

HAC-183

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

JRIWC4103GB
