HAC-172

< ECU DIAGNOSIS INFORMATION >

[MANUAL AIR CONDITIONING]

BCM, ECM, IPDM E/R

BCM, ECM, IPDM E/R

List of ECU Reference

INFOID:0000000010432519

ECU

Reference

BCM

BCS-63, "Reference Value"

BCS-87, "Fail-safe"

BCS-88, "DTC Inspection Priority Chart"

BCS-89, "DTC Index"

ECM

HRA2DDT engine models

ECH-60, "Reference Value"

ECH-60, "Fail-safe"

ECH-72, "DTC Index"

MR16DDT engine models

ECM-112, "Reference Value"

ECM-133, "Fail Safe"

ECM-140, "DTC Inspection Priority Chart"

ECM-142, "DTC Index"

MR20DD engine models

ECM-686, "Reference Value"

ECM-700, "Fail-safe"

ECM-704, "DTC Inspection Priority Chart"

ECM-706, "DTC Index"

K9K engine models

ECK-76, "Reference Value"

ECK-88, "Fail-safe"

ECK-95, "DTC Inspection Priority Chart"

ECK-97, "DTC Index"

R9M engine models

EC9-81, "Reference Value"

EC9-93, "Fail-safe"

EC9-99, "DTC Inspection Priority Chart"

EC9-101, "DTC Index"

IPDM E/R

PCS-21, "Reference Value"

PCS-33, "Fail-safe"

PCS-36, "DTC Inspection Priority Chart"

PCS-37, "DTC Index"

MANUAL AIR CONDITIONER SYSTEM

HAC-173

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

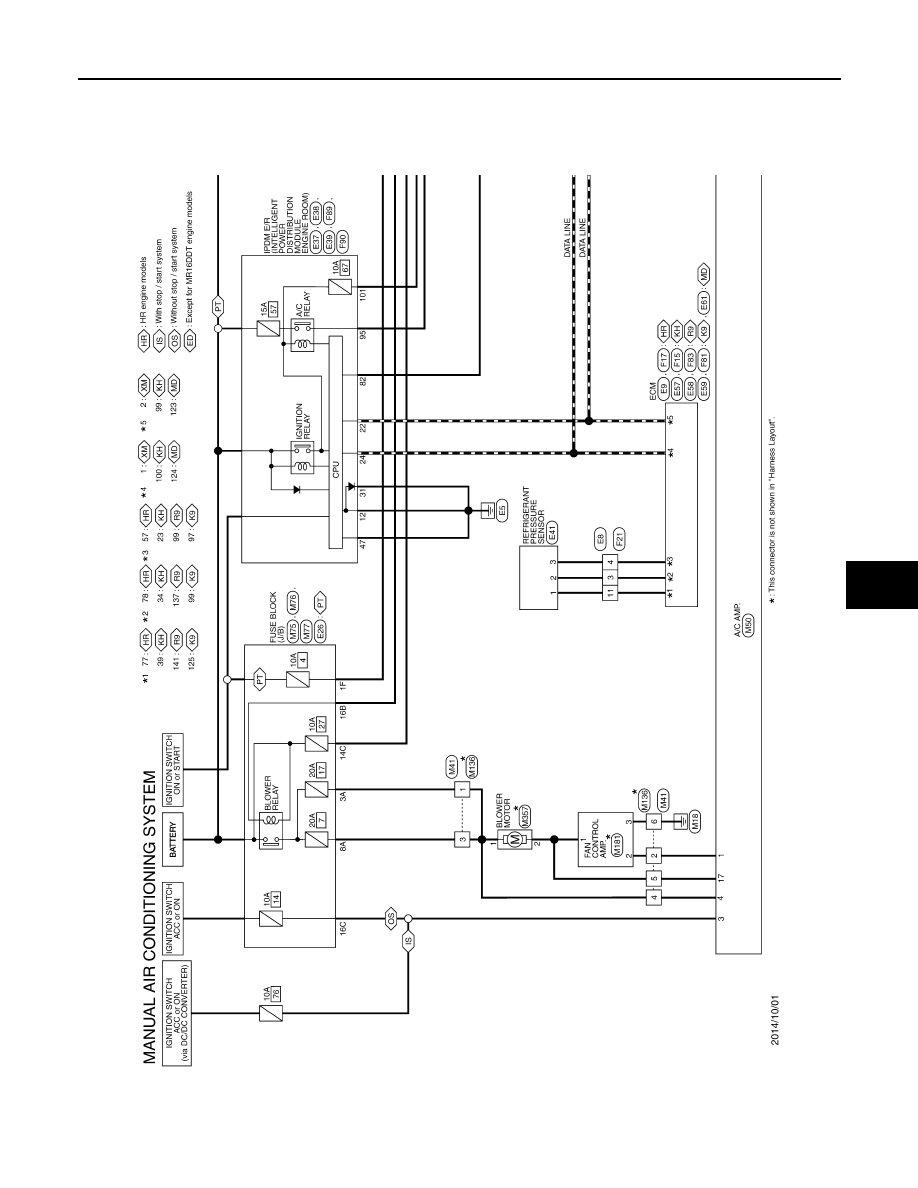

WIRING DIAGRAM

MANUAL AIR CONDITIONER SYSTEM

Wiring Diagram

INFOID:0000000010432520

JRIWC4093GB

HAC-174

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

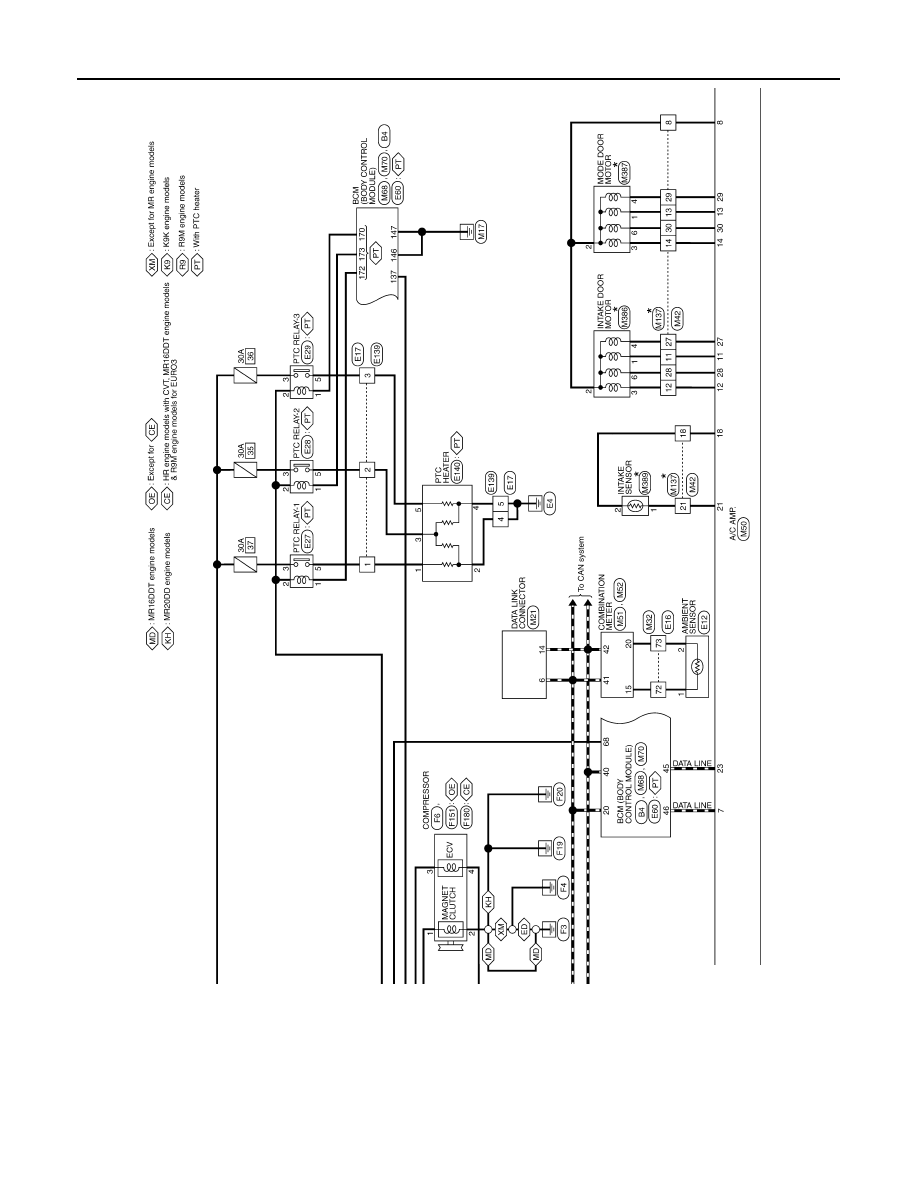

MANUAL AIR CONDITIONER SYSTEM

JRIWC4094GB

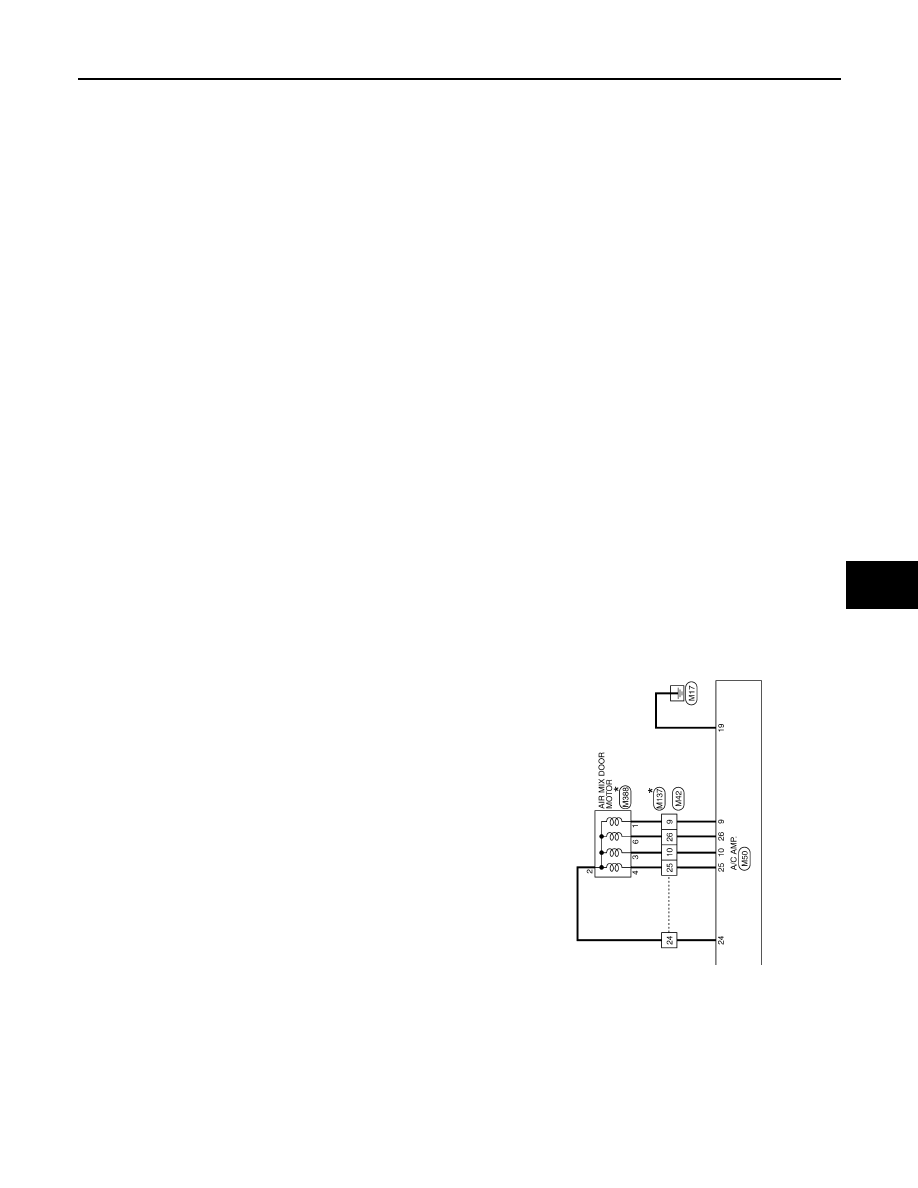

MANUAL AIR CONDITIONER SYSTEM

HAC-175

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

JRIWC4095GB
