DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

EM-379

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

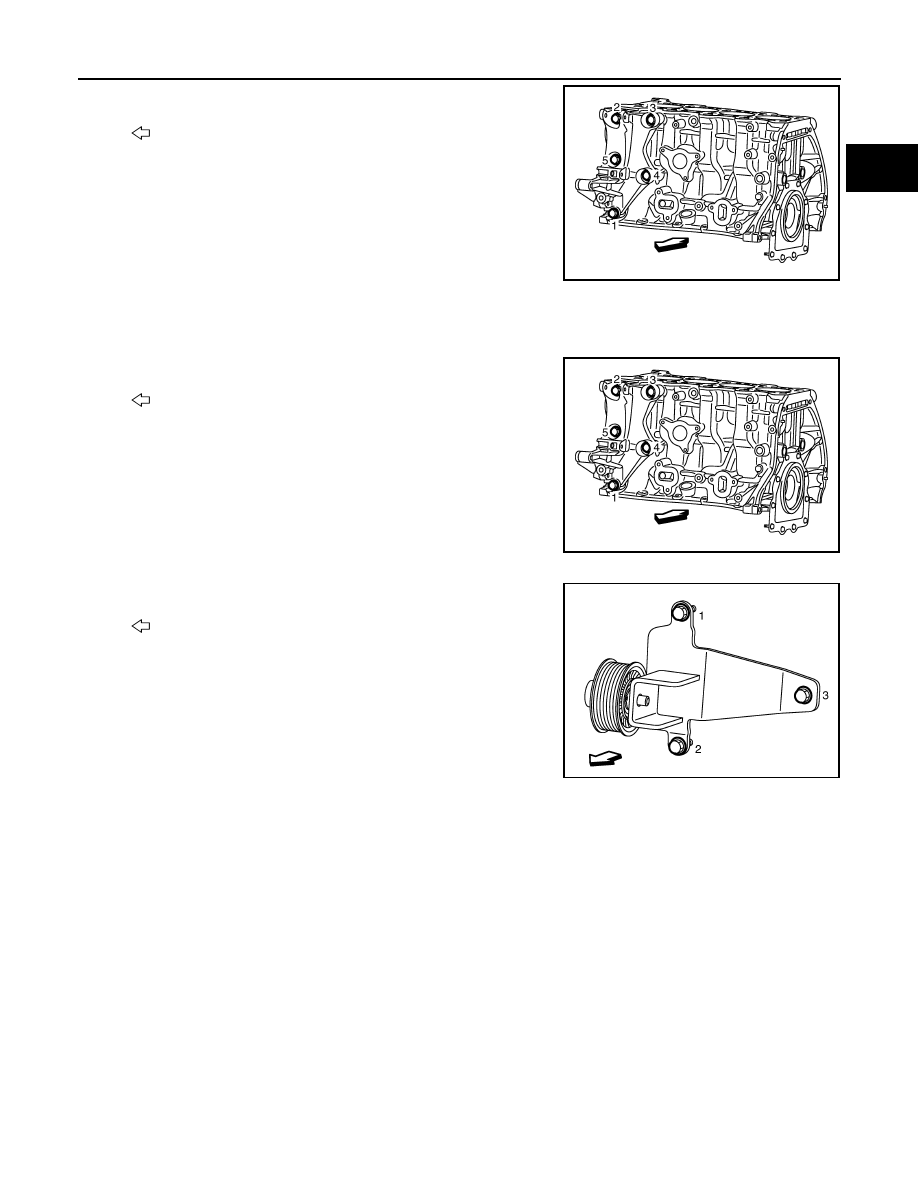

• Loosen mounting bolts in reverse order as shown in the figure.

INSTALLATION

Note the following, and install in the reverse order of removal.

Multifunction support bracket

• Tighten mounting bolts in numerical order as shown in the figure.

Idler roller bracket (without A/C Models)

• Tighten mounting bolts in numerical order as shown in the figure.

Idler pulley bolt

• Tighten drive belt idler pulley bolt.

Auto-tensionner bolts

• Tighten drive belt auto-tensionner bolts.

Idler roller bolt  (without A/C Models)

• Tighten drive belt idler roller bolt (without A/C Models).

: Engine front

E1BIA0611ZZ

: Engine front

E1BIA0611ZZ

: Engine front

E1BIA1155ZZ

Drive belt idler pulley bolt

44 Nm (4.5kg-m, 32ft-lb)

Drive belt auto-tensionner
bolts

25 Nm (2.6kg-m, 18ft-lb)

Drive belt idler roller bolt

45 Nm (4.7kg-m, 34ft-lb)

EM-380

< REMOVAL AND INSTALLATION >

[R9M]

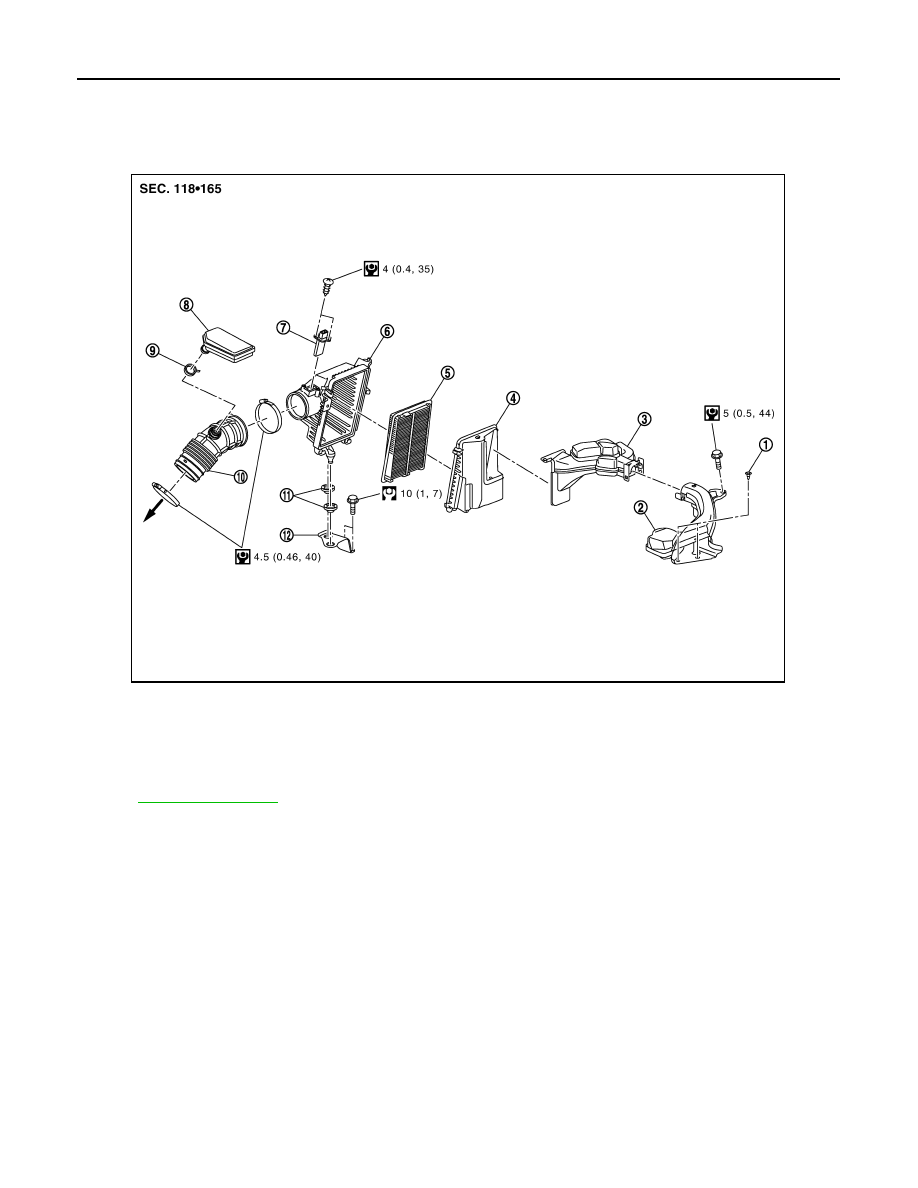

AIR CLEANER AND AIR DUCT

AIR CLEANER AND AIR DUCT

Exploded View

INFOID:0000000010281971

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000010499449

REMOVAL

1.

Remove air duct (air cleaner side).

2.

Remove air duct (inlet side).

3.

Disconnect mass air flow sensor.

4.

Disconnect air hose from air cleaner filter unit.

5.

Remove air cleaner filter unit.

6.

Remove air hose.

7.

Remove air filter element if necessary.

INSTALLATION

• Install in the reverse order of removal.

Inspection

INFOID:0000000010281973

INSPECTION AFTER REMOVAL

1.

Clip

2.

Air duct (inlet side)

3.

Air duct (air cleaner side)

4.

Holder

5.

Air filter element

6.

Air cleaner filter unit

7.

Mass air flow sensor

8.

Resonator

9.

Clamp

10. Air hose

11.

Mounting rubber

12. Air cleaner filter unit bracket

E1BIA1200GB

AIR CLEANER AND AIR DUCT

EM-381

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Inspect air ducts, air cleaner and hose for crack or tear.
• If anything found, replace air duct assembly.

EM-382

< REMOVAL AND INSTALLATION >

[R9M]

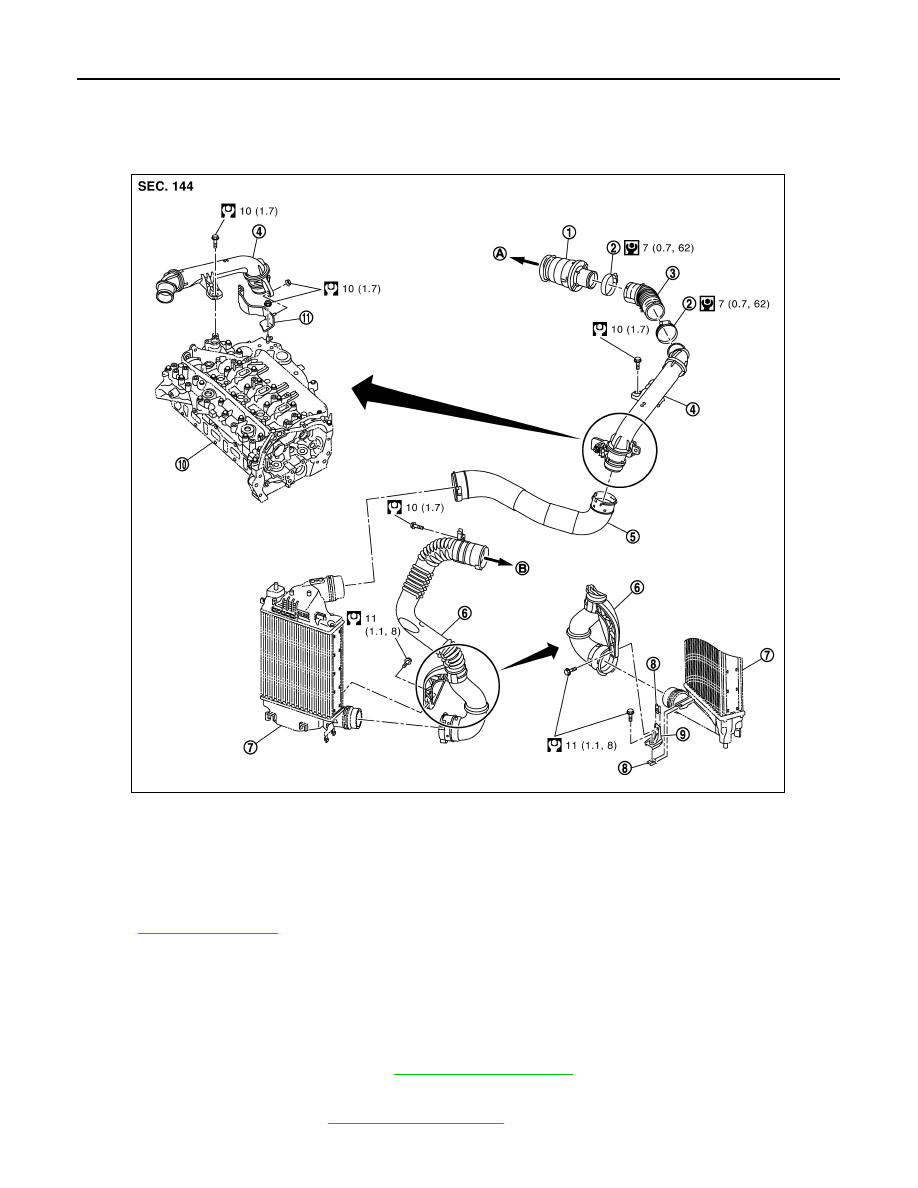

CHARGE AIR COOLER

CHARGE AIR COOLER

Exploded View

INFOID:0000000010281974

Refer to

GI-4, "Components"

  for symbols in the figure.

Removal and Installation

INFOID:0000000010499450

REMOVAL

Air inlet hose and tube.

1.

Remove engine cover.

2.

Remove air inlet hose and tube. Refer to

EM-281, "Exploded View"

.

Charge air cooler.

1.

Remove front bumper. Refer to

EXT-19, "Exploded View"

.

1.

Silencer

2.

Air inlet hose 1

3.

Clamp Air inlet hose 2

4.

Air inlet tube 1

5.

Air inlet hose 2

6.

Air inlet tube 2

7.

Charge air cooler

8.

Metal clip

9.

Air inlet tube 2 bracket

10. Cylinder head  air inlet pipe

11.

Air inlet tube 1 bracket

A.

To turbocharger

B.

To throttle chamber

E1BIA1201GB
