Nissan Qashqai J11. Manual - part 109

AIR CLEANER FILTER

EM-375

< PERIODIC MAINTENANCE >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

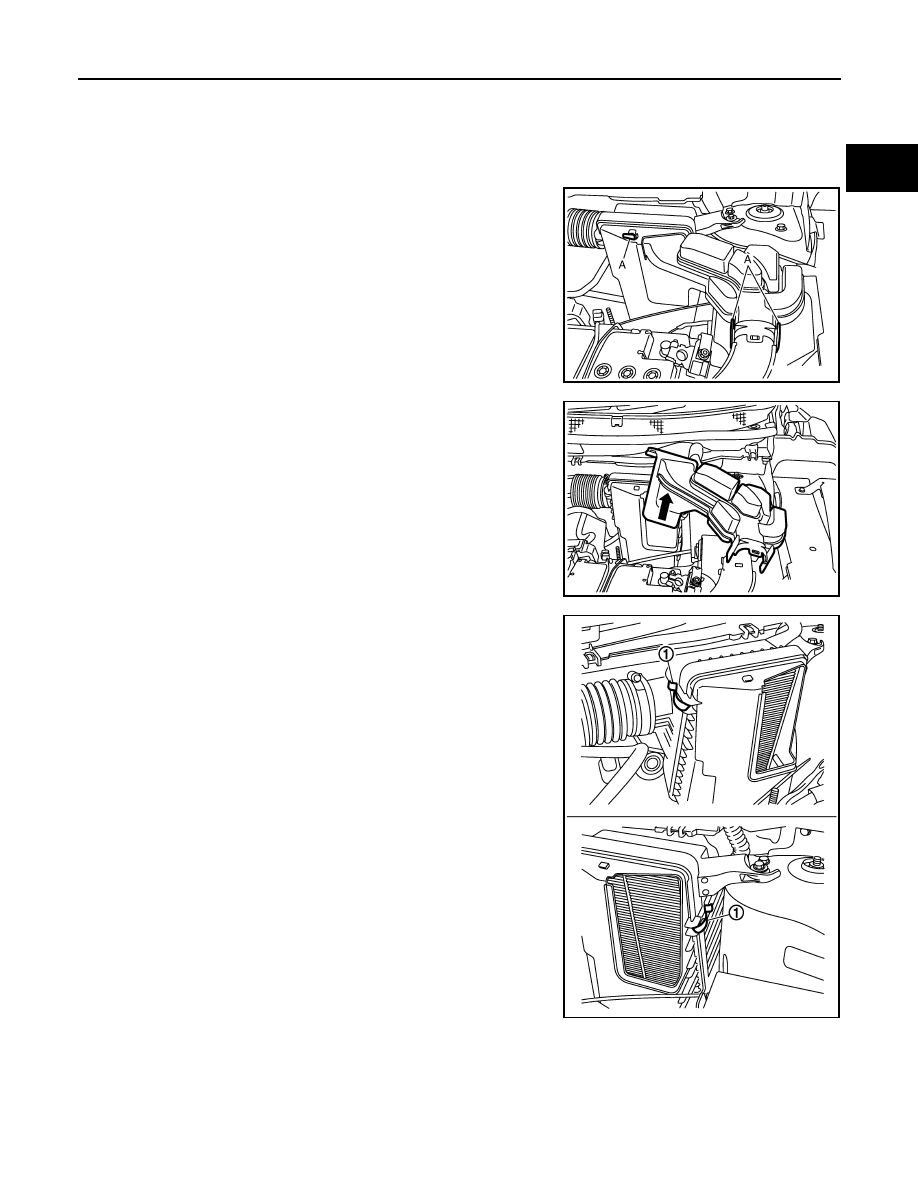

AIR CLEANER FILTER

Removal and Installation

INFOID:0000000010281967

REMOVAL

1.

Press the points (A) to separate air resonator from air duct and
air cleaner filter unit.

2.

Remove air resonator following the arrow.

3.

Unhook clips (1) on the air cleaner filter holder.

E1BIA1002ZZ

E1BIA1003ZZ

E1BIA1004ZZ

EM-376

< PERIODIC MAINTENANCE >

[R9M]

AIR CLEANER FILTER

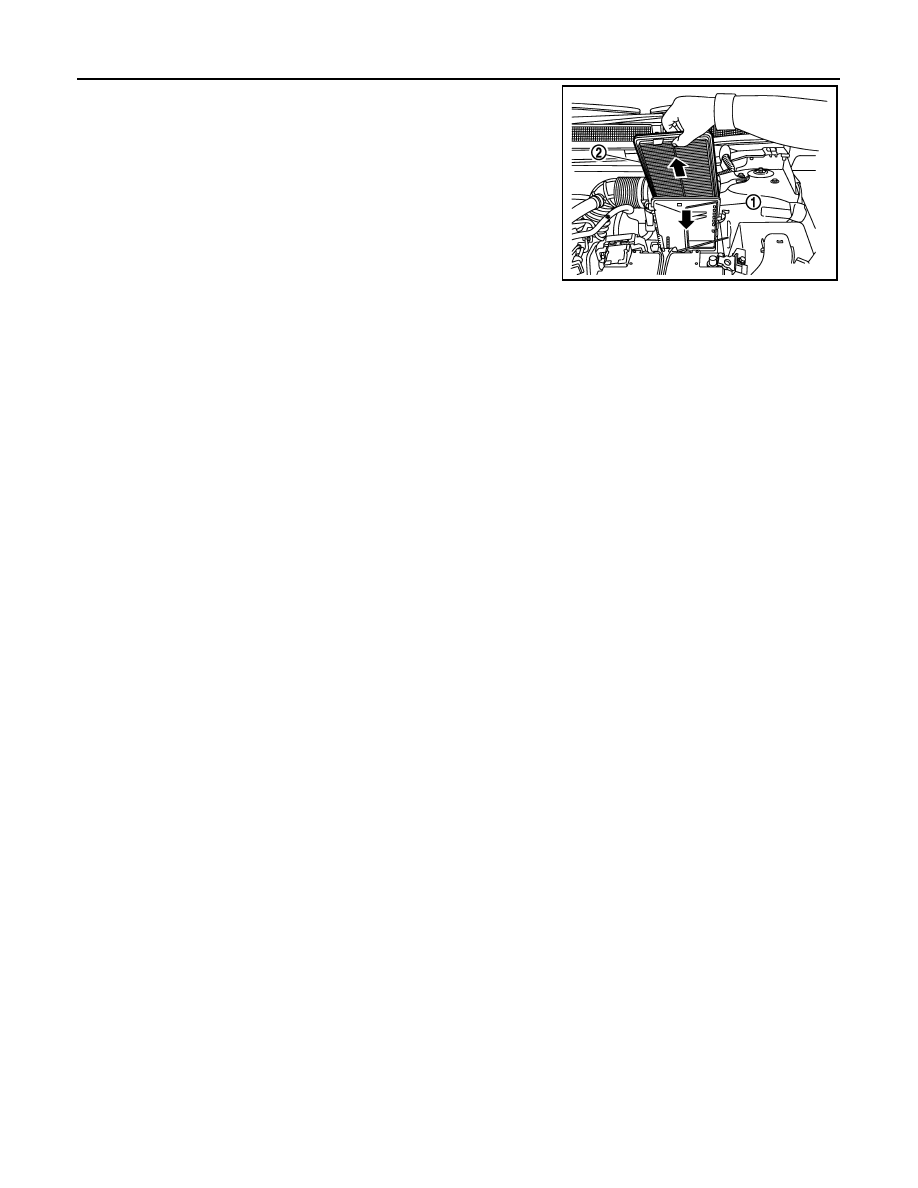

4.

Separate air cleaner filter holder (1) from air cleaner filter unit
and remove air cleaner filter (2).

INSTALLATION

Install in the reverse order of removal.

E1BIA1005ZZ

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

EM-377

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

REMOVAL AND INSTALLATION

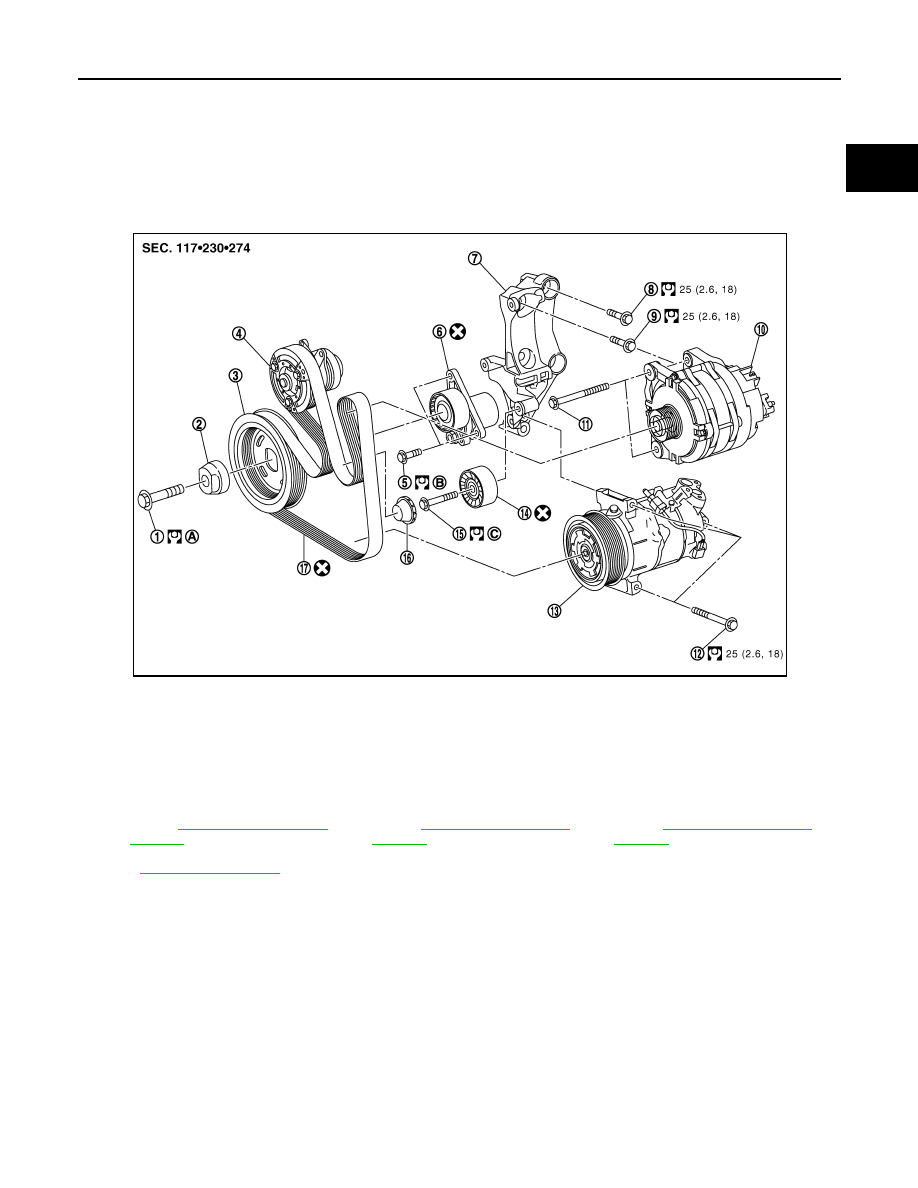

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

Exploded View

INFOID:0000000010281969

With A/C

Refer to

GI-4, "Components"

 for symbols in the figure.

Without A/C

1.

Crankshaft pulley bolt

2.

Crankshaft spacer

3.

Crankshaft pulley

4.

Water pump

5.

Drive belt auto-tensionner bolt

6.

Drive belt auto-tensionner

7.

Multifunction support bracket

8.

Multifunction support bracket bolt

9.

Multifunction support bracket bolt

10. Alternator

11.

Alternator bolt

12. A/C compressor bolt

13. Compressor

14. Idler pulley

15. Idler pulley bolt

16. Idler pulley cap

17. Drive belt

A.

Refer to

EM-413, "Removal and In-

stallation"

B.

Refer to

EM-378, "Removal and In-

stallation"

C.

Refer to

EM-378, "Removal and In-

stallation"

E1BIA1198GB

EM-378

< REMOVAL AND INSTALLATION >

[R9M]

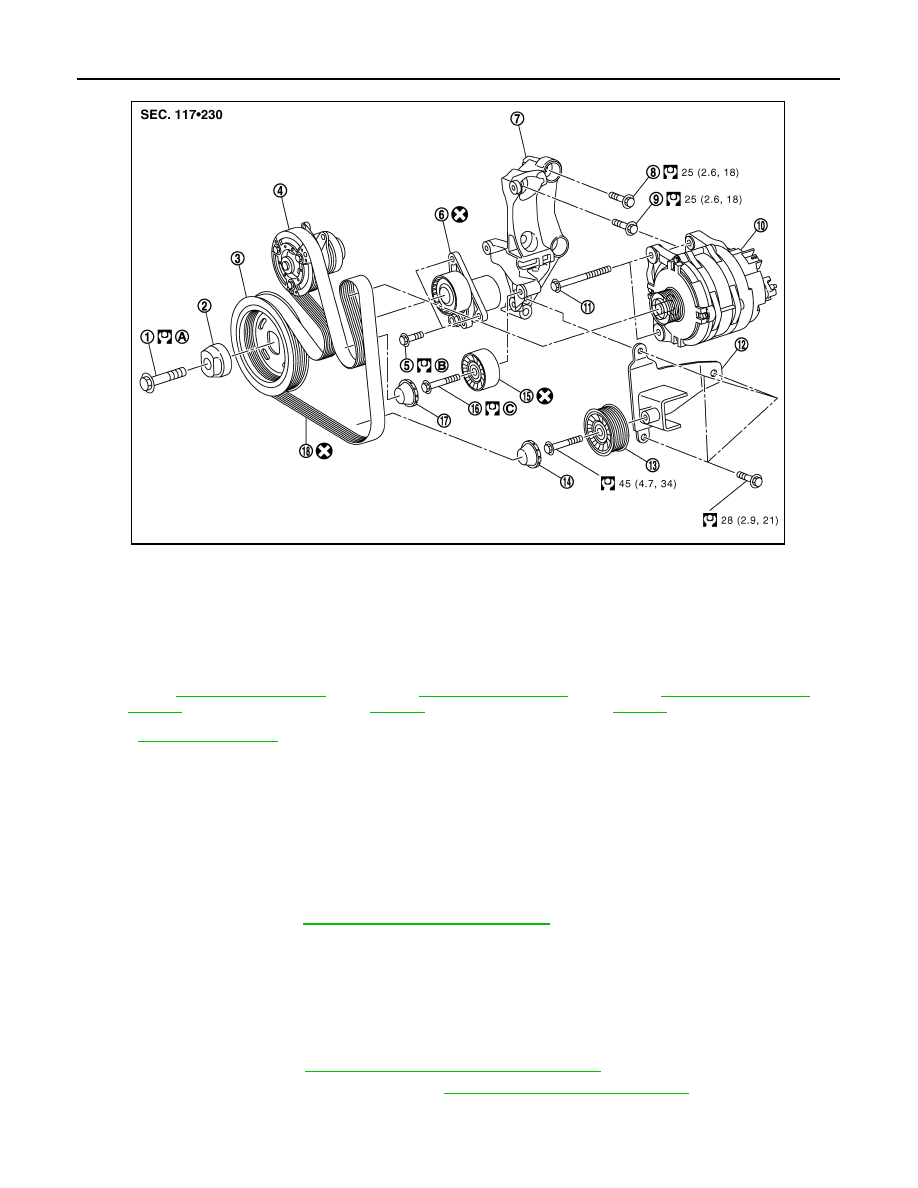

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000010281970

CAUTION:

• Replace the drive belt that has been removed with a new one.
• Drive belt auto-tensioner and idler pulley must be replaced with new ones when the drive belt is

replaced.

• Never run the engine without the drive belt to avoid damaging the crankshaft pulley.

REMOVAL

1.

Remove drive belt. Refer to

EM-373, "Removal and Installation"

.

• Keep drive belt auto-tensioner pulley arm locked after drive belt is removed.

2.

Remove drive belt auto-tensioner.

3.

Remove cover and idler pulley.

4.

Remove cover and idler roller (without A/C Models)

5.

Remove multifunction support bracket with the following procedure:

a.

Disconnect the battery cable from the negative terminal.

b.

Remove alternator. Refer to

CHG-31, "R9M : Removal and Installation"

.

c.

Remove A/C compressor (if equipped). Refer to

HA-121, "Removal and Installation"

 .

d.

Remove multifunction support bracket.

1.

Crankshaft pulley bolt

2.

Crankshaft spacer

3.

Crankshaft pulley

4.

Water pump

5.

Drive belt auto-tensionner bolt

6.

Drive belt auto-tensionner

7.

Multifunction support bracket

8.

Multifunction support bracket bolt

9.

Multifunction support bracket bolt

10. Alternator

11.

Alternator bolt

12. Idler roller bracket

13. Idler roller

14. Idler roller bolt cap

15. Idler pulley

16. Idler pulley bolt

17. Idler pulley bolt cap

18. Drive belt

A.

Refer to

EM-413, "Removal and In-

stallation"

B.

Refer to

EM-378, "Removal and In-

stallation"

C.

Refer to

EM-378, "Removal and In-

stallation"

E1BIA1199GB
