VTL-18

< REMOVAL AND INSTALLATION >

BLOWER MOTOR

BLOWER MOTOR

Exploded View

INFOID:0000000010451823

Refer to

HA-39, "Exploded View"

.

Removal and Installation

INFOID:0000000010451824

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect blower motor connector and remove fixing screw.

3.

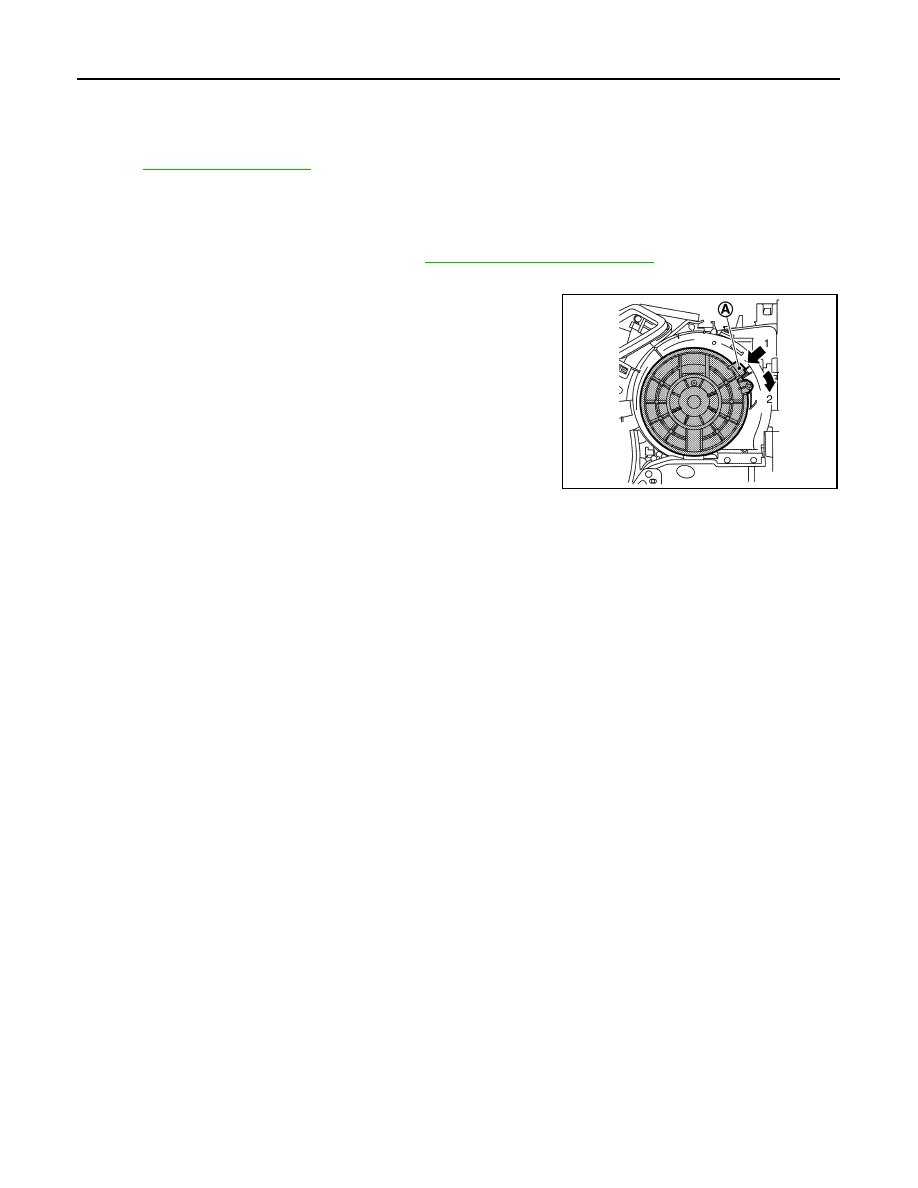

Press flange holding hook (A), and then turn blower motor clock-
wise according numerical order 1

→

2 indicated by arrows as

shown in the figure.

4.

Pull outside, and then remove blower motor.

INSTALLATION

Install in the reverse order of removal.

JMIIA3373ZZ

AIR CONDITIONER FILTER

VTL-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

AIR CONDITIONER FILTER

Exploded View

INFOID:0000000010451825

Refer to

HA-39, "Exploded View"

.

Removal and Installation

INFOID:0000000010451826

REMOVAL

Remove filter cover LH (RHD models) or filter cover RH (LHD models), and then remove air conditioner filter.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• If the filter is deformed/damaged when removing, replace it with a new one. Deformed/damaged filter

may deteriorate the dust collecting performance.

• When installing, handle the filter with extreme care to avoid deforming/damaging.

Replacement

INFOID:0000000010451827

Replace Air conditioner filter.
Refer to

VTL-20, "Air Conditioner Filter"

.

VTL-20

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Air Conditioner Filter

INFOID:0000000010451828

Replacement interval

•

MA-8, "HRA2DDT : Periodic Maintenance"

 (HRA2DDT)

•

MA-22, "MR20DD : Periodic Maintenance"

 (MR20DD)

•

MA-29, "K9K : Periodic Maintenance"

 (K9K)

•

MA-37, "R9M : Periodic Maintenance"

 (R9M)

HA-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

HA

A

B

HA

N

O

P

CONTENTS

HEATER & AIR CONDITIONING SYSTEM

TYPE 1

HOW TO USE THIS MANUAL ......................

6

APPLICATION NOTICE  ......................................

6

Information ................................................................

6

PRECAUTION ...............................................

7

PRECAUTIONS ...................................................

7

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

7

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection  ................................

7

Precaution for Procedure without Cowl Top Cover

......

8

Precautions for Removing Battery Terminal  .............

8

Precautions For Refrigerant System Service  ............

8

Service Equipment  ..................................................

11

PREPARATION ...........................................

13

PREPARATION ..................................................

13

Commercial Service Tools .....................................

13

Sealant or/and Lubricant  .........................................

14

SYSTEM DESCRIPTION  .............................

16

COMPONENT PARTS  .......................................

16

Component Parts Location ......................................

16

Component Description ...........................................

16

SYSTEM .............................................................

17

System Diagram ......................................................

17

System Description  .................................................

17

BASIC INSPECTION  ...................................

18

DIAGNOSIS AND REPAIR WORKFLOW  .........

18

Work Flow  ...............................................................

18

REFRIGERANT ..................................................

20

Description ..............................................................

20

Leak Test .................................................................

20

Recycle Refrigerant  .................................................

21

Charge Refrigerant  ..................................................

22

LUBRICANT ......................................................

23

Description ...............................................................

23

Inspection ................................................................

23

Perform Lubricant Return Operation  .......................

23

Lubricant Adjusting Procedure for Components
Replacement Except Compressor ...........................

23

Lubricant Adjusting Procedure for Compressor
Replacement ...........................................................

24

PERFORMANCE TEST  ....................................

26

Inspection ................................................................

26

SYMPTOM DIAGNOSIS  ..............................

28

REFRIGERATION SYSTEM SYMPTOMS ........

28

Trouble Diagnosis For Unusual Pressure ................

28

Symptom Table  .......................................................

28

NOISE ................................................................

30

Symptom Table  .......................................................

30

REMOVAL AND INSTALLATION  ...............

31

COMPRESSOR .................................................

31

Exploded View .........................................................

31

Removal and Installation  .........................................

31

Inspection ................................................................

32

COOLER PIPE AND HOSE  ..............................

33

Exploded View .........................................................

33

HIGH-PRESSURE FLEXIBLE HOSE  ........................

33

HIGH-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

33

LOW-PRESSURE FLEXIBLE HOSE .........................

34

LOW-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

34
