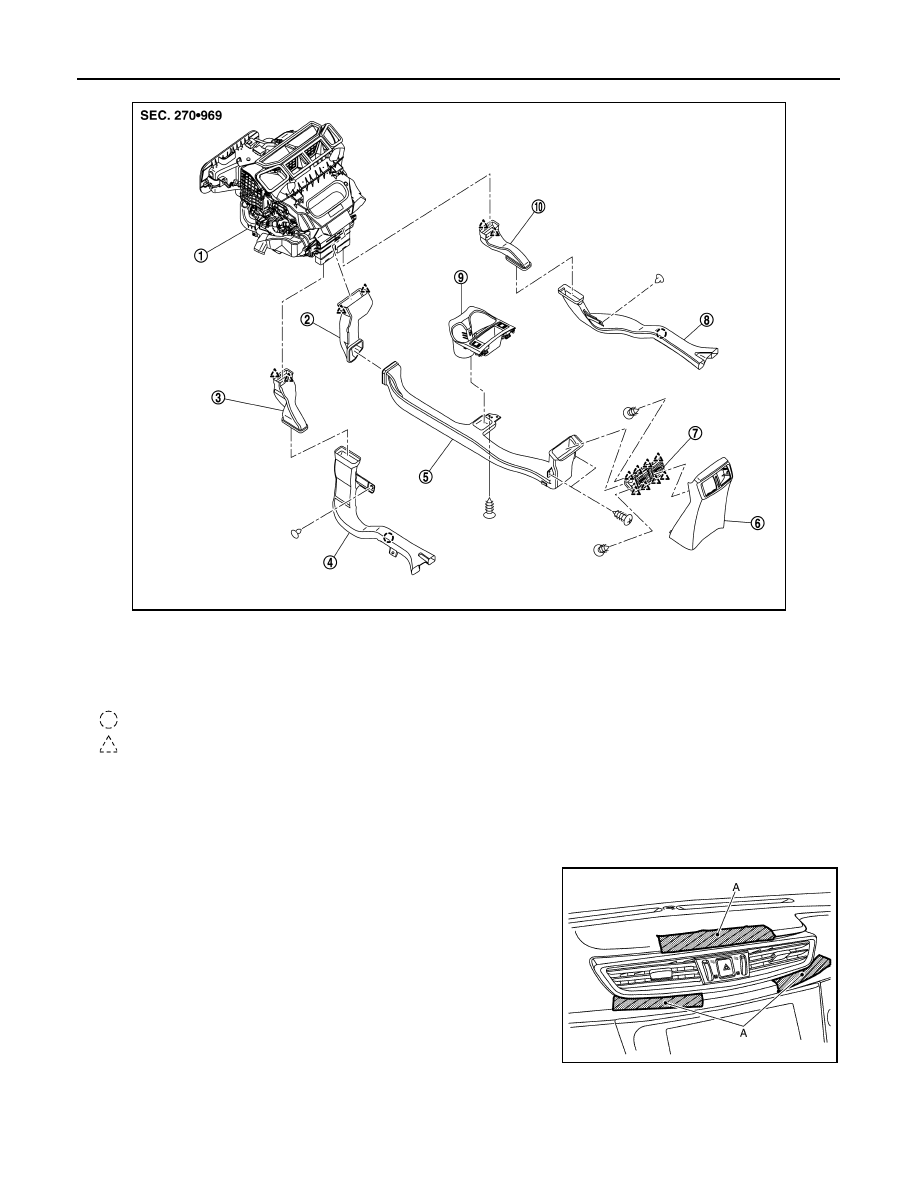

VTL-10

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

Rear (For RUSSIA)

CENTER VENTILATOR GRILLE

CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000010451815

REMOVAL

1.

Apply protective tapes (A) on instrument panel assembly to pro-
tect from damage.

2.

Disengage fixing metal clips and pawls using remover tool (A), and then remove center ventilator grille
according to numerical order 1

→

3 indicated by arrows as shown in the figure.

JMIIA3377ZZ

1.

A/C unit assembly

2.

Rear ventilator duct 1

3.

Rear floor duct 1 LH

4.

Rear floor duct 2 LH

5.

Rear ventilator duct 2

6.

Console rear finisher

7.

Rear ventilator grille

8.

Rear floor duct 2 RH

9.

Console switch finisher

10. Rear floor duct 1 RH

: Clip

: Pawl

JMIIA3341ZZ

DUCT AND GRILLE

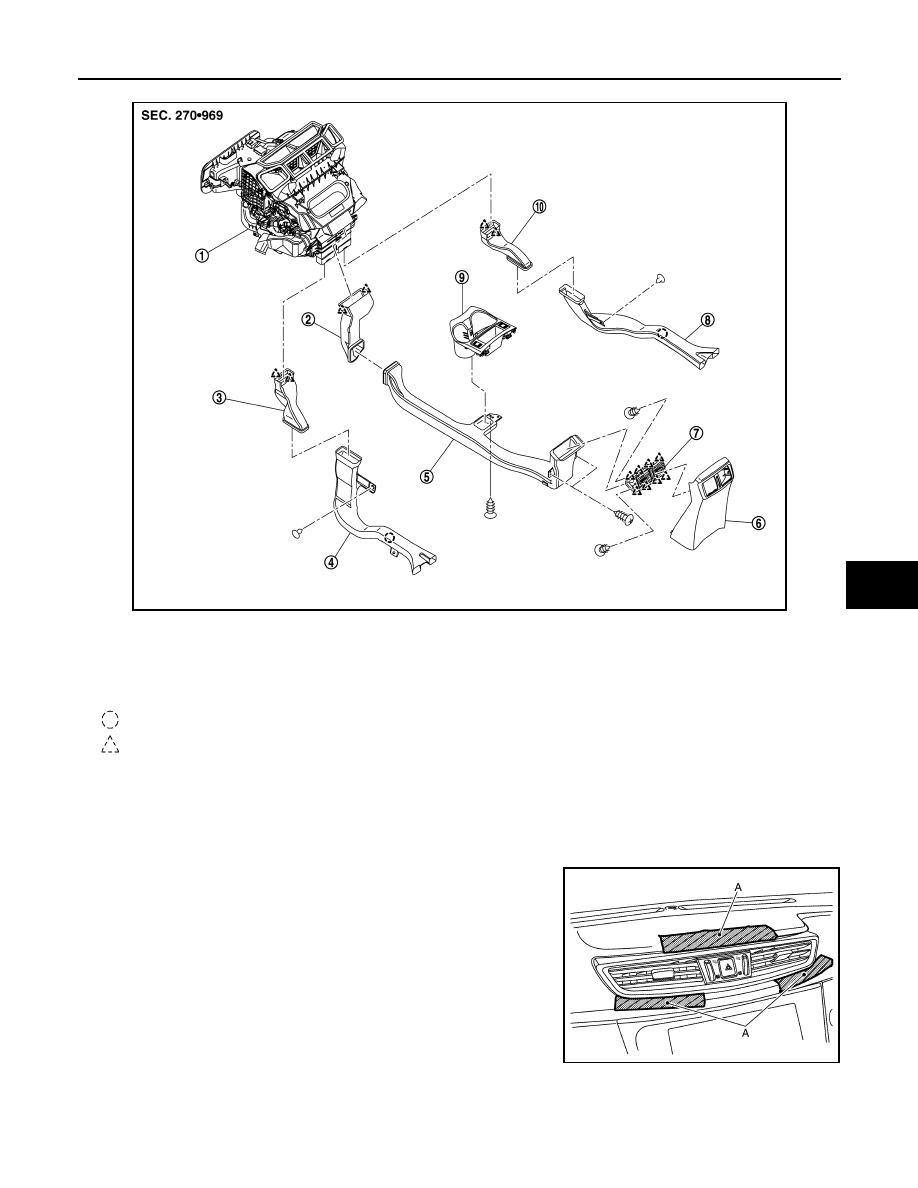

VTL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Rear (For RUSSIA)

CENTER VENTILATOR GRILLE

CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000010451815

REMOVAL

1.

Apply protective tapes (A) on instrument panel assembly to pro-
tect from damage.

2.

Disengage fixing metal clips and pawls using remover tool (A), and then remove center ventilator grille
according to numerical order 1

→

3 indicated by arrows as shown in the figure.

JMIIA3377ZZ

1.

A/C unit assembly

2.

Rear ventilator duct 1

3.

Rear floor duct 1 LH

4.

Rear floor duct 2 LH

5.

Rear ventilator duct 2

6.

Console rear finisher

7.

Rear ventilator grille

8.

Rear floor duct 2 RH

9.

Console switch finisher

10. Rear floor duct 1 RH

: Clip

: Pawl

JMIIA3341ZZ

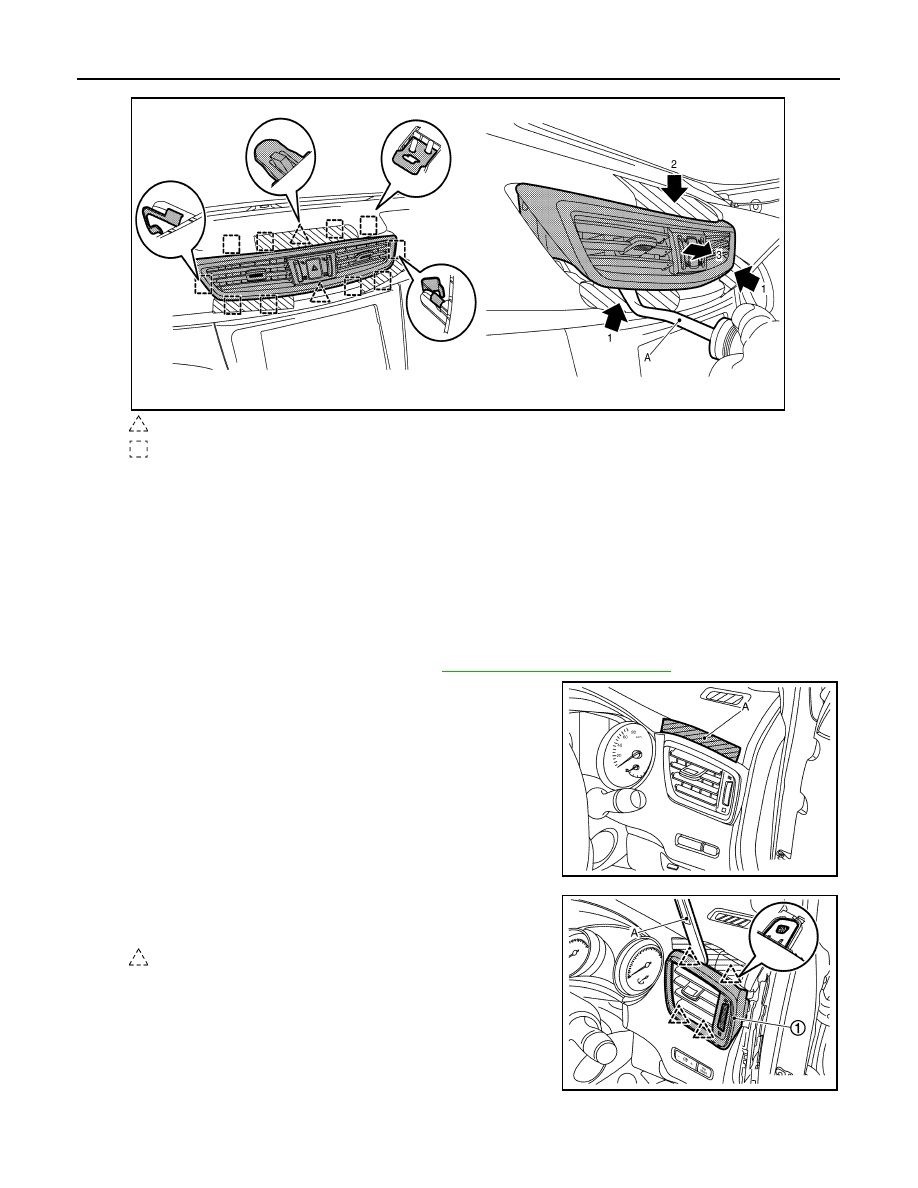

VTL-12

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

3.

Disconnect harness connector from center ventilator grille.

INSTALLATION

Install in the reverse order of removal.

SIDE VENTILATOR GRILLE

SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000010451816

REMOVAL

Driver Side

1.

Remove instrument mask (driver side). Refer to

IP-13, "Removal and Installation"

.

2.

Apply protective tape (A) on instrument panel assembly to pro-
tect from damage.

3.

Disengage fixing pawls using remover tool (A), and then remove
side ventilator grille (finisher portion) (1).

: Pawl

: Metal clip

JMIIA3417ZZ

JMIIA3343ZZ

: Pawl

JMIIA3374ZZ

DUCT AND GRILLE

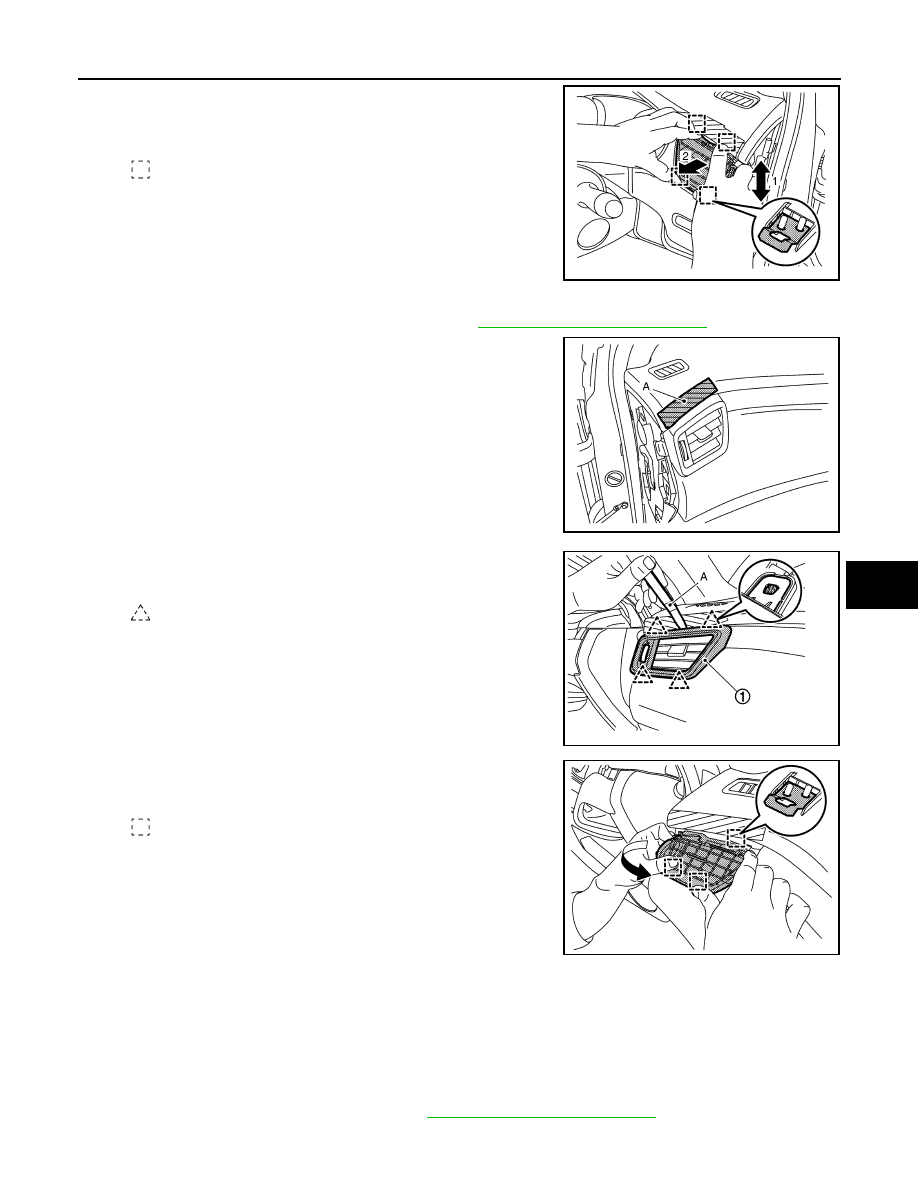

VTL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

4.

Disengage fixing metal clips, and then remove side ventilator
grille (case portion) according numerical order 1

→

2 indicated by

arrows as shown in the figure.

Passenger Side

1.

Remove instrument mask (passenger side). Refer to

IP-13, "Removal and Installation"

.

2.

Apply protective tape (A) on instrument panel assembly to pro-
tect from damage.

3.

Disengage fixing pawls using remover tool (A), and then remove
side ventilator grille (finisher portion) (1).

4.

Disengage fixing metal clips, and then remove side ventilator
grille (case portion) by arrows as shown in the figure.

INSTALLATION

Install in the reverse order of removal.

CENTER VENTILATOR DUCT

CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000010451817

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

: Metal clip

JMIIA3375ZZ

JMIIA3342ZZ

: Pawl

JMIIA3378ZZ

: Metal clip

JMIIA3379ZZ
