Nissan Qashqai J11. Manual - part 73

CYLINDER BLOCK

EM-231

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

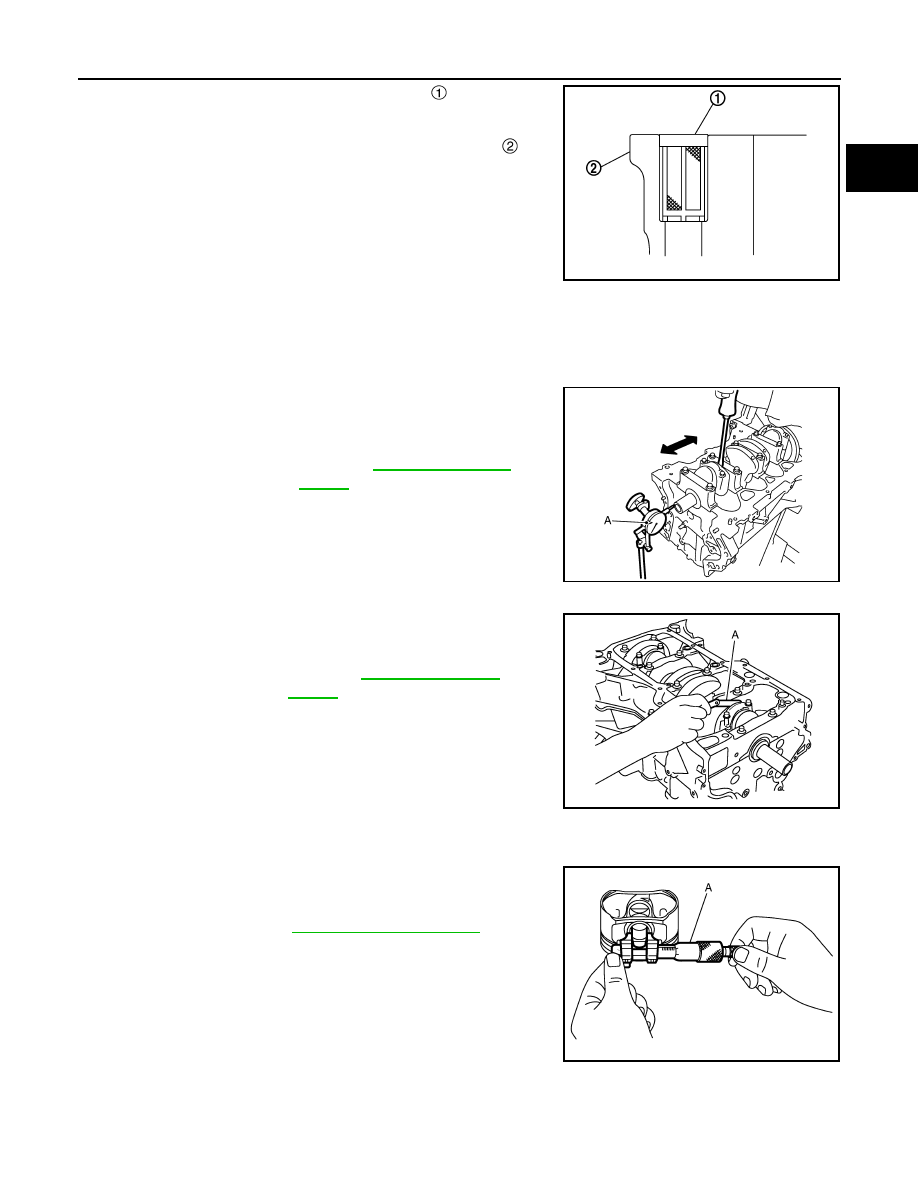

18. Install oil filter (for intake valve timing control)

 in the direction

shown in the figure.
• Check that the oil filter (for intake valve timing control) does

not protrude from the upper surface of cylinder block

 after

installation.

19. Assemble in the reverse order of disassembly.

Inspection

INFOID:0000000010715517

CRANKSHAFT END PLAY

• Measure the clearance between thrust bearings and crankshaft

arm when crankshaft is moved fully forward or backward with a dial
indicator (A).

• If the measured value exceeds the limit, replace thrust bearings,

and measure again. If it still exceeds the limit, replace crankshaft
also.

CONNECTING ROD SIDE CLEARANCE

• Measure the side clearance between connecting rod and crank-

shaft arm with a feeler gauge (A).

• If the measured value exceeds the limit, replace connecting rod,

and measure again. If it still exceeds the limit, replace crankshaft
also.

PISTON TO PISTON PIN OIL CLEARANCE

Piston Pin Hole Diameter

Measure the inner diameter of piston pin hole with an inside
micrometer (A).

Piston Pin Outer Diameter

PBIC3260J

Standard and Limit

: Refer to

EM-253, "Cylinder

Block"

.

JSBIA2509ZZ

Standard and Limit

: Refer to

EM-253, "Cylinder

Block"

.

JPBIA0689ZZ

Standard

: Refer to

EM-253, "Cylinder Block"

.

JSBIA2510ZZ

EM-232

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

CYLINDER BLOCK

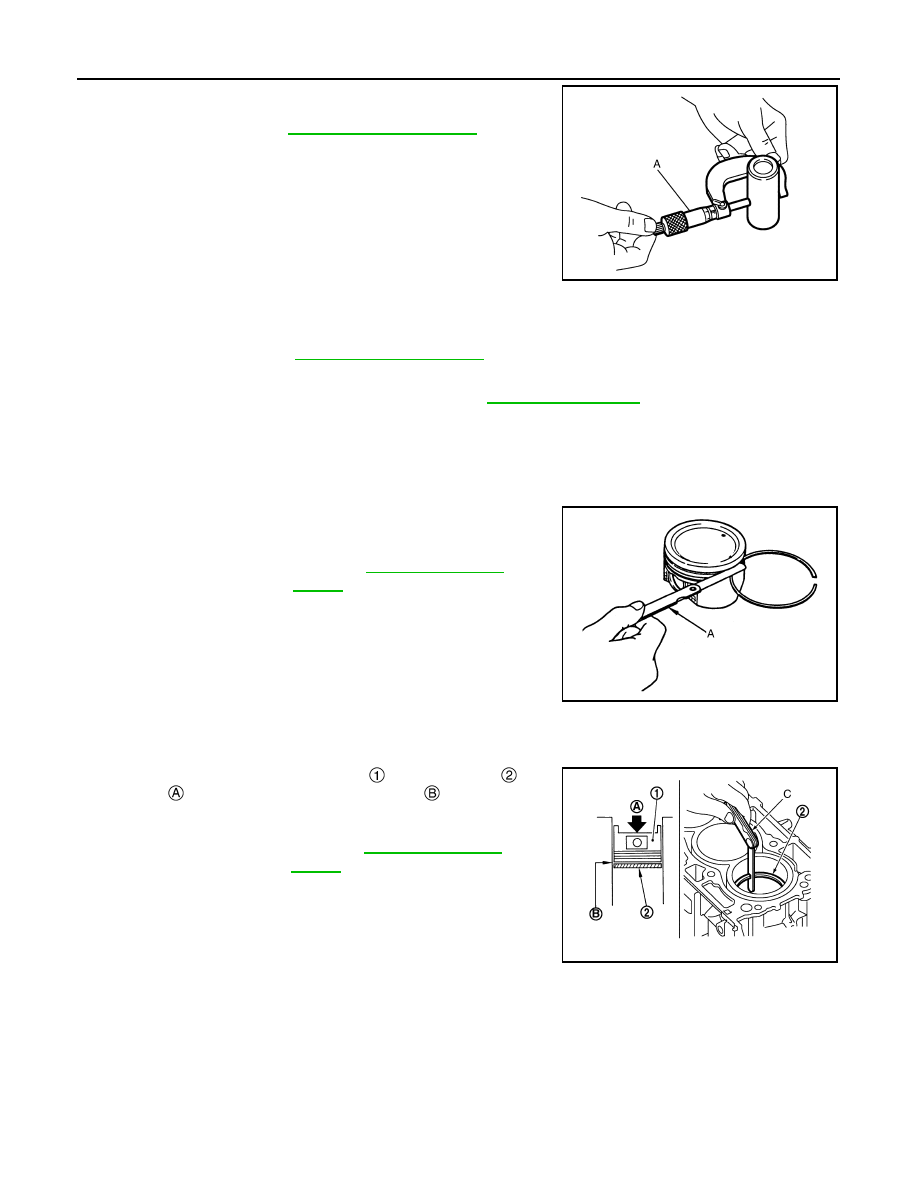

Measure the outer diameter of piston pin with a micrometer (A).

Piston to Piston Pin Oil Clearance

(Piston to piston pin oil clearance) = (Piston pin hole diameter) – (Piston pin outer diameter)

• If oil clearance is out of the standard, replace piston and piston pin assembly.
• When replacing piston and piston pin assembly. Refer to

EM-240, "Description"

.

NOTE:
• Piston is available together with piston pin as assembly.
• Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no

grades can be selected. (Only grade “0” is available.)

PISTON RING SIDE CLEARANCE

• Measure the side clearance of piston ring and piston ring groove

with a feeler gauge (A).

• If the measured value exceeds the limit, replace piston ring, and

measure again. If it still exceeds the limit, replace piston also.

PISTON RING END GAP

• Check that cylinder bore inner diameter is within specification. Refer to “PISTON TO CYLINDER BORE

CLEARANCE”.

• Lubricate with new engine oil to piston

 and piston ring

, and

then insert

 piston ring until middle of cylinder

 with piston, and

measure piston ring end gap with a feeler gauge (C).

• If the measured value exceeds the limit, replace piston ring, and

measure again. If it still exceeds the limit, rebore cylinder and use
oversized piston and piston rings.

CONNECTING ROD BEND AND TORSION

Standard :

Refer

to

EM-253, "Cylinder Block"

.

JSBIA2511ZZ

Standard :

Refer

to

EM-253, "Cylinder Block"

.

Standard and Limit

: Refer to

EM-253, "Cylinder

Block"

.

JSBIA2512ZZ

Standard and Limit

: Refer to

EM-253, "Cylinder

Block"

.

JSBIA2513ZZ

CYLINDER BLOCK

EM-233

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

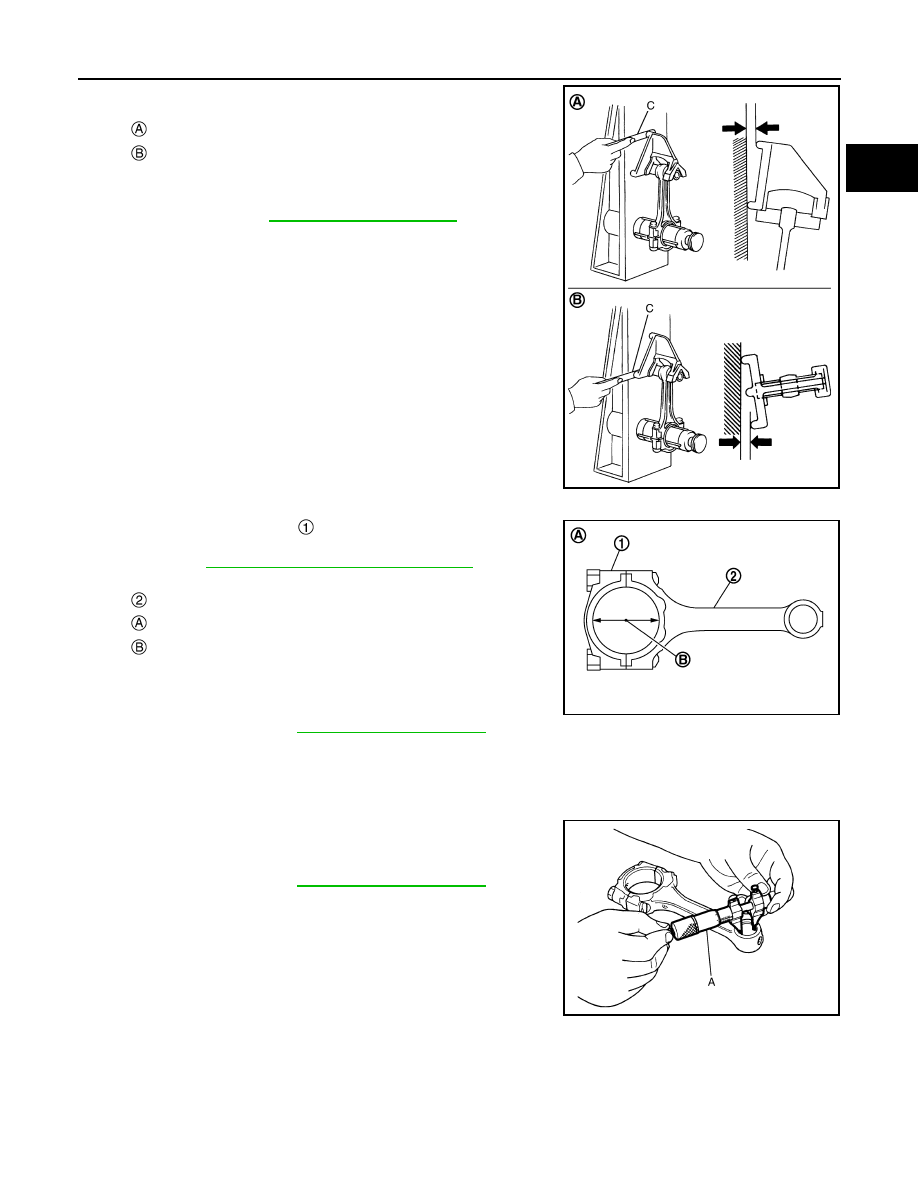

• Check with a connecting rod aligner.

• If it exceeds the limit, replace connecting rod assembly.

CONNECTING ROD BIG END DIAMETER

• Install connecting rod cap

 without connecting rod bearing

installed, and tightening connecting rod cap bolts to the specified
torque. Refer to

EM-223, "Disassembly and Assembly"

.

• Measure the inner diameter of connecting rod big end with an

inside micrometer.

• If out of the standard, replace connecting rod assembly.

CONNECTING ROD BUSHING OIL CLEARANCE

Connecting Rod Bushing Inner Diameter

Measure the inner diameter of connecting rod bushing with an inside
micrometer (A).

Piston Pin Outer Diameter

: Bend

: Torsion

C

: Feeler gauge

Limit

: Refer to

EM-253, "Cylinder Block"

.

JSBIA2514ZZ

: Connecting rod

: Example

: Measuring direction of inner diameter

Standard :

Refer

to

EM-253, "Cylinder Block"

.

PBIC3269J

Standard :

Refer

to

EM-253, "Cylinder Block"

.

JPBIA0223ZZ

EM-234

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

CYLINDER BLOCK

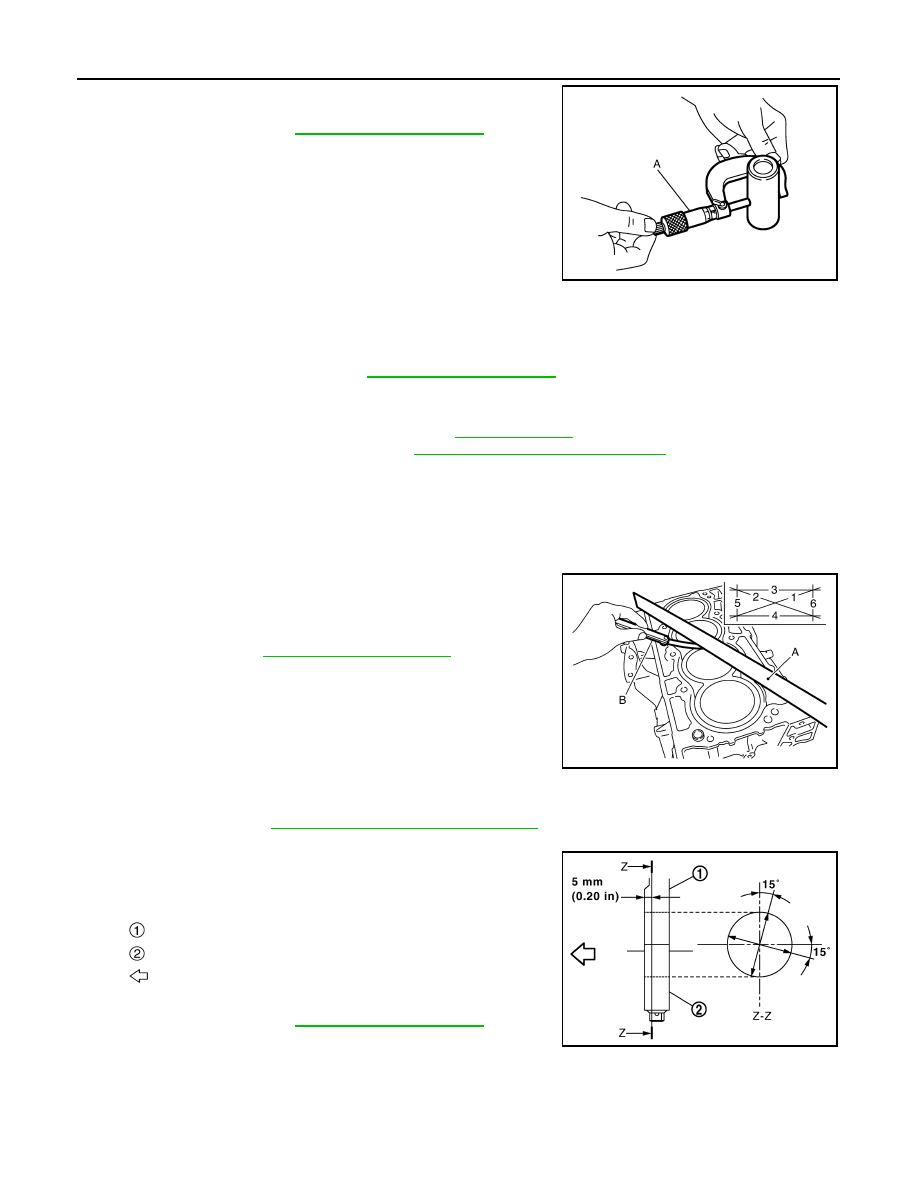

Measure the outer diameter of piston pin with a micrometer (A).

Connecting Rod Bushing Oil Clearance

(Connecting rod bushing oil clearance) = (Connecting rod bushing inner diameter) – (Piston pin outer diame-
ter)

• If the measured value is out of the standard, replace connecting rod assembly and/or piston and piston pin

assembly.

• If replacing piston and piston pin assembly. Refer to

EM-240, "Piston"

.

• If replacing connecting rod assembly. Refer to

EM-241, "Connecting Rod Bearing"

.

CYLINDER BLOCK TOP SURFACE DISTORTION

• Using a scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon, or

other contamination.

CAUTION:

Be careful not to allow gasket flakes to enter engine oil or engine coolant passages.

• Measure the distortion on the cylinder block upper face at some

different points in six directions with a straight edge (A) and feeler
gauge (B).

• If it exceeds the limit, replace cylinder block.

MAIN BEARING HOUSING INNER DIAMETER

• Install main bearing cap without main bearings installed, and tighten main bearing cap mounting bolts to the

specified torque. Refer to

EM-223, "Disassembly and Assembly"

.

• Measure the inner diameter of main bearing housing with a cylinder gauge.
• Measure the position shown in the figure [5 mm (0.20 in)] back-

ward from main bearing housing front side in the 2 directions as
shown in the figure. The smaller one is the measured value.

• If out of the standard, replace cylinder block and main bearing

caps assembly.
NOTE:
Main bearing caps cannot be replaced as a single, because it is machined together with cylinder block.

PISTON TO CYLINDER BORE CLEARANCE

Standard :

Refer

to

EM-253, "Cylinder Block"

.

JSBIA2511ZZ

Standard and Limit

: Refer to

EM-253, "Cylinder Block"

.

Limit :

Refer

to

EM-253, "Cylinder Block"

.

JSBIA2526ZZ

: Cylinder block

: Main bearing cap

: Engine front

Standard :

Refer

to

EM-253, "Cylinder Block"

.

PBIC4005E
