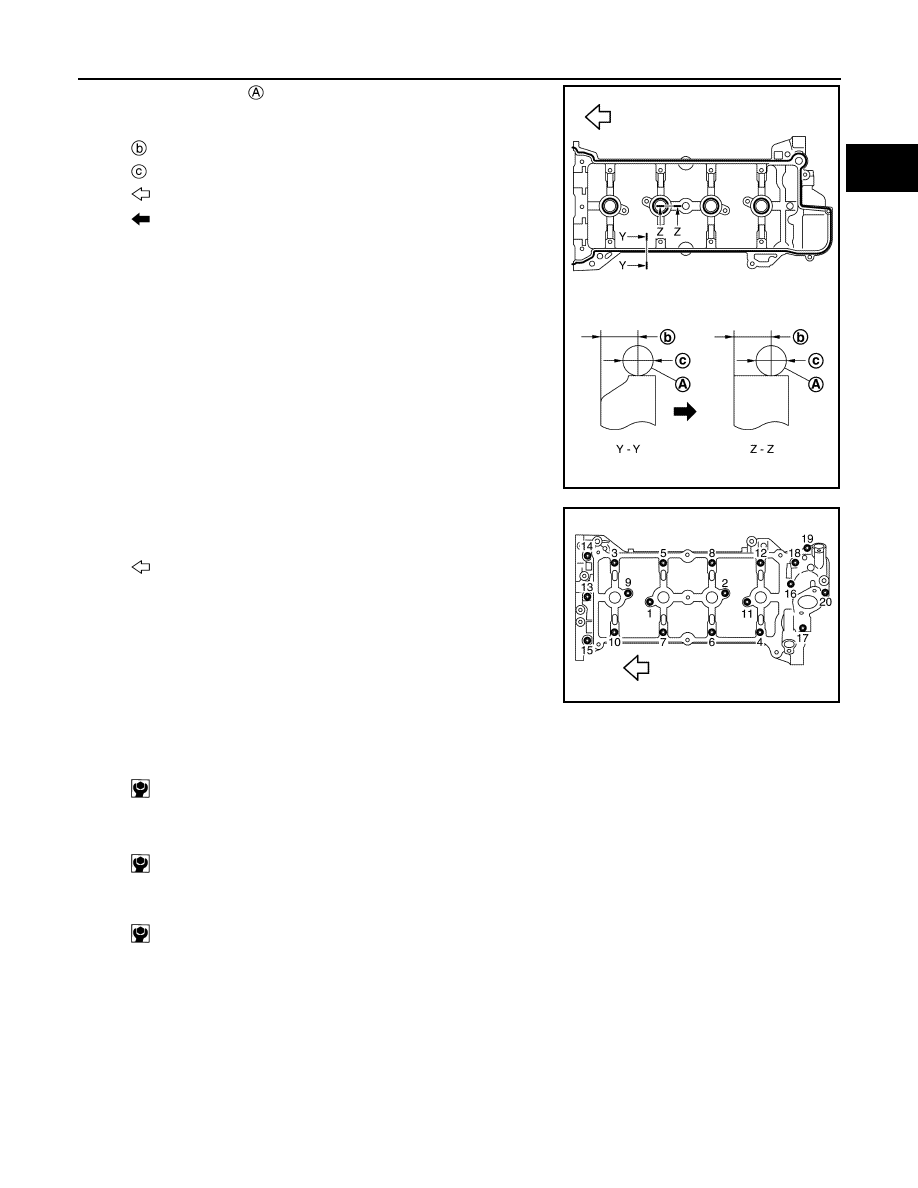

CAMSHAFT

EM-199

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

b.

Apply liquid gasket

 to camshaft bracket as shown in the fig-

ure.

Use Genuine Liquid Gasket (Three Bond 1217H) or equiva-
lent.

c.

Tighten mounting bolts of camshaft brackets in the following
steps, in numerical order as shown in the figure.

• There are two types of mounting bolts. Refer to the following

for locating bolts.

i.

Tighten mounting bolts in numerical order.

ii.

Tighten mounting bolts in numerical order.

iii.

Tighten mounting bolts in numerical order.

CAUTION:

After tightening mounting bolts of camshaft brackets, be sure to wipe off excessive liquid gasket
from the mating surface of cylinder head.

4.

Install the camshaft sprocket to the camshaft with the following procedure.

: Plug hole inner wall

:

φ

 3.4 - 4.4 mm (0.134 - 0.173 in)

: Engine front

: Engine outside

JPBIA4410ZZ

: Engine front

M6 bolts [thread length: 57.5 mm (2.264 in)]

: 13, 14, and 15 in the figure

M6 bolts [thread length: 35.0 mm (1.378 in)]

: Except the above

: 1.96 N·m (0.20 kg-m, 17 in-lb)

: 5.88 N·m (0.60 kg-m, 52 in-lb)

: 9.5 N·m (0.97 kg-m, 84 in-lb)

JPBIA4406ZZ

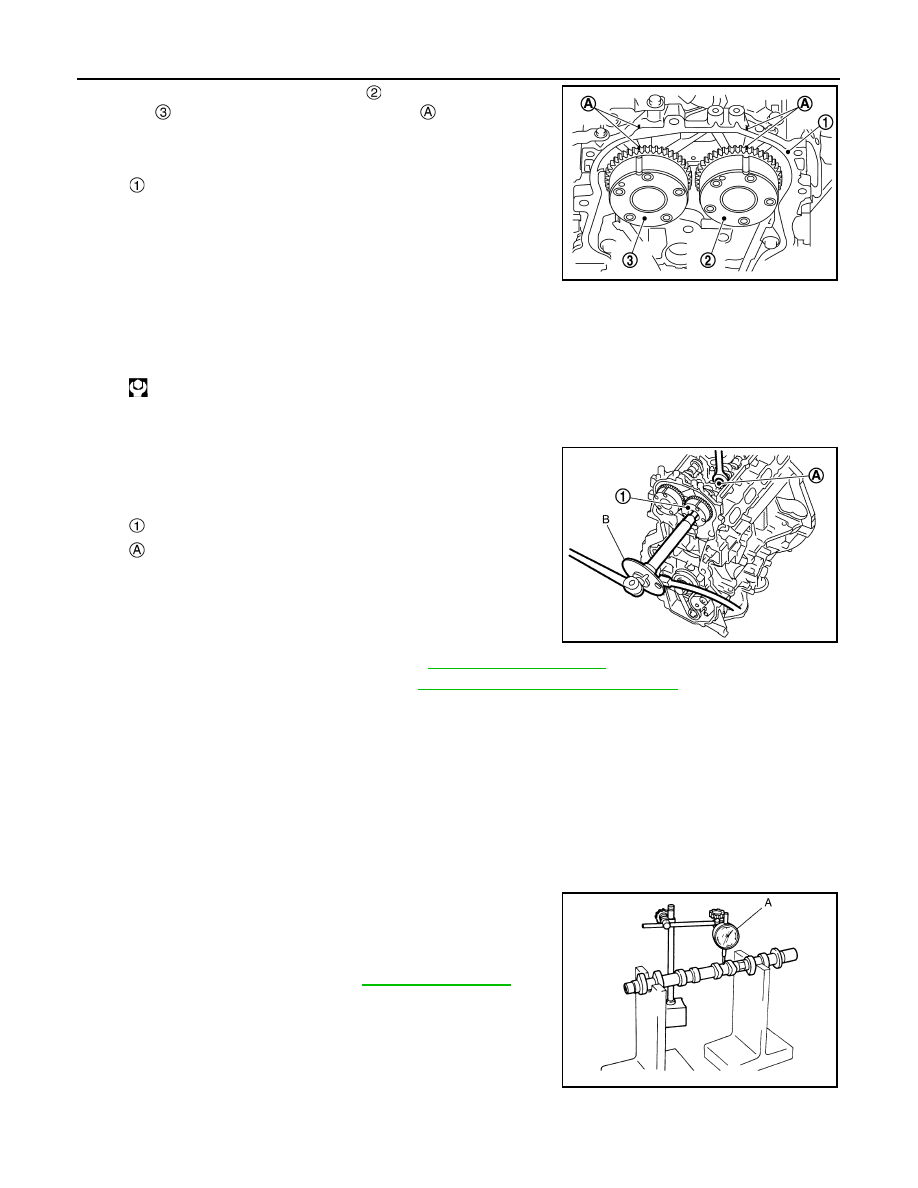

EM-200

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

CAMSHAFT

a.

When the camshaft sprocket (INT)

 and camshaft sprocket

(EXH)

 is removed, refer to the paint mark

 put according to

step “3”. Securely align the knock pin and the pin hole, and then
install them.

b.

Tighten bolts in the following steps.
• Secure the hexagonal part of camshaft using wrench to tighten mounting bolt.

i.

Tighten camshaft mounting bolt.

ii.

Turn 30 degrees clockwise (angle tightening).

CAUTION:

Check the tightening angle by using an angle wrench [SST:
KV10112100] (B) or protractor. Never judge by visual
inspection without an angle wrench.

5.

Install timing chain and related parts. Refer to

EM-183, "Exploded View"

.

6.

Inspect and adjust valve clearance. Refer to

EM-133, "Inspection and Adjustment"

.

7.

Install remaining parts in the reverse order of removal.

Inspection

INFOID:0000000010715504

INSPECTION AFTER REMOVAL

Camshaft Runout

1.

Put V-block on a precise flat table, and support No. 2 and 5 journal of camshaft.

CAUTION:

Never support No. 1 journal (on the side of camshaft sprocket) because it has a different diameter
from the other four locations.

2.

Set dial indicator (A) vertically to No. 3 journal.

3.

Turn camshaft to one direction with hands, and measure the
camshaft runout on dial indicator. (Total indicator reading)

4.

If it exceeds the limit, replace camshaft.

Camshaft Cam Height

: Camshaft bracket

JPBIA4404ZZ

: 35.0 N·m (3.6 kg-m, 26 ft-lb)

: Camshaft sprocket

: Camshaft hexagonal part

JPBIA4412ZZ

Standard and Limit

: Refer to

EM-249, "Camshaft"

.

JSBIA2445ZZ

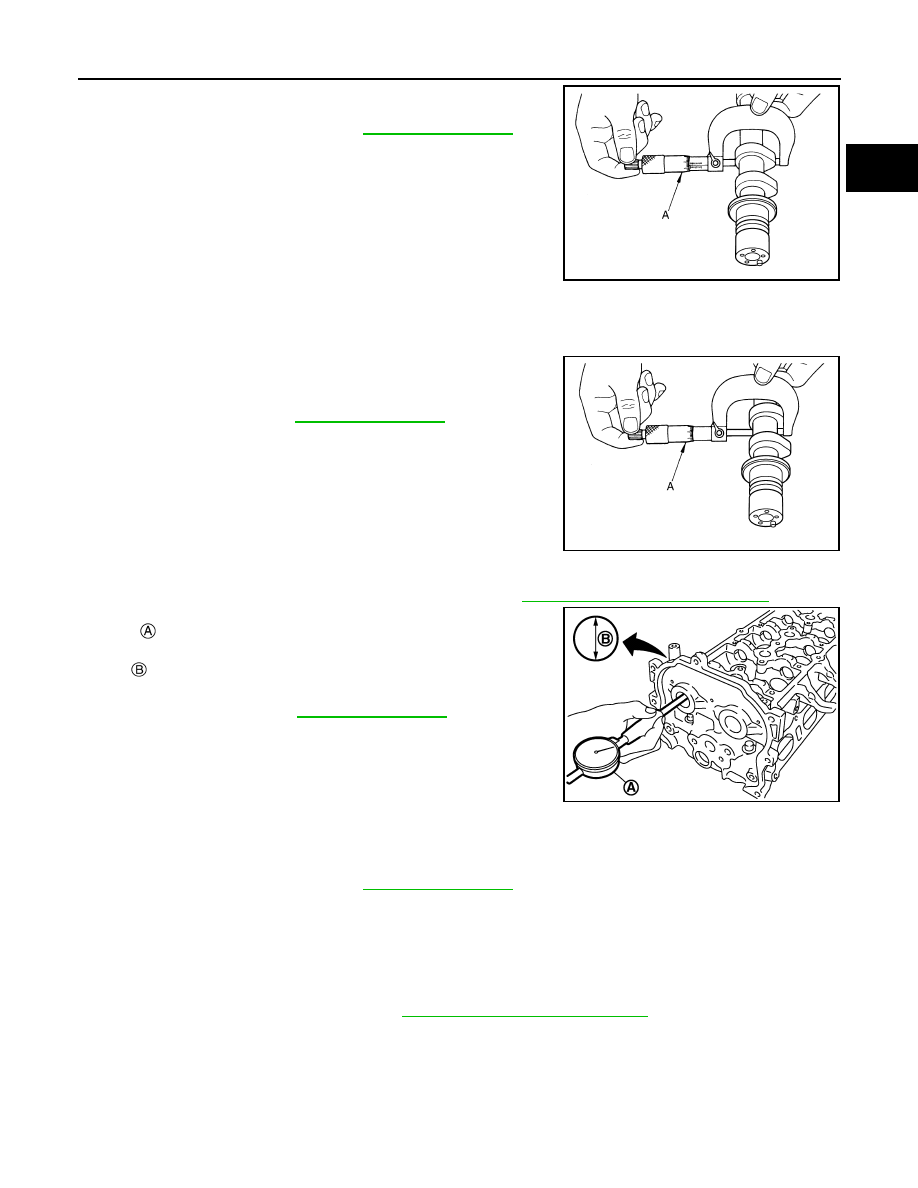

CAMSHAFT

EM-201

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

1.

Measure the camshaft cam height with a micrometer (A).

2.

If it exceeds the limit, replace camshaft.

Camshaft Journal Oil Clearance

CAMSHAFT JOURNAL OUTER DIAMETER
Measure the outer diameter of camshaft journal with a micrometer
(A).

CAMSHAFT BRACKET INNER DIAMETER
• Tighten camshaft bracket bolts with specified torque. Refer to

EM-197, "Removal and Installation"

.

• Measure the inner diameter of camshaft bracket with a cylinder

gauge .

CAMSHAFT JOURNAL OIL CLEARANCE
• (Oil clearance) = (Camshaft bracket inner diameter) – (Camshaft journal diameter)

• If it exceeds the limit, replace camshaft or cylinder head, or both.

NOTE:
Camshaft bracket cannot be replaced as a single part, because it is machined together with cylinder head.
Replace whole cylinder head assembly.

Camshaft End Play

1.

Install camshaft in cylinder head. Refer to

EM-197, "Removal and Installation"

.

Standard and Limit

: Refer to

EM-249, "Camshaft"

.

JPBIA6382ZZ

Standard

: Refer to

EM-249, "Camshaft"

.

JPBIA6337ZZ

: Measuring direction of inner diameter

Standard

: Refer to

EM-249, "Camshaft"

.

PBIC3180J

Standard and Limit

: Refer to

EM-249, "Camshaft"

.

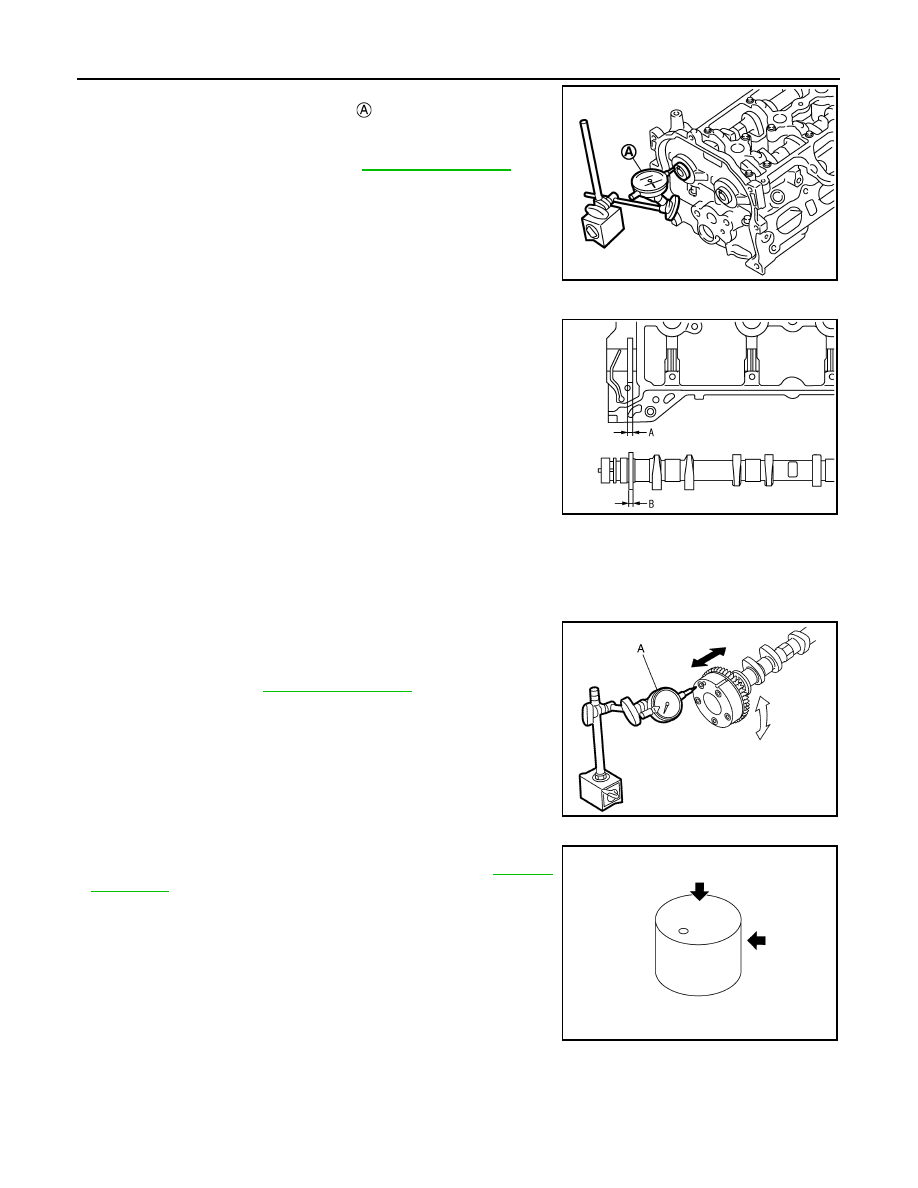

EM-202

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

CAMSHAFT

2.

Install dial indicator in thrust direction on front end of camshaft.
Read the end play of dial indicator

 when camshaft is moved

forward/backward (in direction to axis).

• Measure the following parts if out of the standard.
- Dimension (A) for groove of cylinder head No. 1 journal

- Dimension (B) for camshaft flange

• Refer to the standards above, and then replace camshaft and/

or cylinder head.

Camshaft Sprocket Runout

1.

Put V-block on precise flat table, and support No. 2 and 5 journals of camshaft.

CAUTION:

Never support No. 1 journal (on the side of camshaft sprocket) because it has a different diameter
from the other four locations.

2.

Measure the camshaft sprocket runout with a dial indicator (A).
(Total indicator reading)

• If it exceeds the limit, replace camshaft sprocket.

Valve Lifter

Check if surface of valve lifter has any wear or cracks.
• If anything above is found, replace valve lifter. Refer to

EM-249,

"Camshaft"

.

Valve Lifter Clearance

VALVE LIFTER OUTER DIAMETER

Standard and Limit

: Refer to

EM-249, "Camshaft"

.

PBIC3181J

Standard

: 4.000 - 4.030 mm (0.1575 - 0.1587 in)

Standard

: 3.877 - 3.925 mm (0.1526 - 0.1545 in)

PBIC3183J

Limit

: Refer to

EM-249, "Camshaft"

.

JPBIA4413ZZ

KBIA0182E
