Nissan Qashqai J11. Manual - part 58





IGNITION COIL, SPARK PLUG AND ROCKER COVER

EM-171

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

3.

Remove ignition coil.

CAUTION:

• Never drop or shock ignition coil.
• Never disassemble ignition coil.

4.

Remove rocker cover.

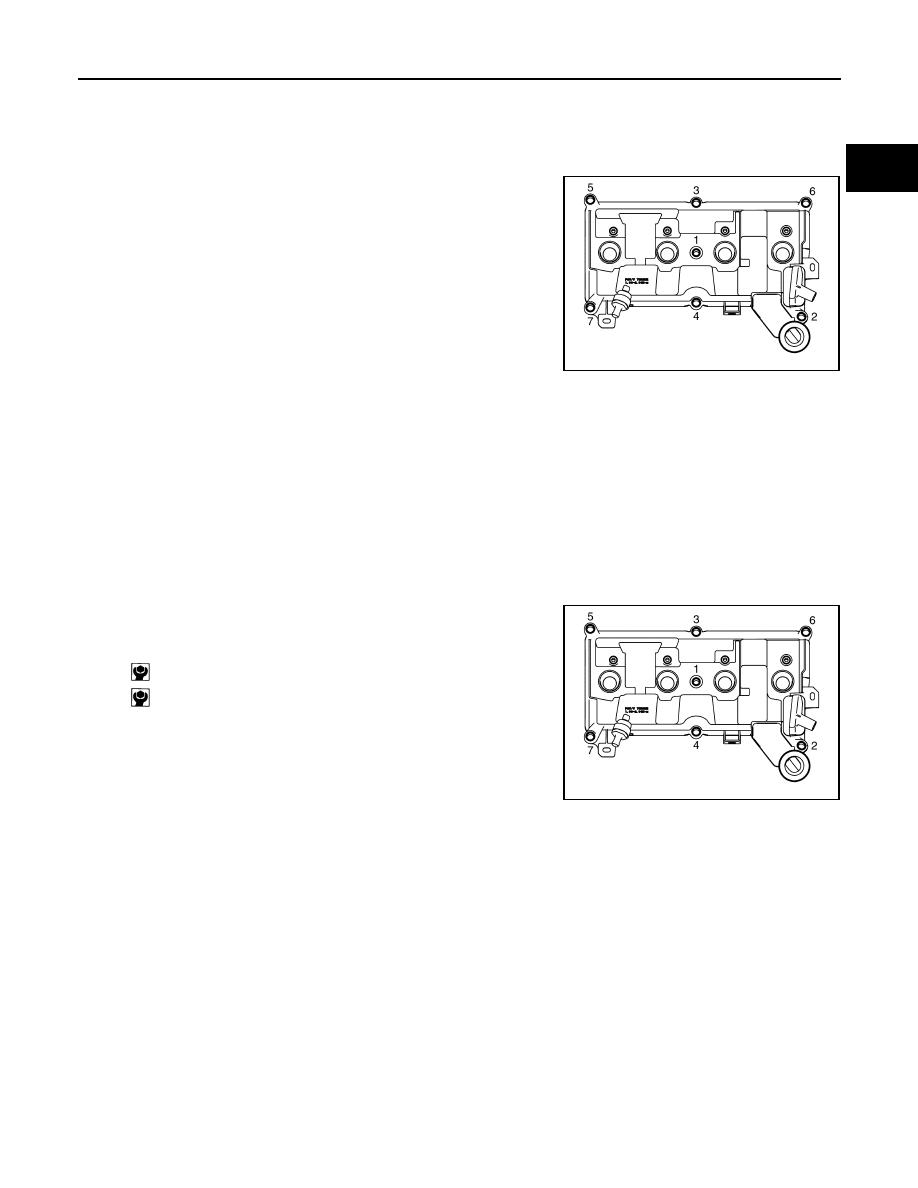

• Loosen bolts in the order from 7 to 1 shown in the figure.

5.

Remove rocker cover gasket from rocker cover.

6.

Use scraper to remove all traces of liquid gasket from camshaft bracket.

CAUTION:

Never scratch or damage the mating surface when cleaning off old liquid gasket.

INSTALLATION

CAUTION:

Do not reuse O-ring.

1.

Install the rocker cover gasket to rocker cover.

CAUTION:

Check the gasket is not dropped.

2.

Install rocker cover.
• Tighten bolts in two steps separately in the order from 1 to 7 as

shown in the figure.

3.

Install in the reverse order of removal, for the rest of parts.

JPBIA6816ZZ

 1st step

: 1.96 N·m (0.20 kg-m, 17 in-lb)

 2nd step

: 8.33 N·m (0.85 kg-m, 74 in-lb)

JPBIA6816ZZ

EM-172

< UNIT REMOVAL AND INSTALLATION >

[MR20DD]

ENGINE ASSEMBLY

UNIT REMOVAL AND INSTALLATION

ENGINE ASSEMBLY

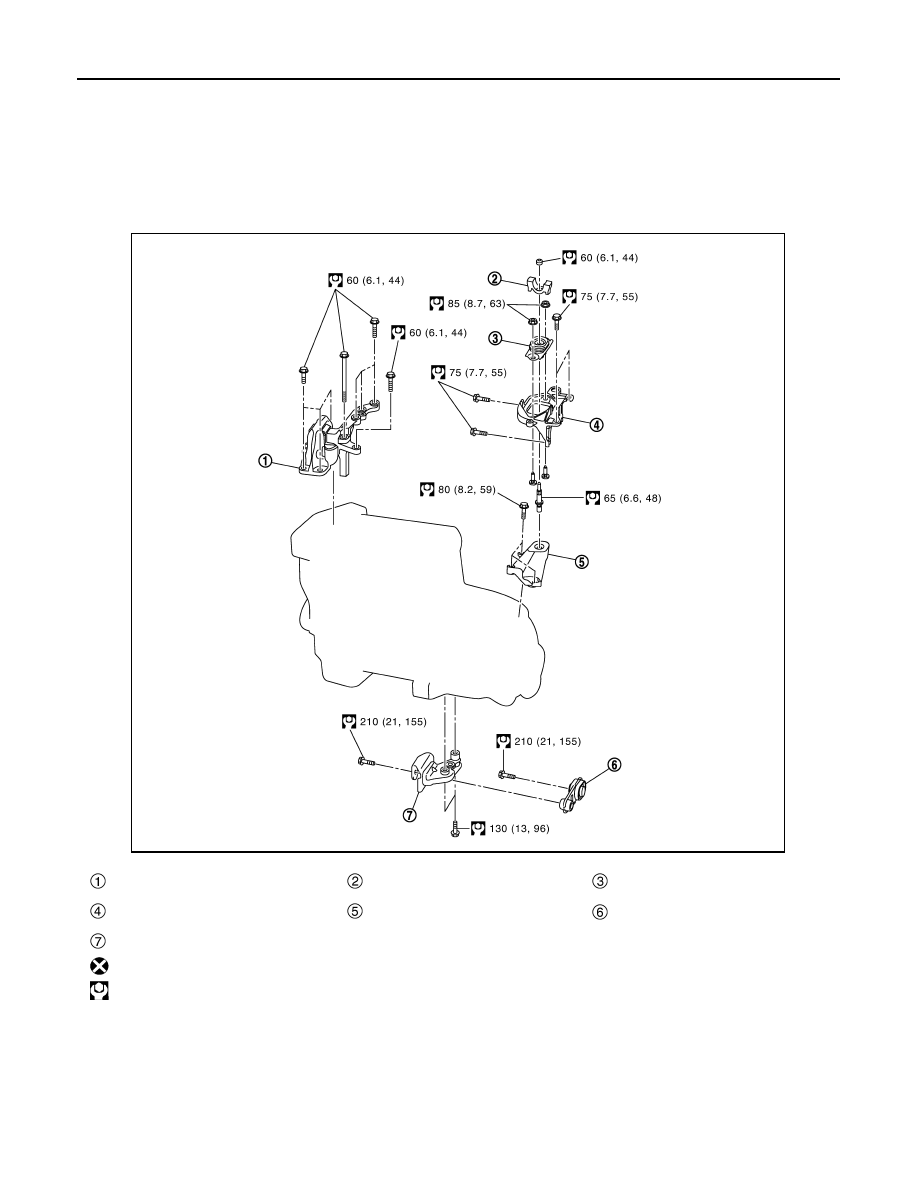

Exploded View

INFOID:0000000010715489

MT Model

CVT Model

Engine mounting insulator (RH)

Rubber

Engine mounting insulator (LH)

Engine mounting frame support (LH)

Engine mounting bracket support
(LH)

Rear torque rod

Rear torque rod bracket

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

E1BIA1177GB

ENGINE ASSEMBLY

EM-173

< UNIT REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Removal and Installation

INFOID:0000000010715490

WARNING:

• Situate the vehicle on a flat and solid surface.
• Place chocks at front and back of rear wheels.
• Attach proper slingers and bolts described in PARTS CATALOG if engine slingers are not equipped.

CAUTION:

• Always be careful to work safely, avoid forceful or uninstructed operations.
• Never start working until exhaust system and coolant are cool enough.
• If items or work required are not covered by the engine section, refer to the applicable sections.
• Always use the support point specified for lifting.
• Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for unavoid-

able reasons, support at the rear axle jacking point with a transmission jack or similar tool before
starting work, in preparation for the backward shift of center of gravity.

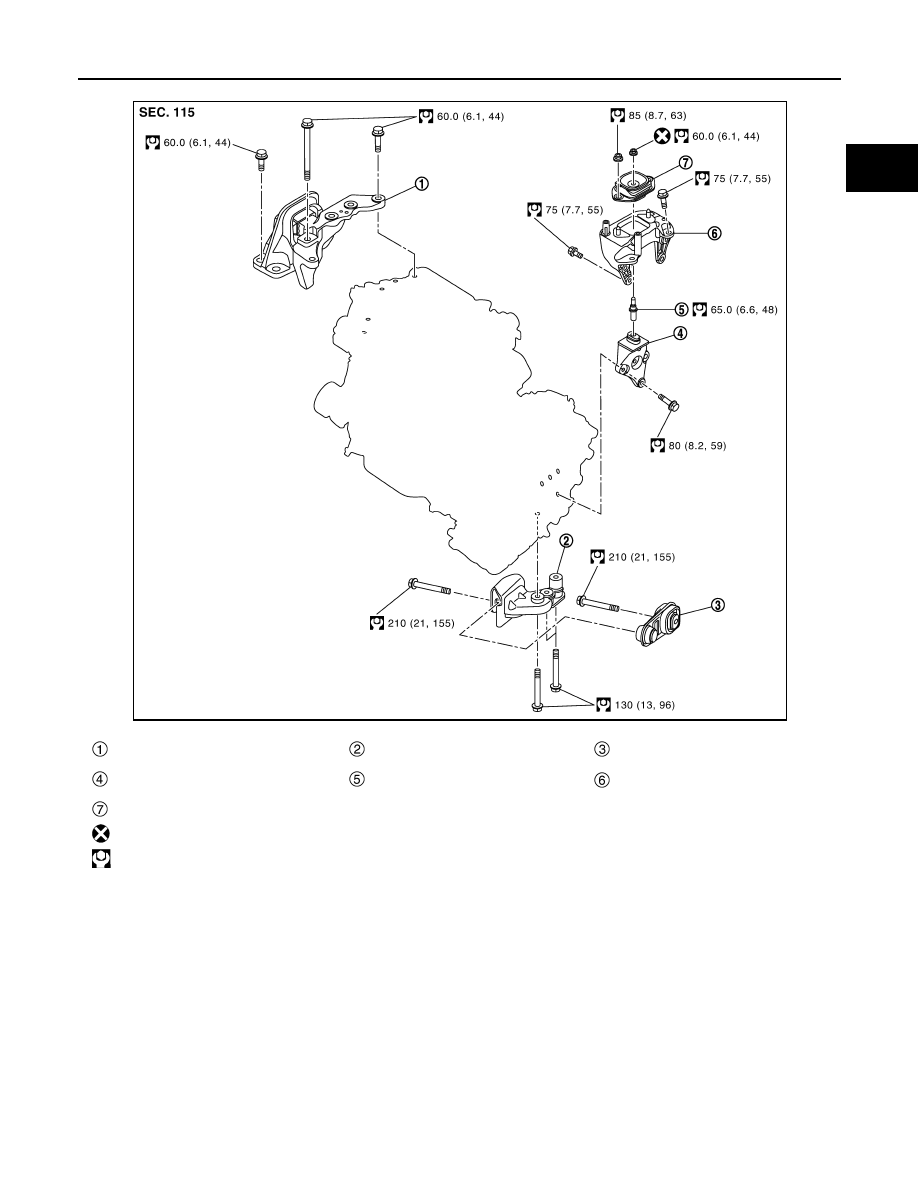

Engine mounting insulator (RH)

Rear torque rod bracket

Rear torque rod

Engine mounting bracket (LH)

Stud bolt

Engine mounting bracket support
(LH)

Engine mounting insulator (LH)

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

E1BIA1178GB

EM-174

< UNIT REMOVAL AND INSTALLATION >

[MR20DD]

ENGINE ASSEMBLY

• For supporting points for lifting and jacking point at rear axle, refer to

GI-36, "Garage Jack and

Safety Stand and 2-Pole Lift"

.

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

REMOVAL

Outline

Remove the engine and the transaxle assembly from the vehicle downward. Separate the engine and the tran-
saxle.

Preparation

1.

Release the fuel pressure. Refer to

ECM-135, "Work Procedure"

.

2.

Drain engine coolant from radiator. Refer to

CO-38, "Draining"

.

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belts.

3.

Remove the following parts.
• Engine under cover.
• Front road wheels and tires: Refer to

WT-60, "Exploded View"

 (with TPMS) or

WT-73, "Exploded View"

(without TPMS).

• Front fender protector (RH and LH): Refer to

EXT-31, "Exploded View"

• Drive belts: Refer to

EM-139, "Exploded View"

.

• Engine cover.
• Battery: Refer to

PG-155, "Removal and Installation"

.

• Battery tray: Refer to

PG-154, "Exploded View"

.

• TCM: Refer to

TM-391, "Exploded View"

. (CVT models)

• Air duct, air duct assembly, and air cleaner assembly: Refer to

EM-147, "Exploded View"

.

• Radiator hose (upper and lower): Refer to

CO-43, "Exploded View"

.

• Exhaust front tube: Refer to

EX-11, "Exploded View"

.

Engine Room LH

1.

Disconnect all connections of engine harness around the battery, and then temporarily secure the engine
harness into the engine side.

CAUTION:

Protect connectors using a resin bag against foreign materials during the operation.

2.

Disconnect fuel feed tube at engine side.

3.

Disconnect heater hoses

4.

Disconnect control cable from transaxle. Refer to

TM-385, "Exploded View"

 (CVT models) or

TM-28,

"Exploded View"

 (MT models).

5.

Remove EVAP hoses. Refer to

EM-149, "Exploded View"

.

Engine Room RH

1.

Disconnect vacuum hose from intake manifold. Refer to

EM-149, "Exploded View"

.

2.

Disconnect A/C piping from A/C compressor. Refer to

HA-33, "Exploded View"

 (Type 1),

HA-76,

"Exploded View"

 (Type 2),

HA-123, "Exploded View"

 (Type 3) or

HA-171, "Exploded View"

 (Type 4).

3.

Disconnect ground cable above the alternator.

Vehicle Underbody

1.

Disconnect steering lower joint at steering gear assembly side, and release steering shaft. Refer to

ST-12,

"Exploded View"

.

2.

Remove ground cable at transaxle side.

3.

Remove rear propeller shaft. Refer to

DLN-186, "Exploded View"

. (4WD models)

4.

Remove front wheel sensor (RH and LH) for ABS from steering knuckle. Refer to

BRC-138, "FRONT

WHEEL SENSOR : Exploded View"

.

5.

Remove lock plate of brake hose from strut. Refer to

BR-19, "FRONT : Exploded View"

 (LHD models) or

BR-63, "FRONT : Exploded View"

 (RHD models).
