Nissan Qashqai J11. Manual - part 47





PRECAUTIONS

EM-127

< PRECAUTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

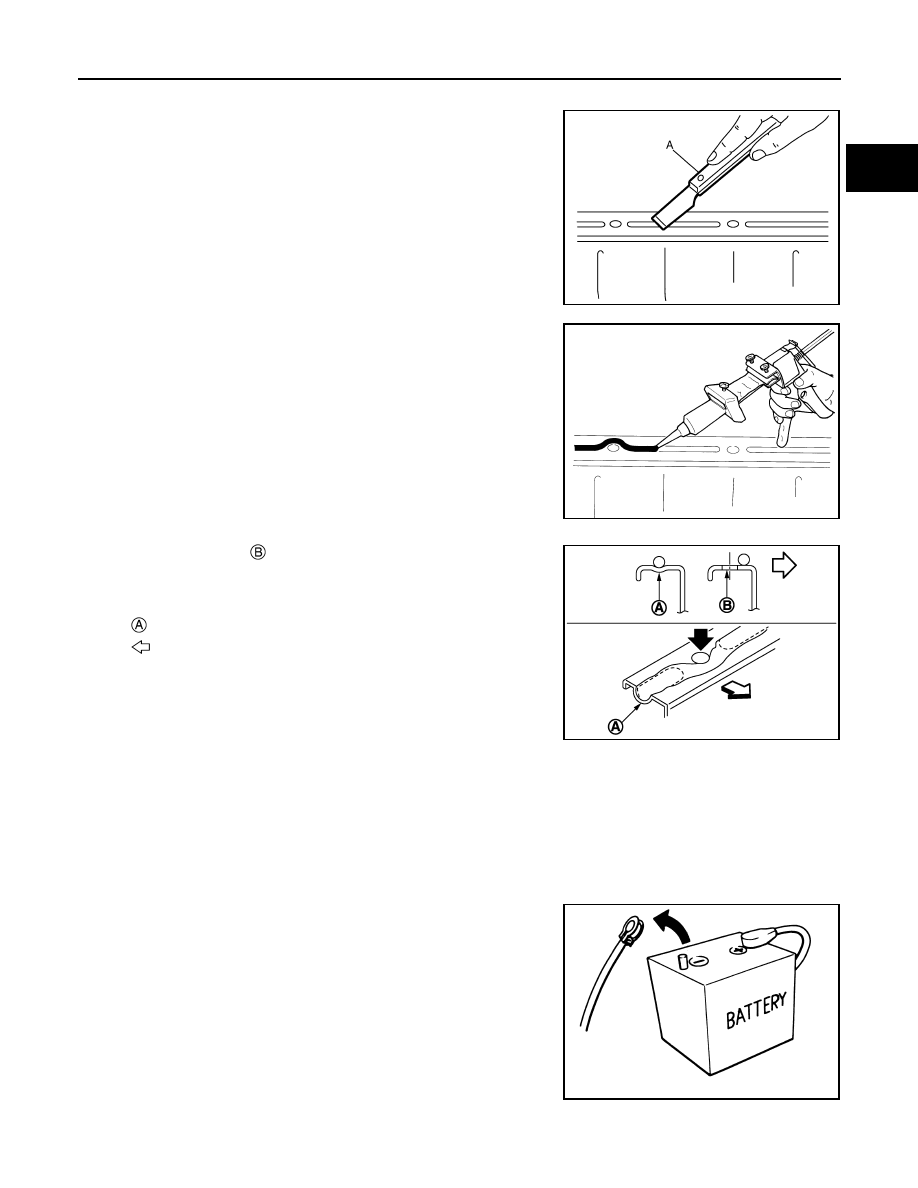

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper (A), remove old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.
• Remove liquid gasket completely from the groove of the liquid

gasket application surface, mounting bolts, and bolt holes.

2.

Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.

3.

Attach liquid gasket tube to the tube presser (commercial ser-
vice tool).
Use Genuine Liquid Gasket or equivalent.

4.

Apply liquid gasket without breaks to the specified location with
the specified dimensions.
• If there is a groove for liquid gasket application, apply liquid

gasket to the groove.

• As for bolt holes

, normally apply liquid gasket inside the

holes. Occasionally, it should be applied outside the holes.
Check to read the text of this manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.
• Do not retighten mounting bolts or nuts after the installation.
• After 30 minutes or more have passed from the installation, fill

engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

Precautions for Removing Battery Terminal

INFOID:0000000010715448

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

JPBIA0053ZZ

EMA0622D

: Groove

: Inside

JPBIA0010ZZ

SEF289H

EM-128

< PRECAUTION >

[MR20DD]

PRECAUTIONS

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

PREPARATION

EM-129

< PREPARATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PREPARATION

PREPARATION

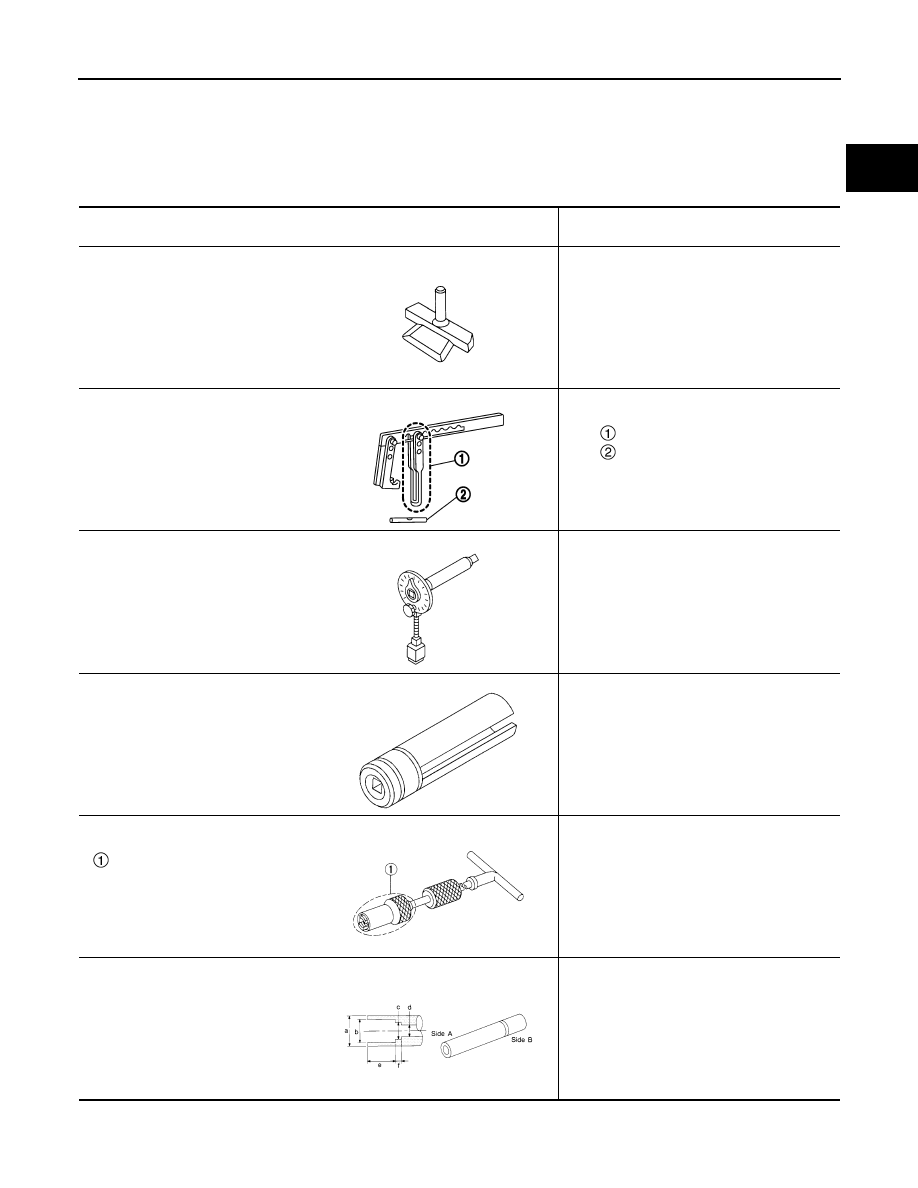

Special Service Tools

INFOID:0000000010715449

Tool number
Tool name

Description

KV10111100
Seal cutter

Removing oil pan (upper and lower) etc.

KV10116200
Valve spring compressor
1. KV10115900
Attachment
2. KV10109220
Adapter

Disassembling and assembling valve mecha-
nism

Part

 is a component of KV10116200, but

Part

 is not so.

KV10112100
Angle wrench

Tightening bolts for main bearing cap, cylinder
head, etc.

KV10117100
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1
For 22 mm (0.87 in) width hexagon nut

KV10107902
Valve oil seal puller

 KV10116100

Valve oil seal puller adapter

Removing valve oil seal

KV10115600
Valve oil seal drift

Installing valve oil seal
Use side A.
a: 20 (0.79) dia.             d: 8 (0.31) dia.
b: 13 (0.51) dia.             e: 10.7 (0.421)
c: 10.3 (0.406) dia.         f: 5 (0.20)
                                                   Unit: mm (in)

S-NT046

PBIC1650E

S-NT014

NT379

S-NT605

S-NT603

EM-130

< PREPARATION >

[MR20DD]

PREPARATION

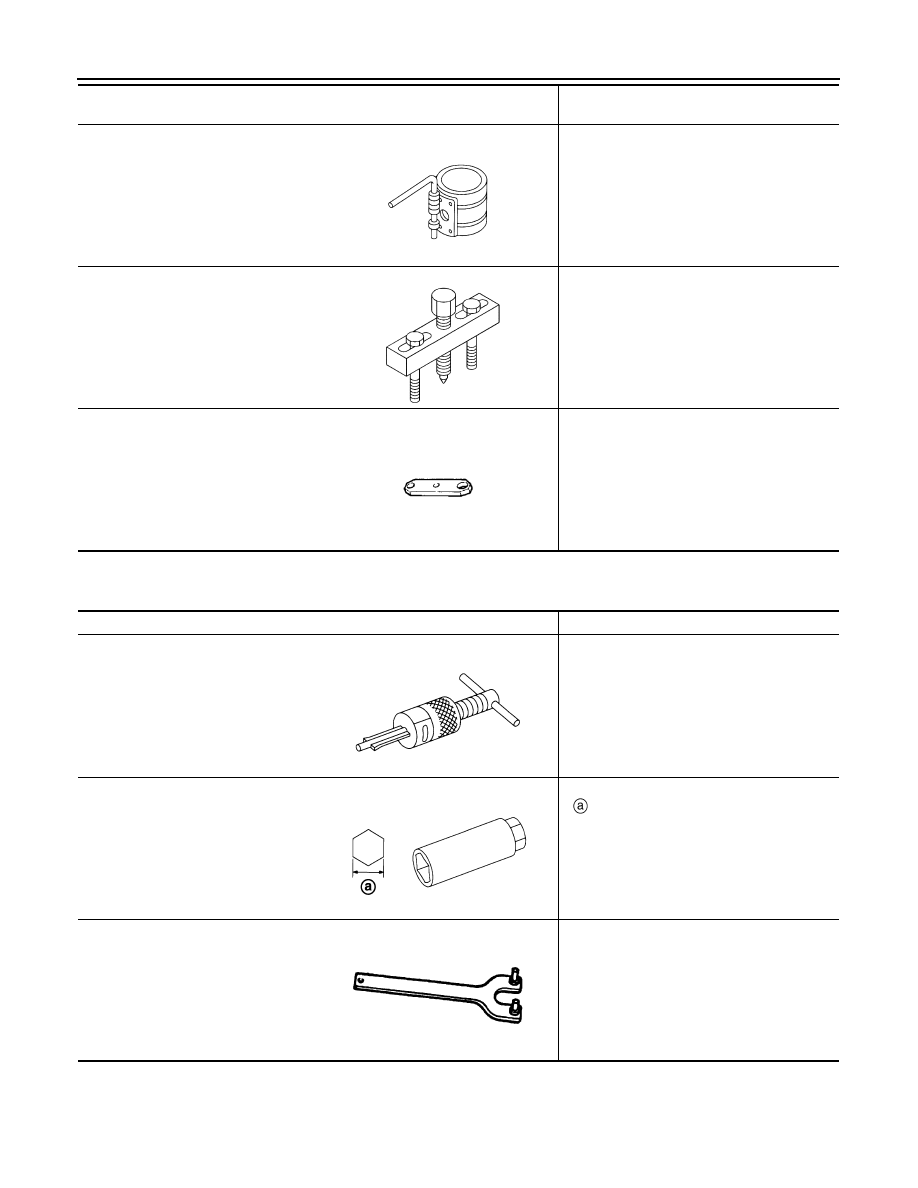

Commercial Service Tools

INFOID:0000000010715450

EM03470000
Piston ring compressor

Installing piston assembly into cylinder bore

KV11103000
Pulley puller

Removing crankshaft pulley

KV11105210
Stopper plate

Fixing drive plate and flywheel

Tool number
Tool name

Description

S-NT044

NT676

ZZA0009D

Tool name

Description

Pilot bushing puller

Removing pilot converter

Spark plug wrench

Removing and installing spark plug

: 14 mm (0.55 in)

Pulley holder

Crankshaft pulley removing and installing

S-NT045

JPBIA0399ZZ

ZZA1010D
