Nissan Qashqai J11. Manual - part 45

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-119

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

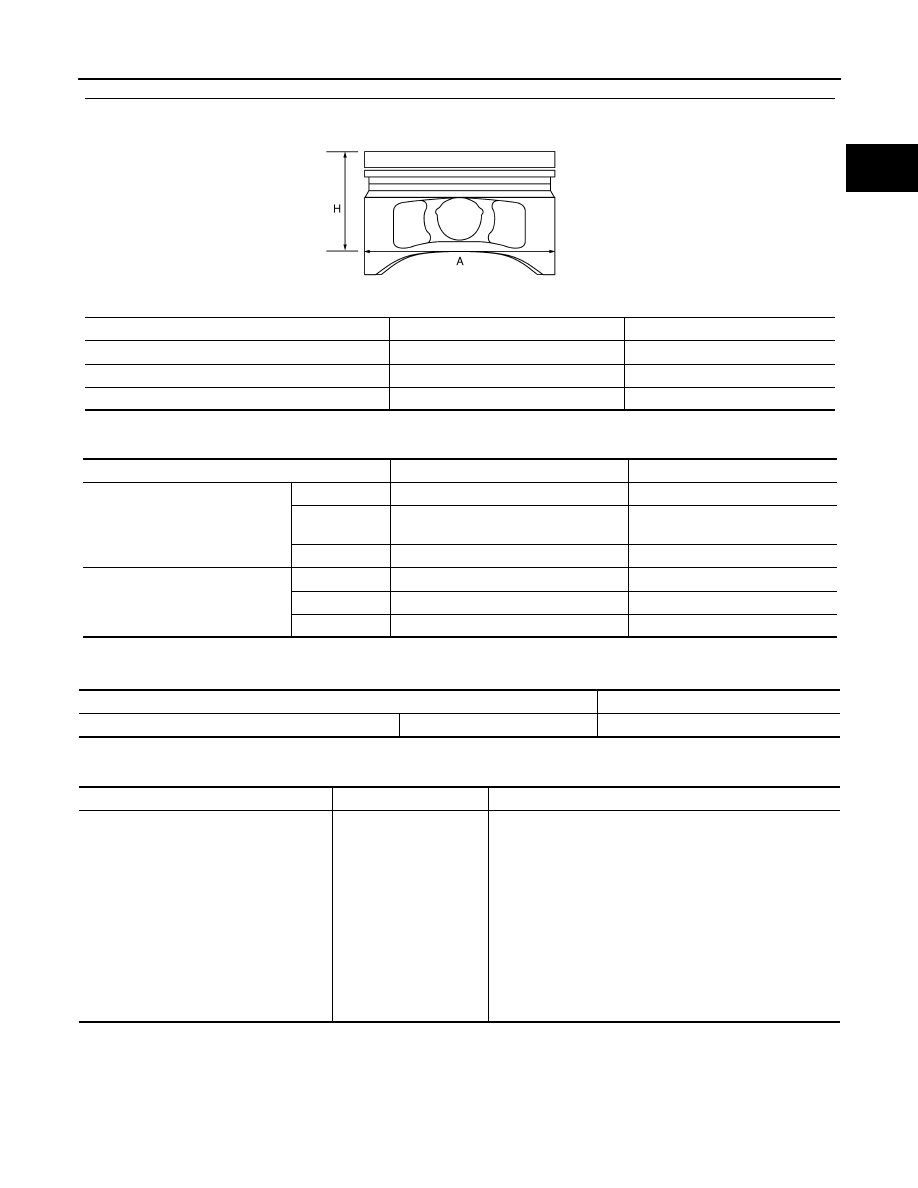

Unit: mm (in)

PISTON RING

Unit: mm (in)

PISTON PIN

Unit: mm (in)

CONNECTING ROD

Unit: mm (in)

CRANKSHAFT

Item

Standard

Limit

Piston skirt diameter “A”

72.15 - 72.17 (2.8405 - 2.8413)

—

Piston pin hole diameter

19.996 - 20.002 (0.7872 - 0.7875

—

Piston to cylinder bore clearance

0.030 - 0.050 (0.0012 - 0.0020)

—

PBIC0188E

Items

Standard

Limit

Piston ring side clearance

Top

0.030 - 0.070 (0.0012  - 0.0028)

—

2nd

0.030 - 0.050 (0.0012 - 0.0020)

—
—

Oil (rail ring)

0.030 (0.0012)

—

Piston ring end gap

Top

0.15- 0.30 (0.0059 - 0.0118)

—

2nd

0.40 - 0.60 (0.0157 - 0.0236)

—

Oil (rail ring)

0.20 - 0.90 (0.0079 - 0.0354)

—

Piston pin outer diameter

19.987 - 19.992 (0.7869 - 0.7871)

Piston to piston pin oil clearance

Standard

0.010 - 0.015 (0.0004 - 0.0006)

Connecting rod small end inner diameter

Standard

20.000 - 20.012 (0.7474 - 0.7879)

Connecting rod big end diameter

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N

45.677 - 45.678 (1.7983 - 1.7987)
45.678 - 45.679 (1.7987 - 1.7984)
45.679 - 45.680 (1.7984 - 1.7984)
45.680 - 45.681 (1.7984 - 1.7985)
45.681 - 45.682 (1.7985 - 1.7985)
45.682 - 45.683 (1.7985 - 1.7985)
45.683 - 45.684 (1.7985 - 1.7986)
45.684 - 45.685 (1.7986 - 1.7986)
45.685 - 45.686 (1.7986 - 1.7987)
45.686 - 45.687 (1.7987 - 1.7987)
45.687 - 45.688 (1.7987 - 1.7987)
45.688 - 45.689 (1.7987 - 1.7988)
45.689 - 45.690 (1.7988 - 1.7988)

EM-120

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

SERVICE DATA AND SPECIFICATIONS (SDS)

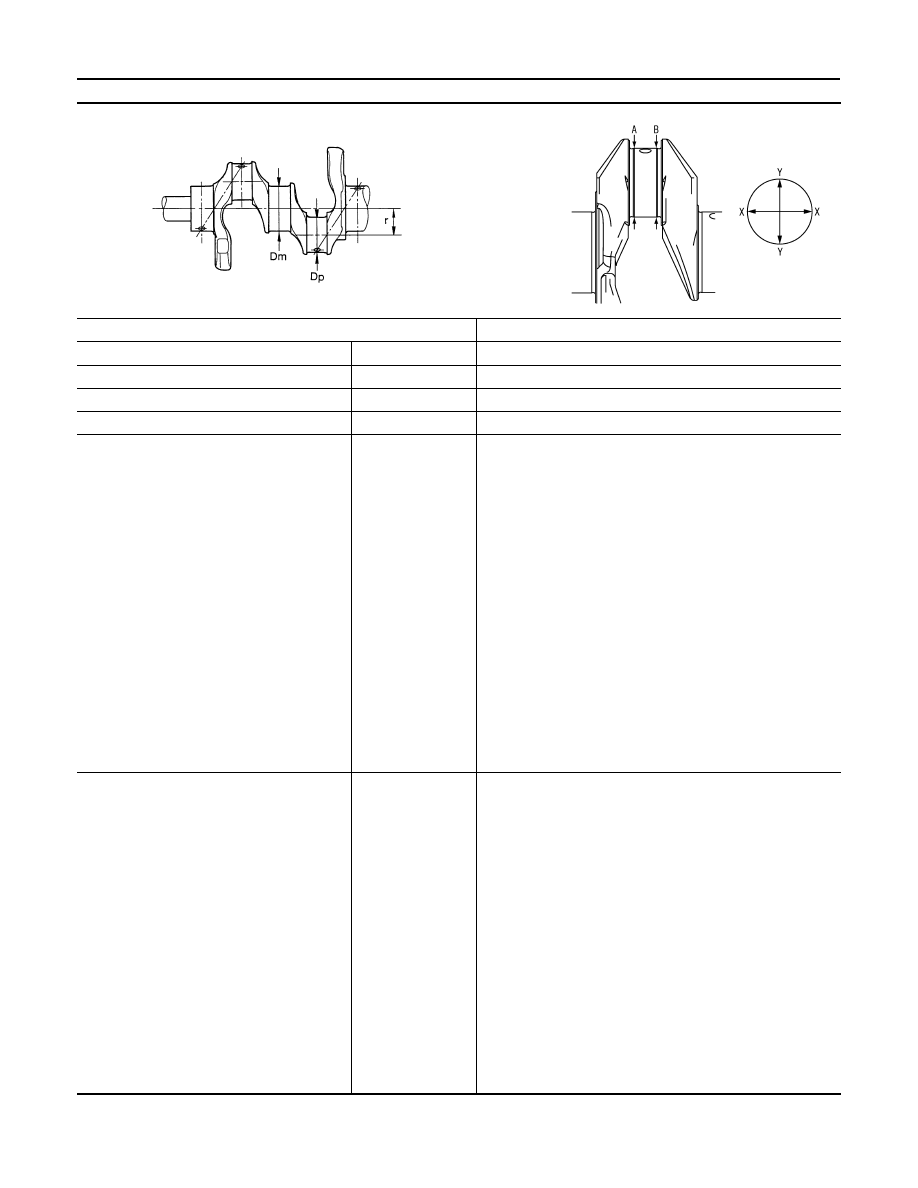

Unit: mm (in)

*: Total indicator reading

Crankshaft lateral clearance

0.098 - 0.3 (0.0039 - 0.0118)

Out-of-round

Limit

0.003 (0.0001)

Taper

Limit

0.004 (0.0002)

Runout [TIR*]

Limit

0.02 (0.0008)

Crankshaft end play

Standard

0.098 - 0.260 (0.0039 - 0.0102)

Crankshaft pin journal diameter grade. “Dp”

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W

42.009 - 42.010 (1.6539 - 1.6539)
42.008 - 42.009 (1.6539 - 1.6539)
42.007 - 42.008 (1.6538 - 1.6539)
42.006 - 42.007 (1.6538 - 1.6538)
42.005 - 42.006 (1.6538 - 1.6538)
42.004 - 42.005 (1.6537 - 1.6537)
42.003 - 42.004 (1.6537 - 1.6537)
42.002 - 42.003 (1.6536 - 1.6537)
42.001 - 42.002 (1.6536 - 1.6536)
42.000 - 42.001 (1.6535 - 1.6536)
41.999 - 42.000 (1.6535 - 1.6535)
41.998 - 41.999 (1.6535 - 1.6535)
41.997 - 41.998 (1.6534 - 1.6535)
41.996 - 41.997 (1.6534 - 1.6534)
41.995 - 41.996 (1.6533 - 1.6534)
41.994 - 41.995 (1.6533 - 1.6533)
41.993 - 41.994 (1.6533 - 1.6533)
41.992 - 41.993 (1.6532 - 1.6533)
41.991 - 41.992 (1.6531 - 1.6532)
41.990 - 41.991 (1.6531 - 1.6531)

Crankshaft main journal diameter grade. “Dm”

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W

47.979 - 47.978 (1.8889 - 1.8889)
47.978 - 47.977 (1.8889 - 1.8889)
47.977 - 47.976 (1.8889 - 1.8888)
47.976 - 47.975 (1.8888 - 1.8888)
47.975 - 47.974 (1.8888 - 1.8887)
47.974 - 47.973 (1.8887 - 1.8887)
47.973 - 47.972 (1.8887 - 1.8887)
47.972 - 47.971 (1.8887 - 1.8886)
47.971 - 47.970 (1.8886 - 1.8886)
47.970 - 47.969 (1.8886 - 1.8885)
47.969 - 47.968 (1.8885 - 1.8885)
47.968 - 47.967 (1.8885 - 1.8885)
47.967 - 47.966 (1.8885 - 1.8884)
47.966 - 47.965 (1.8884 - 1.8884)
47.995 - 47.964 (1.8884 - 1.8883)
47.994 - 47.963 (1.8883 - 1.8883)
47.963 - 47.962 (1.8883 - 1.8883)
47.962 - 47.961 (1.8883 - 1.8882)
47.961 - 47.960 (1.8882 - 1.8882)
47.960 - 47.959 (1.8882 - 1.8881)

SEM645

PBIC3459J

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-121

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

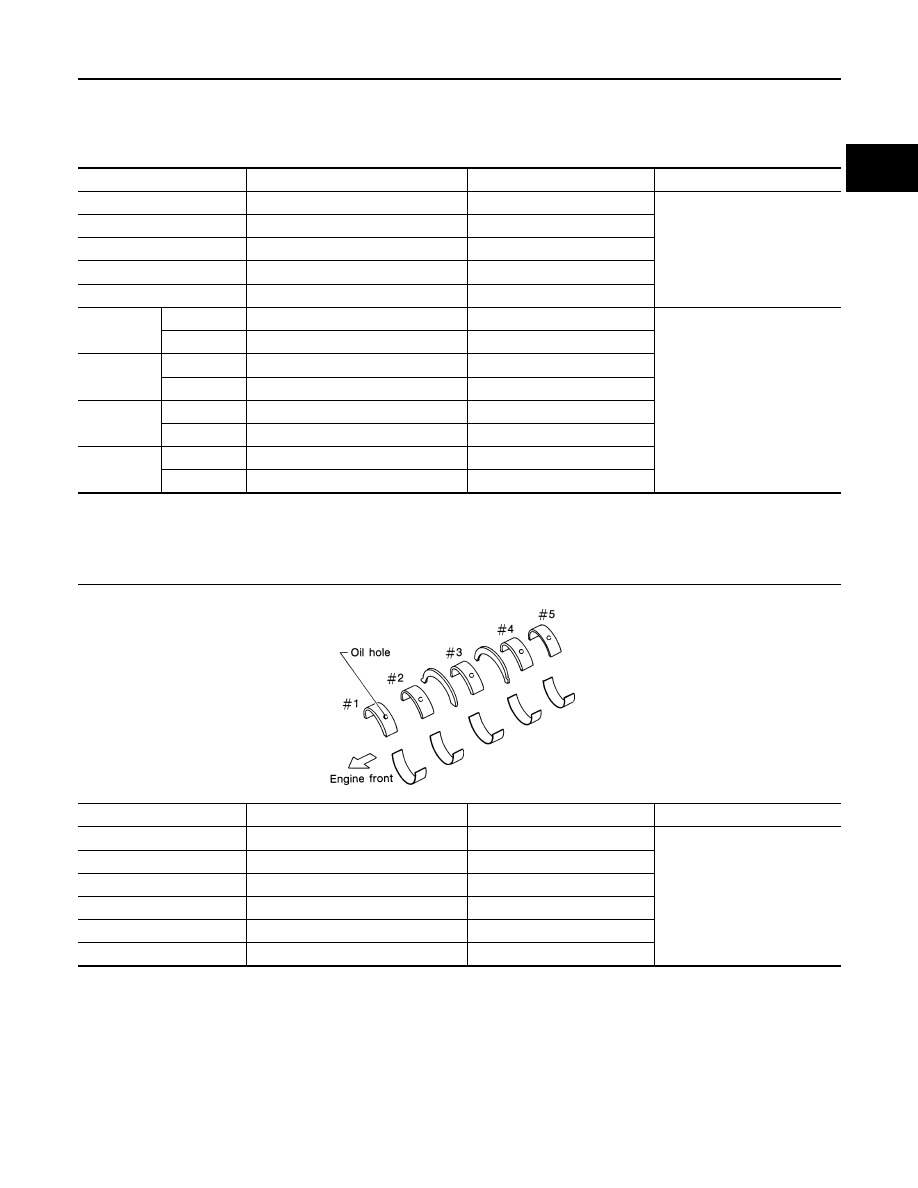

Connecting Rod Bearing

INFOID:0000000010282263

CONNECTING ROD BEARING GRADE TABLE

Unit: mm (in)

Main Bearing

INFOID:0000000010282264

MAIN BEARING GRADE TABLE

Unit: mm (in)

Grade number

Thickness

Identification color

Remarks

0

1.815 - 1.818 (0.0715 - 0.0716)

Yellow

Grade and color are the same
for upper and lower bearings.

1

1.818 - 1.821 (0.0716 - 0.0717)

Black

2

1.821 - 1.824 (0.0717 - 0.0718)

Blue

3

1.824 - 1.827 (0.0718 - 0.0719)

Red

4

1.827 - 1.830 (0.0719 - 0.0720)

Green

01

UPR

1.815 - 1.818 (0.0715 - 0.0716)

Yellow

Grade and color are different
for upper and lower bearings.

LWR

1.818 - 1.821 (0.0716 - 0.0717)

Black

12

UPR

1.818 - 1.821 (0.0716 - 0.0717)

Black

LWR

1.821 - 1.824 (0.0717 - 0.0718)

Blue

23

UPR

1.821 - 1.824 (0.0717 - 0.0718)

Blue

LWR

1.824 - 1.827 (0.0718 - 0.0719)

Red

34

UPR

1.824 - 1.827 (0.0718 - 0.0719)

Red

LWR

1.827 - 1.830 (0.0719 - 0.0720)

Green

Grade number

Thickness

Identification color

Remarks

0

2.0000 - 2.0015 (0.0787 - 0.0788)

Black

Grade and color are the same
for upper and lower bearings.

1

2.0030 - 2.0045 (0.0789 - 0.0789)

White

2

2.0060 - 2.0075 (0.0790 - 0.0790)

Green

3

2.0090 - 2.0105 (0.0791 - 0.0792)

Yellow

4

2.0120 - 2.0135 (0.0792 - 0.0793)

Blue

5

2.0150 - 2.0165 (0.0793 - 0.0794)

Red

SEM685D

EM-122

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

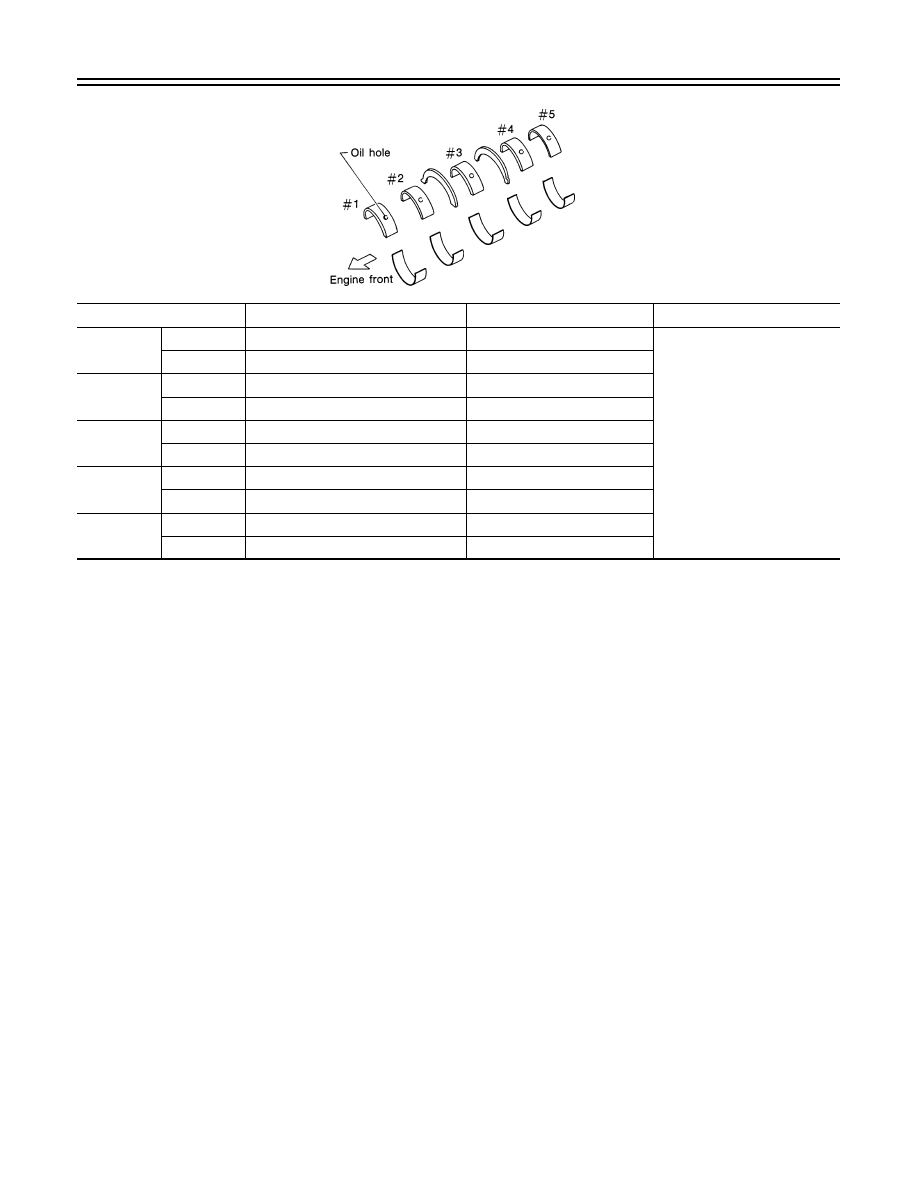

SERVICE DATA AND SPECIFICATIONS (SDS)

01

UPR

2.0000 - 2.0015 (0.0787 - 0.0788)

Black

Grade and color are different
for upper and lower bearings.

LWR

2.0030 - 2.0045 (0.0789 - 0.0789)

White

12

UPR

2.0030 - 2.0045 (0.0789 - 0.0789)

White

LWR

2.0060 - 2.0075 (0.0790 - 0.0790)

Green

23

UPR

2.0060 - 2.0075 (0.0790 - 0.0790)

Green

LWR

2.0090 - 2.0105 (0.0791 - 0.0792)

Yellow

34

UPR

2.0090 - 2.0105 (0.0791 - 0.0792)

Yellow

LWR

2.0120 - 2.0135 (0.0792 - 0.0793)

Blue

45

UPR

2.0120 - 2.0135 (0.0792 - 0.0793)

Blue

LWR

2.0150 - 2.0165 (0.0793 - 0.0794)

Red

Grade number

Thickness

Identification color

Remarks

SEM685D
