Nissan Qashqai J11. Manual - part 17





NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

EM-7

< SYMPTOM DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

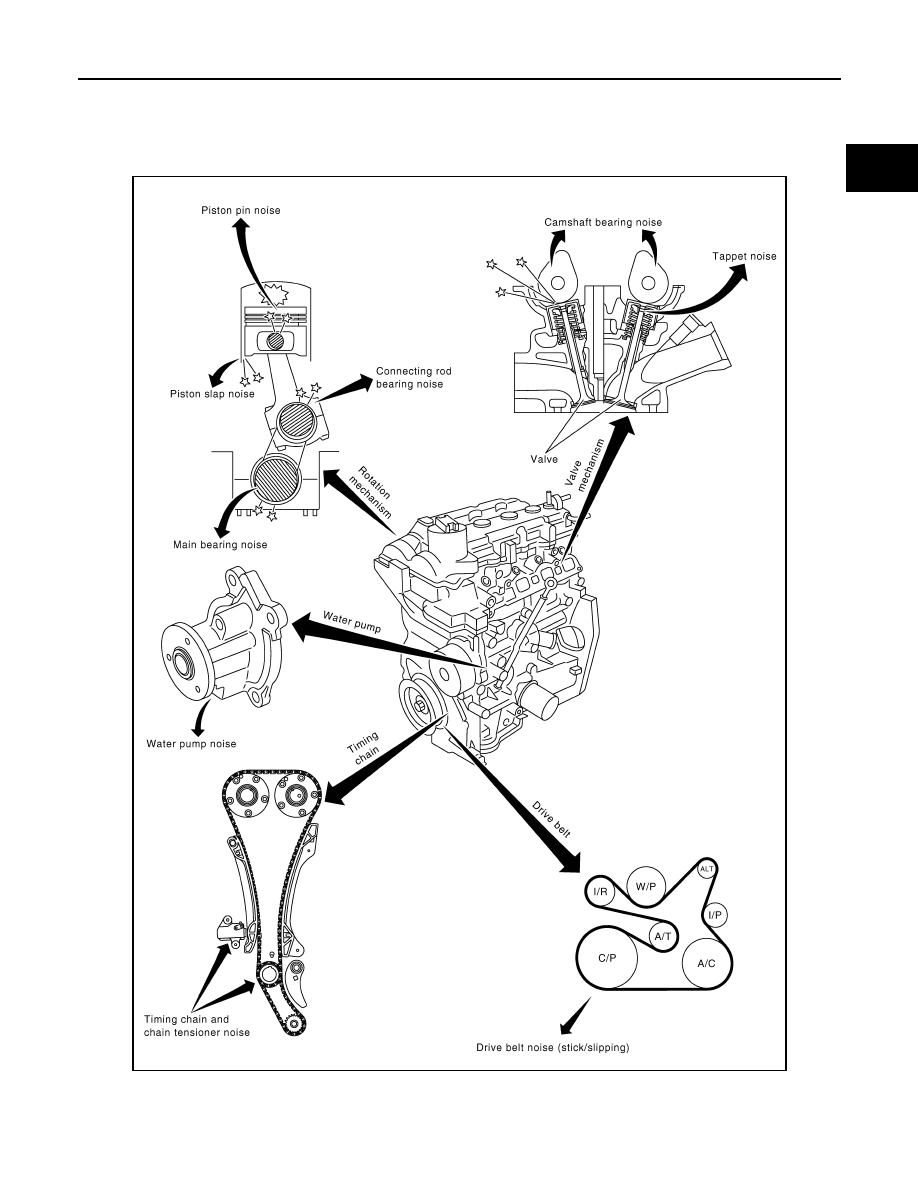

NVH Troubleshooting - Engine Noise

INFOID:0000000010282193

E1BIA1032GB

EM-8

< SYMPTOM DIAGNOSIS >

[HRA2DDT]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

Use the Chart Below to Help You Find the Cause of the Symptom

INFOID:0000000010282194

1.

Locate the area where noise occurs.

2.

Confirm the type of noise.

3.

Specify the operating condition of engine.

4.

Check specified noise source.

If necessary, repair or replace these parts.

A: Closely related

B: Related

C: Sometimes related

—: Not related

Location

of noise

Type of

noise

Operating condition of engine

Source of

noise

Check item

Refer-

ence page

Before

warm-

up

After

warm-

up

When

start-

ing

When

idling

When

racing

While

driving

Top of en-
gine
Rocker
cover
Cylinder
head

Ticking or
clicking

C

A

A

B

Tappet
noise

Valve clearance

EM-84

Rattle

C

A

A

B

C

Camshaft
bearing
noise

Camshaft journal oil
clearance
Camshaft runout

EM-114
EM-114

Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil pan

Slap or
knock

A

B

B

Piston pin
noise

Piston to piston pin oil
clearance
Connecting rod small
end clearance

EM-118

EM-121

Slap or
rap

A

B

B

A

Piston
slap noise

Piston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion

EM-118
EM-118
EM-118

EM-121

Knock

A

B

C

B

B

B

Connect-
ing rod
bearing
noise

Connecting rod small
end clearance
Connecting rod bearing
oil clearance

EM-118

EM-121

Knock

A

B

A

B

C

Main bear-
ing noise

Main bearing oil clear-
ance
Crankshaft runout

EM-121

EM-118

Front of
engine
Front cov-
er

Tapping or
ticking

A

A

B

B

B

Timing
chain and
chain ten-
sioner
noise

Timing chain cracks
and wear
Timing chain tensioner
operation

EM-102

Front of
engine

Squeak-
ing or fizz-
ing

A

B

B

C

Drive belt
(Sticking
or slip-
ping)

Drive belt deflection

EM-114

Creaking

A

B

A

B

A

B

Drive belt
(Slipping)

Idler pulley bearing op-
eration

Squall
Creak

A

B

B

A

B

Water
pump
noise

Water pump operation

CO-23

PRECAUTIONS

EM-9

< PRECAUTION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PRECAUTION

PRECAUTIONS

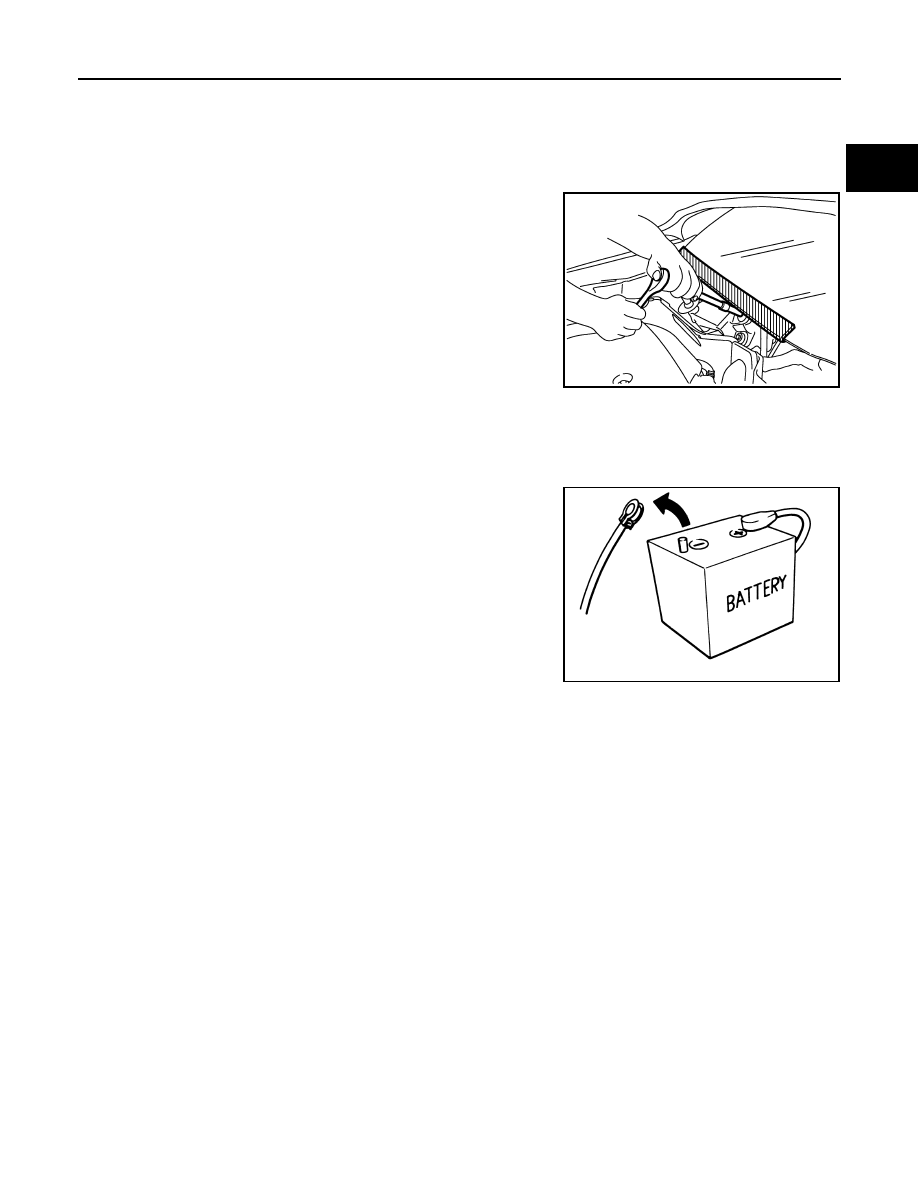

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010479880

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions for Removing Battery Terminal

INFOID:0000000010508837

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

PIIB3706J

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

EM-10

< PRECAUTION >

[HRA2DDT]

PRECAUTIONS

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Parts Requiring Angle Tightening

INFOID:0000000010282197

• Use the angle wrench [SST: KV10112100] for the final tightening of the following engine parts:
- Cylinder head bolts
- Main bearing cap bolts
- Connecting rod cap bolts
- Crankshaft pulley bolt (No the angle wrench is required as bolt flange is provided with notches for angle

tightening)

• Never use a torque value for final tightening.
• The torque value for these parts are for a preliminary step.
• Ensure thread and seat surfaces are clean and coated with engine oil.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000010508838

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition power source and accessory

power source to the OFF, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Open driver door.

3.

Turn the ignition switch to the ON position.
(At this time, the steering lock will be released.)

4.

Turn the ignition switch to OFF position with driver door open.

5.

Wait for 3 minutes or longer with driver door open.
NOTE:
• Do not close driver door because the steering wheel locks when driver door is closed.
