MWI-2

DIAGNOSIS AND REPAIR WORKFLOW
(METER SYSTEM) .............................................

46

Work flow ................................................................

46

DTC/CIRCUIT DIAGNOSIS .........................

48

U1000 CAN COMM CIRCUIT  ............................

48

Description ..............................................................

48

DTC Logic ...............................................................

48

Diagnosis Procedure .............................................

48

U1010 CONTROL UNIT (CAN)  .........................

49

Description ..............................................................

49

DTC Logic ...............................................................

49

Diagnosis Procedure  ..............................................

49

B2205 VEHICLE SPEED  ...................................

50

Description ..............................................................

50

DTC Logic ...............................................................

50

Diagnosis Procedure .............................................

50

B2267 ENGINE SPEED .....................................

51

Description ..............................................................

51

DTC Logic ...............................................................

51

Diagnosis Procedure  ..............................................

51

B2268 WATER TEMP ........................................

52

Description ..............................................................

52

DTC Logic ...............................................................

52

Diagnosis Procedure  ..............................................

52

POWER SUPPLY AND GROUND CIRCUIT  .....

53

COMBINATION METER  ...........................................

53

COMBINATION METER : Diagnosis Procedure  ....

53

FUEL LEVEL SENSOR SIGNAL CIRCUIT  .......

54

Component Function Check  ...................................

54

Diagnosis Procedure .............................................

55

Component Inspection  ............................................

56

A/C AUTO AMP. CONNECTION RECOGNI-
TION SIGNAL CIRCUIT  ....................................

58

Diagnosis Procedure ..............................................

58

SYMPTOM DIAGNOSIS  ............................

59

THE FUEL GAUGE INDICATOR DOES NOT
OPERATE ..........................................................

59

Description ..............................................................

59

Diagnosis Procedure ...............................................

59

THE OIL PRESSURE WARNING LAMP
DOES NOT TURN ON .......................................

60

Description ..............................................................

60

Diagnosis Procedure ...............................................

60

THE OIL PRESSURE WARNING LAMP
DOES NOT TURN OFF .....................................

61

Description ..............................................................

61

Diagnosis Procedure ...............................................

61

THE AMBIENT TEMPERATURE DISPLAY IS
INCORRECT ......................................................

62

Description ..............................................................

62

Diagnosis Procedure ...............................................

62

NORMAL OPERATING CONDITION ................

63

INFORMATION DISPLAY  .........................................

63

INFORMATION DISPLAY : Description ..................

63

REMOVAL AND INSTALLATION ..............

64

COMBINATION METER ....................................

64

Exploded View  ........................................................

64

Removal and Installation .........................................

64

Disassembly and Assembly  ....................................

65

MWI

PRECAUTIONS

MWI-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012201290

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

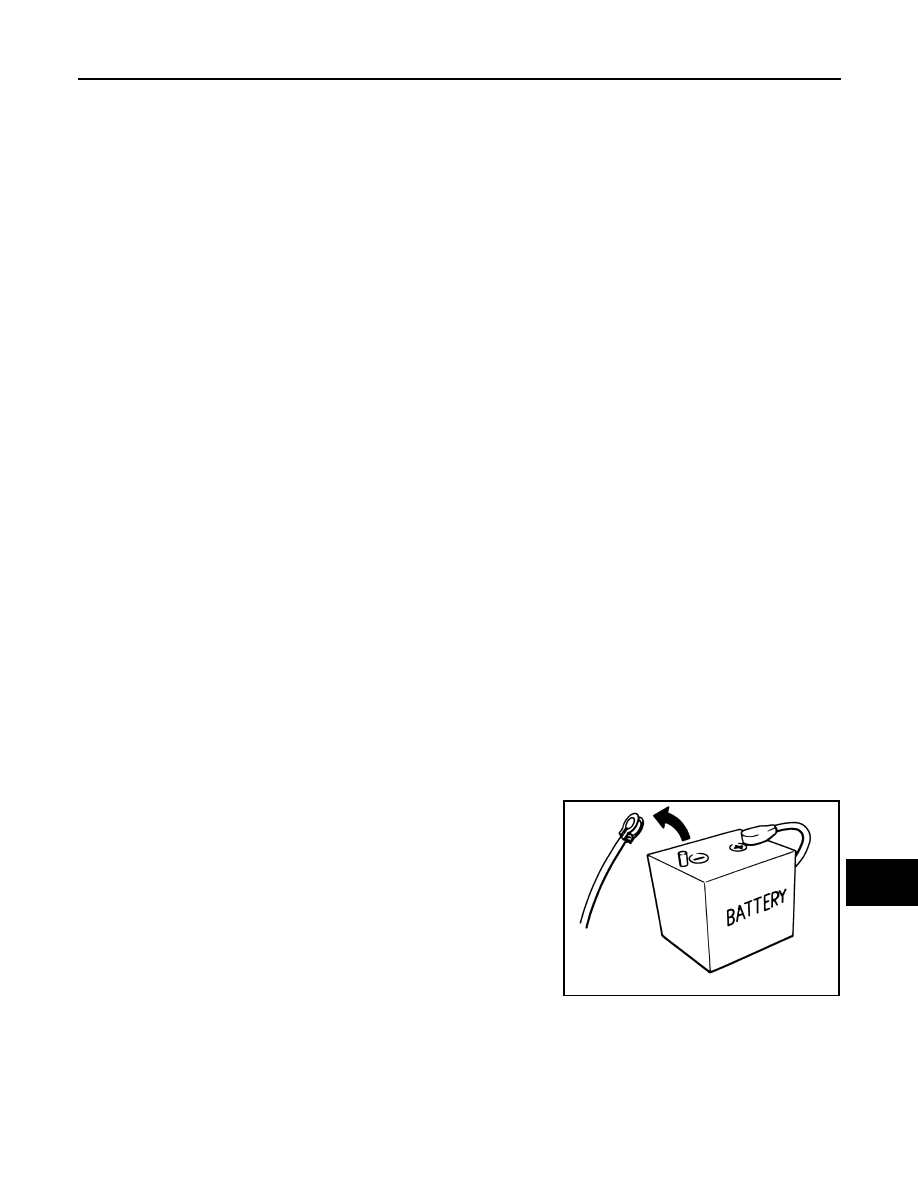

Precautions for Removing Battery Terminal

INFOID:0000000012926048

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

SEF289H

MWI-4

< PRECAUTION >

PRECAUTIONS

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

MWI

PREPARATION

MWI-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000012201292

Tool name

Description

Power tool

Loosening screws

PBIC0191E
