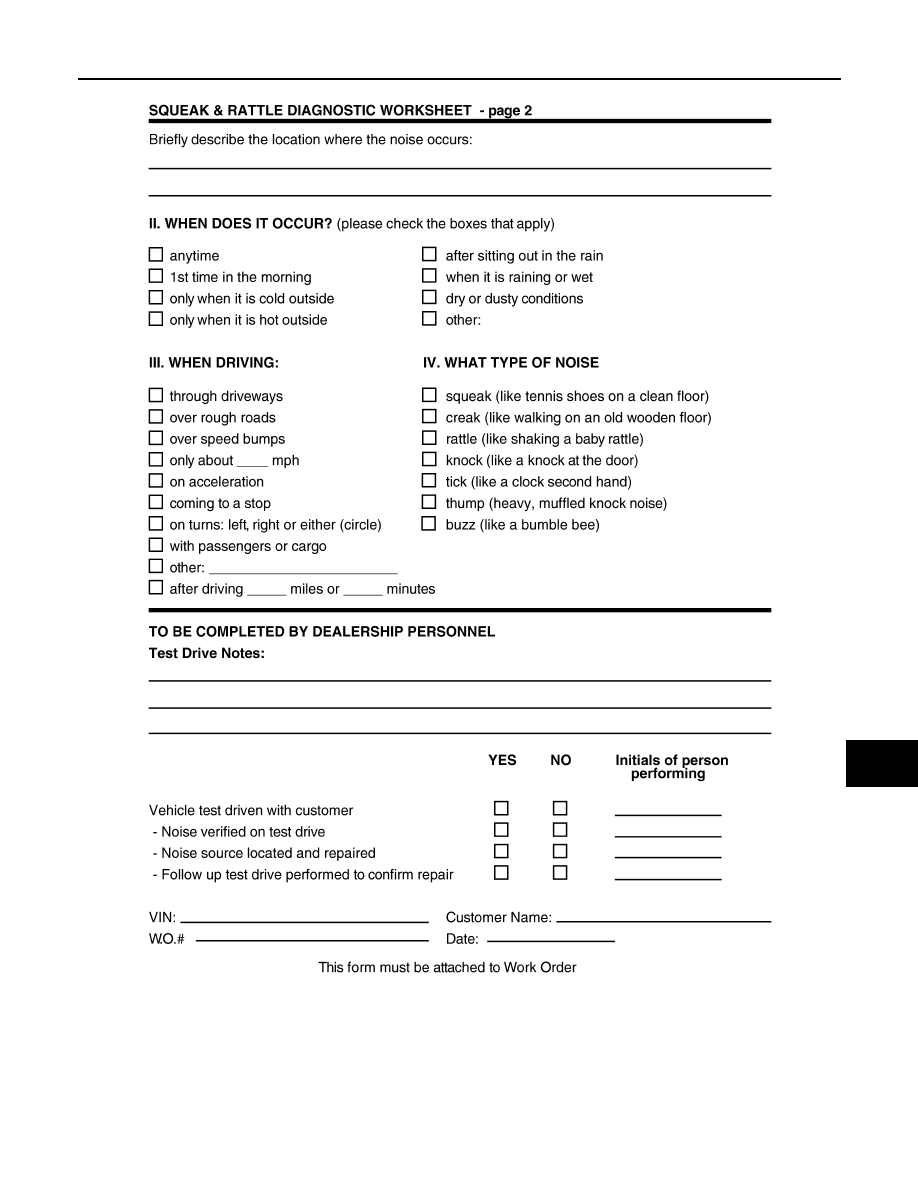

SQUEAK AND RATTLE TROUBLE DIAGNOSES

MIR-15

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

PIIB8742E

MIR-16

< REMOVAL AND INSTALLATION >

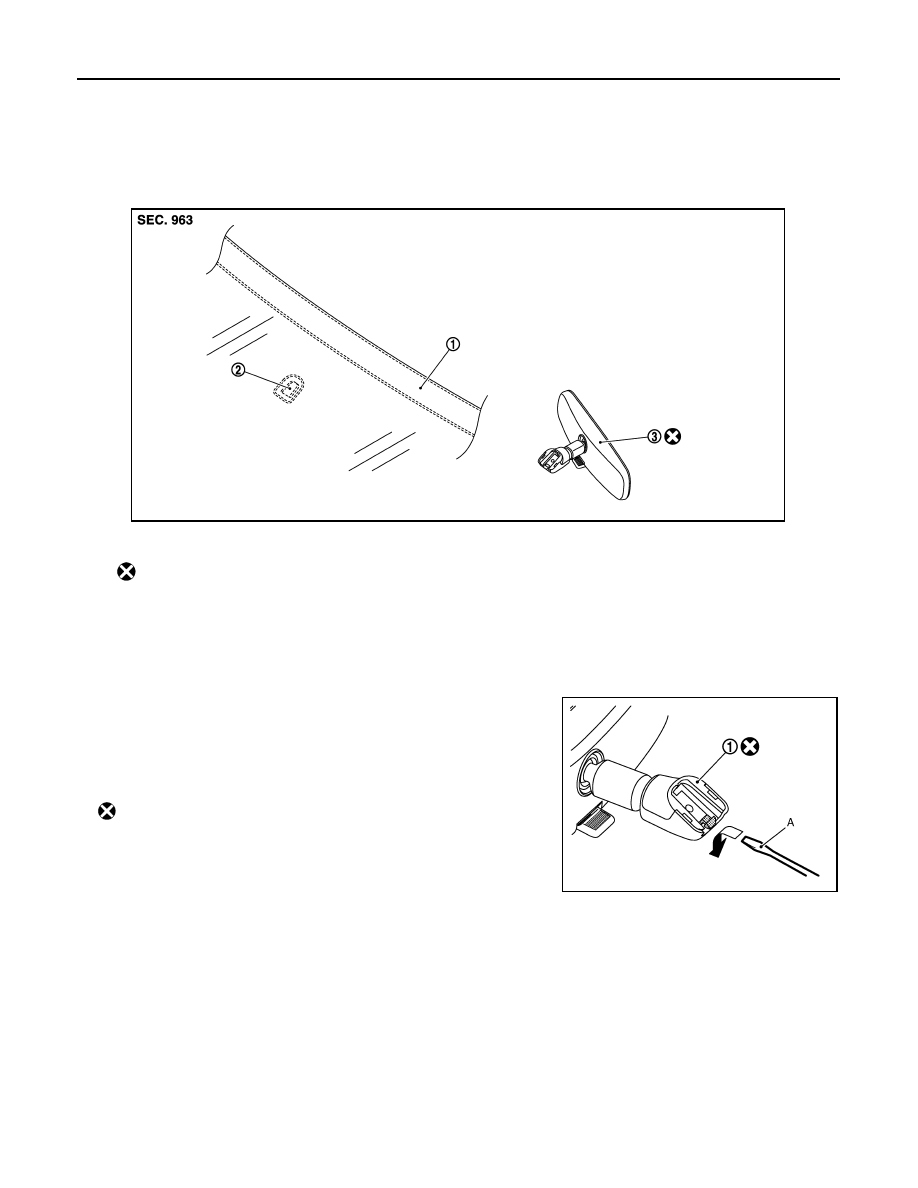

INSIDE MIRROR

REMOVAL AND INSTALLATION

INSIDE MIRROR

Exploded View

INFOID:0000000012201507

Removal and Installation

INFOID:0000000012201508

CAUTION:

Never reuse the inside mirror assembly disassembled from mirror base.

REMOVAL

Slide the inside mirror assembly upward to remove.

NOTE:

Insert flat-bladed screwdriver (A) under the inside mirror (1).

Slide the inside mirror to the upper side while pushing the pawl

downward.

CAUTION:

Never use excessive force to remove the inside mirror because

it is inserted tightly into the mirror base.

INSTALLATION

Install in the reverse order of removal.

1.

Windshield glass

2.

Mirror base

3.

Inside mirror assembly

: Always replace after every disassembly.

JMLIA0400ZZ

: Always replace after every disassembly.

JMLIA0055ZZ

OUTSIDE MIRROR

MIR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

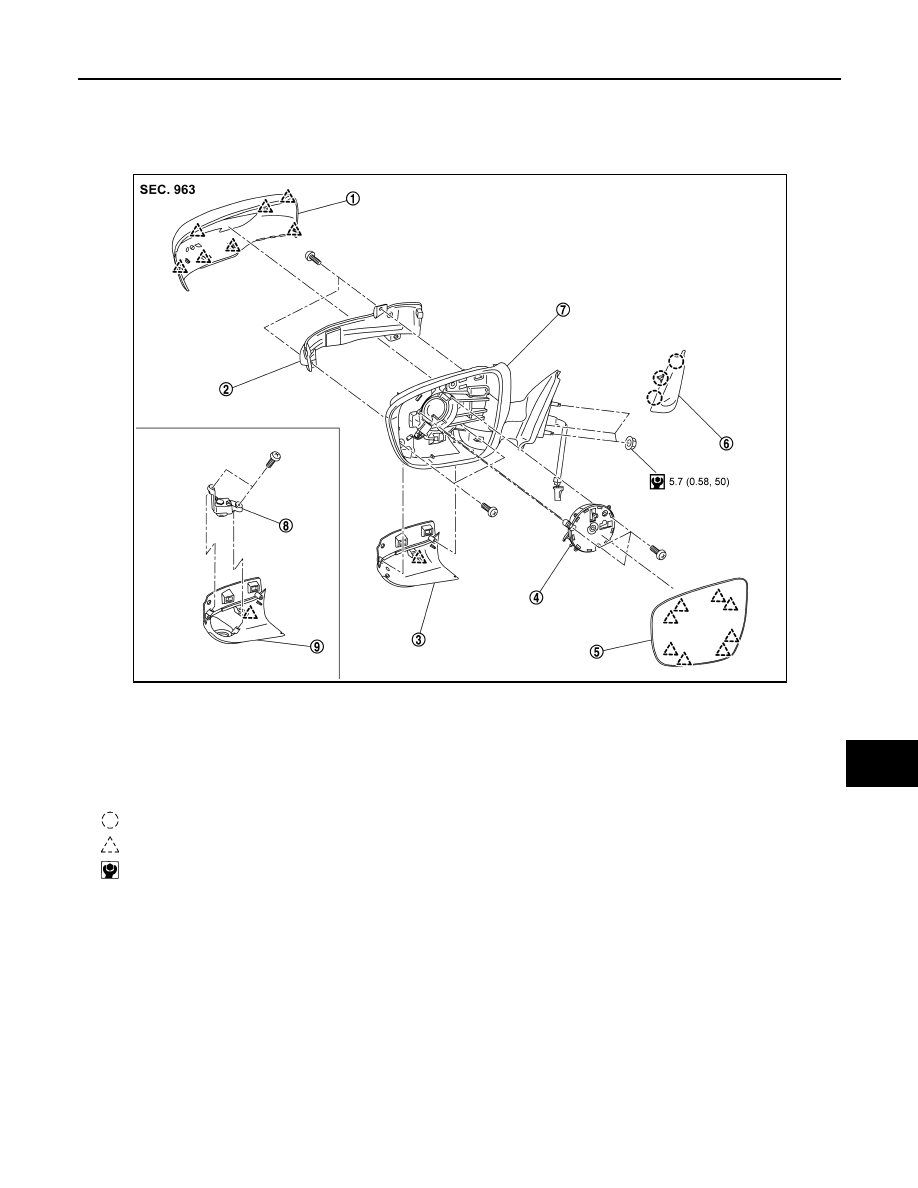

OUTSIDE MIRROR

Exploded View

INFOID:0000000012201509

DOOR MIRROR ASSEMBLY
DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000012201510

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

1.

Door mirror cover

2.

Side turn signal lamp

3.

Door mirror finisher
(without around view monitor sys-
tem)

4.

Door mirror actuator

5.

Glass mirror

6.

Door mirror corner cover

7.

Door mirror housing

8.

Side camera assembly
(with around view monitor system)

9.

Side camera finisher
(with around view monitor system)

: Clip

: Pawl

N·m (kg-m, in-lb)

JMLIA6142GB

MIR-18

< REMOVAL AND INSTALLATION >

OUTSIDE MIRROR

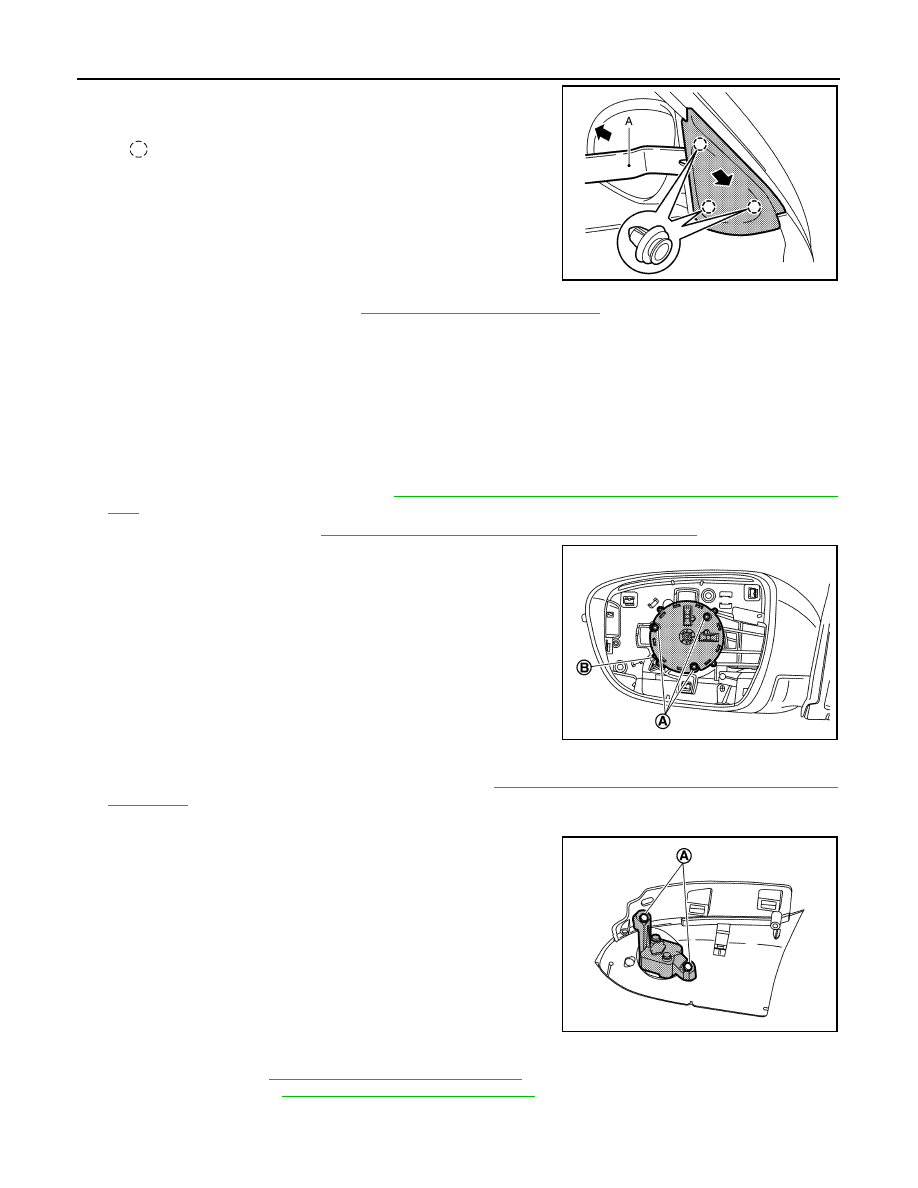

1. Disengage door mirror corner cover fixing clips using a remover

tool (A), and then remove door mirror corner cover.

2. Remove front door finisher. Refer to

INT-13, "Removal and Installation"

.

3. Disconnect door mirror harness connector.
4. Remove door mirror mounting nuts, and then remove door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

DOOR MIRROR ASSEMBLY : Disassembly and Assembly

INFOID:0000000012201511

DISASSEMBLY

1. Remove door mirror assembly. Refer to

MIR-17, "DOOR MIRROR ASSEMBLY : Removal and Installa-

tion"

.

2. Remove glass mirror. Refer to

MIR-19, "GLASS MIRROR : Removal and Installation"

.

3. Remove door mirror actuator mounting bolts (A), and disconnect

harness connector (B), and then remove door mirror actuator.

4. Disengage door mirror cover and door mirror finisher (without around view monitor system) or side cam-

era finisher (with around view monitor system). Refer to

MIR-20, "DOOR MIRROR COVER : Removal and

Installation"

.

5. Disconnect side camera harness connector (with around view monitor system).
6. Remove side camera bracket fixing screws (A), and then

remove side camera assembly from door mirror finisher. (with

around view monitor system)

7. Remove side turn signal lamp. Refer to the following.

• Xenon type: Refer to

EXL-104, "Removal and Installation"

.

• Halogen type: Refer to

EXL-215, "Removal and Installation"

.

ASSEMBLY

Note the following item, and then assemble in the reverse order of disassembly.

: Clip

JMLIA1391ZZ

JMLIA5685ZZ

JMLIA5689ZZ
