MA-20

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (MR FOR NISMO RS MODELS)

• Check radiator cap relief pressure.

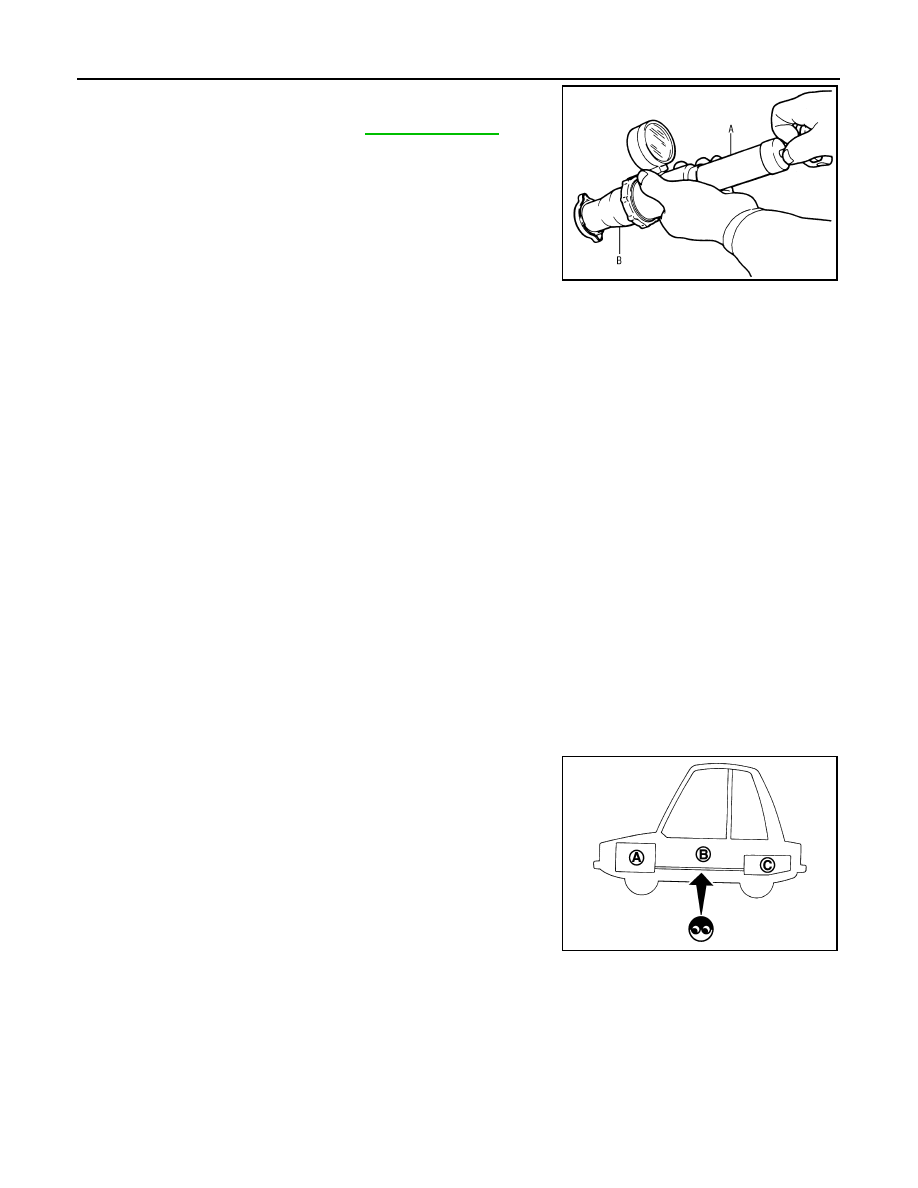

- When connecting radiator cap to the radiator cap tester (commer-

cial service tool) (A) and the radiator cap tester adapter (commer-

cial service tool) (B), apply engine coolant to the cap seal surface.

• Replace radiator cap if there is an unusualness related to the above three.

CAUTION:

When installing radiator cap, thoroughly wipe out the radiator filler neck to remove any waxy residue

or foreign material.

RADIATOR
RADIATOR : Inspection

INFOID:0000000012200189

Check radiator for mud or clogging. If necessary, clean radiator as follows.

CAUTION:

• Be careful not to bend or damage radiator fins.

• When radiator is cleaned without removal, remove all surrounding parts such as radiator cooling fan

assembly and horns. Then tape harness and harness connectors to prevent water from entering.

1. Apply water by hose to the back side of the radiator core vertically downward.
2. Apply water again to all radiator core surfaces once per minute.
3. Stop washing if any stains no longer flow out from radiator.
4. Blow air into the back side of radiator core vertically downward.

• Use compressed air lower than 490 kPa (4.9 bar, 5 kg/cm

2

, 71 psi) and keep distance more than 30 cm

(11.81 in).

5. Blow air again into all the radiator core surfaces once per minute until no water sprays out.

FUEL LINES
FUEL LINES : Inspection

INFOID:0000000012200190

Inspect fuel lines, fuel filler cap, and fuel tank for improper attach-

ment, leakage, cracks, damage, loose connections, chafing or dete-

rioration.

If necessary, repair or replace damaged parts.

AIR CLEANER FILTER
AIR CLEANER FILTER : Removal and Installation

INFOID:0000000012200191

REMOVAL

Standard and Limit

: Refer to

CO-28, "Radiator"

.

PBIC5122J

A

: Engine

B

: Fuel line

C

:  Fuel  tank

JPBIA0129ZZ

ENGINE MAINTENANCE (MR FOR NISMO RS MODELS)

MA-21

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

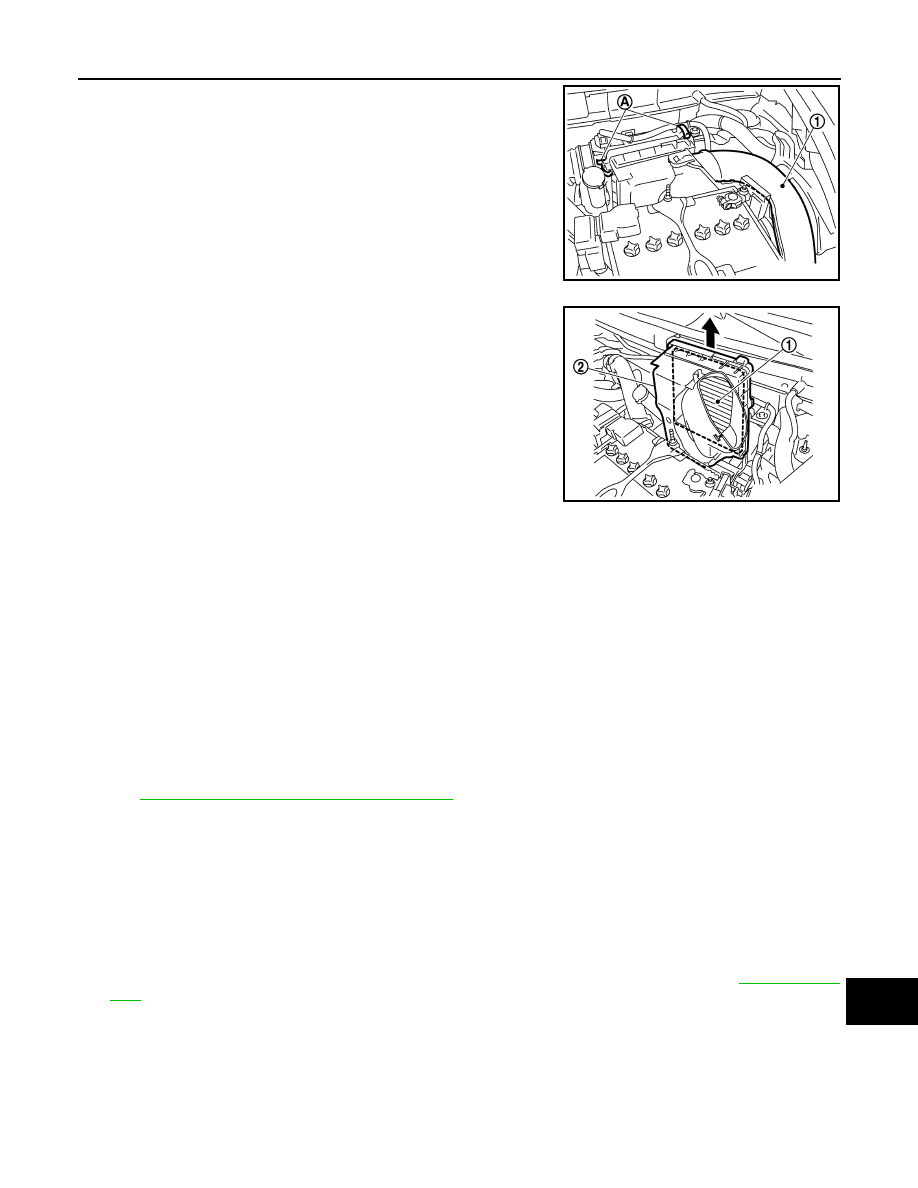

1. Remove air duct inlet (upper) (1).
2. Unhook the tabs (A) of both ends of the air cleaner cover.

3. Remove the air cleaner filter (1) and air cleaner body (2) from

the air cleaner case.

4. Remove the air cleaner filter from the air cleaner body.

INSTALLATION

Note the following, and install in the reverse order of removal.

• Fixing clips shall be fixed after inserting air cleaner body protrusion to air cleaner case notch hole.

• Make sure that whether air cleaner body has been firmly installed by shaking it.

AIR CLEANER FILTER : Inspection (Viscous Paper Type)

INFOID:0000000012200192

INSPECTION AFTER REMOVAL

Examine with eyes that there is no stain, clogging, or damage on air cleaner element.

• Remove dusts (such as dead leafs) on air cleaner element surface and inside cleaner case.

• If clogging or damage is observed, replace the air cleaner element.

CAUTION:

Never clean the viscous paper type air cleaner element by blowing as there is a risk of deterioration of

its performance

MAINTENANCE INTERVAL

Refer to

MA-7, "Introduction of Periodic Maintenance"

.

ENGINE OIL
ENGINE OIL : Draining

INFOID:0000000012200193

WARNING:

• Be careful not to get burned, as engine oil may be hot.

• Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin

contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as

soon as possible.

1. Warm up the engine, and check for engine oil leakage from engine components. Refer to

LU-9, "Inspec-

tion"

.

2. Stop the engine and wait for 10 minutes.
3. Loosen oil filler cap.
4. Remove drain plug and then drain engine oil.

JPBIA4352ZZ

JPBIA4353ZZ

MA-22

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (MR FOR NISMO RS MODELS)

ENGINE OIL : Refilling

INFOID:0000000012200194

1. Install drain plug with new drain plug washer. Refer to

EM-46, "Exploded View"

.

CAUTION:

Be sure to clean drain plug and install with new drain plug washer.

2. Refill with new engine oil.

Engine oil specification and viscosity: Refer to

MA-11, "Fluids and Lubricants"

.

CAUTION:

• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in the engine.

3. Warm up engine and check area around drain plug and oil filter for engine oil leakage.
4. Stop engine and wait for 10 minutes.
5. Check the engine oil level. Refer to

LU-9, "Inspection"

.

OIL FILTER
OIL FILTER : Removal and Installation

INFOID:0000000012200195

REMOVAL

1. Remove engine under cover.

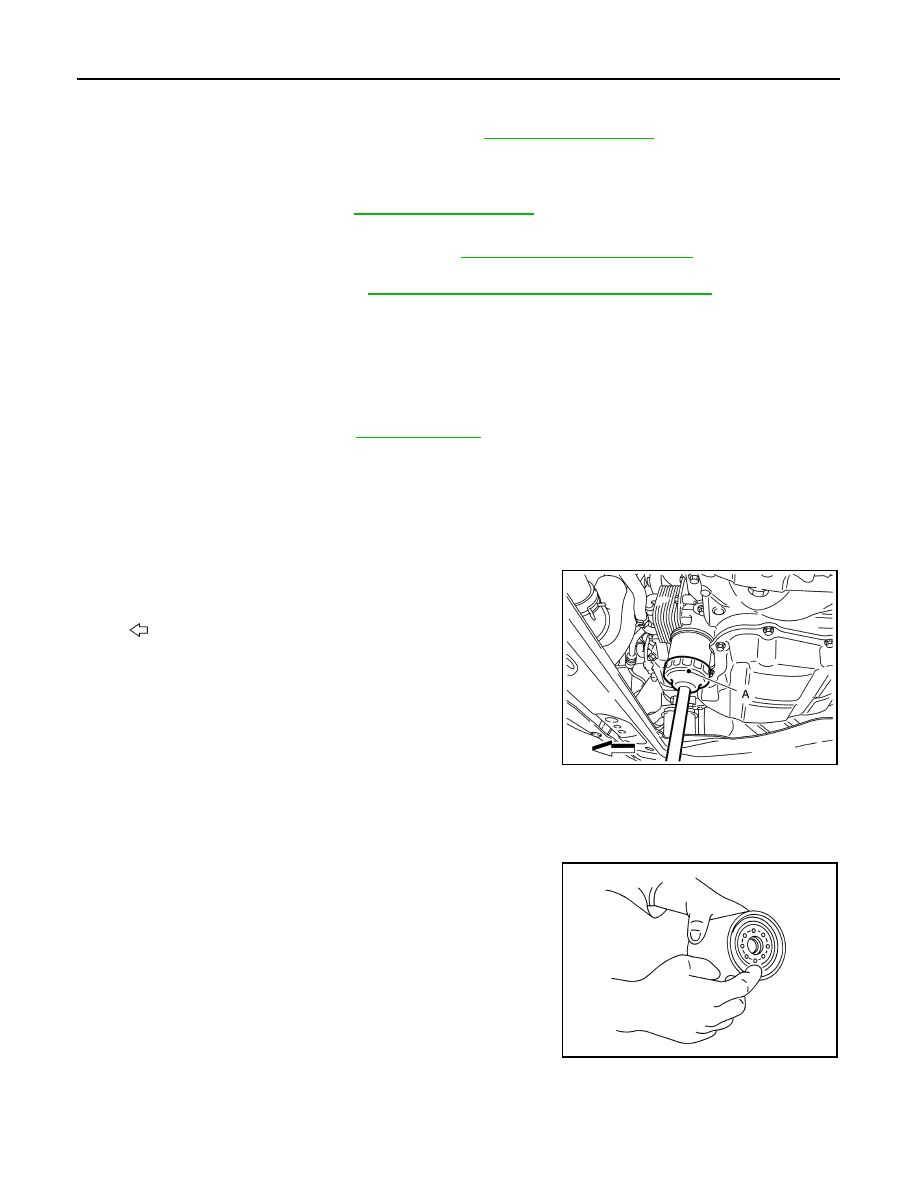

2. Using oil filter wrench [SST: KV10115801 (J-38956)] (A), remove

oil filter.

CAUTION:

• Oil filter is provided with relief valve. Use genuine NISSAN

oil filter or equivalent.

• Be careful not to get burned when engine and engine oil

may be hot.

• When removing, prepare a shop cloth to absorb any

engine oil leakage or spillage.

• Completely wipe off any engine oil that adheres to engine

and vehicle.

INSTALLATION

1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply new engine oil to the oil seal contact surface of new oil fil-

ter.

Tightening torque

: Refer to

EM-46, "Exploded View"

.

Engine oil capacity

Refer to

LU-19, "Periodical Maintenance Specification"

.

: Vehicle front

JPBIA4450ZZ

SMA010

ENGINE MAINTENANCE (MR FOR NISMO RS MODELS)

MA-23

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

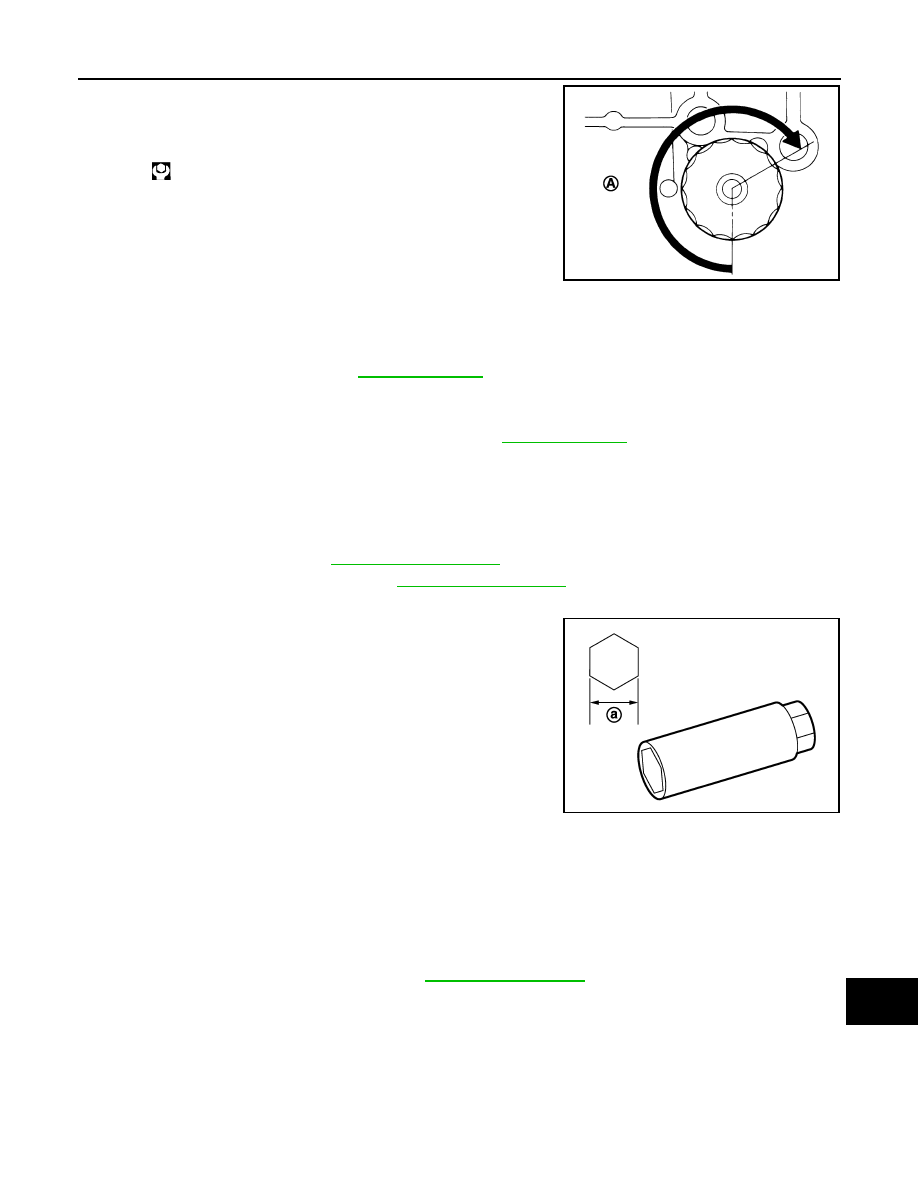

3. Screw oil filter manually until it touches the installation surface,

then tighten it by 2/3 turn (A). Or tighten to specification.

OIL FILTER : Inspection

INFOID:0000000012200196

INSPECTION AFTER INSTALLATION

1. Check the engine oil level. Refer to

LU-9, "Inspection"

.

2. Start the engine, and check that there is no leakage of engine oil.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level, and adjust the level. Refer to

LU-9, "Inspection"

.

SPARK PLUG
SPARK PLUG : Removal and Installation

INFOID:0000000012200197

REMOVAL

1. Remove engine cover. Refer to

EM-26, "Exploded View"

.

2. Remove air inlet tube assembly. Refer to

EM-32, "Exploded View"

.

3. Remove ignition coil.
4. Remove spark plug with a spark plug wrench (commercial ser-

vice tool).

CAUTION:

Never drop or shock spark plug.

INSTALLATION

Install in the reverse order of removal.

SPARK PLUG : Inspection

INFOID:0000000012200198

INSPECTION AFTER REMOVAL

Use the standard type spark plug for normal condition.

CAUTION:

Oil filter:

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

JPBIA0077ZZ

a

: 14 mm (0.55 in)

JPBIA0030ZZ

Spark plug (Standard type)

Refer to

EM-139, "Spark Plug"

.
