MA-12

< PERIODIC MAINTENANCE >

RECOMMENDED FLUIDS AND LUBRICANTS

Manual transaxle fluid
(MTF)

RS6F94R

2.0

4-1/4 pt

3-1/2 pt

For NISMO RS models:
• Genuine NISSAN Manual Transmis-

sion Fluid (MTF) HQ Multi 75W-85
or equivalent

• If Genuine NISSAN Manual Trans-

mission Fluid (MTF) HQ Multi 75W-
85 is hard to obtain, API GL-4, Vis-
cosity SAE 75W-85 may be used as
a temporary replacement. However,
use Genuine NISSAN gear oil as
soon as it is available.

Except for NISMO RS models:
• Genuine NISSAN Manual Transmis-

sion Fluid (MTF) TL/JR Type 75W-
80 or equivalent

• If Genuine NISSAN Manual Trans-

mission Fluid (MTF) TL/JR Type is
not available, API GL-4+, Viscosity
SAE 75W-80 may be used as a tem-
porary replacement. However, use
Genuine NISSAN Manual Transmis-
sion Fluid (MTF) TL/JR Type as
soon as it is available.

RS6F52H

1.9

4 pt

3-3/8 pt

CVT fluid

RE0F10B

8.6

9-1/8 qt

7-5/8 qt

For NISMO RS models:
• Genuine NISSAN CVT Fluid NS-2
• NISSAN recommends using Genu-

ine NISSAN CVT Fluid NS-2 ONLY
in NISSAN CVTs. Do not mix with
other fluids. Using fluids that are not
equivalent to Genuine NISSAN CVT
Fluid NS-2 may damage the CVT.
Damage caused by the use of fluids
other than as recommended is not
covered under NISSAN's New Vehi-
cle Limited Warranty.

Except for NISMO RS models:
• Genuine NISSAN CVT Fluid NS-3
• NISSAN recommends using Genu-

ine NISSAN CVT Fluid NS-3 ONLY
in NISSAN CVTs. Do not mix with
other fluids. Using fluids that are not
equivalent to Genuine NISSAN CVT
Fluid NS-3 may damage the CVT.
Damage caused by the use of fluids
other than as recommended is not
covered under NISSAN's New Vehi-
cle Limited Warranty.

RE0F10D

7.9

8-3/8 qt

7 qt

Transfer fluid

0.37

3/4 pt

5/8 pt

• Genuine NISSAN Differential Oil

Hypoid Super GL-5 80W-90 or
equivalent conventional (non-syn-
thetic) oil

Differential gear oil

0.4

7/8 pt

3/4 pt

Brake and clutch fluid

—

• Genuine NISSAN Super Heavy

Duty Brake Fluid*

or equivalent

DOT 3 (US FMVSS No. 116)

*5: Available in mainland U.S.A.
through a NISSAN dealer.

Multi-purpose grease

—

• NLGI No. 2 (Lithium soap base)

Windshield washer fluid

4.5

4-3/4 qt

4 qt

• Genuine NISSAN Windshield

Washer Concentrate Cleaner &
Anti-Freeze or equivalent

Fluid types

Capacity (Approximate)

Recommended Fluids/Lubricants

Liter

US mea-

sure

Imp mea-

sure

RECOMMENDED FLUIDS AND LUBRICANTS

MA-13

< PERIODIC MAINTENANCE >

SAE Viscosity Number

INFOID:0000000012200179

NISSAN recommends the use of an energy conserving oil in order to improve fuel economy.

Select only engine oils that meet the American Petroleum Institute (API) certification and International Lubrica-

tion Standardization and Approval Committee (ILSAC) certification and SAE viscosity standard. These oils

have the API certification mark on the front of the container. Oils which do not have the specified quality label

should not be used as they could cause engine damage.

• For NISMO RS models

• Except for NISMO RS models

Anti-Freeze Coolant Mixture Ratio

INFOID:0000000012200180

The engine cooling system is filled at the factory with a pre-diluted mixture of 50% Genuine NISSAN Long Life

Antifreeze/Coolant (blue) and 50% water to provide year-round anti-freeze and coolant protection. The anti-

freeze solution contains rust and corrosion inhibitors. Additional engine cooling system additives are not nec-

essary.

WARNING:

• Never remove the radiator or coolant reservoir cap when the engine is hot. Wait until the engine and

radiator cool down. Serious burns could be caused by high pressure fluid escaping from the radia-

tor.

Air conditioning system refrigerant

0.40

0.05 kg

0.88

0.10 lb

0.88

0.10 lb

• HFC-134a (R-134a)
• For further details, see “Air condi-

tioner specification label”.

Air conditioning system oil

120 m

4.1 fl oz

4.2 fl oz

• A/C System Oil Type R (DH-PR)
• For further details, see “Air condi-

tioner specification label”.

Fluid types

Capacity (Approximate)

Recommended Fluids/Lubricants

Liter

US mea-

sure

Imp mea-

sure

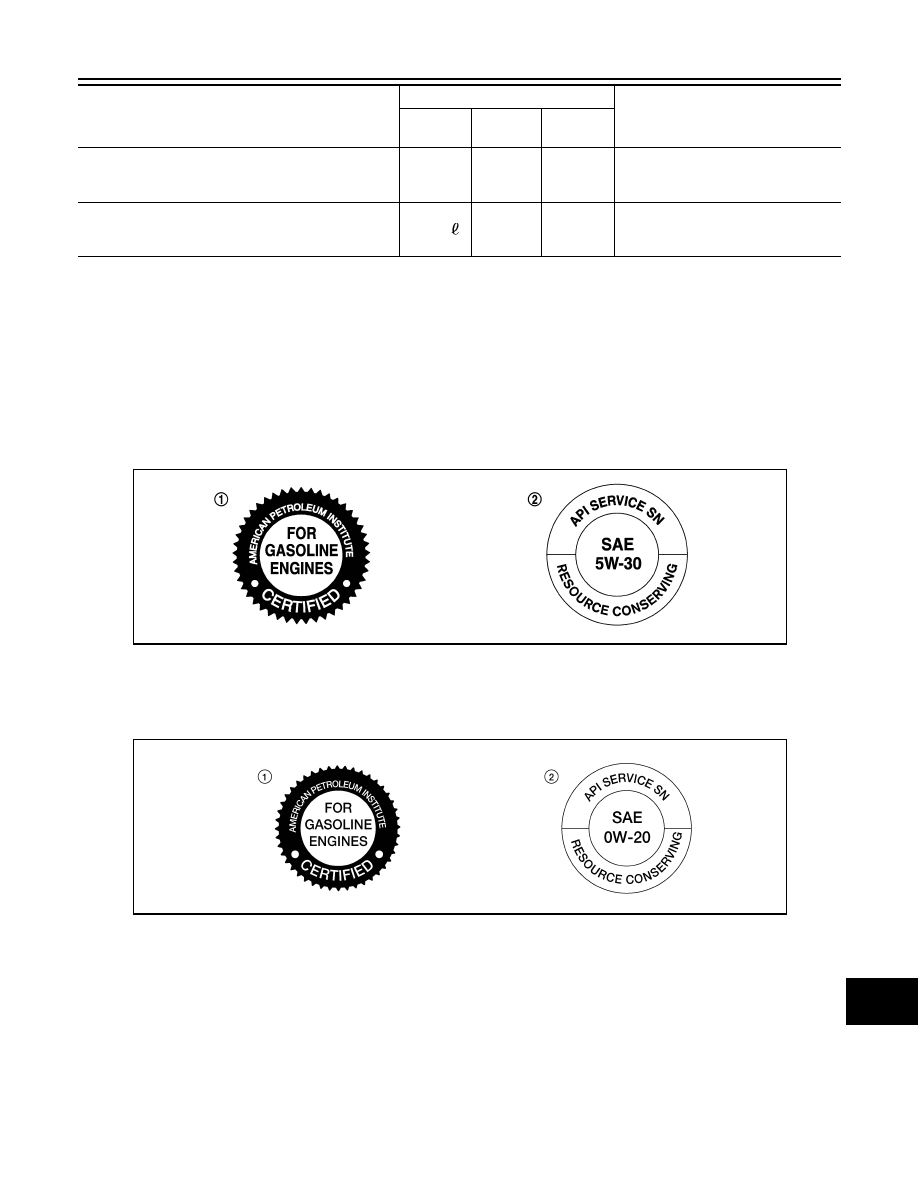

JSPIA0014ZZ

API certification mark

API service symbol

ALPIA0008ZZ

API certification mark

API service symbol

MA-14

< PERIODIC MAINTENANCE >

RECOMMENDED FLUIDS AND LUBRICANTS

• The radiator is equipped with a pressure type radiator cap. To prevent engine damage, use only a

genuine NISSAN radiator cap.

CAUTION:

• When adding or replacing coolant, be sure to use only Genuine NISSAN Long Life Antifreeze/Cool-

ant (blue) or equivalent. Genuine NISSAN Long Life Antifreeze/Coolant (blue) is pre-diluted to pro-

vide antifreeze protection to -34

°F (-37°C). If additional freeze protection is needed due to weather

where you operate your vehicle, add Genuine NISSAN Long Life Antifreeze/Coolant (blue) concen-

trate following the directions on the container. If an equivalent coolant other than Genuine NISSAN

Long Life Antifreeze/Coolant (blue) is used, follow the coolant manufactur's instructions to maintain

minimum antifreeze protection to -34

°F (-37°C). The use of other types of coolant solutions other

than Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent may damage the engine

cooling system.

• Mixing any other type of coolant other than Genuine NISSAN Long Life Antifreeze/Coolant (blue),

including Genuine NISSAN Long Life Antifreeze/Coolant (green), or the use of non-distilled water will

reduce the life expectancy of the factory-fill coolant.

ENGINE MAINTENANCE (MR FOR NISMO RS MODELS)

MA-15

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (MR FOR NISMO RS MODELS)

DRIVE BELT
DRIVE BELT : Exploded View

INFOID:0000000012200181

DRIVE BELT : Inspection

INFOID:0000000012200182

WARNING:

Perform this step when engine is stopped.

• Check that the indicator (C) (notch on fixed side) of drive belt auto-tensioner is within the possible use range

(A) in the figure.

NOTE:

• Check the drive belt auto-tensioner indication when the engine is cold.

• When new drive belt is installed, the indicator (notch on fixed side) should be within the range (B) in the fig-

ure.

• Visually check entire drive belt for wear, damage or cracks.

• If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.

DRIVE BELT : Adjustment

INFOID:0000000012200183

ENGINE COOLANT

Alternator

Drive belt auto-tensioner

Crankshaft pulley

A/C compressor

Water pump

Drive belt

Possible use range

Range when new drive belt is in-
stalled

Indicator

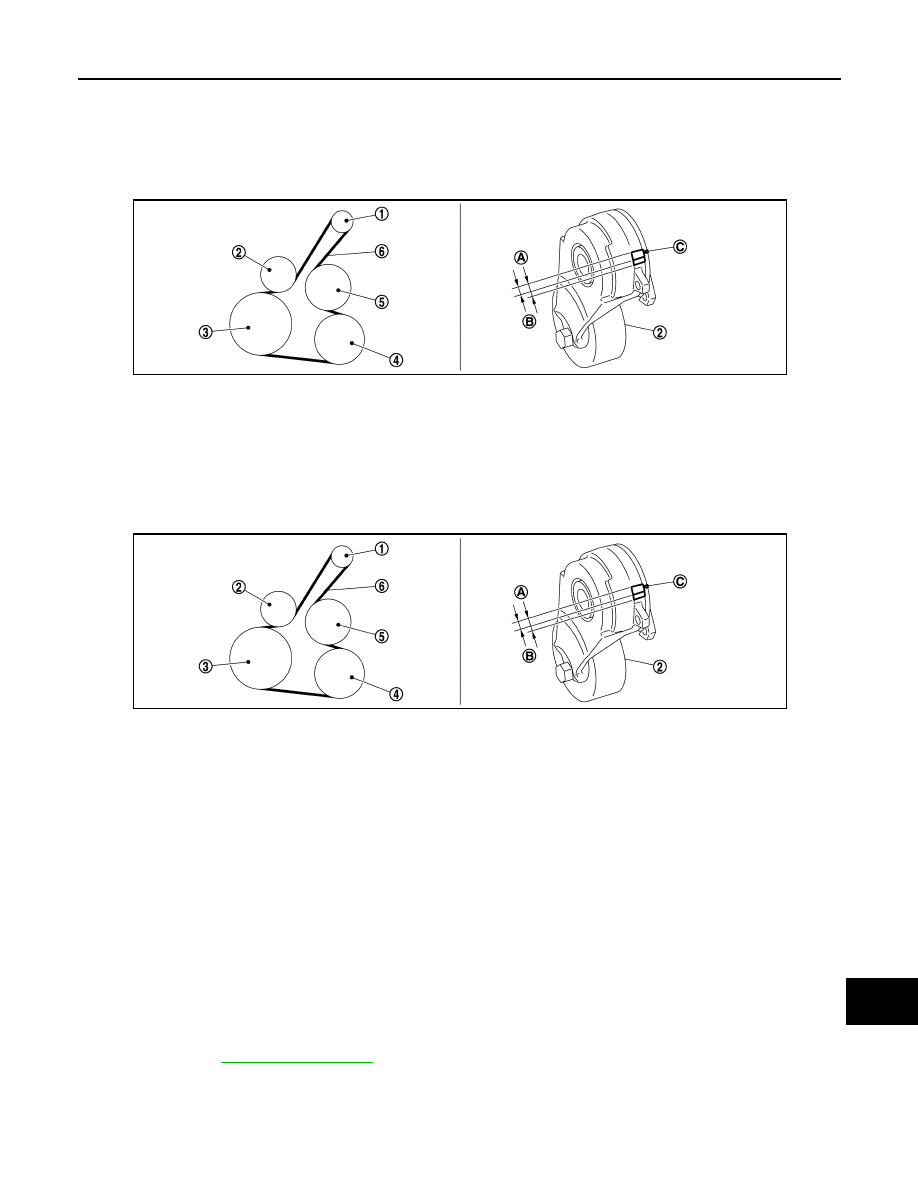

JPBIA4302ZZ

Alternator

Drive belt auto-tensioner

Crankshaft pulley

A/C compressor

Water pump

Drive belt

Possible use range

Range when new drive belt is in-
stalled

Indicator

JPBIA4302ZZ

Refer to :

EM-139, "Drive Belt"
