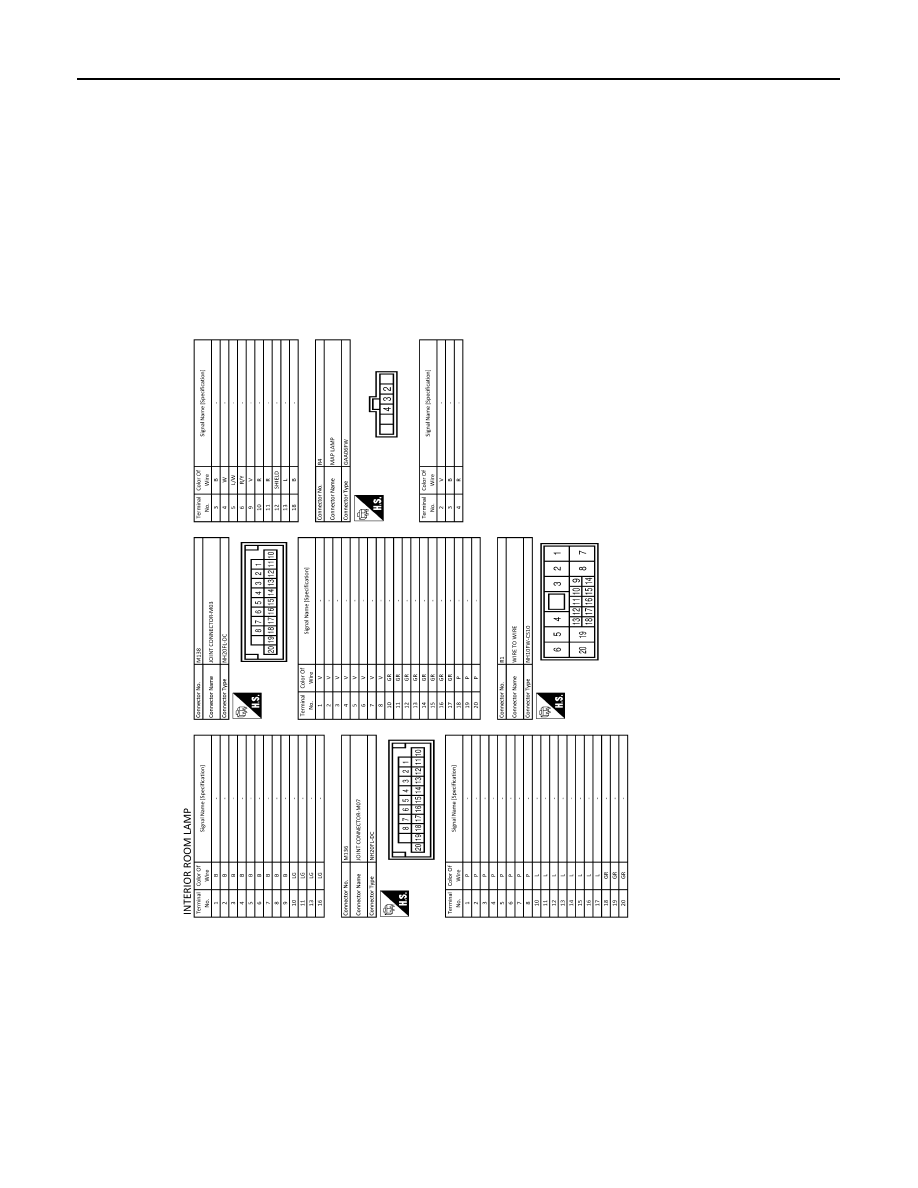

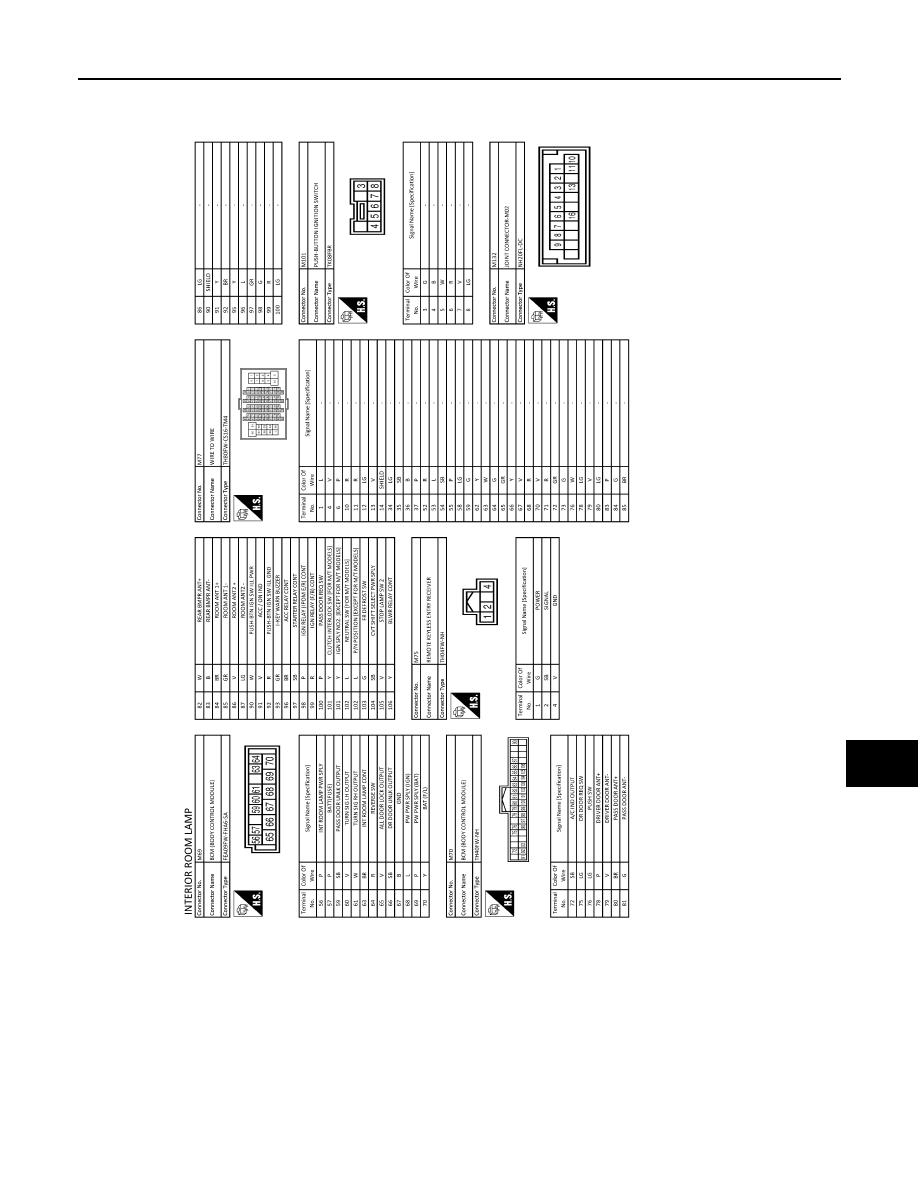

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-23

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

JRLWF5333GB

INL-24

< WIRING DIAGRAM >

INTERIOR ROOM LAMP CONTROL SYSTEM

JRLWF5334GB

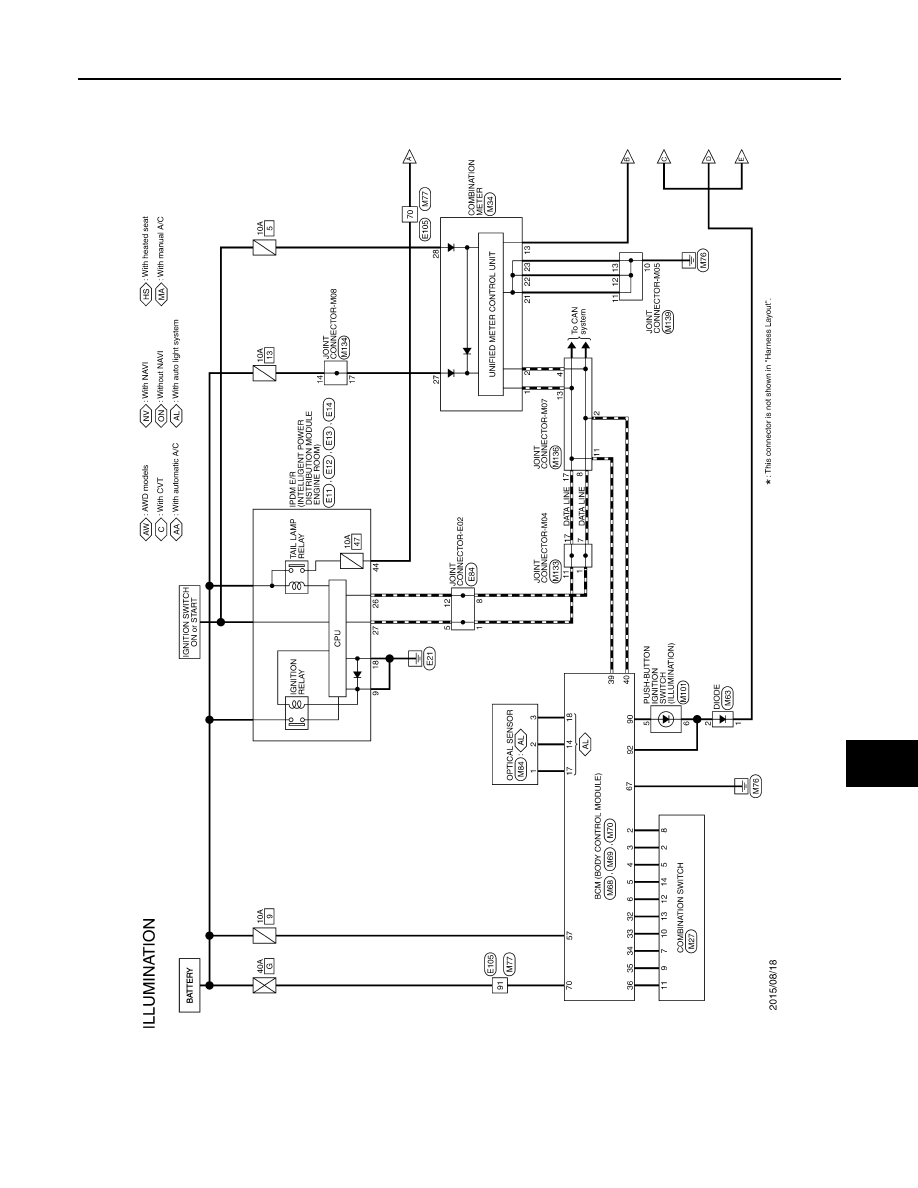

ILLUMINATION

INL-25

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

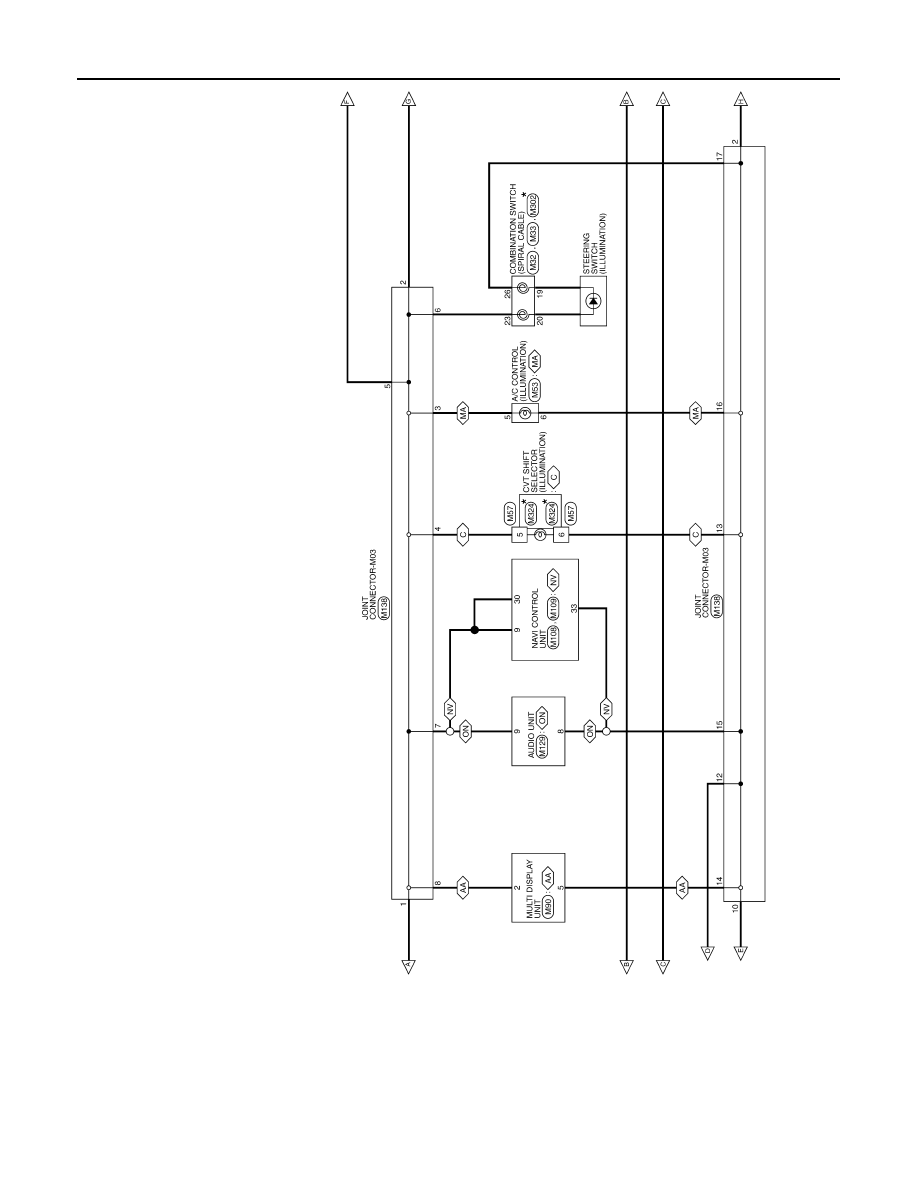

ILLUMINATION

Wiring Diagram

INFOID:0000000012197008

JRLWF5335GB

INL-26

< WIRING DIAGRAM >

ILLUMINATION

JRLWF5336GB
