HRN-6

< WIRING DIAGRAM >

HORN

JRLWF5359GB

HORN

HRN-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

REMOVAL AND INSTALLATION

HORN

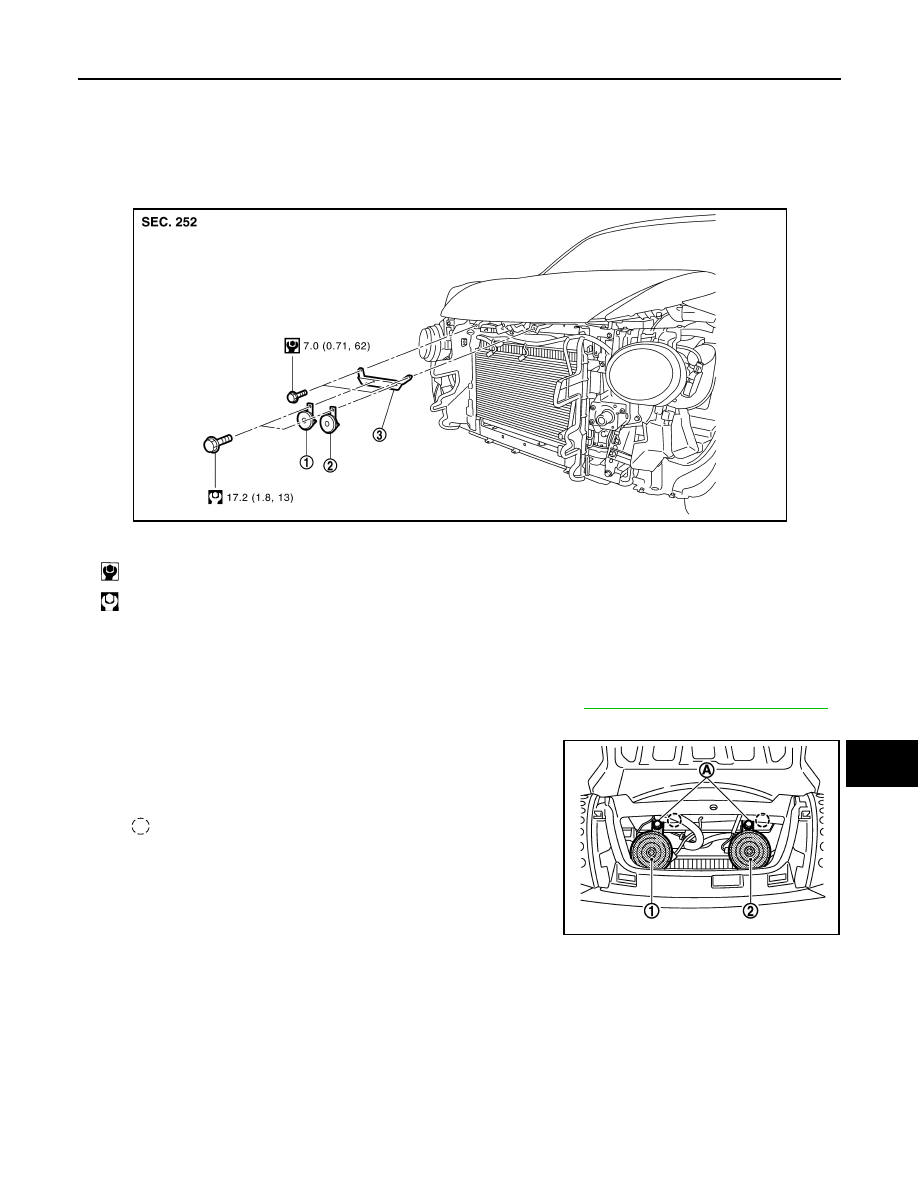

Exploded View

INFOID:0000000012200160

Removal and Installation

INFOID:0000000012200161

REMOVAL

1. Remove the front center grille and front side grille (LH/RH). Refer to

EXT-26, "Removal and Installation"

.

2. Disconnect the horn (high and low) connectors.
3. Remove the horn mounting bolts (A). Remove the horn high (1)

and horn low (2).

4. Remove fixing clip from horn bracket.

1.

Horn high

2.

Horn low

3.

Horn bracket

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JSLIA0450GB

: clip

JMLIA1227ZZ

HRN-8

< REMOVAL AND INSTALLATION >

HORN

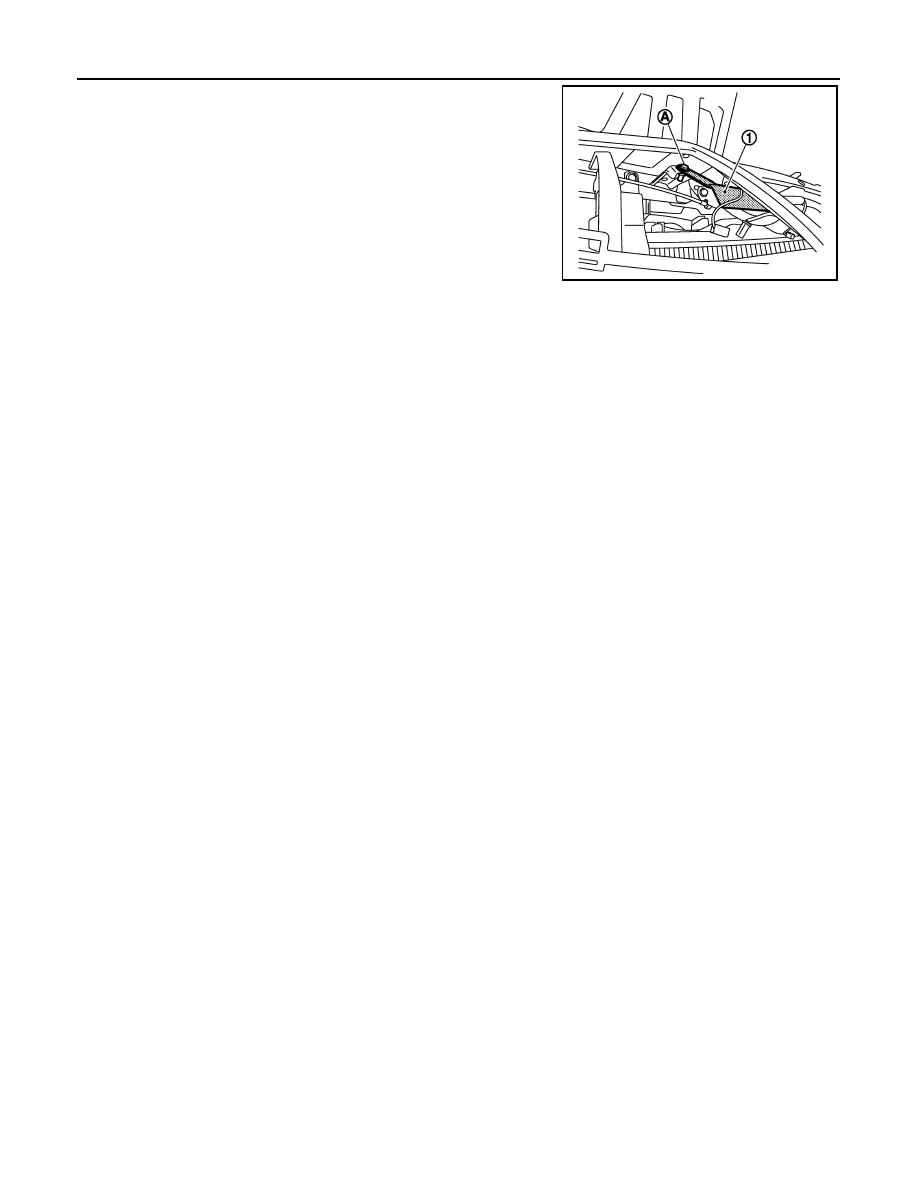

5. Remove horn bracket mounting bolts (LH/RH) (A). Remove horn

bracket (1) from radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

JMLIA1228ZZ
