DOOR CABLE

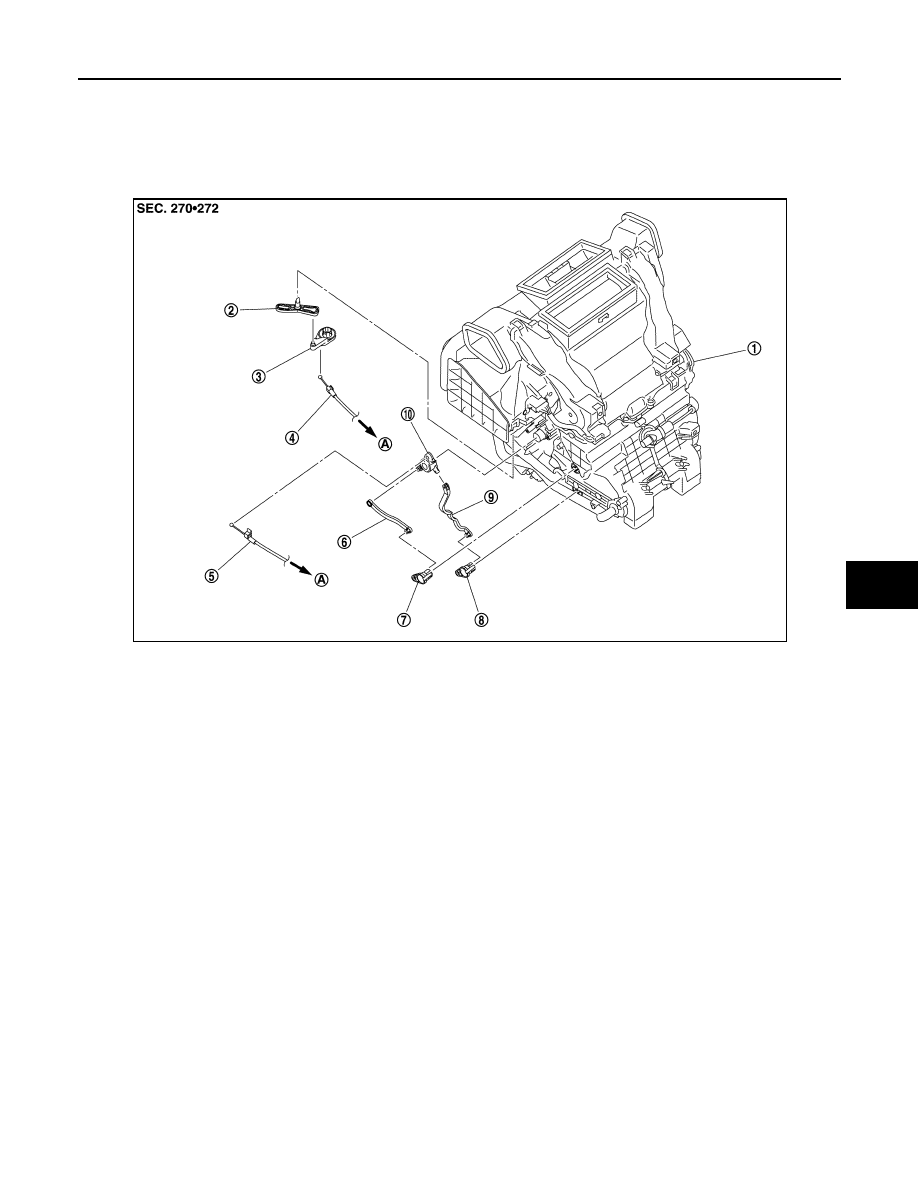

Exploded View

INFOID:0000000012200151

LEFT SIDE

RIGHT SIDE

1.

A/C unit assembly

2.

Intake door lever

3.

Intake door link

4.

Intake door cable

5.

Air mix door cable

6.

Upper air mix door rod

7.

Upper air mix door lever

8.

Lower air mix door lever

9.

Lower air mix door rod

10. Air mix door link
A.

To A/C control

JPIIA1559ZZ

HAC-156

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

DOOR CABLE

INTAKE DOOR CABLE
INTAKE DOOR CABLE : Removal and Installation

INFOID:0000000012200152

REMOVAL

1. Disconnect intake door cable from A/C control. Refer to

HAC-151, "Exploded View"

.

2. Remove instrument lower panel LH. Refer to

IP-13, "Removal and Installation"

.

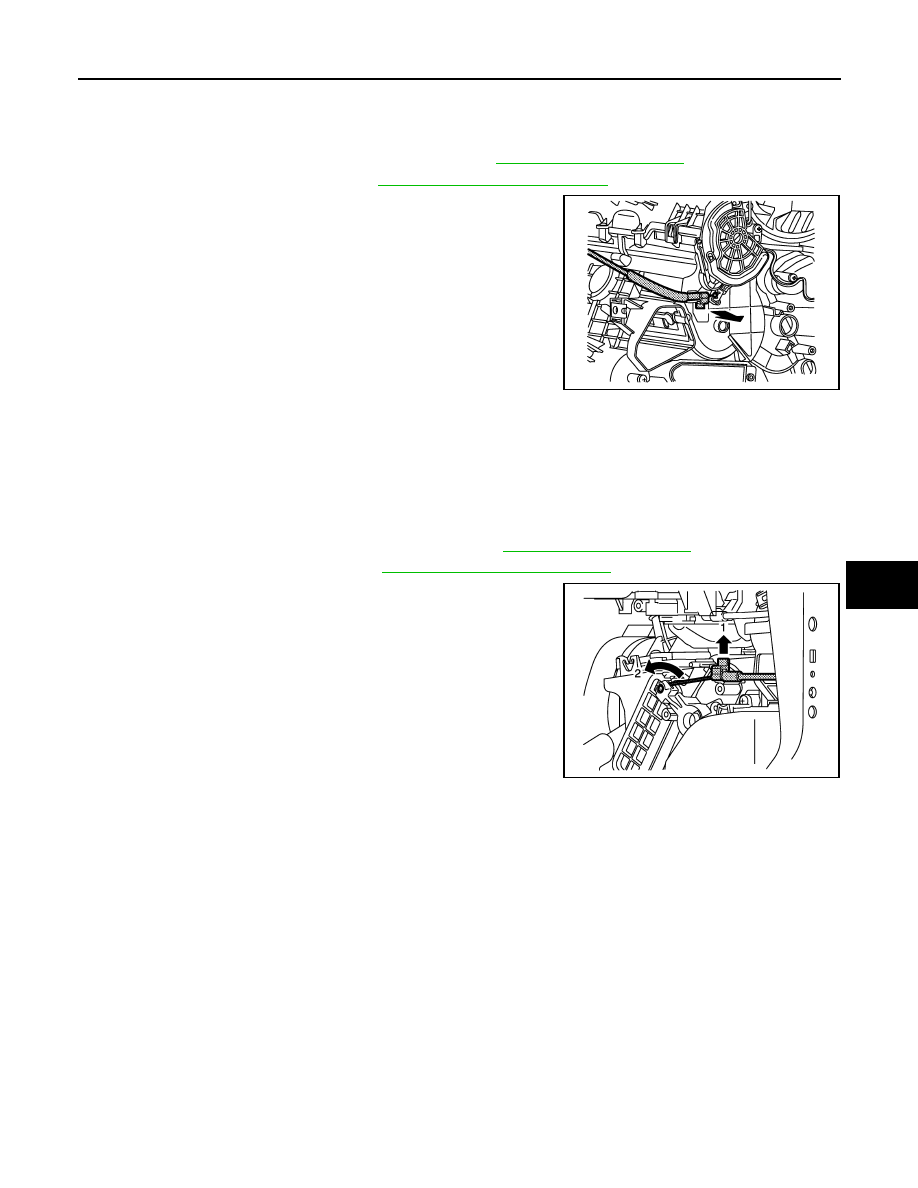

3. Disconnect intake door cable from A/C unit assembly as shown

by the arrow in the figure, and then remove intake door cable.

INSTALLATION

Install in the reverse order of removal.

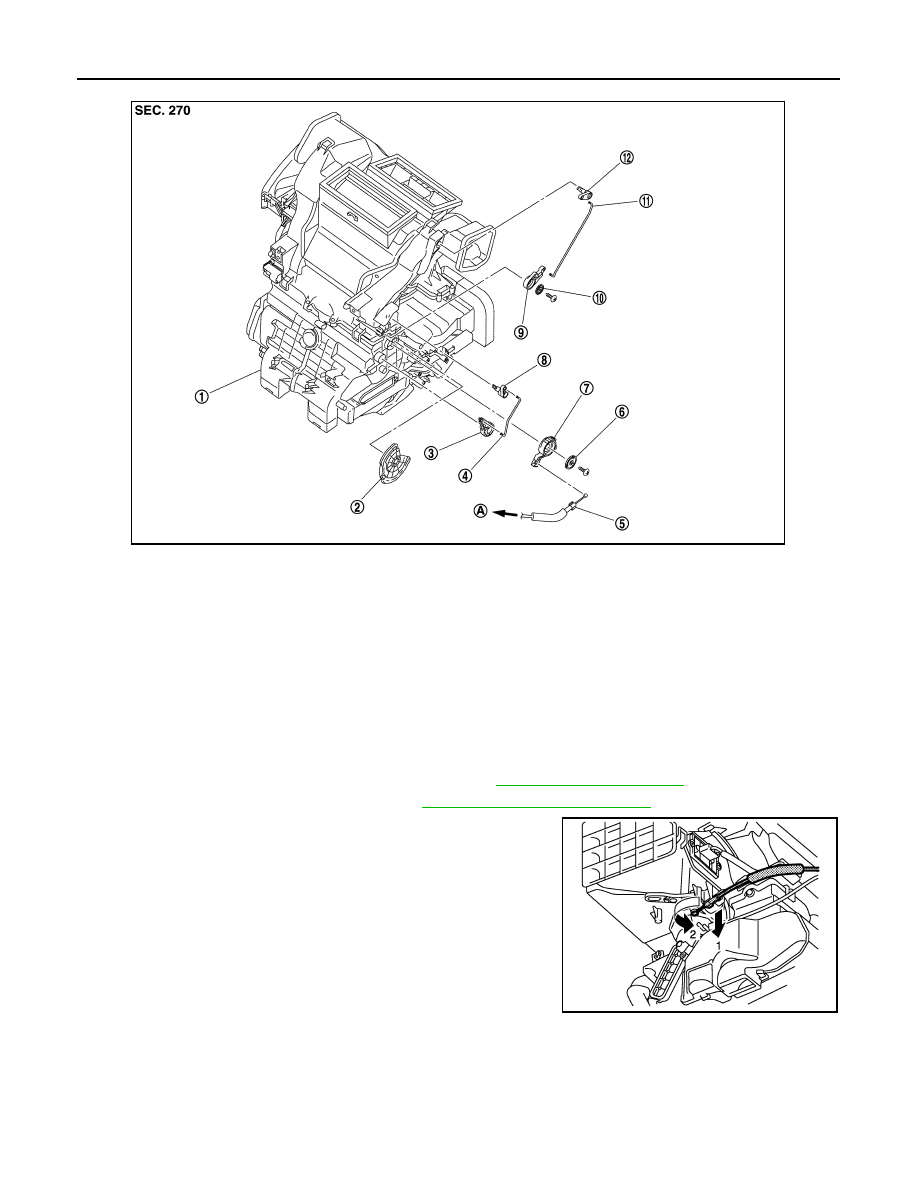

MODE DOOR CABLE

1.

A/C unit assembly

2.

Main link

3.

Sub defroster door link

4.

Sub defroster door rod

5.

Mode door cable

6.

Plate

7.

Mode link

8.

Sub defroster door lever

9.

Center ventilator and defroster door link

10. Plate

11. Center ventilator and defroster door rod

12. Center ventilator and defroster door lever

A.

To A/C control

JPIIA1560ZZ

JMIIA0901ZZ

DOOR CABLE

HAC-157

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

MODE DOOR CABLE : Removal and Installation

INFOID:0000000012200153

REMOVAL

1. Disconnect mode door cable from A/C control. Refer to

HAC-151, "Exploded View"

.

2. Remove glove box assembly. Refer to

IP-13, "Removal and Installation"

.

3. Disconnect mode door cable from A/C unit assembly as shown

by the arrow in the figure, and then remove mode door cable.

INSTALLATION

Install in the reverse order of removal.

AIR MIX DOOR CABLE
AIR MIX DOOR CABLE : Removal and Installation

INFOID:0000000012200154

REMOVAL

1. Disconnect air mix door cable from A/C control. Refer to

HAC-151, "Exploded View"

.

2. Remove instrument panel LH. Refer to

IP-13, "Removal and Installation"

.

3. Disconnect air mix door cable from A/C unit assembly as shown

by the arrow in the figure, and then remove air mix door cable.

INSTALLATION

Install in the reverse order of removal.

JMIIA0903ZZ

JMIIA0902ZZ
