A/C CONTROL

HAC-151

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REMOVAL AND INSTALLATION

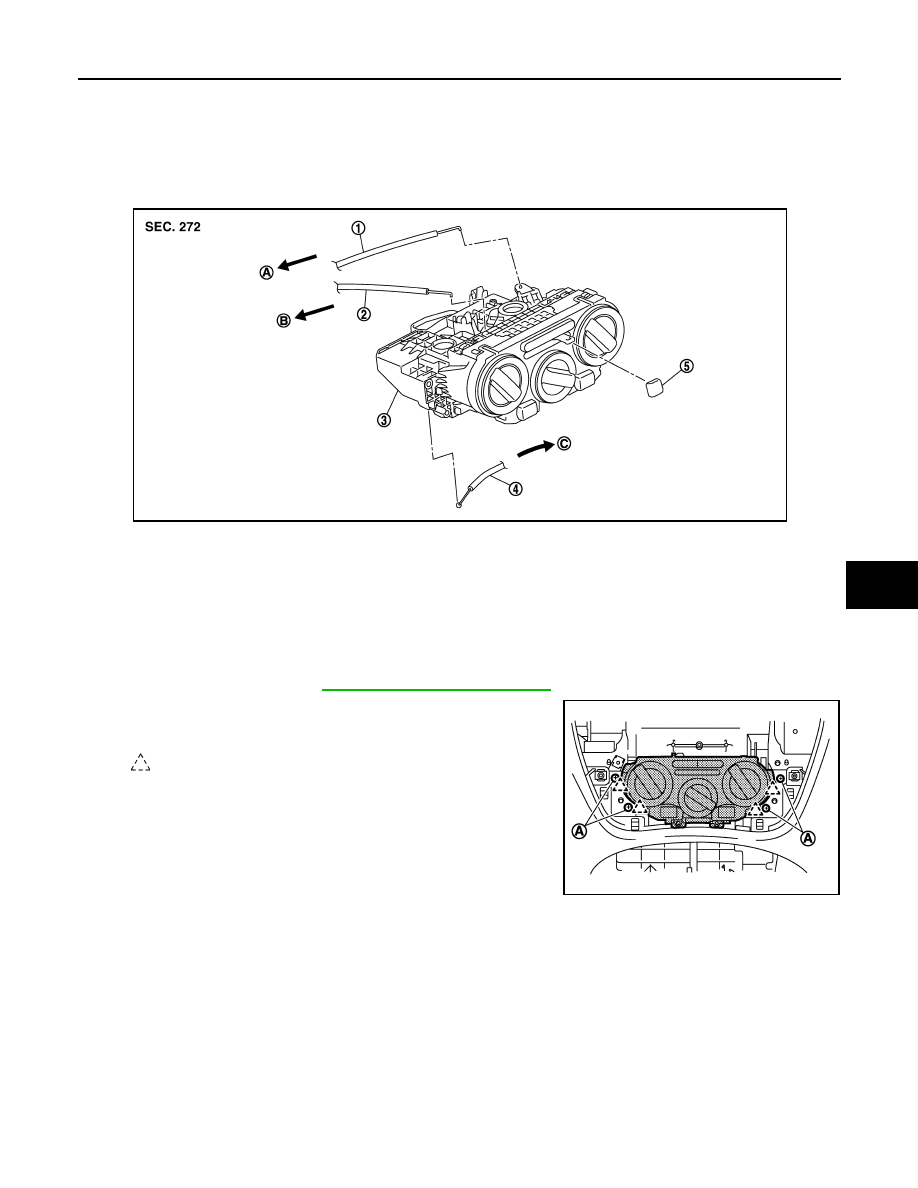

A/C CONTROL

Exploded View

INFOID:0000000012200144

Removal and Installation

INFOID:0000000012200145

REMOVAL

1. Remove A/C finisher. Refer to

IP-13, "Removal and Installation"

.

2. Remove fixing screws (A) and fixing pawls, and then remove A/

C control.

3. Disconnect door cable and harness connector from A/C control.

INSTALLATION

Install in the reverse order of removal.

1.

Air mix door cable

2.

Intake door cable

3.

A/C control

4.

Mode door cable

5.

Intake door lever knob

A.

To air mix door link

B.

To intake door link

C.

To mode door link

JMIIA0899ZZ

: Pawl

JMIIA0900ZZ

HAC-152

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

THERMO CONTROL AMPLIFIER

THERMO CONTROL AMPLIFIER

Removal and Installation

INFOID:0000000012200146

REMOVAL

1. Remove evaporator. Refer to

HA-46, "EVAPORATOR : Removal and Installation"

.

2. Disconnect thermo control amp. from evaporator.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-ring with new one. Then apply compressor oil to them when installing.

• When install the thermo control amp., set the same position before replacement.

• When remove the thermo control amp., never turn the bracket which is equipped the top of the

thermo control amp.

• Check for the leakages when recharging refrigerant. Refer to

HA-17, "Leak Test"

.

REFRIGERANT PRESSURE SENSOR

HAC-153

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000012200147

Refer to

HA-36, "Exploded View"

.

Removal and Installation

INFOID:0000000012200148

REMOVAL

Refer to

HA-38, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

HAC-154

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

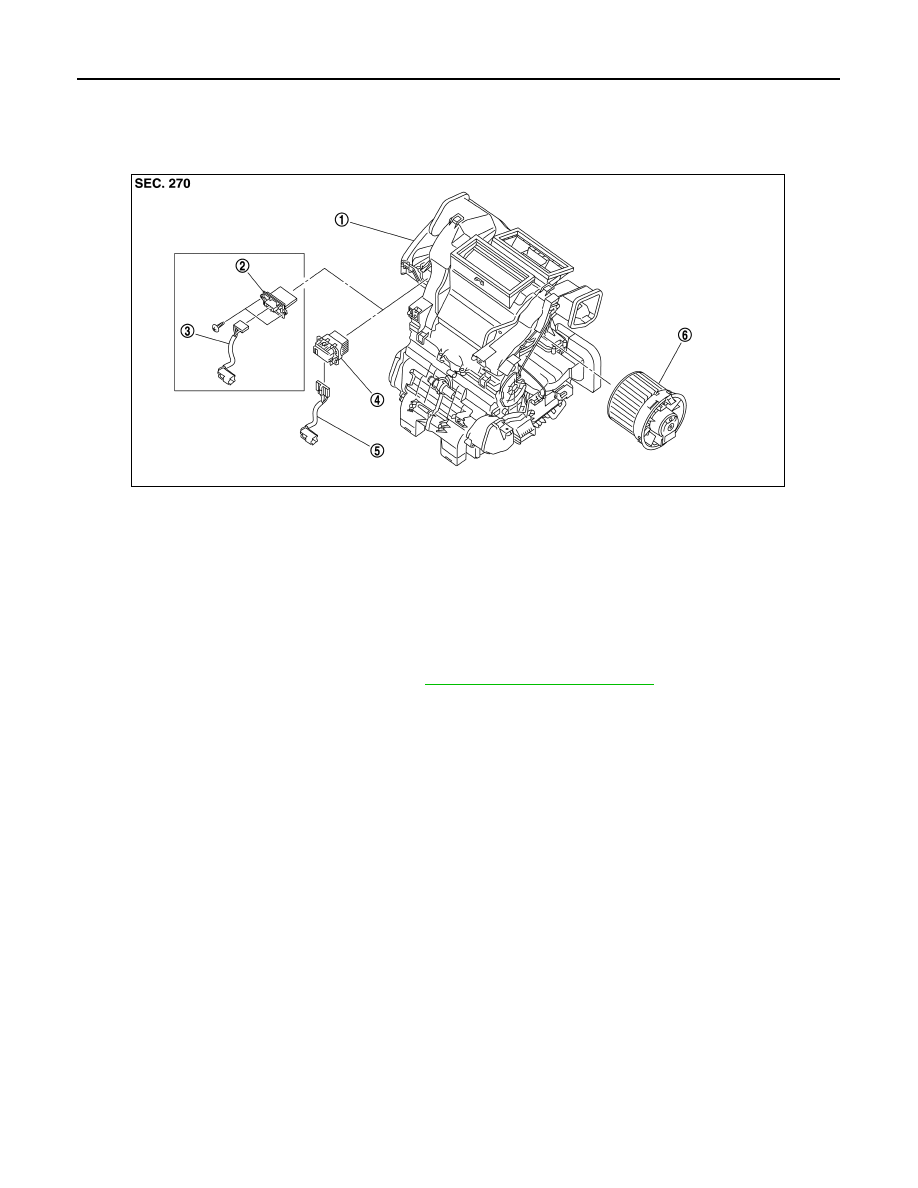

BLOWER FAN RESISTOR

BLOWER FAN RESISTOR

Exploded View

INFOID:0000000012200149

• *1: Manual air conditioning
• *2: Automatic air conditioning

Removal and Installation

INFOID:0000000012200150

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2. Disconnect blower fan resistor harness connector.
3. Remove fixing screws, and then remove blower fan resistor from A/C unit assembly.

INSTALLATION

Install in the reverse order of removal.

1.

A/C unit assembly

2.

Blower fan resistor*

1

3.

Sub harness*

1

4.

Power transistor*

2

5.

Sub harness*

2

6.

Blower motor

JPIIA1549ZZ
