REFRIGERANT PRESSURE SENSOR  .............

98

Exploded View  ........................................................

98

Removal and Installation .........................................

98

POWER TRANSISTOR  ......................................

99

Exploded View  ........................................................

99

Removal and Installation .........................................

99

DOOR MOTOR .................................................

100

Exploded View  ......................................................

100

INTAKE DOOR MOTOR ..........................................

101

INTAKE DOOR MOTOR : Removal and Installa-
tion ........................................................................

101

MODE DOOR MOTOR  ............................................

101

MODE DOOR MOTOR : Removal and Installation ..

101

AIR MIX DOOR MOTOR  .........................................

102

AIR MIX DOOR MOTOR : Removal and Installa-
tion ........................................................................

102

MANUAL AIR CONDITIONING

PRECAUTION ............................................

103

PRECAUTIONS ................................................

103

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

103

Precautions for Removing Battery Terminal  .........

103

SYSTEM DESCRIPTION  ...........................

105

COMPONENT PARTS  .....................................

105

Component Part Location  .....................................

105

Component Description .........................................

105

A/C UNIT ASSEMBLY .............................................

106

A/C UNIT ASSEMBLY : Thermo Control Amp.  .....

106

A/C UNIT ASSEMBLY : Blower Motor  ..................

106

A/C UNIT ASSEMBLY : Blower Fan Resistor  .......

106

A/C Control ............................................................

106

BCM ......................................................................

107

ECM ......................................................................

107

IPDM E/R  ..............................................................

107

Refrigerant Pressure Sensor .................................

107

Magnet Clutch  .......................................................

107

SYSTEM ...........................................................

108

System Diagram ....................................................

108

System Description  ...............................................

108

Compressor Control  ..............................................

108

Door Control ..........................................................

109

OPERATION .....................................................

112

Switch Name and Function  ...................................

112

DIAGNOSIS SYSTEM (BCM)  ..........................

113

Description ............................................................

113

COMMON ITEM .......................................................

113

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  ...................................................

113

AIR CONDITIONER  .................................................

115

AIR CONDITIONER : CONSULT Function (BCM -
AIR CONDITIONER) (Manual A/C)  .......................

115

ECU DIAGNOSIS INFORMATION ............

117

BCM, ECM, IPDM E/R .....................................

117

List of ECU Reference ...........................................

117

WIRING DIAGRAM ....................................

118

MANUAL AIR CONDITIONING SYSTEM .......

118

Wiring Diagram ......................................................

118

BASIC INSPECTION  .................................

125

DIAGNOSIS AND REPAIR WORK FLOW  .....

125

Work Flow ..............................................................

125

OPERATION INSPECTION  ............................

128

Work Procedure .....................................................

128

DTC/CIRCUIT DIAGNOSIS  .......................

130

A/C SWITCH  ...................................................

130

Component Function Check  ..................................

130

Diagnosis Procedure  .............................................

130

BLOWER FAN ON SIGNAL  ...........................

132

Component Function Check  ..................................

132

Diagnosis Procedure  .............................................

132

THERMO CONTROL AMPLIFIER  ..................

134

Component Function Check  ..................................

134

Diagnosis Procedure  .............................................

134

DEFROSTER POSITION SIGNAL ..................

136

Component Function Check  ..................................

136

Diagnosis Procedure  .............................................

136

A/C INDICATOR ..............................................

138

Diagnosis Procedure  .............................................

138

BLOWER MOTOR  ..........................................

140

Diagnosis Procedure  .............................................

140

Component Inspection (Blower Motor)  ..................

142

Component Inspection (Blower Relay)  ..................

142

Component Inspection (Blower Fan Resistor) .......

142

Component Inspection (Fan Switch)  .....................

142

MAGNET CLUTCH  .........................................

144

Component Function Check  ..................................

144

Diagnosis Procedure  .............................................

144

SYMPTOM DIAGNOSIS  ............................

145

MANUAL AIR CONDITIONING SYSTEM .......

145

Symptom Table  .....................................................

145

INSUFFICIENT COOLING  .............................

HAC-4

Description .............................................................

147

Diagnosis Procedure  .............................................

147

INSUFFICIENT HEATING  ...............................

148

Description .............................................................

148

Diagnosis Procedure  .............................................

148

COMPRESSOR DOES NOT OPERATE  .........

149

Description .............................................................

149

Diagnosis Procedure  .............................................

149

REMOVAL AND INSTALLATION ..............

151

A/C CONTROL  ................................................

151

Exploded View .......................................................

151

Removal and Installation  .......................................

151

THERMO CONTROL AMPLIFIER ...................

152

Removal and Installation  .......................................

152

REFRIGERANT PRESSURE SENSOR  ..........

153

Exploded View  ......................................................

153

Removal and Installation .......................................

153

BLOWER FAN RESISTOR  ..............................

154

Exploded View  ......................................................

154

Removal and Installation .......................................

154

DOOR CABLE  ..................................................

155

Exploded View  ......................................................

155

INTAKE DOOR CABLE  ..........................................

156

INTAKE DOOR CABLE : Removal and Installation

.

156

MODE DOOR CABLE  .............................................

156

MODE DOOR CABLE : Removal and Installation .

157

AIR MIX DOOR CABLE  ..........................................

157

AIR MIX DOOR CABLE : Removal and Installation

.

157

PRECAUTIONS

HAC-5

< PRECAUTION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012199987

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

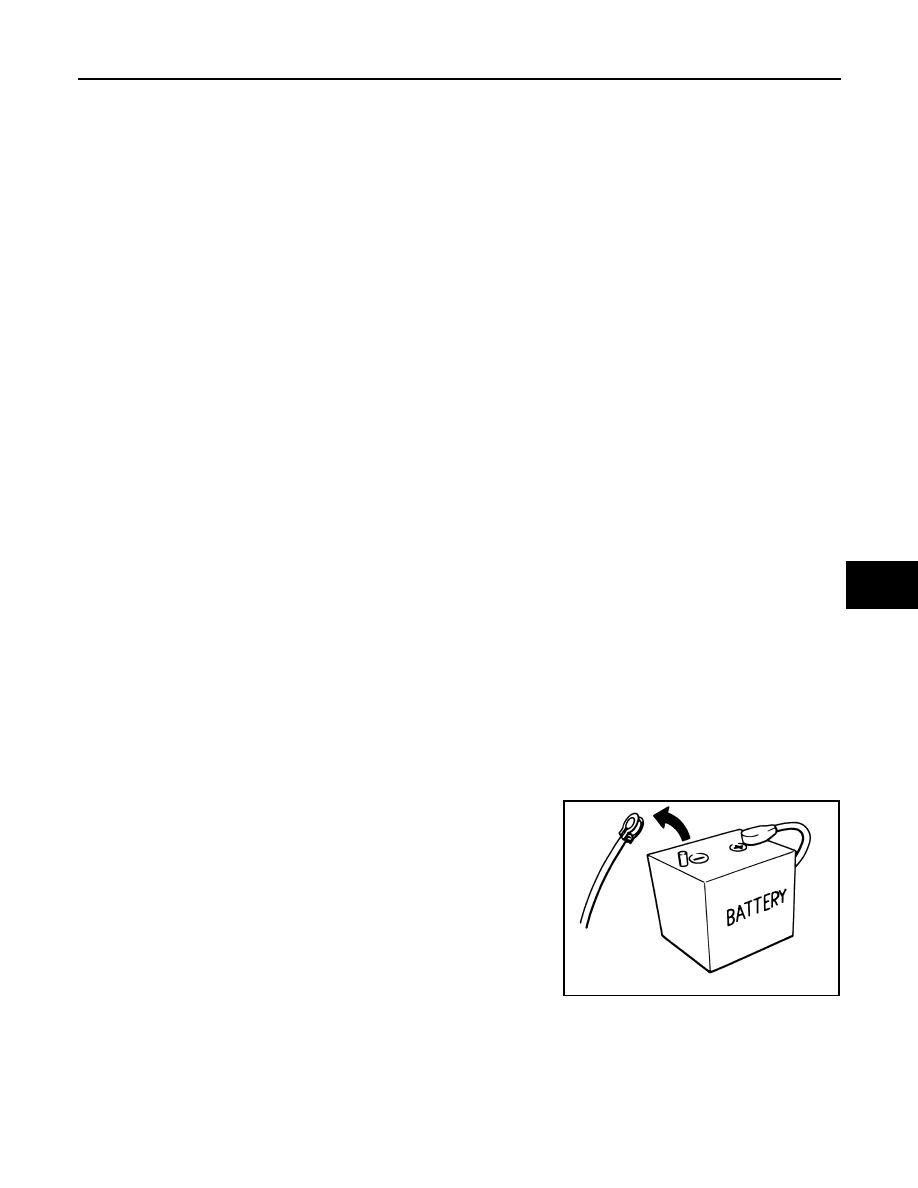

Precautions for Removing Battery Terminal

INFOID:0000000012963103

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

SEF289H

HAC-6

< PRECAUTION >

[AUTOMATIC AIR CONDITIONING]

PRECAUTIONS

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.
