COOLER PIPE AND HOSE

HA-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

HIGH-PRESSURE PIPE : Removal and Installation

INFOID:0000000012197129

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large

amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

21, "Perform Lubricant Return Operation"

.

REMOVAL

1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-19, "Recy-

cle Refrigerant"

.

2. Remove low-pressure flexible hose. Refer to

HA-33, "LOW-PRESSURE FLEXIBLE HOSE : Removal and

Installation"

.

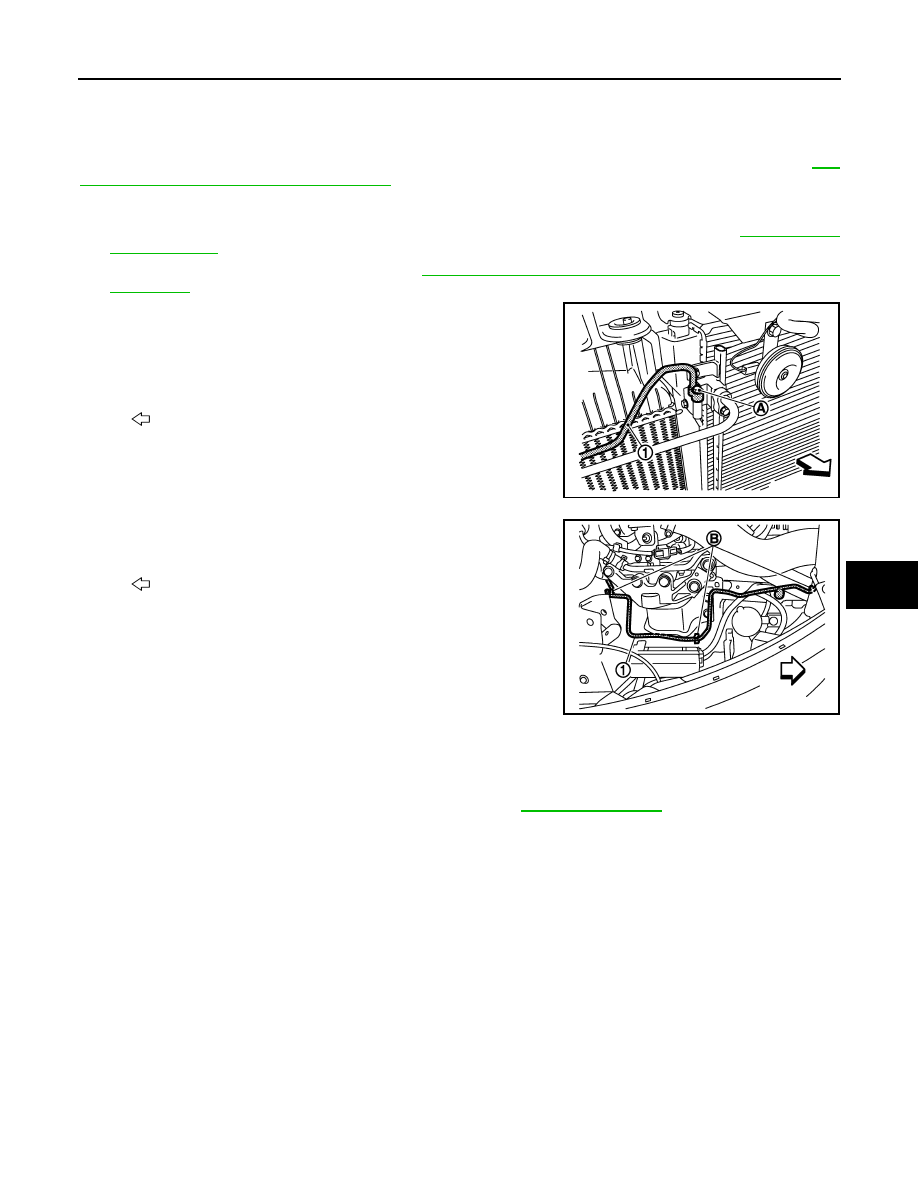

3. Remove mounting bolt (A), and then disconnect high-pressure

pipe (1).

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with

suitable material such as vinyl tape to avoid the entry of air.

4. Remove high-pressure pipe (1) fixing clips (B), and then remove

high-pressure pipe from the vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.

• Check for leakages when recharging refrigerant. Refer to

HA-17, "Leak Test"

.

: Vehicle front

JMIIA0975ZZ

: Vehicle front

JMIIA0976ZZ

HA-36

< REMOVAL AND INSTALLATION >

CONDENSER

CONDENSER

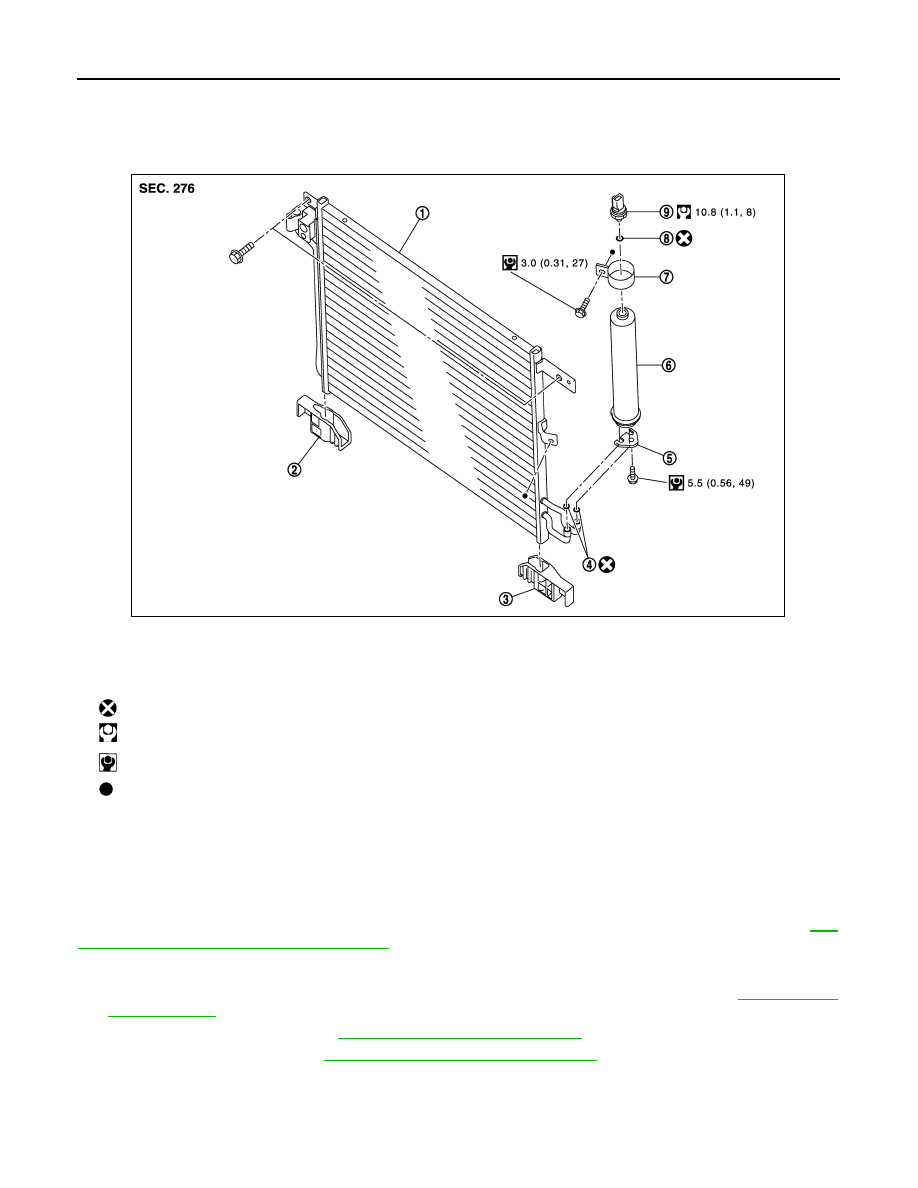

Exploded View

INFOID:0000000012197130

CONDENSER
CONDENSER : Removal and Installation

INFOID:0000000012197131

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large

amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

21, "Perform Lubricant Return Operation"

.

REMOVAL

1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-19, "Recy-

cle Refrigerant"

.

2. Remove bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

3. Remove air guide LH. Refer to

DLK-130, "MR16DDT : Exploded View"

.

4. Disconnect refrigerant pressure sensor harness connector.

1.

Condenser

2.

Condenser lower bracket RH

3.

Condenser lower bracket LH

4.

O-ring

5.

Liquid tank bracket

6.

Liquid tank

7.

Bracket

8.

O-ring

9.

Refrigerant pressure sensor

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

 : Indicates that the part is connected at points with same symbol in actual vehicle.

JMIIA0946GB

CONDENSER

HA-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

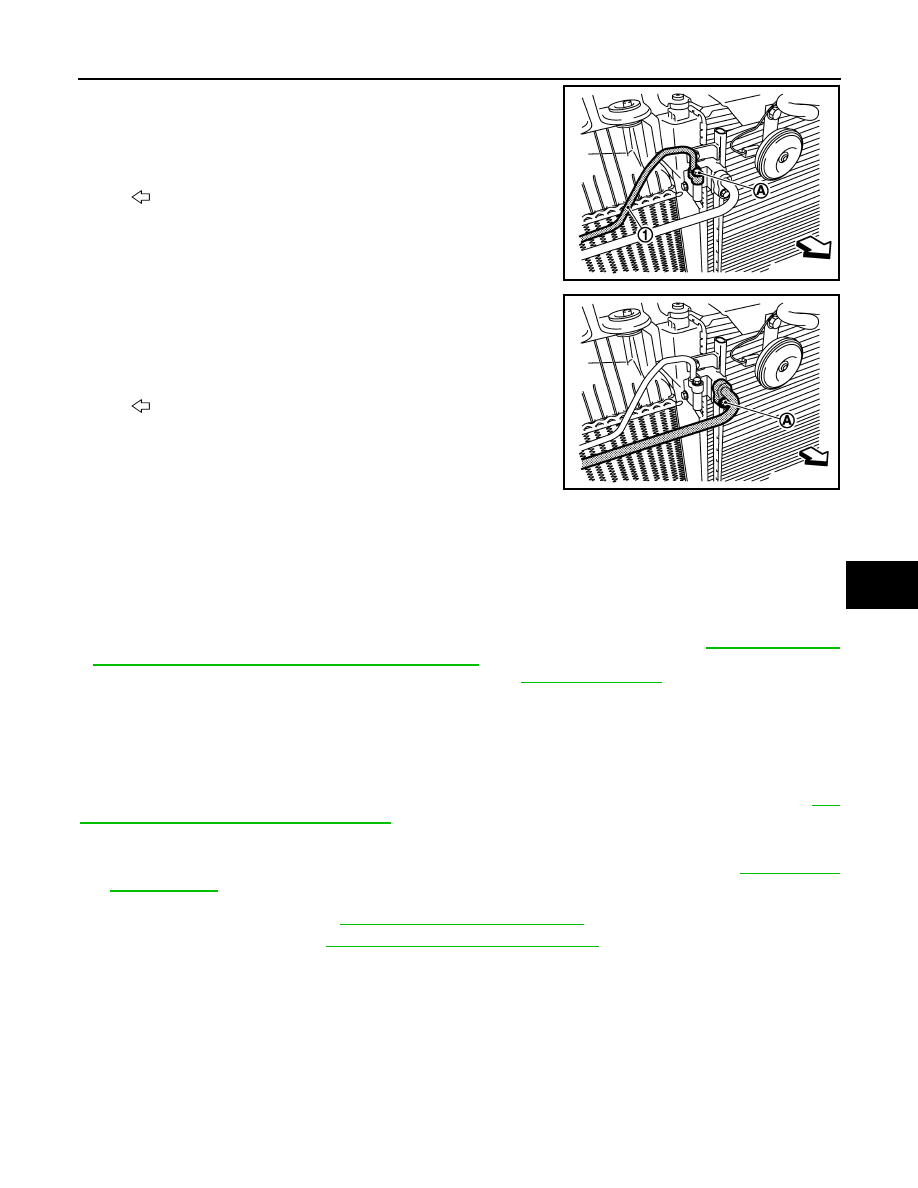

5. Remove mounting bolt (A), and then disconnect high-pressure

pipe (1).

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with

suitable material such as vinyl tape to avoid the entry of air.

6. Remove mounting bolt (A), and then disconnect high-pressure

flexible hose.

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with

suitable material such as vinyl tape to avoid the entry of air.

7. Remove mounting bolts, and then remove condenser from the vehicle.

CAUTION:

Be careful not to damage core surface of condenser.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.

• Perform lubricant adjusting procedure before installing new condenser. Refer to

HA-22, "Lubricant

Adjusting Procedure for Compressor Replacement"

.

• Check for leakages when recharging refrigerant. Refer to

HA-17, "Leak Test"

.

LIQUID TANK
LIQUID TANK : Removal and Installation

INFOID:0000000012197132

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large

amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

21, "Perform Lubricant Return Operation"

.

REMOVAL

1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-19, "Recy-

cle Refrigerant"

.

2. Remove bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

3. Remove air guide LH. Refer to

DLK-130, "MR16DDT : Exploded View"

.

4. Clean liquid tank and its surrounding area, and then remove dust and rust from liquid tank.

CAUTION:

Be sure to clean carefully.

5. Disconnect refrigerant pressure sensor harness connector.
6. Remove mounting bolts, and then remove liquid tank from condenser.

CAUTION:

• Be careful not to damage core surface of condenser and liquid tank.

• Cap or wrap the joint of the A/C piping and liquid tank with suitable material such as vinyl tape to

avoid the entry of air.

INSTALLATION

: Vehicle front

JMIIA0975ZZ

: Vehicle front

JMIIA0949ZZ

HA-38

< REMOVAL AND INSTALLATION >

CONDENSER

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-rings of the A/C piping with new ones. Then apply compressor oil to them when installing.

• Perform lubricant adjusting procedure before installing new liquid tank. Refer to

HA-22, "Lubricant

Adjusting Procedure for Compressor Replacement"

.

• Check for leakages when recharging refrigerant. Refer to

HA-17, "Leak Test"

.

REFRIGERANT PRESSURE SENSOR
REFRIGERANT PRESSURE SENSOR : Removal and Installation

INFOID:0000000012197133

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large

amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

21, "Perform Lubricant Return Operation"

.

REMOVAL

1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-19, "Recy-

cle Refrigerant"

.

2. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

3. Clean refrigerant pressure sensor and its surrounding area, and then remove dust and rust from refriger-

ant pressure sensor.

CAUTION:

Be sure to clean carefully.

4. Remove liquid tank. Refer to

HA-37, "LIQUID TANK : Removal and Installation"

.

CAUTION:

• Be careful not to damage liquid tank.

• Cap or wrap the joint of the condenser and liquid tank with suitable material such as vinyl tape to

avoid the entry of air.

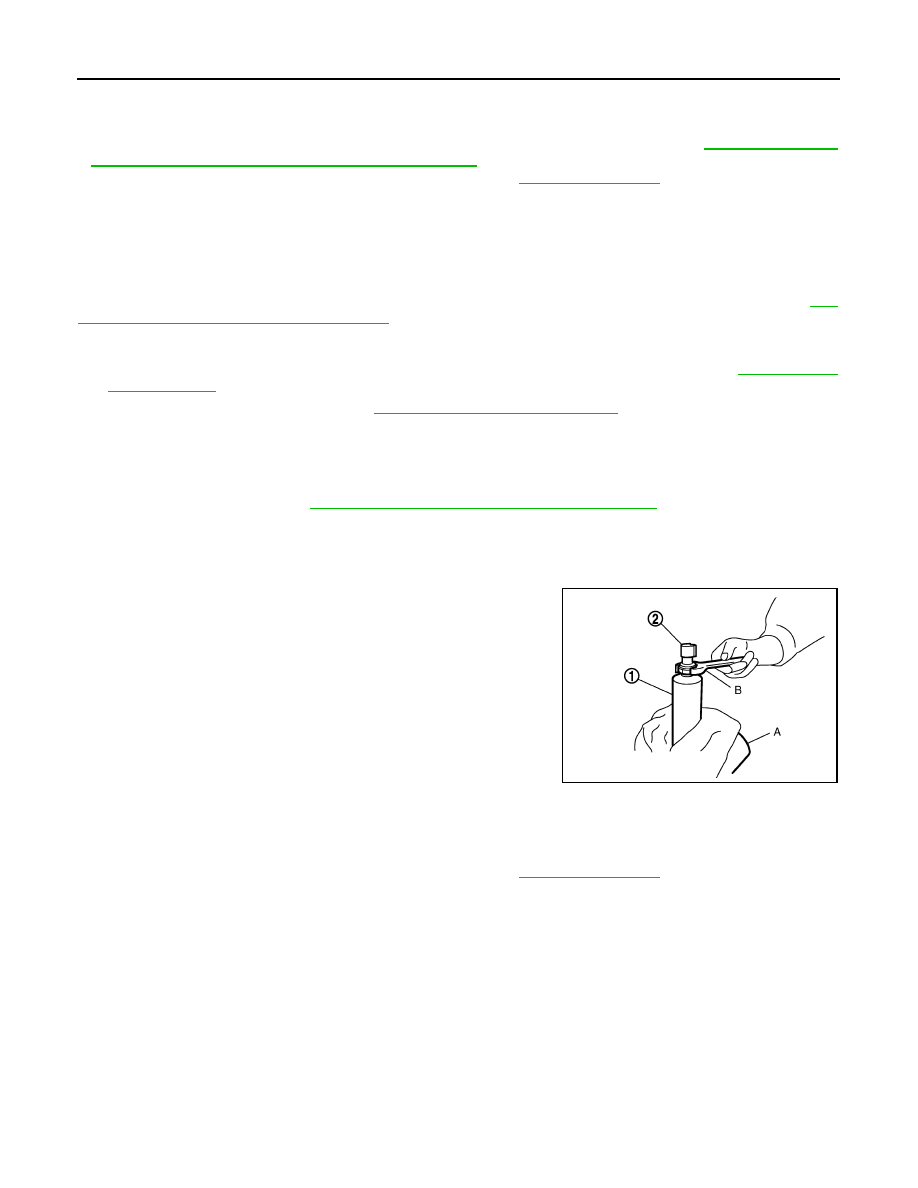

5. Fix the liquid tank (1) using a vice (A).
6. Remove refrigerant pressure sensor (2) using a wrench (B).

CAUTION:

Be careful not to damage liquid tank.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-ring with new one. Then apply compressor oil to them when installing.

• Check for leakages when recharging refrigerant. Refer to

HA-17, "Leak Test"

.

JSIIA0075ZZ
