EXL-228

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

REAR REFLEX REFLECTOR

2. Remove rear reflex reflector fixing screw.
3. Disengage rear reflex reflector fixing pawls, and then remove rear reflex reflector.

NISMO and NISMO RS

1. Remove rear bumper fascia lower. Refer to

EXT-23, "Removal and Installation"

.

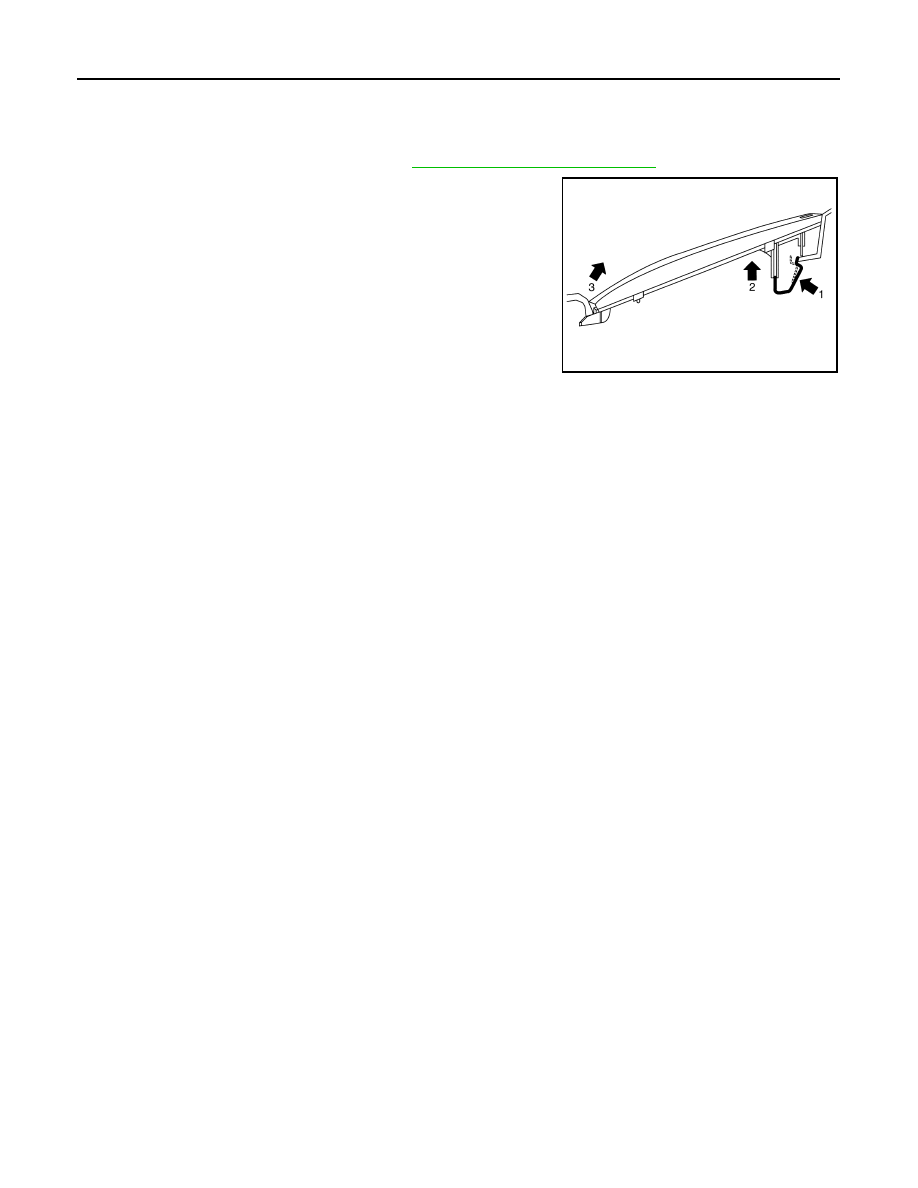

2. Disengage rear reflex reflector fixing metal clip, and then

remove rear reflex reflector according to numerical order 1

→3

indicated by arrows as shown in the figure.

INSTALLATION

Install in the reverse order of removal.

JMLIA3680ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-229

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000012201815

EXCEPT FOR NISMO AND NISMO RS

NISMO AND NISMO RS

Item

Type

Wattage (W)

Headlamp

High Beam

HB3

60

Low Beam

H11

55

Front combination lamp

Front turn signal lamp

WY21W (Amber)

21

Front side marker lamp

W5W

5

Parking lamp

LED

—

Front fog lamp

H11

55

Side turn signal lamp

LED

—

Rear combination lamp

Tail lamp (LED)

LED

—

Stop lamp/Tail lamp
(Rear side marker)

W21/5W

21/5

Rear turn signal lamp

WY21W (Amber)

21

Back-up lamp

W16W

16

High-mounted stop lamp

LED

—

License plate lamp

W5W

5

Item

Type

Wattage (W)

Headlamp

High Beam

HB3

60

Low Beam

H11

55

Front combination lamp

Front turn signal lamp

WY21W (Amber)

21

Front side marker lamp

W5W

5

Parking lamp

LED

—

Daytime running light

LED

—

Side turn signal lamp

LED

—

Rear combination lamp

Tail lamp (LED)

LED

—

Stop lamp/Tail lamp
(Rear side marker)

W21/5W

21/5

Rear turn signal lamp

WY21W (Amber)

21

Back-up lamp

W16W

16

High-mounted stop lamp

LED

—

License plate lamp

W5W

5

EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions For Xenon Headlamp Service  ...............

3

Precaution for Procedure without Cowl Top Cover

......

4

Precautions for Removing Battery Terminal  .............

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tools ..............................................

5

Commercial Service Tools  ........................................

5

SYMPTOM DIAGNOSIS  ...............................

6

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

6

Work Flow  .................................................................

6

Inspection Procedure  ................................................

8

Diagnostic Worksheet  .............................................

10

REMOVAL AND INSTALLATION ...............

12

FRONT BUMPER  ...............................................

12

Exploded View  ........................................................

12

Removal and Installation .........................................

17

REAR BUMPER  .................................................

20

Exploded View  ........................................................

20

Removal and Installation .........................................

23

FRONT GRILLE  .................................................

25

Exploded View  ........................................................

25

Removal and Installation .........................................

26

COWL TOP .........................................................

29

Exploded View  ........................................................

29

Removal and Installation .........................................

30

FENDER PROTECTOR ......................................

31

Exploded View .........................................................

31

Removal and Installation  .........................................

31

SILL COVER  .....................................................

33

Exploded View .........................................................

33

Removal and Installation  .........................................

33

FLOOR SIDE FAIRING  .....................................

35

Exploded View .........................................................

35

Removal and Installation  .........................................

35

FILLET MOLDING .............................................

36

Exploded View .........................................................

36

FRONT FILLET MOLDING  ........................................

36

FRONT FILLET MOLDING : Removal and Instal-
lation ........................................................................

36

REAR FILLET MOLDING  ..........................................

37

REAR FILLET MOLDING : Removal and Installa-
tion ...........................................................................

37

ROOF SIDE MOLDING  .....................................

38

Exploded View .........................................................

38

Removal and Installation  .........................................

38

DOOR OUTSIDE MOLDING  .............................

41

Exploded View .........................................................

41

FRONT DOOR OUTSIDE MOLDING  ........................

41

FRONT DOOR OUTSIDE MOLDING : Removal
and Installation  ........................................................

41

REAR DOOR OUTSIDE MOLDING ...........................

42

REAR DOOR OUTSIDE MOLDING : Removal
and Installation  ........................................................

42

DOOR SASH TAPE  ..........................................

43

Exploded View .........................................................

43

FRONT DOOR SASH TAPE ......................................

43

FRONT DOOR SASH TAPE : Removal and Instal-
lation ........................................................................

43

EXT-2

REAR DOOR SASH TAPE  .......................................

45

REAR DOOR SASH TAPE : Removal and Instal-
lation .......................................................................

45

REAR FENDER COVER ....................................

48

Exploded View ........................................................

48

Removal and Installation  ........................................

48

REAR SPOILER  ................................................

49

Exploded View  ........................................................

49

Removal and Installation .........................................

49

BACK DOOR FINISHER  ...................................

51

Exploded View  ........................................................

51

Removal and Installation .........................................

51
