EXL-116

< REMOVAL AND INSTALLATION >

[XENON TYPE]

REAR REFLEX REFLECTOR

REAR REFLEX REFLECTOR

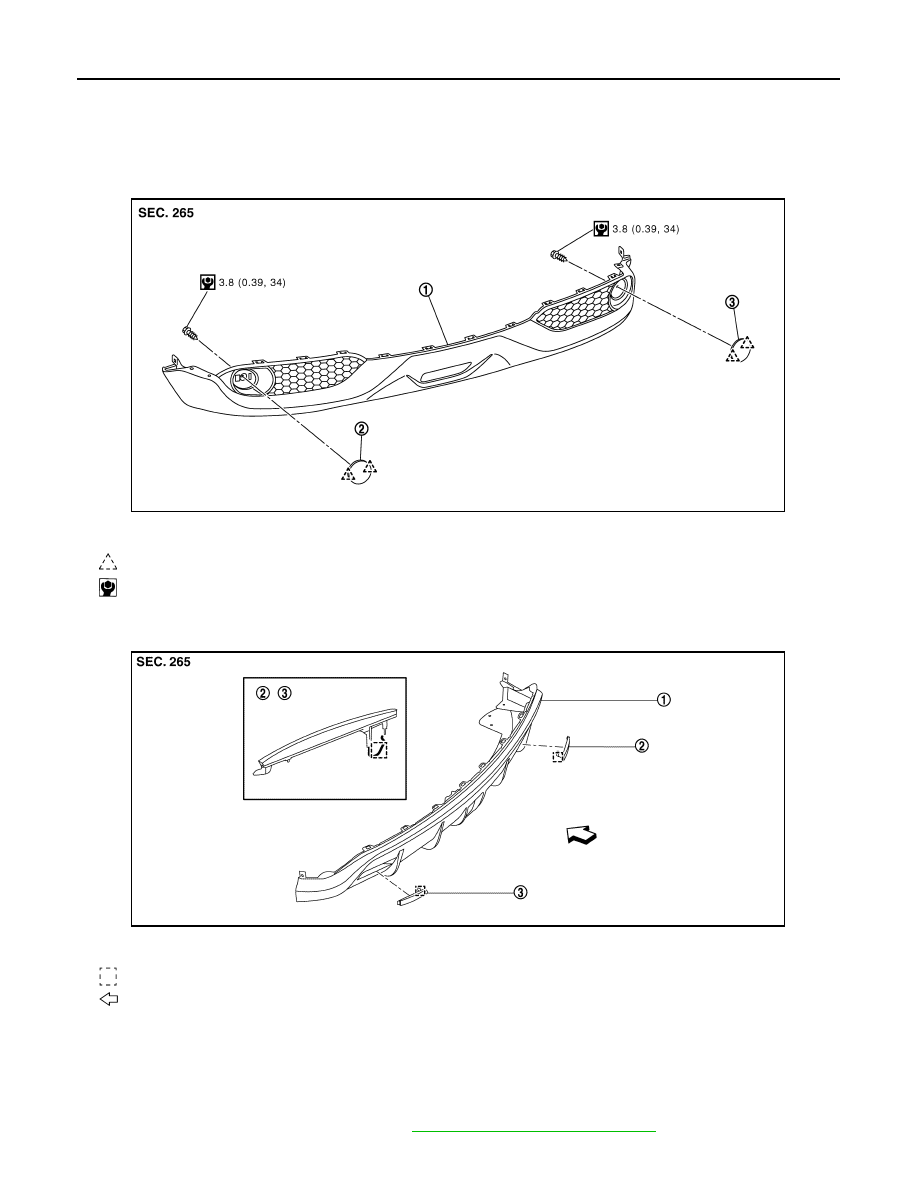

Exploded View

INFOID:0000000012201709

EXCEPT FOR NISMO AND NISMO RS

NISMO AND NISMO RS

Removal and Installation

INFOID:0000000012201710

REMOVAL

Except for NISMO and NISMO RS

1. Remove rear bumper fascia lower. Refer to

EXT-23, "Removal and Installation"

.

1.

Rear bumper fascia lower

2.

Rear reflex reflector LH

3.

Rear reflex reflector RH

: Pawl

: N·m (kg-m, in-lb)

JMLIA5406GB

1.

Rear bumper fascia lower

2.

Rear reflex reflector RH

3.

Rear reflex reflector LH

: Metal clip

: Vehicle front

JMLIA3679ZZ

REAR REFLEX REFLECTOR

EXL-117

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2. Remove rear reflex reflector fixing screw.
3. Disengage rear reflex reflector fixing pawls, and then remove rear reflex reflector.

NISMO and NISMO RS

1. Remove rear bumper fascia lower. Refer to

EXT-23, "Removal and Installation"

.

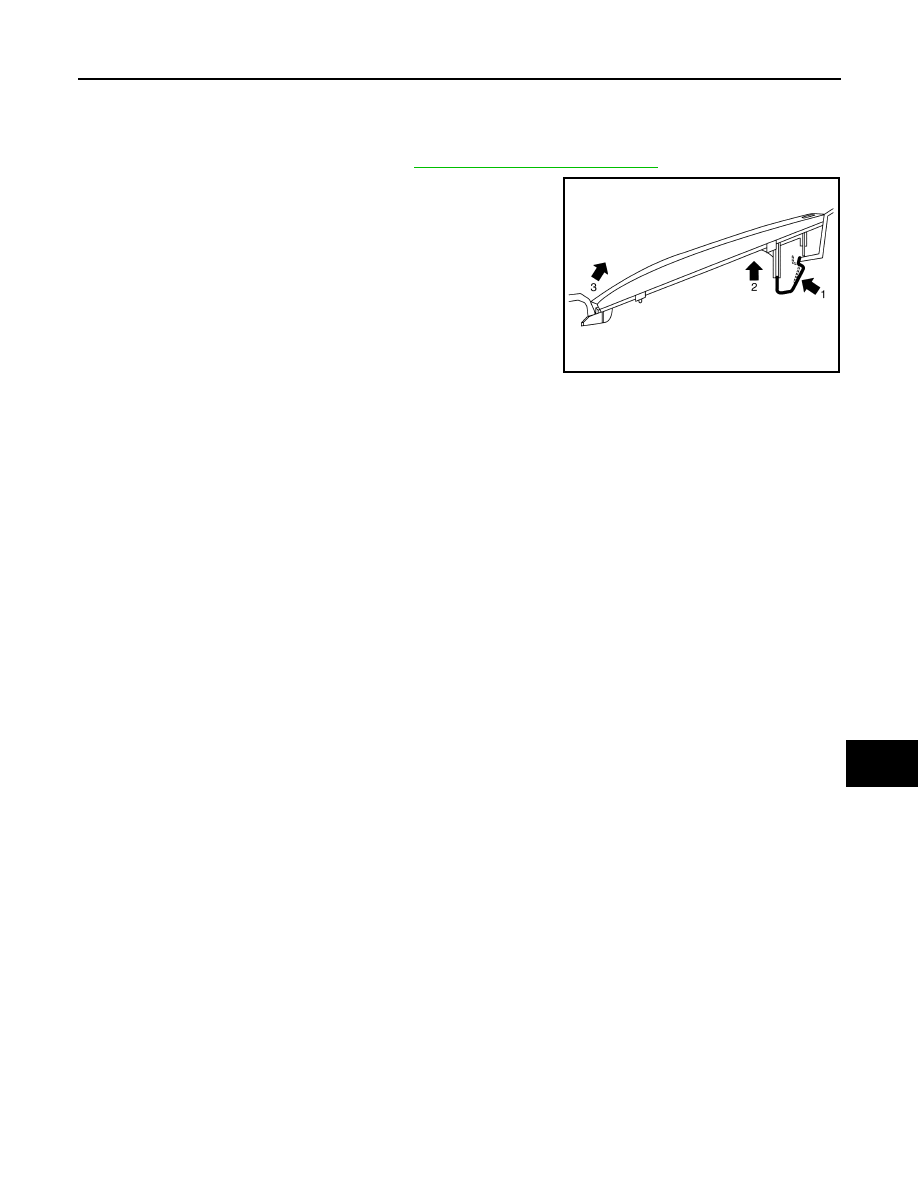

2. Disengage rear reflex reflector fixing metal clip, and then

remove rear reflex reflector according to numerical order 1

→3

indicated by arrows as shown in the figure.

INSTALLATION

Install in the reverse order of removal.

JMLIA3680ZZ

EXL-118

< SERVICE DATA AND SPECIFICATIONS (SDS)

[XENON TYPE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000012201711

EXCEPT FOR NISMO AND NISMO RS

NISMO AND NISMO RS

Item

Type

Wattage (W)

Headlamp

High Beam

HB3 (Halogen)

60

Low Beam

D2S (Xenon)

35

Front combination lamp

Front turn signal lamp

WY21W (Amber)

21

Front side marker lamp

W5W

5

Parking lamp

LED

—

Front fog lamp

H11

55

Side turn signal lamp

LED

—

Rear combination lamp

Tail lamp (LED)

LED

—

Stop lamp/Tail lamp
(Rear side marker)

W21/5W

21/5

Rear turn signal lamp

WY21W (Amber)

21

Back-up lamp

W16W

16

High-mounted stop lamp

LED

—

License plate lamp

W5W

5

Item

Type

Wattage (W)

Headlamp

High Beam

HB3 (Halogen)

60

Low Beam

D2S (Xenon)

35

Front combination lamp

Front turn signal lamp

WY21W (Amber)

21

Front side marker lamp

W5W

5

Parking lamp

LED

—

Daytime running light

LED

—

Side turn signal lamp

LED

—

Rear combination lamp

Tail lamp (LED)

LED

—

Stop lamp/Tail lamp
(Rear side marker)

W21/5W

21/5

Rear turn signal lamp

WY21W (Amber)

21

Back-up lamp

W16W

16

High-mounted stop lamp

LED

—

License plate lamp

W5W

5

PRECAUTIONS

EXL-119

< PRECAUTION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012201712

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000012965028

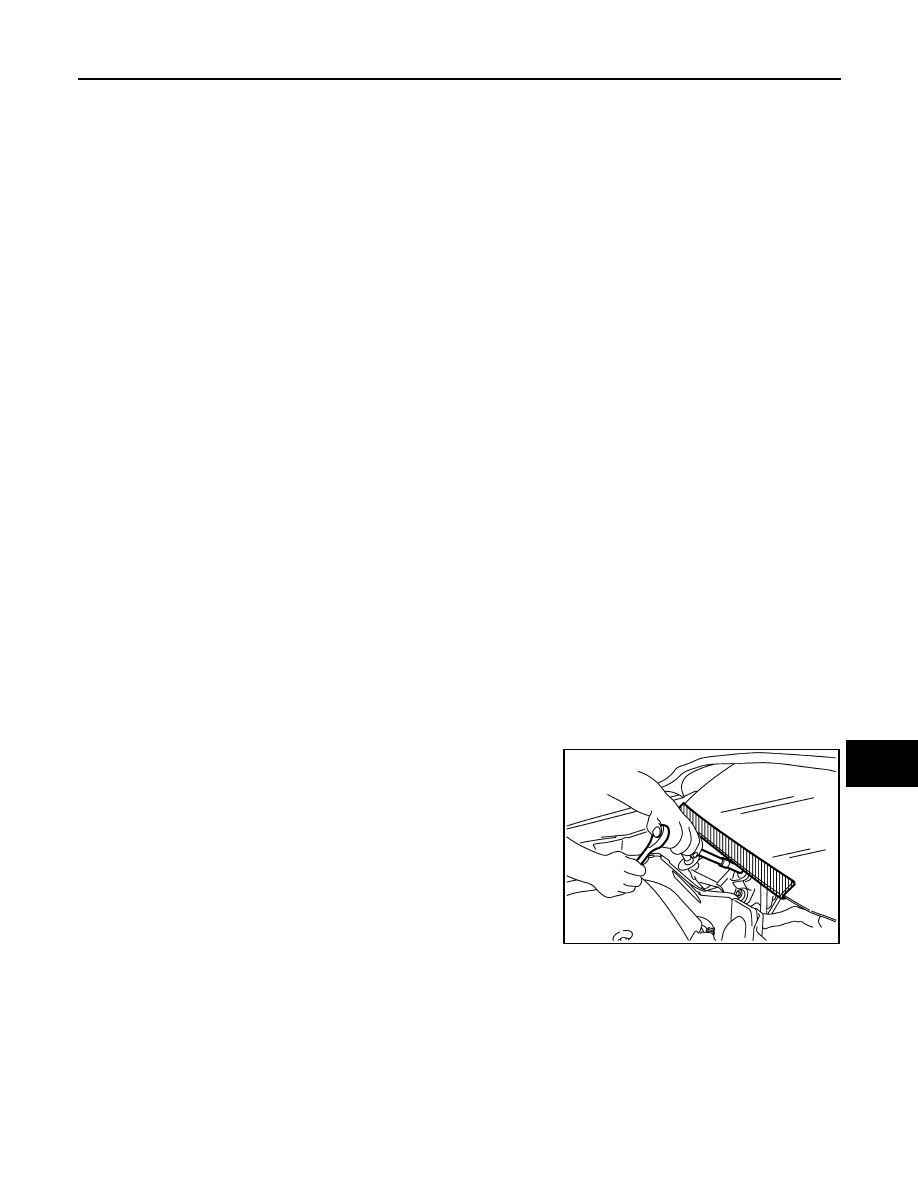

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precautions for Removing Battery Terminal

INFOID:0000000012965039

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

PIIB3706J
