EXL-112

< REMOVAL AND INSTALLATION >

[XENON TYPE]

HIGH-MOUNTED STOP LAMP

Never damage the blind seal, so that it can be reused.

2. Remove high-mounted stop lamp mounting nuts and connector.
3. Pull high-mounted stop lamp toward vehicle upside, and then remove high-mounted stop lamp.

NISMO and NISMO RS

1. Remove rear spoiler. Refer to

EXT-49, "Removal and Installation"

.

2. Remove high-mounted stop lamp cover mounting bolts, and then remove high-mounted stop lamp cover.
3. Remove high-mounted stop lamp harness connector from rear spoiler.
4. Pull out high-mounted stop lamp, and then remove high-mounted stop lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

LICENSE PLATE LAMP

EXL-113

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

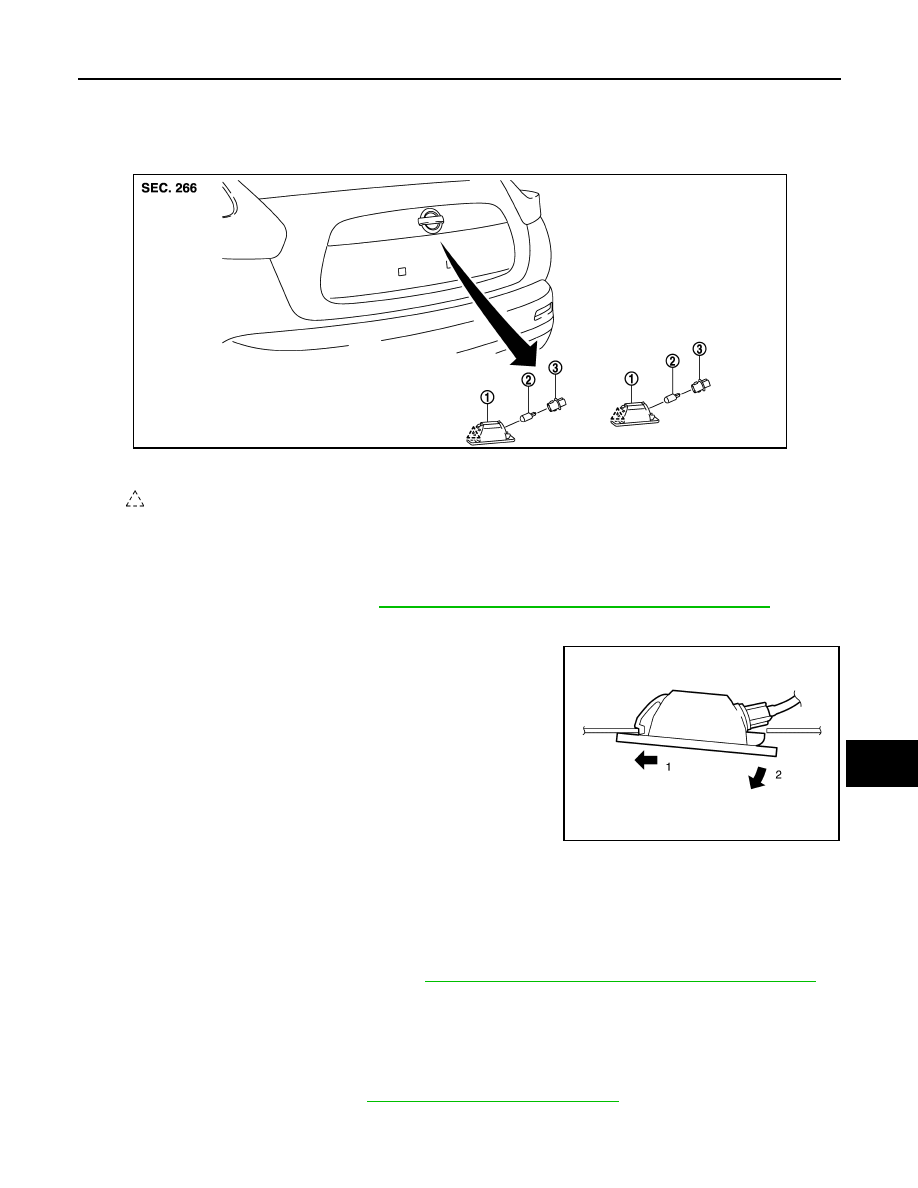

LICENSE PLATE LAMP

Exploded View

INFOID:0000000012201704

Removal and Installation

INFOID:0000000012201705

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. While pressing the license plate lamp to direction right side, pull

it to direction outside and then remove it.

2. Disconnect license plate lamp connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000012201706

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

• Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1. Remove license plate lamp. Refer to

EXL-113, "Removal and Installation"

.

2. Rotate the bulb socket counterclockwise and unlock it.

1.

License plate lamp housing assembly

2.

Bulb

3.

License plate lamp bulb socket

: Pawl

JMLIA1219ZZ

JPLIA0364ZZ

EXL-114

< REMOVAL AND INSTALLATION >

[XENON TYPE]

LICENSE PLATE LAMP

3. Remove the bulb from the socket.

REAR FOG LAMP

EXL-115

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

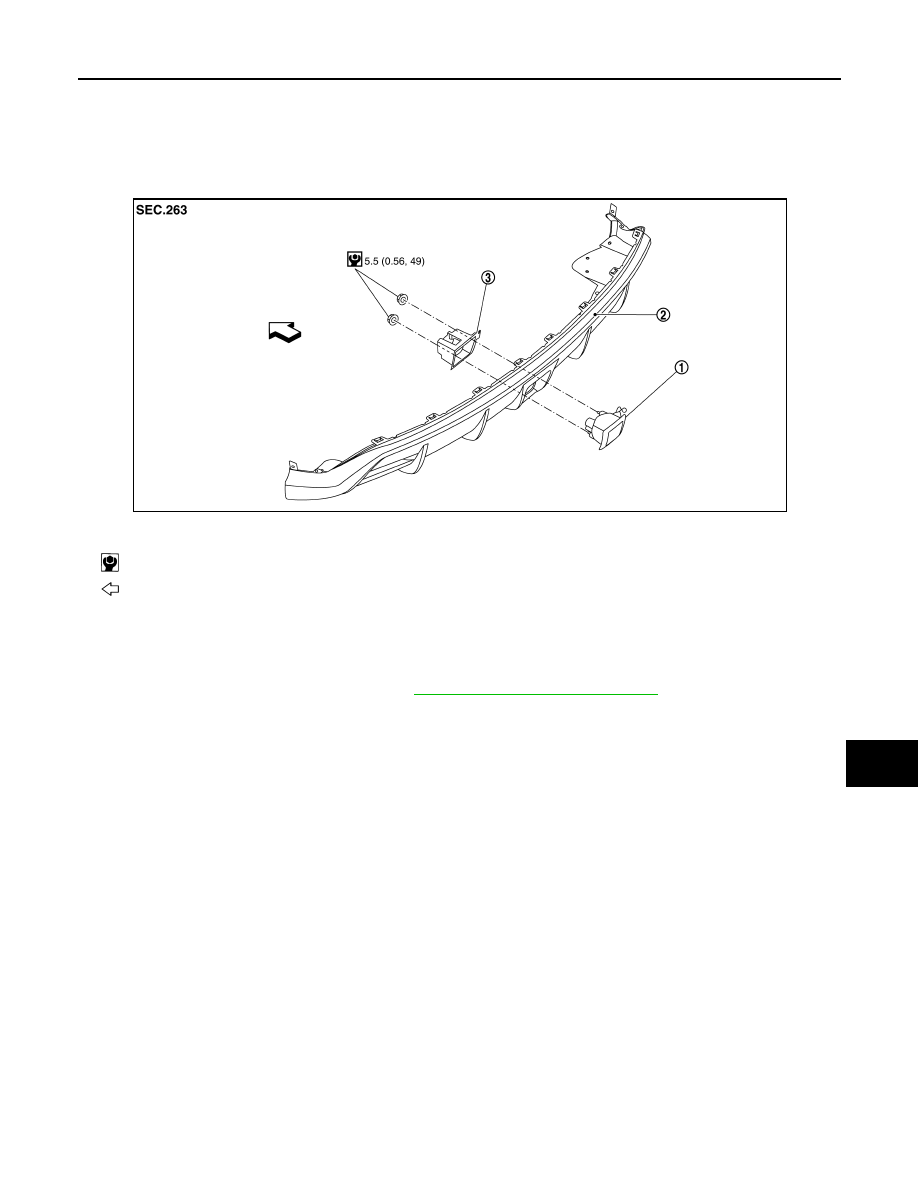

REAR FOG LAMP

Exploded View

INFOID:0000000012201707

REMOVAL

Removal and Installation

INFOID:0000000012201708

REMOVAL

1. Remove rear bumper fascia lower. Refer to

EXT-23, "Removal and Installation"

.

2. Remove rear fog lamp housing mounting nuts.
3. Remove rear fog lamp housing from the rear bumper fascia lower.
4. Remove rear fog lamp housing bracket from rear bumper fascia lower.

INSTALLATION

Installation is the reverse order of removal.

1.

Rear fog lamp housing

2.

Rear bumper fascia lower

3.

Rear fog lamp housing bracket

N·m (kg-m, in-lb)

: Vehicle front

JMLIA3677GB
