EXL-100

< REMOVAL AND INSTALLATION >

[XENON TYPE]

FRONT COMBINATION LAMP

Removal and Installation

INFOID:0000000012201682

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

2. Remove front combination lamp mounting bolts and nut.
3. Pull out front combination lamp forward the vehicle, and then disconnect connector before removing the

front combination lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Interference of front combination lamp lens with front fender may cause intrusion of water into front

combination lamp or rusting of fender due to damage of painted surface. Be careful to operate without

allowing parts to interfere with each other.

Replacement

INFOID:0000000012201683

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

• After installing the bulb, install the bulb socket securely for watertightness.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

• Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

PARKING LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED. For replacement, replace

front combination lamp as a set. Refer to

EXL-100, "Removal and Installation"

.

FRONT TURN SIGNAL LAMP BULB

1. Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.
2. Remove front turn signal lamp bulb from the front turn signal lamp bulb socket.

FRONT SIDE MARKER LAMP BULB

1. Rotate the front side marker lamp bulb socket counterclockwise and unlock it.
2. Remove front side marker lamp bulb from the front side marker lamp bulb socket.

Disassembly and Assembly

INFOID:0000000012201684

DISASSEMBLY

1. Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.
2. Remove front turn signal lamp bulb from the front turn signal lamp bulb socket.
3. Rotate the front side marker lamp bulb socket counterclockwise and unlock it.
4. Remove front side marker lamp bulb from the front side marker lamp bulb socket.

ASSEMBLY

Note the following item, and then assemble in the reverse order of disassembly.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

1.

Front combination lamp

2.

Front turn signal lamp bulb

3.

Front turn signal lamp bulb socket

4.

Front side marker lamp bulb

5.

Front side marker lamp bulb socket

: Vehicle front

DAYTIME RUNNING LIGHT

EXL-101

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DAYTIME RUNNING LIGHT

Exploded View

INFOID:0000000012201685

Removal and Installation

INFOID:0000000012201686

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. Remove front bumper fascia lower. Refer to

EXT-17, "Removal and Installation"

.

2. Disconnect daytime running light harness connector.
3. Remove daytime running light mounting nuts.
4. Remove daytime running light from front bumper fascia lower.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000012201687

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

DAYTIME RUNNING LIGHT

CAUTION:

Replacement of a single part is not possible due to the adoption of LED. For replacement, replace day-

time running light as a set. Refer to

EXL-101, "Removal and Installation"

.

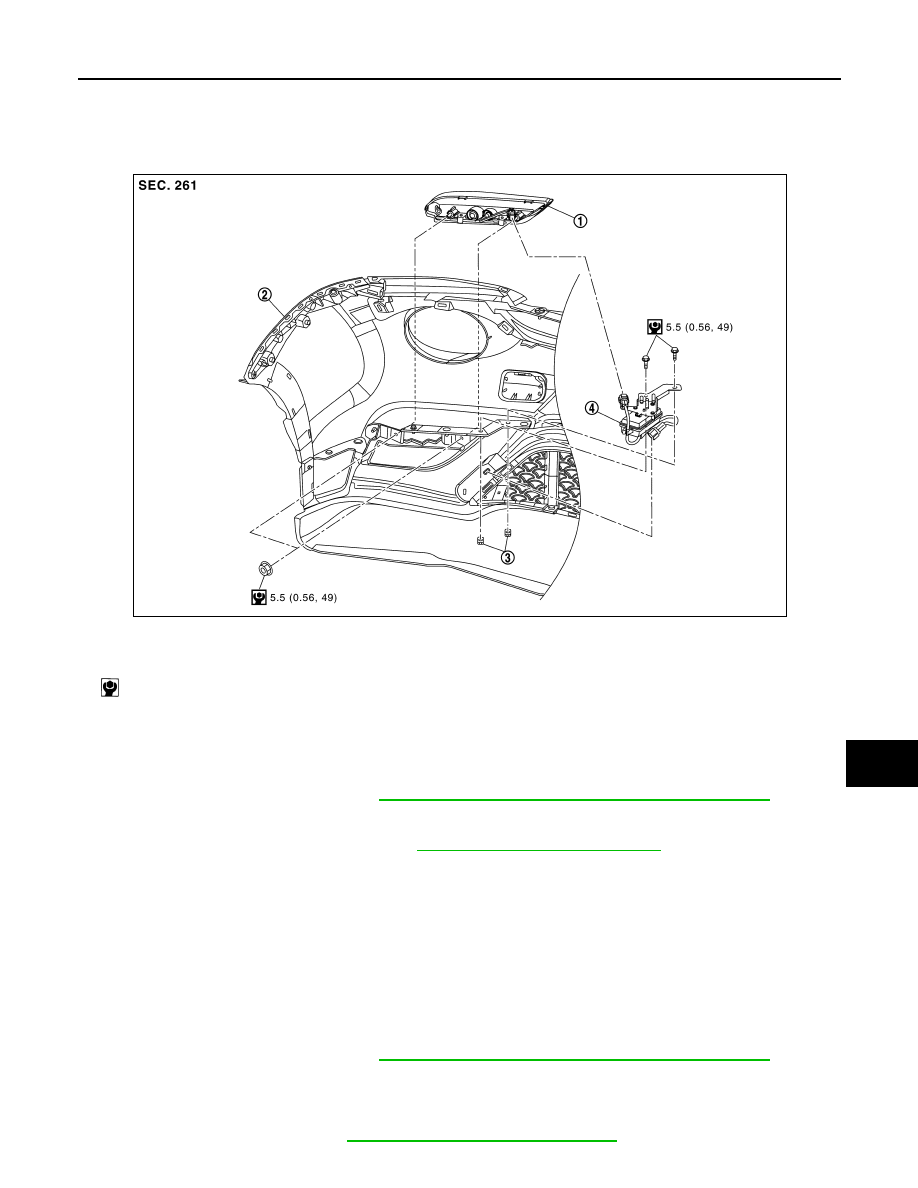

1.

Daytime running light

2.

Front bumper fascia assembly

3.

U nut

4

Harness connector assembly

N·m (kg-m, in-lb)

JMLIA3676GB

EXL-102

< REMOVAL AND INSTALLATION >

[XENON TYPE]

FRONT FOG LAMP

FRONT FOG LAMP

Exploded View

INFOID:0000000012201688

Removal and Installation

INFOID:0000000012201689

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. Remove front fender protector to make work space. Refer to

EXT-31, "Removal and Installation"

.

2. Disconnect front fog lamp harness connector.
3. Remove front fog lamp fixing screws, and then remove front fog lamp from front fog lamp bracket.
4. Remove front fog lamp bracket mounting bolt and fixing clips, and then remove front fog lamp bracket.

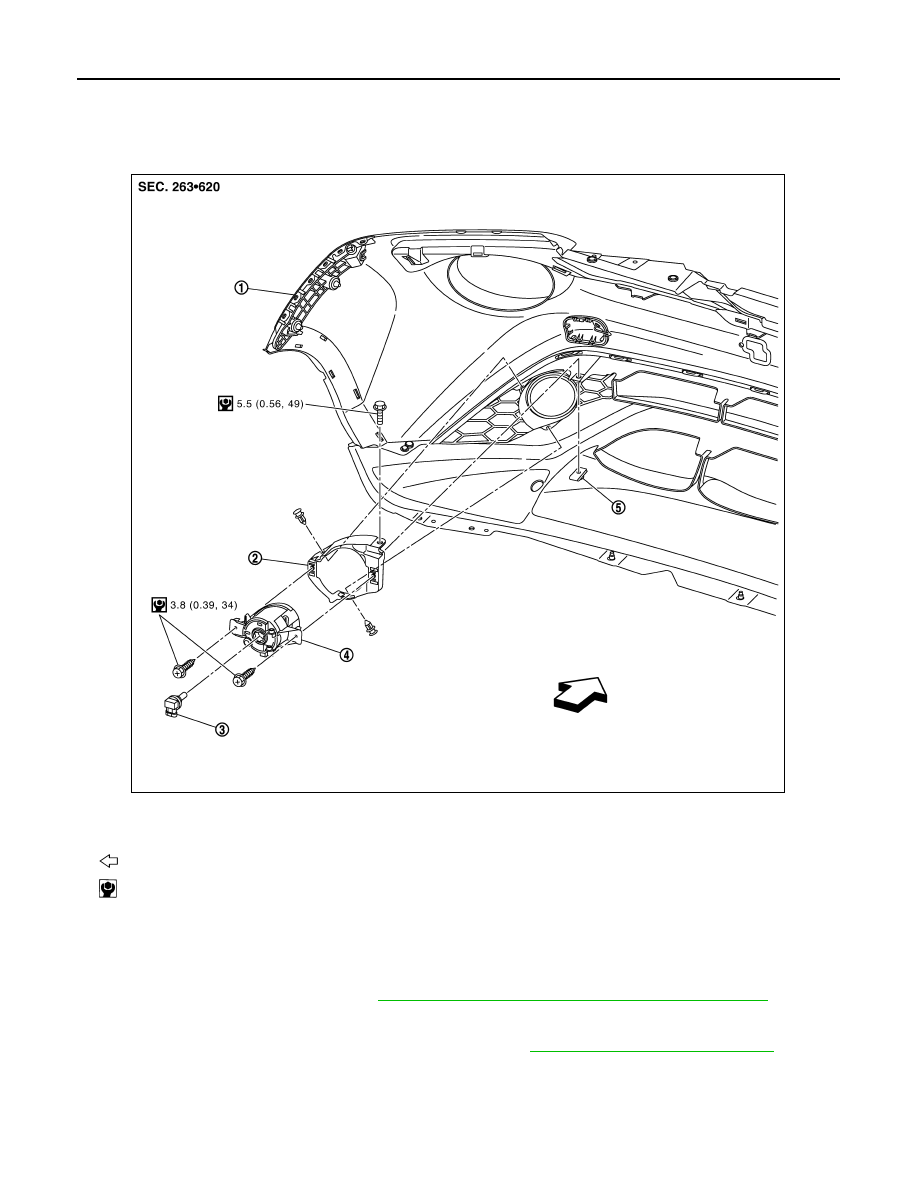

1.

Front bumper fascia assembly

2.

Front fog lamp bracket

3.

Front fog lamp bulb

4.

Front fog lamp

5.

U nut

: Vehicle front

: N·m (kg-m, in-lb)

JMLIA5401GB

FRONT FOG LAMP

EXL-103

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

INSTALLATION

Note the following item, and then install in the reverse order of removal.

NOTE:

After installation, perform aiming adjustment. Refer to

EXL-93, "Description"

.

Replacement

INFOID:0000000012201690

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

• Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1. Remove fender protector to make work space. Refer to

EXT-31, "Removal and Installation"

.

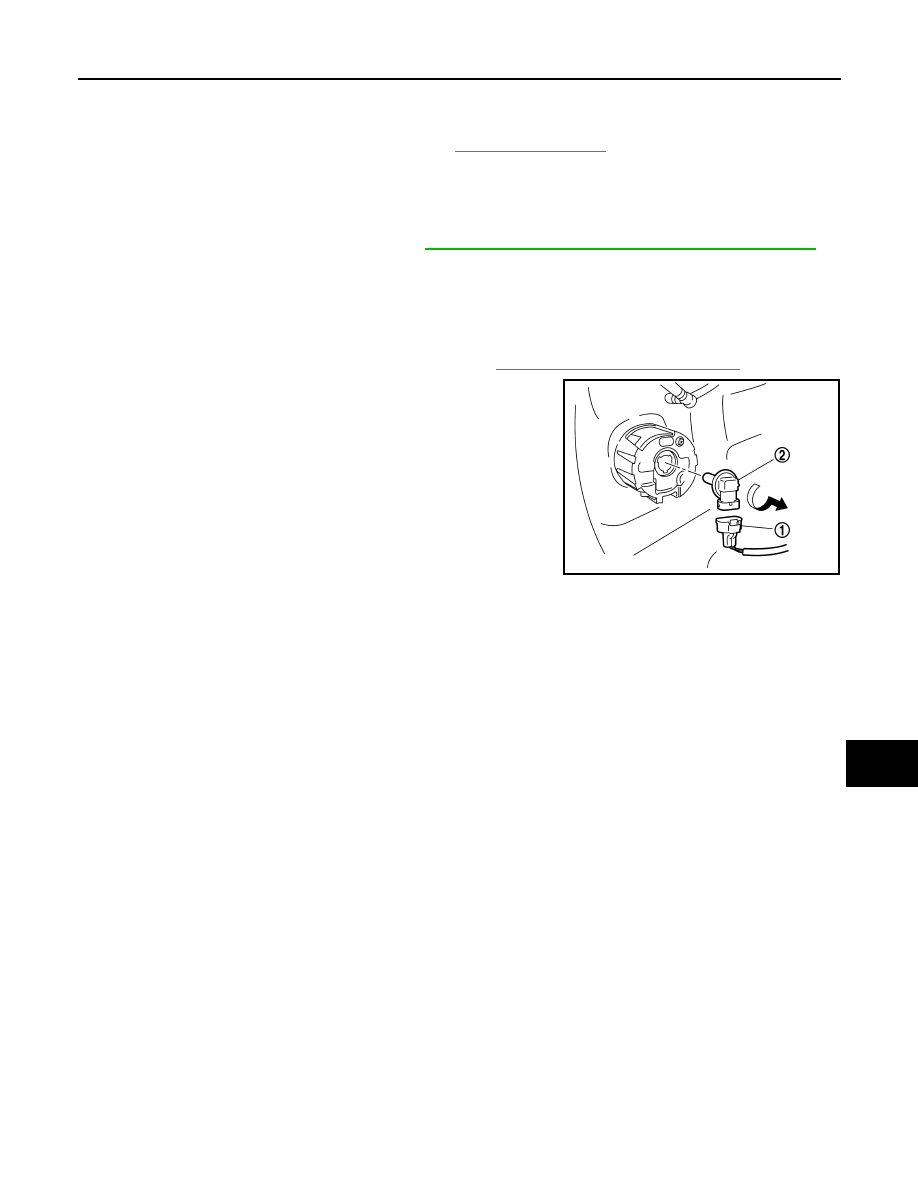

2. Remove front fog lamp bulb connector (1).
3. Rotate front fog lamp bulb (2) counterclockwise and unlock it.

JPLIA0345ZZ
