EXL-16

< SYSTEM DESCRIPTION >

[XENON TYPE]

SYSTEM

• Combination meter outputs the turn signal sound with the integrated buzzer while blinking the turn signal

indicator lamp according to the turn indicator signal.

3-TIME FLASHER FUNCTION

• By a short touch of the turn signal lever, BCM blinks the turn signal lamps 3 times in the selected direction.

• Cancels the operation when short touch of the turn signal lever in the reverse direction during the 3-time

flasher function operation.

HIGH FLASHER OPERATION

• BCM detects the turn signal lamp circuit status from the current value.

• BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn sig-

nal lamp operating.

NOTE:

The blinking speed is normal while operating the hazard warning lamp.

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMP SYSTEM

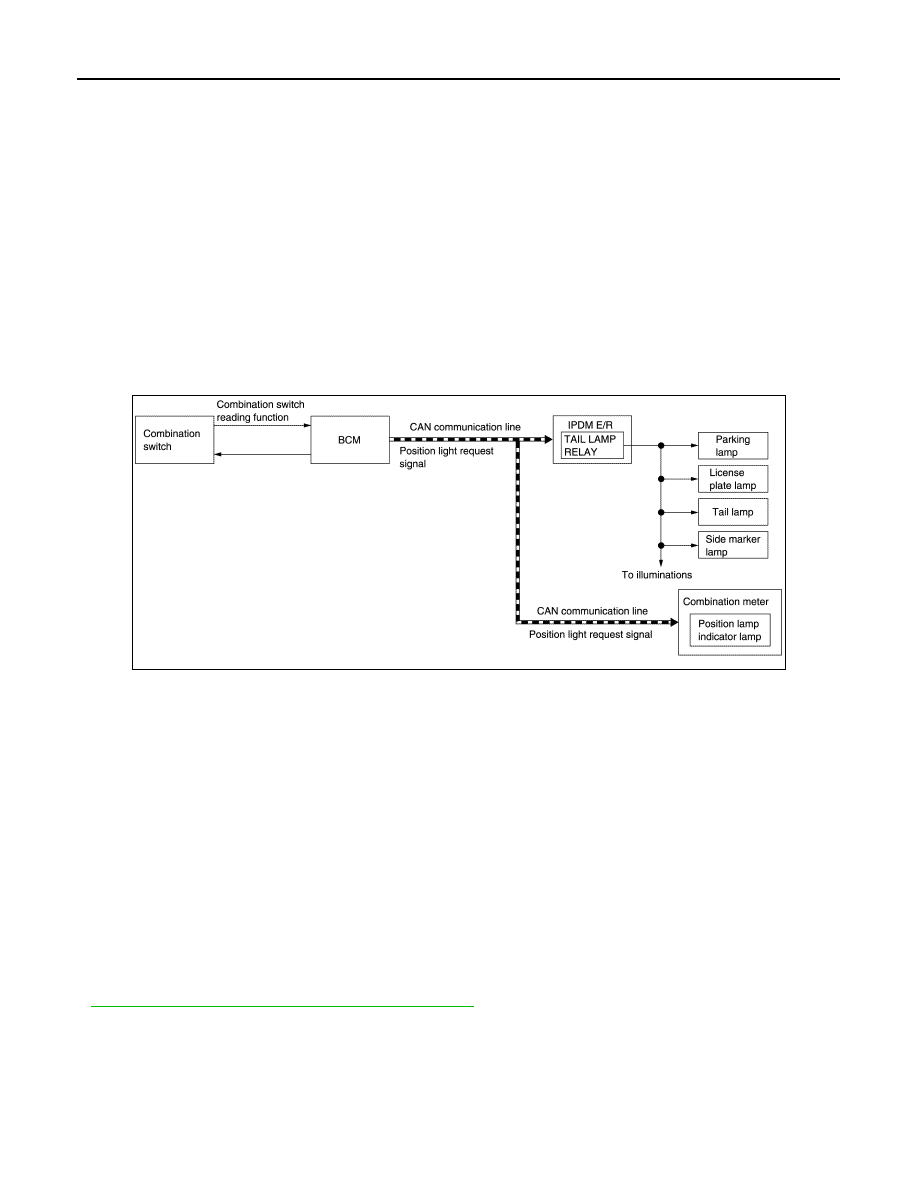

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMP SYSTEM : System Di-
agram

INFOID:0000000012201620

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMP SYSTEM : System De-
scription

INFOID:0000000012201621

OUTLINE

Parking, license plate, side marker and tail lamps are controlled by combination switch reading function and

parking, license plate, side marker and tail lamps control function of BCM, and relay control function of IPDM

E/R.

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMPS OPERATION

• BCM detects the combination switch condition by the combination switch reading function.

• BCM transmits the position light request signal to IPDM E/R and the combination meter via CAN communi-

cation according to the parking, license plate, side marker and tail lamps ON condition.

Parking, license plate, side marker and tail lamps ON condition (When any of the following conditions are satisfied)

- Lighting switch 1ST

- Lighting switch 2ND

- Lighting switch AUTO (Only when the illumination judgment by auto light system is ON. For details, refer to

EXL-12, "AUTO LIGHT SYSTEM : System Description"

.)

• IPDM E/R turns the integrated tail lamp relay ON and turns the parking, license plate and tail lamps ON

according to the position light request signal.

• Combination meter turns the tail lamp indicator lamp ON according to the position light request signal.

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMP SYSTEM : Fail-Safe

INFOID:0000000012201622

CAN COMMUNICATION CONTROL

JMLIA2550GB

SYSTEM

EXL-17

< SYSTEM DESCRIPTION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

When CAN communication with BCM is impossible, IPDM E/R performs fail-safe control. After CAN communi-

cation recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

FRONT FOG LAMP SYSTEM

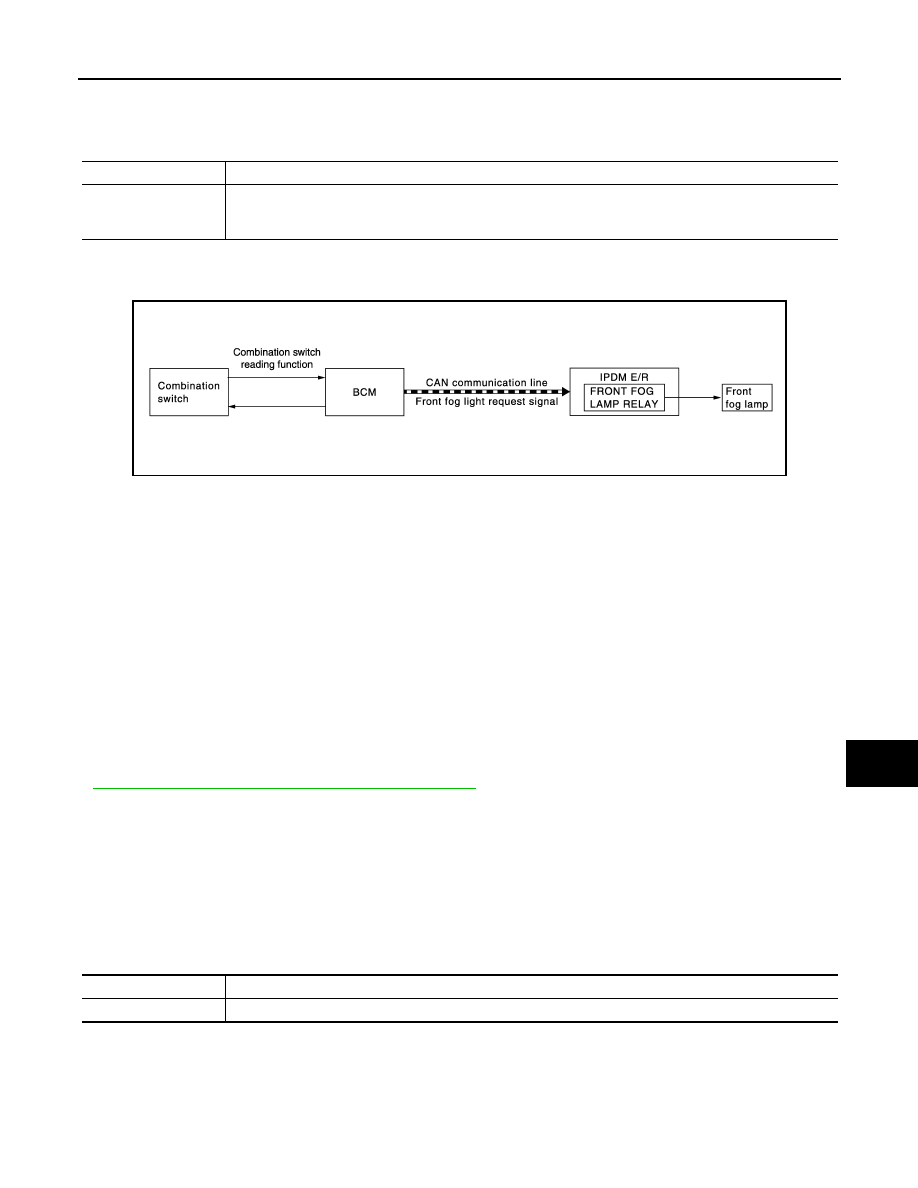

FRONT FOG LAMP SYSTEM : System Diagram

INFOID:0000000012201623

FRONT FOG LAMP SYSTEM : System Description

INFOID:0000000012201624

OUTLINE

Front fog lamp is controlled by combination switch reading function and front fog lamp control function of BCM,

and relay control function of IPDM E/R.

FRONT FOG LAMP OPERATION

• BCM detects the combination switch condition by the combination switch reading function.

• BCM transmits the front fog light request signal to IPDM E/R via CAN communication according to the front

fog lamp ON condition.

Front fog lamp ON condition

- Front fog lamp switch ON, and any of the following conditions are satisfied. [Except headlamp (HI) ON con-

dition]

• Lighting switch 2ND

• Lighting switch AUTO (Only when the illumination judgment by auto light system is ON. For details, refer to

EXL-12, "AUTO LIGHT SYSTEM : System Description"

.)

• IPDM E/R turns the integrated front fog lamp relay ON, and turns the front fog lamp ON according to the

front fog light request signal.

FRONT FOG LAMP SYSTEM : Fail-Safe

INFOID:0000000012201625

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN

communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

EXTERIOR LAMP BATTERY SAVER SYSTEM

Control part

Fail-safe operation

• Parking lamp
• License plate lamp
• Tail  lamp

• Turns ON the tail lamp relay when the ignition switch is turned ON
• Turns OFF the tail lamp relay when the ignition switch is turned OFF

JMLIA1154GB

Control part

Fail-safe operation

Front fog lamp

Front fog lamp relay OFF

EXL-18

< SYSTEM DESCRIPTION >

[XENON TYPE]

SYSTEM

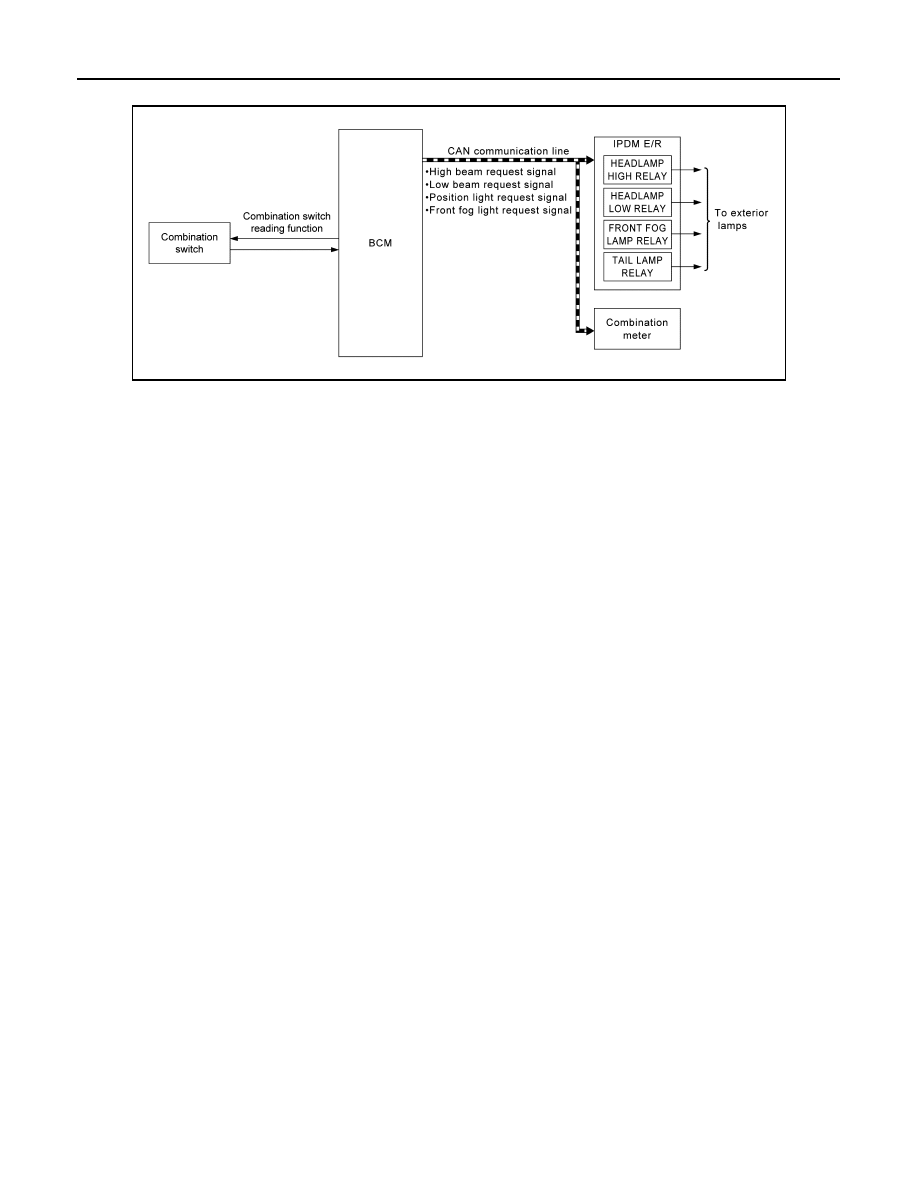

EXTERIOR LAMP BATTERY SAVER SYSTEM : System Diagram

INFOID:0000000012201626

EXTERIOR LAMP BATTERY SAVER SYSTEM : System Description

INFOID:0000000012201627

OUTLINE

• Exterior lamp battery saver system is controlled by combination switch reading function and exterior lamp

battery saver function of BCM, and relay control function of IPDM E/R.

• BCM turns the exterior lamp* OFF, according to the vehicle status when ignition switch is turned OFF while

exterior lamp is ON, for preventing battery discharge.

*: Headlamp (LO/HI), front fog lamp, parking lamp, license plate lamp, side marker lamp and tail lamp

EXTERIOR LAMP BATTERY SAVER ACTIVATION

• BCM activates the timer and turns the exterior lamp OFF 45 seconds after the ignition switch is turned from

ON

→ OFF with the exterior lamps ON.

• When in any of following conditions (after the exterior lamp battery saver is activated), exterior lamps can be

turned ON.

- Ignition switch is turned from OFF

→ ON

- Lighting switch is changed

- Front fog lamp switch is changed

JMLIA5953GB

DIAGNOSIS SYSTEM (BCM)

EXL-19

< SYSTEM DESCRIPTION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000012962262

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

×: Applicable item

NOTE:
*: For models with automatic A/C, this diagnosis mode is not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on

CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Air conditioning system

AIR CONDITONER

×

×*

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

Theft warning alarm

THEFT ALM

×

×

×

RAP

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×
