EM-186

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

DRIVE BELT

Inspection

INFOID:0000000012197372

INSPECTION

WARNING:

Perform this step when engine is stopped.

• Check that the indicator (C) (notch on fixed side) of drive belt auto-tensioner is within the possible use range

(A) in the figure.

NOTE:

• Check the drive belt auto-tensioner indication when the engine is cold.

• When new drive belt is installed, the indicator (notch on fixed side) should be within the range (B) in the fig-

ure.

• Visually check entire drive belt for wear, damage or cracks.

• If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.

Adjustment

INFOID:0000000012197373

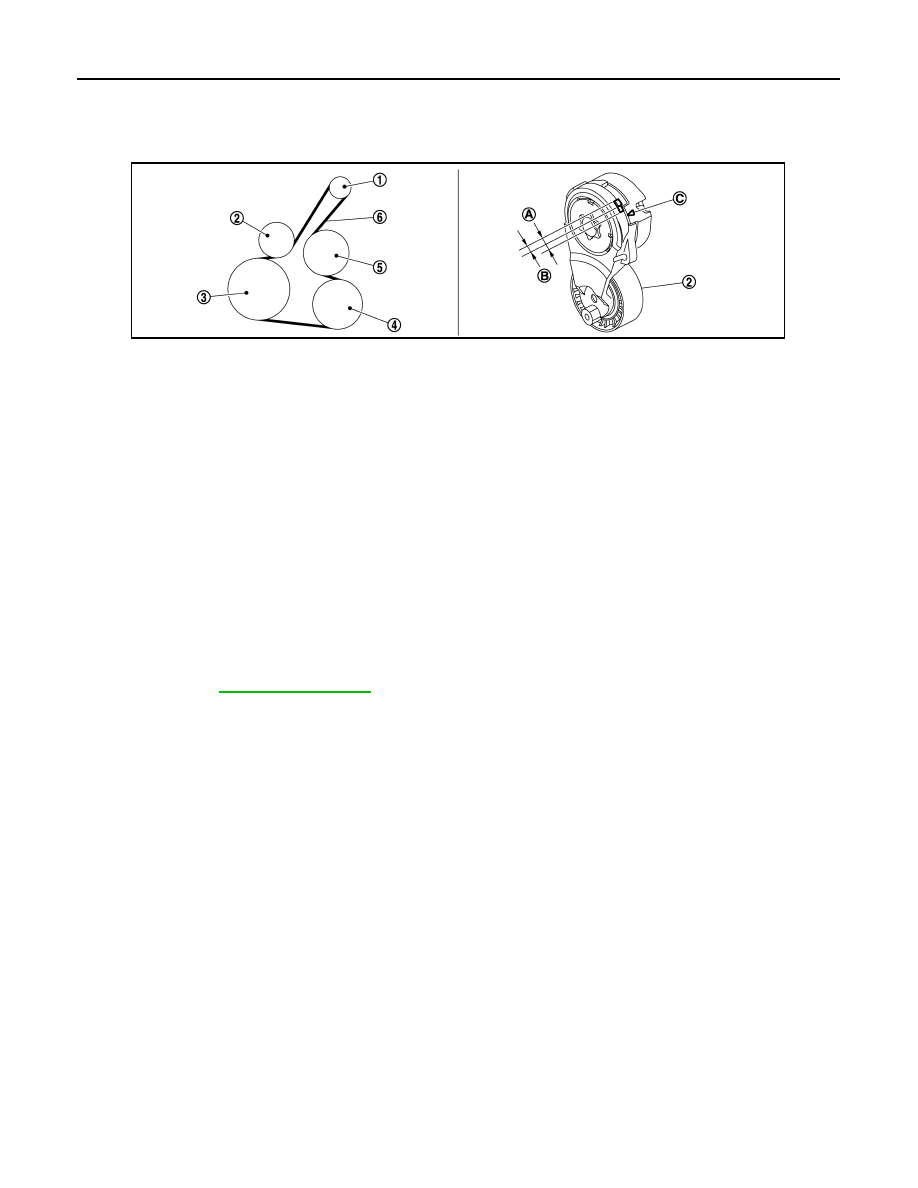

1.

Alternator

2.

Drive belt auto tensioner

3.

Crankshaft pulley

4.

A/C compressor

5.

Water pump

6.

Drive belt

A. Possible use range

B. Range when new drive belt is  in-

stalled

C. Indicator

JSBIA5907ZZ

Refer to  :

EM-312, "Drive Belt"

.

AIR CLEANER FILTER

EM-187

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

AIR CLEANER FILTER

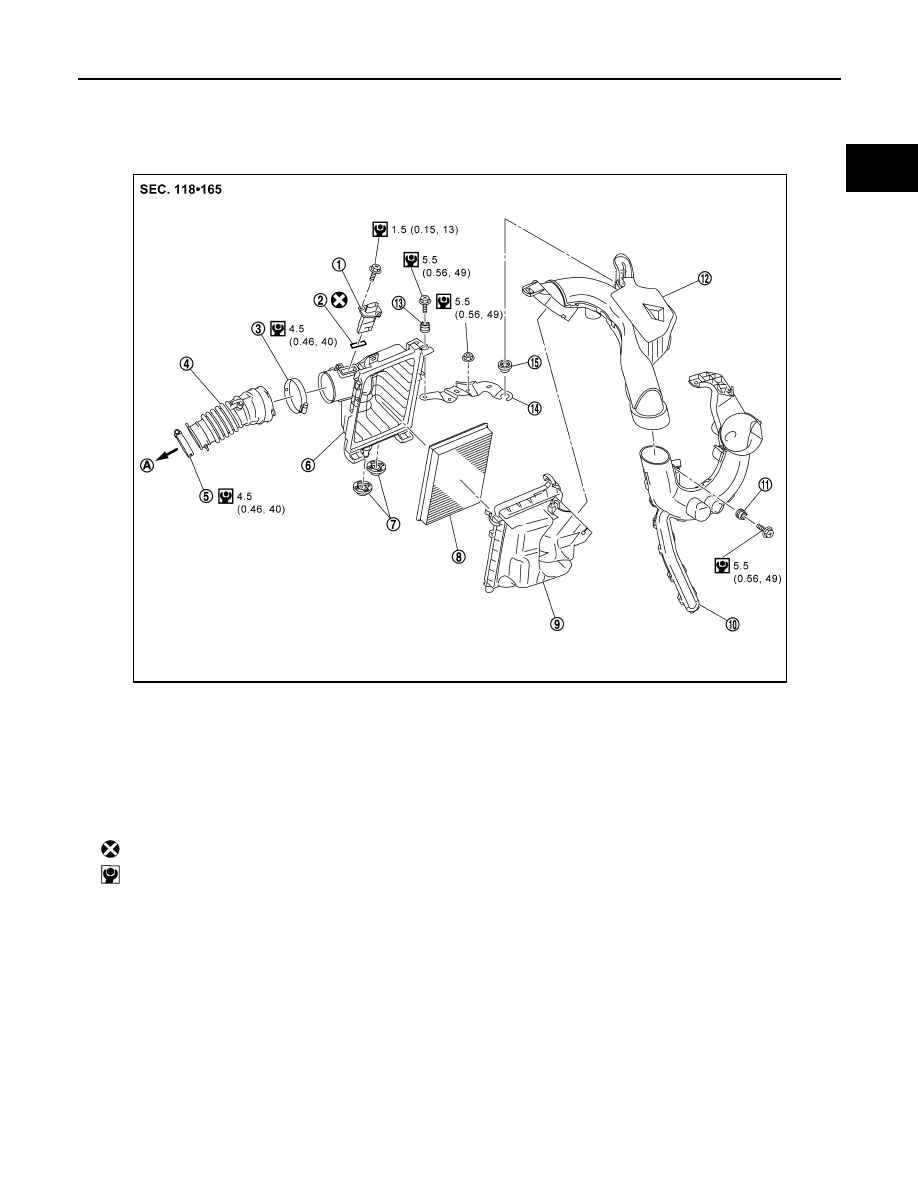

Exploded View

INFOID:0000000012197374

Removal and Installation

INFOID:0000000012197375

REMOVAL

1.

Mass air flow sensor

2.

Gasket

3.

Clamp

4.

Air duct

5.

Clamp

6.

Air cleaner case

7.

Mount rubber

8.

Air cleaner filter

9.

Element case

10. Inlet air duct (lower)

11. Grommet

12. Inlet air duct (upper)

13. Grommet

14. Bracket

15. Mount rubber

A.

To exhaust manifold and turbocharg-
er assembly

 : Always replace after every disassembly.

 : N·m (kg-m, in-lb)

JSBIA5756GB

EM-188

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

AIR CLEANER FILTER

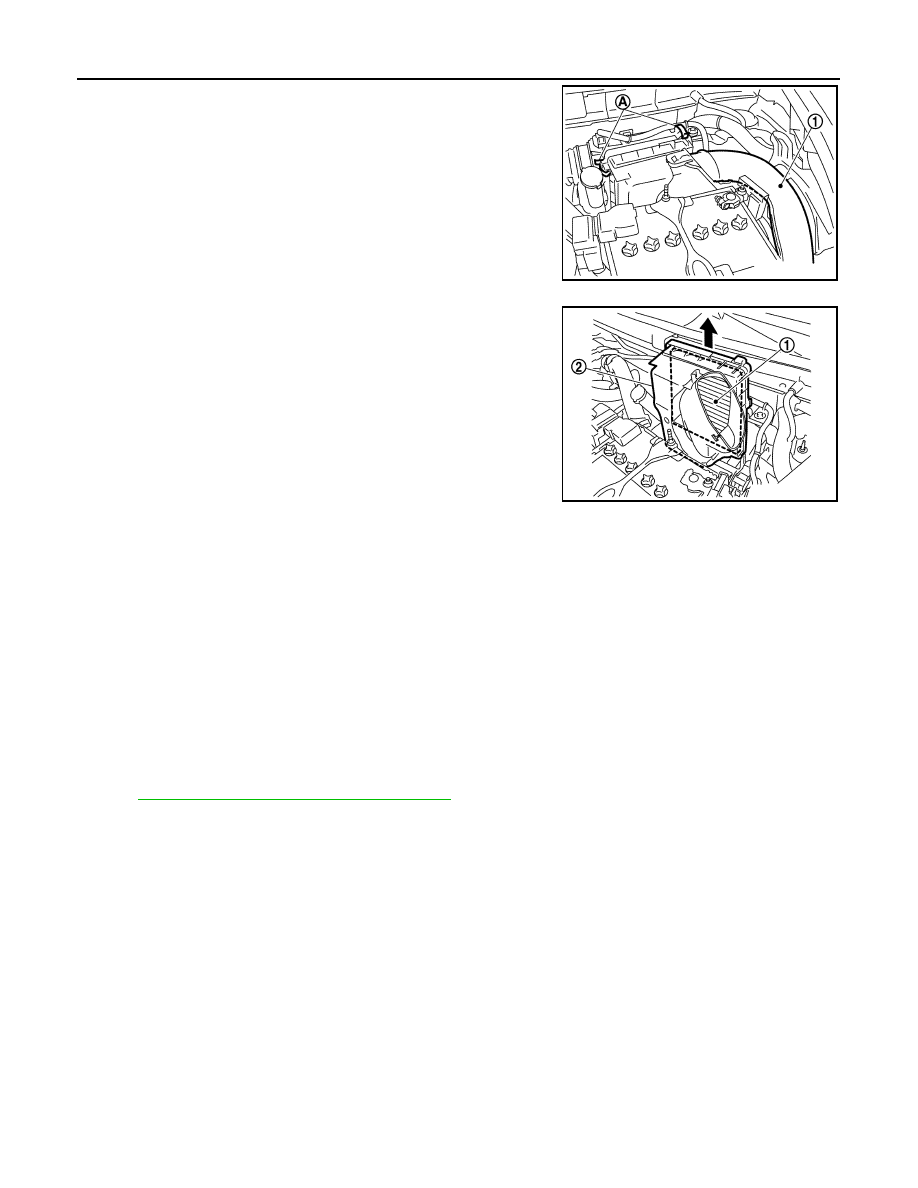

1. Remove the inlet air duct (upper) (1).
2. Unhook the tabs (A) of both ends of the air cleaner cover.

3. Remove the air cleaner filter (1) and air cleaner body (2) from

the air cleaner case.

4. Remove the air cleaner filter from the air cleaner body.

INSTALLATION

Note the following, and install in the reverse order of removal.

• Fixing clips shall be fixed after inserting air cleaner body protrusion to air cleaner case notch hole.

• Make sure that whether air cleaner body has been firmly installed by shaking it.

Inspection (Viscous Paper Type)

INFOID:0000000012961777

INSPECTION AFTER REMOVAL

Examine with eyes that there is no stain, clogging, or damage on air cleaner element.

• Remove dusts (such as dead leafs) on air cleaner element surface and inside cleaner case.

• If clogging or damage is observed, replace the air cleaner element.

CAUTION:

Never clean the viscous paper type air cleaner element by blowing as there is a risk of deterioration of

its performance

MAINTENANCE INTERVAL

Refer to

MA-7, "Introduction of Periodic Maintenance"

.

JPBIA4352ZZ

JPBIA4353ZZ

SPARK PLUG

EM-189

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

SPARK PLUG

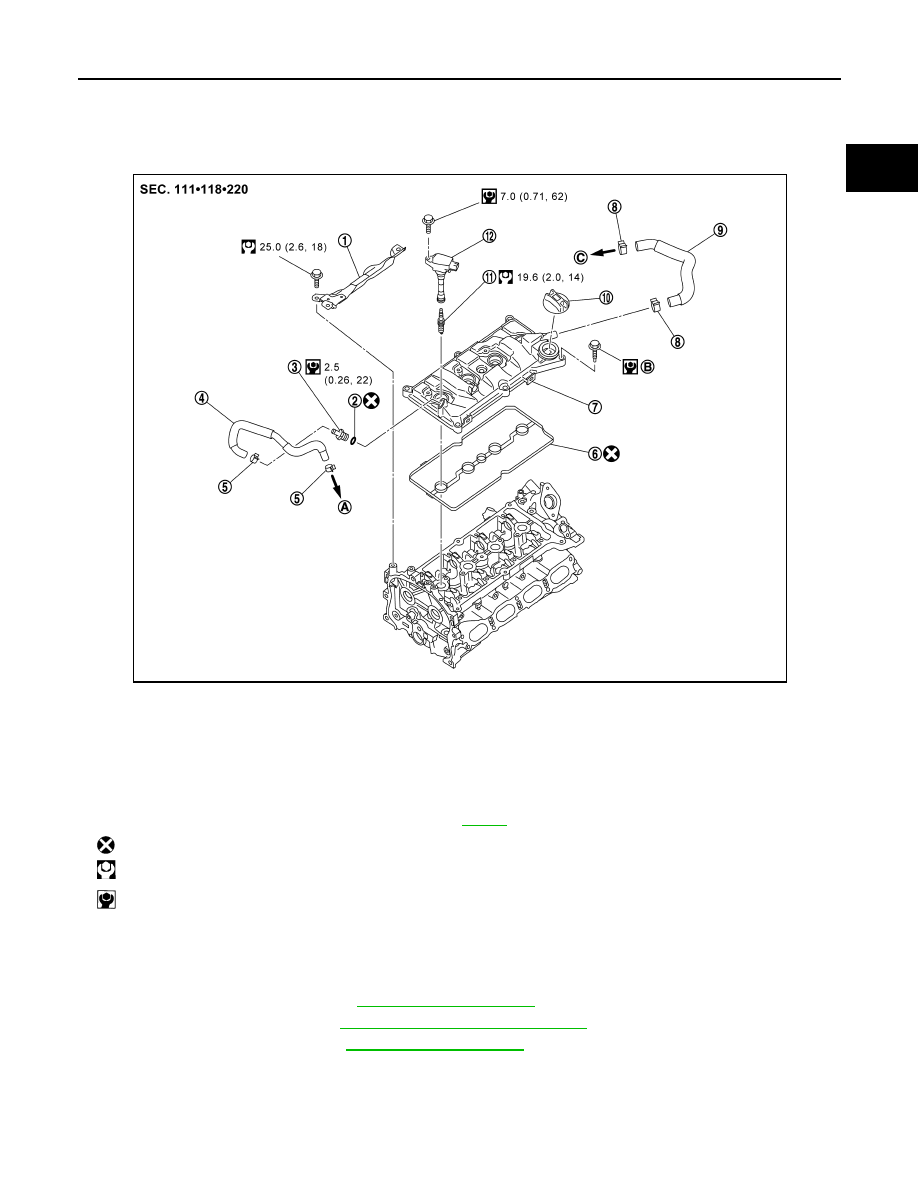

Exploded View

INFOID:0000000012197376

Removal and Installation

INFOID:0000000012197377

REMOVAL

1. Remove the engine cover. Refer to

EM-191, "Exploded View"

.

2. Remove air inlet tube 2. Refer to

EM-194, "Removal and Installation"

.

3. Remove the ignition coil. Refer to

EM-214, "Exploded View"

.

1.

Rocker cover protector

2.

O-ring

3.

Positive Crank Ventilation (PCV)
valve

4.

PCV hose

5.

Clamp

6.

Rocker cover gasket

7.

Rocker cover

8.

Clamp

9.

PCV hose

10. Oil filler cap

11. Spark plug

12. Ignition coil

A.

To intake manifold

B.

Comply with the assembly procedure
when tightening.

EM-214

.

C.

To turbocharger inlet tube

 : Always replace after every disassembly.

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

JSBIA5757GB
