Nissan Juke F15. Manual - part 642





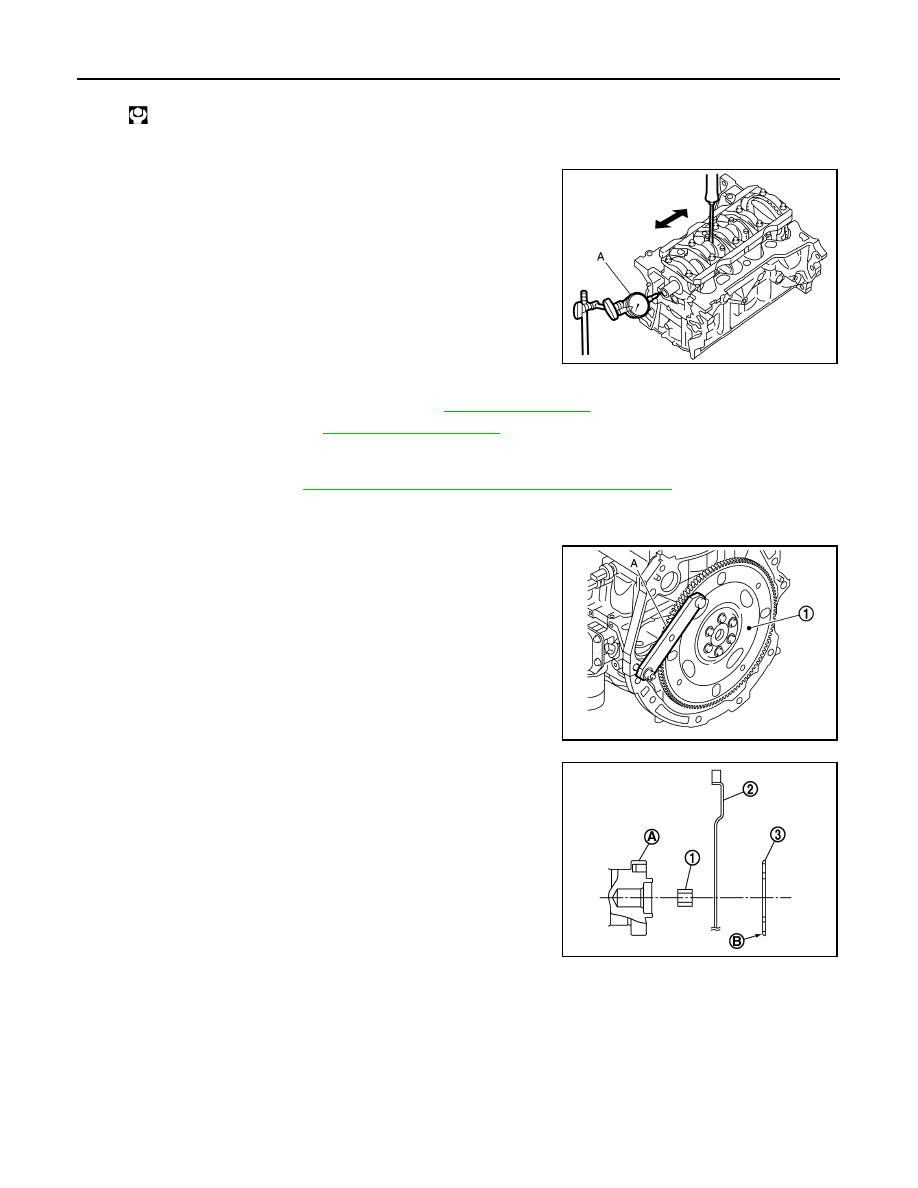

EM-122

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR FOR NISMO RS MODELS]

CYLINDER BLOCK

e. Then turn all connecting rod cap bolts 60 degrees clockwise (angle tightening).

CAUTION:

Check and confirm the tightening angle by using an angle

wrench [SST: KV10112100 (BT8653-A)] (A) or protractor.

Never judge by visual inspection without the tool.

• After tightening connecting rod cap bolt, check that crankshaft rotates smoothly.

• Check the connecting rod side clearance. Refer to

EM-123, "Inspection"

.

13. Install oil pan (upper). Refer to

EM-110, "Exploded View"

.

NOTE:

Install the rear oil seal after installing the oil pan (upper).

14. Install rear oil seal. Refer to

EM-98, "REAR OIL SEAL : Removal and Installation"

.

15. Install flywheel (M/T models) or drive plate (CVT models).

Drive plate (CVT models)

• Secure crankshaft with a stopper plate [SST: KV11105210 (J-

44716)], (A) and tighten mounting bolts crosswise over several

times.

• Install pilot converter (1), drive plate (2), and reinforcement

plate (3) as shown in the figure.

• Using a drift of 33 mm (1.30 in) in dia meter, press-fit pilot con-

verter into the end of crankshaft until it stops.

Fly wheel (M/T models)

• Secure crankshaft with a stopper plate [SST: KV11105210 (J-44716)] and tighten mounting bolts cross-

wise over several times.

NOTE:

M/T models have no pilot bushing and reinforcement plate.

16. Install knock sensor.

: 19.6 N·m (2.0 kg-m, 14 ft-lb)

JPBIA4436ZZ

1 : Drive plate

JPBIA4425ZZ

A

: Crankshaft rear end

B

:  R

PBIC4075E

CYLINDER BLOCK

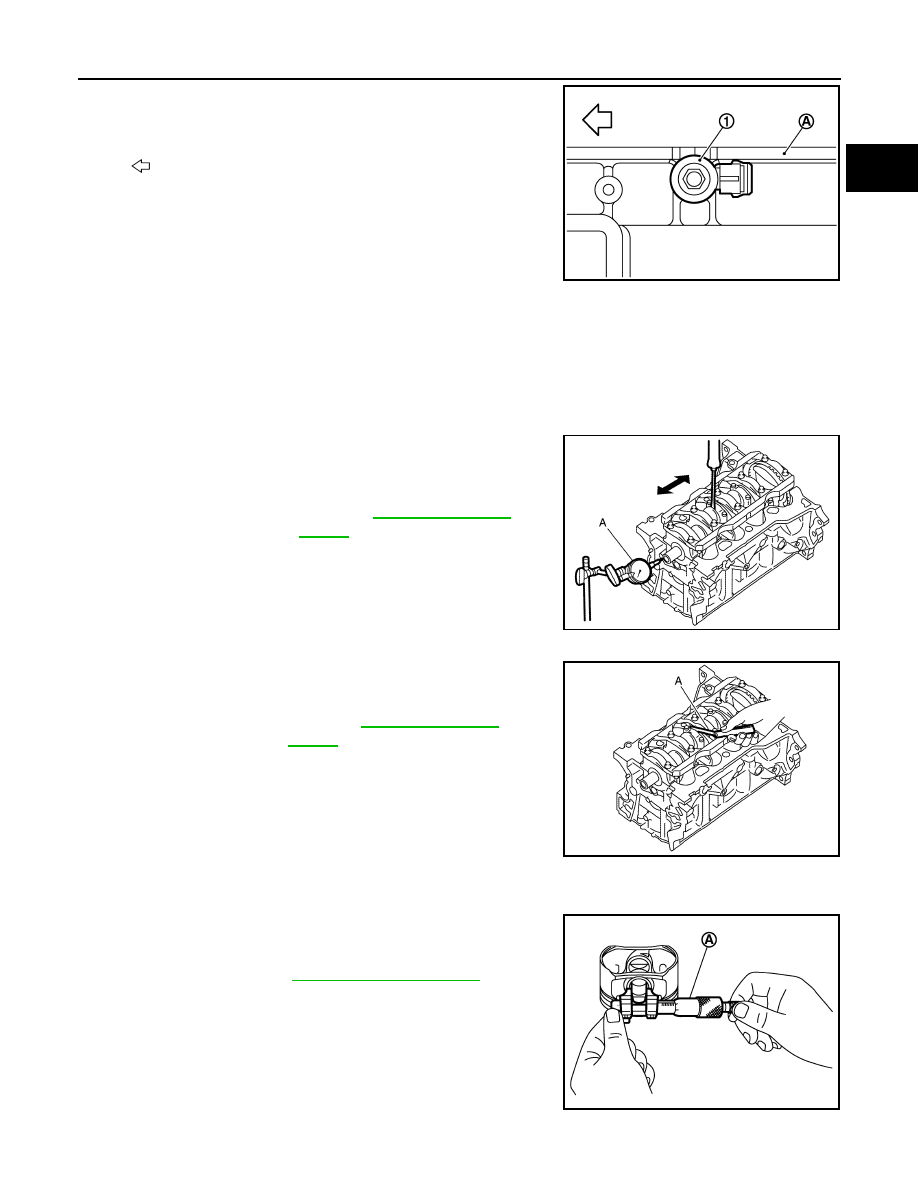

EM-123

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Install knock sensor (1) with harness connector facing toward

the rear of engine.

CAUTION:

• Never tighten mounting bolts while holding the harness

connector.

• If any impact by dropping is applied to knock sensor,

replace it with a new one.

NOTE:

• Check that there is no foreign material on the cylinder block mating surface and the back surface of

knock sensor.

• Check that knock sensor does not interfere with other parts.

17. Assemble in the reverse order of disassembly.

Inspection

INFOID:0000000012197311

CRANKSHAFT END PLAY

• Measure the clearance between thrust bearings and crankshaft

arm when crankshaft is moved fully forward or backward with a dial

indicator (A).

• If the measured value exceeds the limit, replace thrust bearings,

and measure again. If it still exceeds the limit, replace crankshaft

also.

CONNECTING ROD SIDE CLEARANCE

• Measure the side clearance between connecting rod and crank-

shaft arm with a feeler gauge (A).

• If the measured value exceeds the limit, replace connecting rod,

and measure again. If it still exceeds the limit, replace crankshaft

also.

PISTON TO PISTON PIN OIL CLEARANCE

Piston Pin Hole Diameter

Measure the inner diameter of piston pin hole with an inside

micrometer (A).

Piston Pin Outer Diameter

A

: Cylinder block left side

: Engine front

PBIC3246J

Standard and Limit

: Refer to

EM-144, "Cylinder

Block"

.

JPBIA4436ZZ

Standard and Limit : Refer to

EM-144, "Cylinder

Block"

.

JPBIA4437ZZ

Standard

: Refer to

EM-144, "Cylinder Block"

.

PBIC3265J

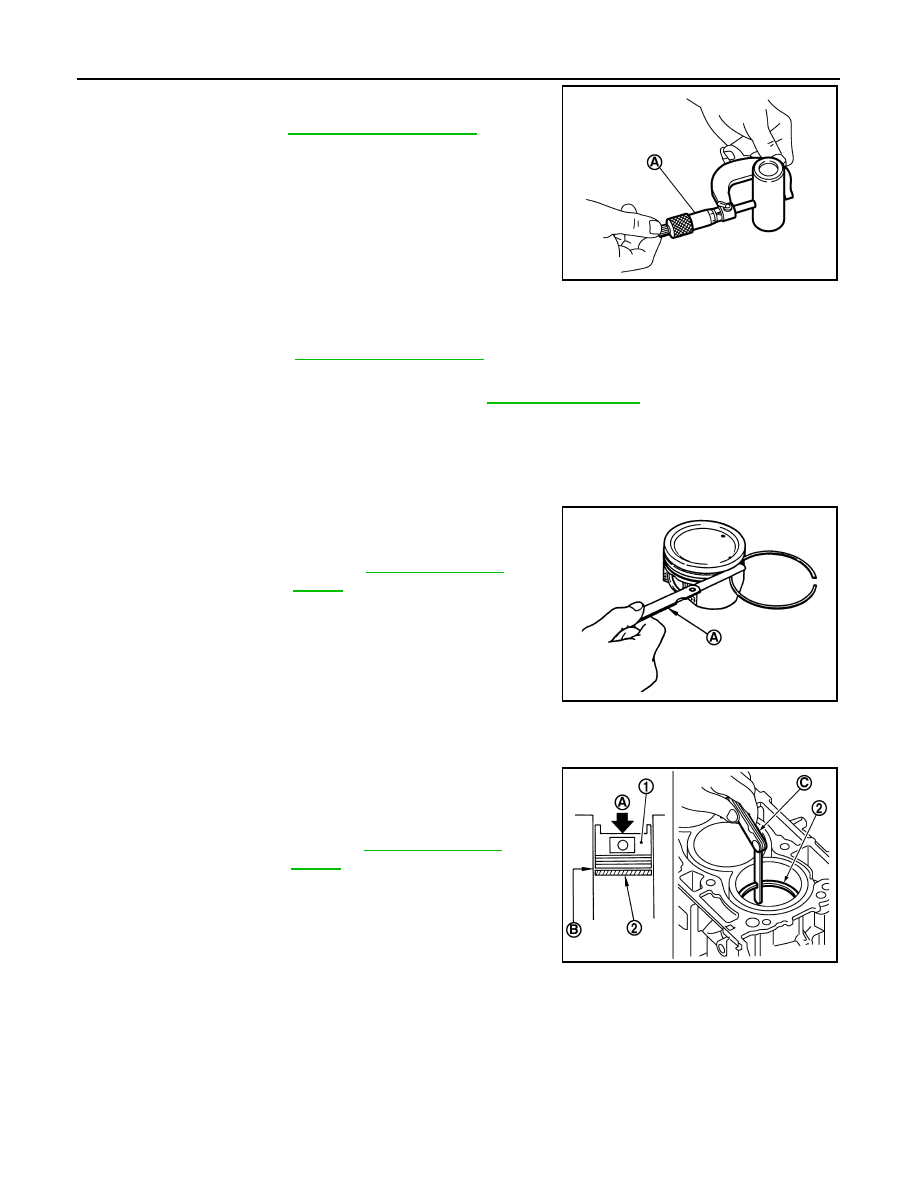

EM-124

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR FOR NISMO RS MODELS]

CYLINDER BLOCK

Measure the outer diameter of piston pin with a micrometer (A).

Piston to Piston Pin Oil Clearance

(Piston to piston pin oil clearance) = (Piston pin hole diameter) – (Piston pin outer diameter)

• If oil clearance is out of the standard, replace piston and piston pin assembly.

• When replacing piston and piston pin assembly. Refer to

EM-133, "Description"

.

NOTE:

• Piston is available together with piston pin as assembly.

• Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no

grades can be selected. (Only grade “0” is available.)

PISTON RING SIDE CLEARANCE

• Measure the side clearance of piston ring and piston ring groove

with a feeler gauge (A).

• If the measured value exceeds the limit, replace piston ring, and

measure again. If it still exceeds the limit, replace piston also.

PISTON RING END GAP

• Check that cylinder bore inner diameter is within specification. Refer to “PISTON TO CYLINDER BORE

CLEARANCE”.

• Lubricate with new engine oil to piston (1) and piston ring (2), and

then insert (A) piston ring until middle of cylinder (B) with piston,

and measure piston ring end gap with a feeler gauge (C).

• If the measured value exceeds the limit, replace piston ring, and

measure again. If it still exceeds the limit, rebore cylinder and use

oversized piston and piston rings.

CONNECTING ROD BEND AND TORSION

Standard :

Refer

to

EM-144, "Cylinder Block"

.

PBIC3266J

Standard :

Refer

to

EM-144, "Cylinder Block"

.

Standard and Limit

: Refer to

EM-144, "Cylinder

Block"

.

PBIC3280J

Standard and Limit

: Refer to

EM-144, "Cylinder

Block"

.

PBIC3267J

CYLINDER BLOCK

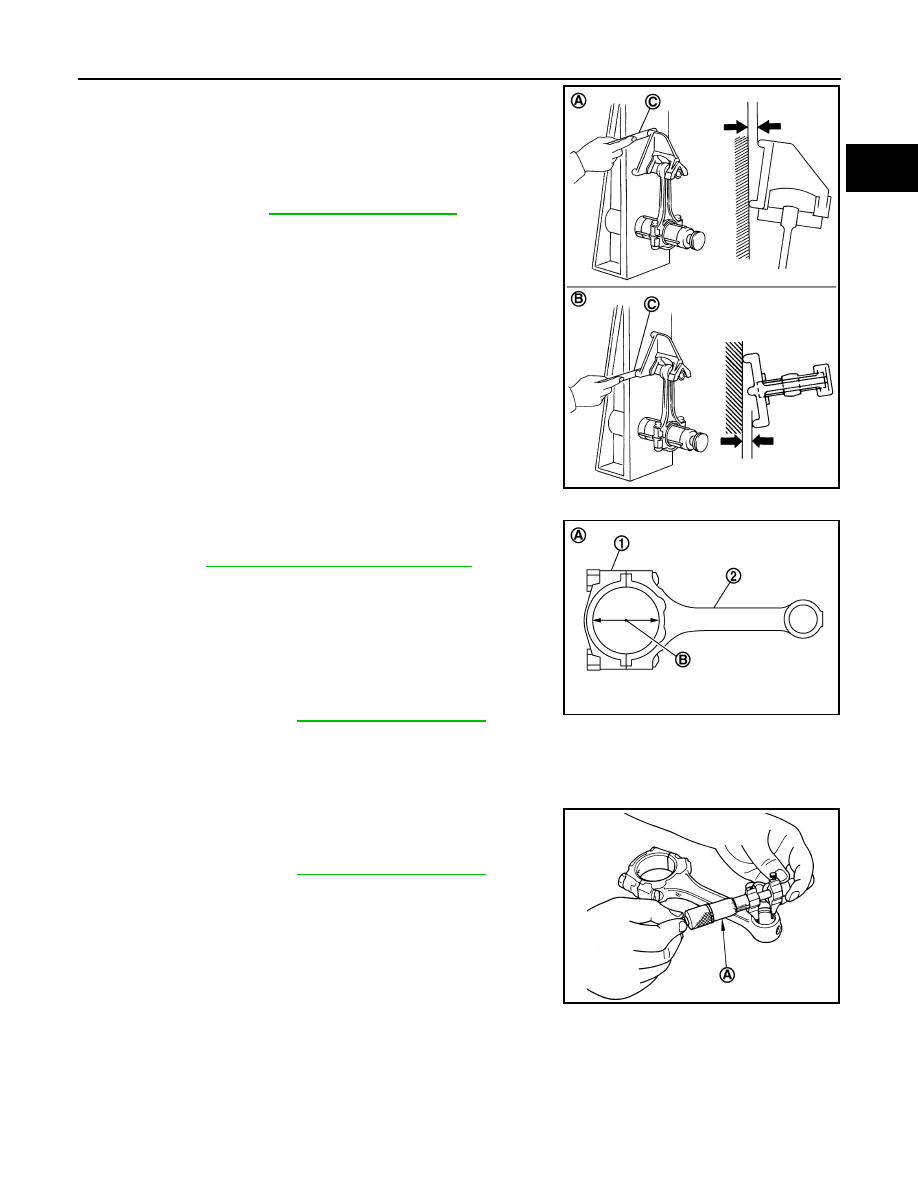

EM-125

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Check with a connecting rod aligner.

• If it exceeds the limit, replace connecting rod assembly.

CONNECTING ROD BIG END DIAMETER

• Install connecting rod cap (1) without connecting rod bearing

installed, and tightening connecting rod cap bolts to the specified

torque. Refer to

EM-115, "Disassembly and Assembly"

.

• Measure the inner diameter of connecting rod big end with an

inside micrometer.

• If out of the standard, replace connecting rod assembly.

CONNECTING ROD BUSHING OIL CLEARANCE

Connecting Rod Bushing Inner Diameter

Measure the inner diameter of connecting rod bushing with an inside

micrometer (A).

Piston Pin Outer Diameter

A

: Bend

B

:  Torsion

C

: Feeler gauge

Limit

: Refer to

EM-144, "Cylinder Block"

.

PBIC3268J

2

: Connecting rod

A

: Example

B

: Measuring direction of inner diameter

Standard :

Refer

to

EM-144, "Cylinder Block"

.

PBIC3269J

Standard :

Refer

to

EM-144, "Cylinder Block"

.

PBIC3270J
