EM-38

< REMOVAL AND INSTALLATION >

[MR FOR NISMO RS MODELS]

CATALYST

• Never damage air fuel ratio sensor 1 and heated oxygen sensor 2.

• Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a

hard surface such as a concrete floor; use a new one.

9. Remove catalyst converter shroud upper.
10. Remove bolts and nut of catalyst converter turbocharger side.
11. Remove catalyst convertor. And keep a service area.

NOTE:

Slide the catalyst converter in a lateral direction to obtain work space for removing exhaust manifold

mounting nuts.

12. Remove heat insulator. Refer to

EM-40, "Exploded View"

.

13. Disconnect water hoses from turbocharger as follows:

• Attach plug to prevent engine coolant leakage when engine coolant is not drained.

CAUTION:

Perform this step when the engine is cold.

14. Remove oil supply tube and oil return pipe. Refer to

EM-40, "Exploded View"

.

15. Remove exhaust manifold cover. Refer to

EM-44, "Exploded View"

.

16. Remove exhaust manifold mounting nuts.
17. Remove exhaust manifold with turbocharger.
18. Remove gasket of exhaust manifold.
19. Remove catalyst converter.
20. Remove gasket.

INSTALLATION

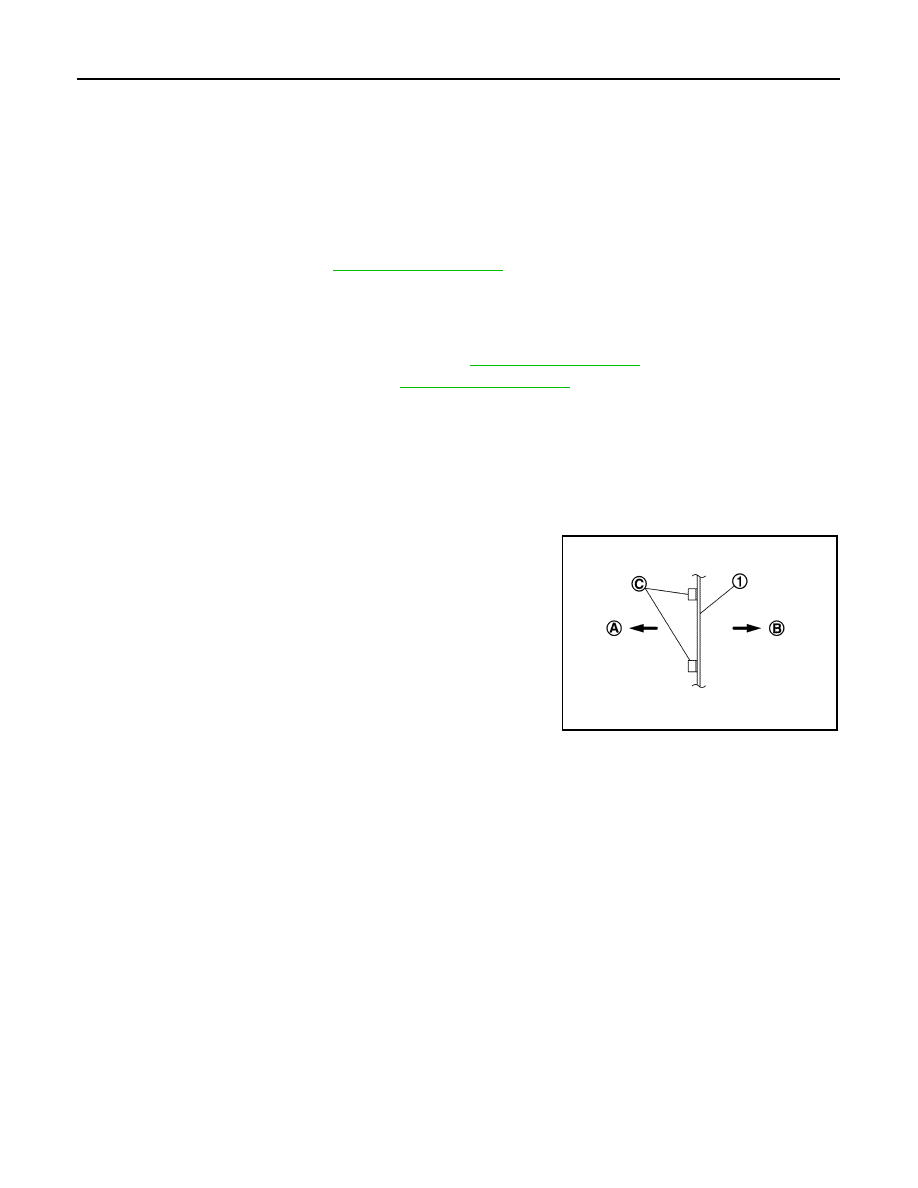

1. Install gasket between turbocharger and catalyst as shown in

the figure.

2. Install catalyst converter with the following procedure.

1

:  Gasket

A

: Turbocharger side

B

: Catalyst converter side

C

:  Claw

JPBIA4418ZZ

CATALYST

EM-39

< REMOVAL AND INSTALLATION >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Tighten in numerical order as shown in the figure.

- Install catalyst converter (base on stud position 1).

- Temporary assemble 2 (no priority).

- Temporary assemble 3, 4.

- Tightening 5, 6 and 7.

- Tightening again 8, 9 and 10.

- Temporary assemble 11.

- Tightening 12,13,14,and 15.

3. Note the following, and install in the reverse order of removal.

A/F sensor 1 and Heated oxygen sensor 2

• Using heated oxygen sensor wrench [SST: KV10117100 (J-

3647-A)], install A/F sensor 1 and heated oxygen sensor 2.

CAUTION:

• Before installing a new sensors, clean exhaust system

threads using heated oxygen sensor thread cleaner tool

(Commercial Service Tool: J-43897-18 or J-43897-12)

and apply anti-seize lubricant.

• Never apply excessive torque to sensors. Doing so may

cause damage to sensors, resulting in the “MIL” illumi-

nating.

• Prevent rust preventives from adhering to the sensor

body.

JPBIA4371GB

EM-40

< REMOVAL AND INSTALLATION >

[MR FOR NISMO RS MODELS]

TURBOCHARGER

TURBOCHARGER

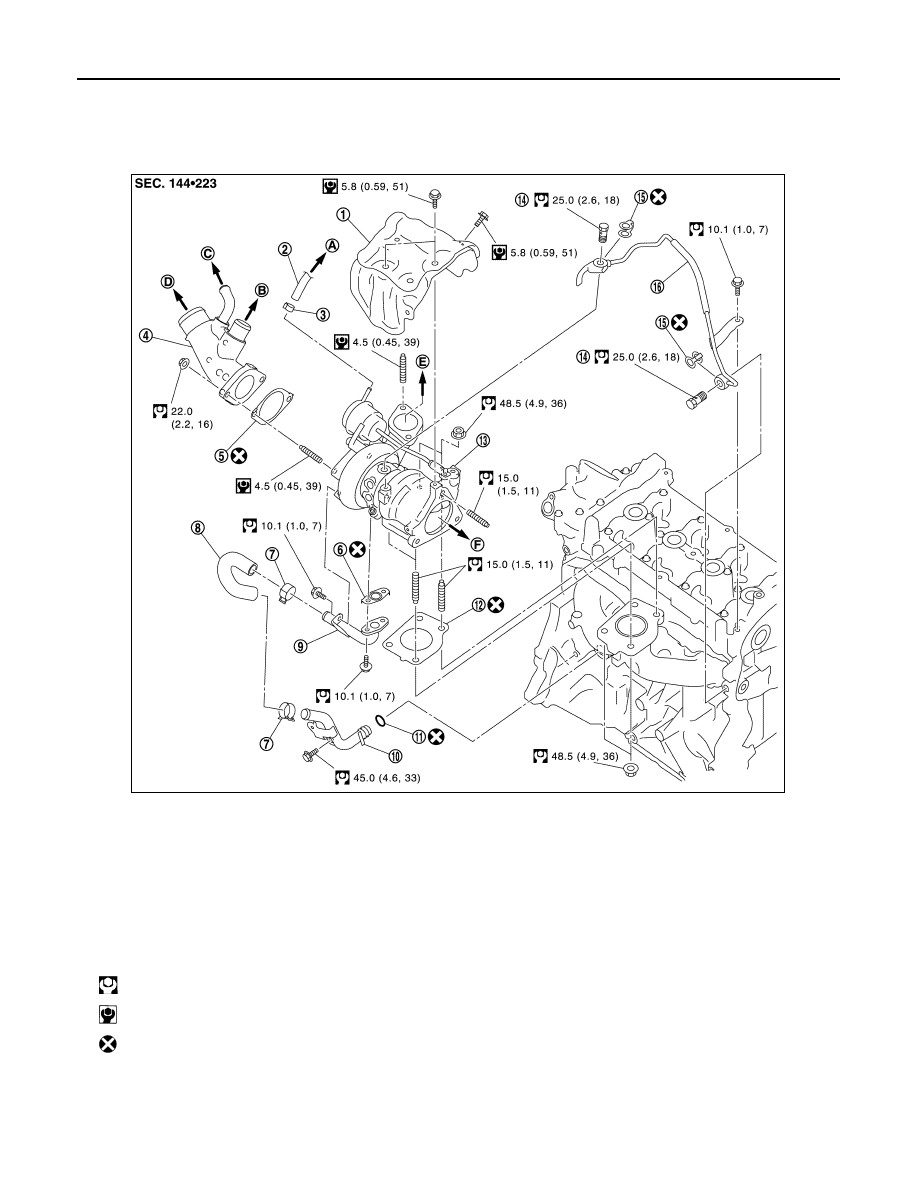

Exploded View

INFOID:0000000012197265

Removal and Installation

INFOID:0000000012197266

REMOVAL

1.

Heat insulator

2.

Actuator hose

3.

Clamp

4.

Turbocharger inlet tube

5.

Gasket

6.

Gasket

7.

Clamp

8.

Oil outlet hose

9.

Oil return pipe

10. Oil supply tube

11. O-ring

12. Gasket

13. Turbocharger

14. Eye bolt

15. Gasket

16. Oil supply tube
A.

To boost control solenoid valve

B.

To air inlet hose

C.

To PCV hose

D.

To air duct

E.

To air inlet tube assembly

F.

To catalyst converter

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

 : Always replace after every disassembly.

JSBIA1974GB

TURBOCHARGER

EM-41

< REMOVAL AND INSTALLATION >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

1. Remove engine cover. Refer to

EM-26, "Exploded View"

.

2. Remove cowl top extension. Refer to

EXT-29, "Exploded View"

.

3. Remove air duct (suction side). Refer to

EM-27, "Exploded View"

.

4. Remove air inlet tube 3. Refer to

EM-32, "Exploded View"

.

5. Remove front tube. Refer to

EX-5, "Exploded View"

.

6. Remove heat insulator. Refer to

FAX-27, "2WD : Exploded View"

 (2WD models) or

FAX-43, "AWD :

Exploded View"

 (AWD models).

7. Remove catalyst converter support bracket (upper and lower).
8. Remove A/F sensor 1.

• Using heated oxygen sensor wrench [SST: KV10117100 (J-3647-A)], remove A/F sensor 1.

CAUTION:

• Discard any A/F sensor 1 which has been dropped from a height of more than 0.5 m (19.7 in)

onto a hard surface such as a concrete floor; use a new one.

• Before installing new A/F sensor 1, clean exhaust system threads using Oxygen Sensor

Thread Cleaner [commercial service tool (J-43897-18 or J-43897-12)] and approved Anti-seize

Lubricant (commercial service tool).

9. Remove catalyst converter shroud upper.
10. Disconnect heated oxygen sensor 2 harness connector. (AWD models)
11. Remove bolts and nut of catalyst converter turbocharger side.
12. Remove catalyst convertor. And keep a service area.

NOTE:

Slide the catalyst converter in a lateral direction to obtain work space for removing turbocharger.

13. Remove gasket of catalyst converter.
14. Remove exhaust manifold cover. Refer to

EM-44, "Exploded View"

.

15. Remove turbocharger assembly as follows:
a. Remove heat insulator.
b. Disconnect water hose from turbocharger. Refer to

EM-29, "Exploded View"

.

• Attach plug to prevent engine coolant leakage when engine coolant is not drained.

CAUTION:

Perform this step when the engine is cold.

c. Remove oil supply tube and oil return pipe.
d. Remove mounting nuts of turbocharger.

CAUTION:

Never deform each turbocharger piping when pulling out the assembly.

INSTALLATION

CAUTION:

Do not reuse O-rings.

Install in the reverse order of removal.

Inspection

INFOID:0000000012197267

INSPECTION PROCERDURE

Trouble Diagnosis of Turbocharger

Check items before trouble diagnosis
1. Check that the engine oil level is between L (Low level) and H (High level) of the oil level gauge. [When

the engine oil amount is more then H (High level), the engine oil flows into the inlet duct through the blow-

by gas passage, and the turbocharger is misjudged failure.]

2. Ask the customer if he/she always runs the vehicle in idle engine speed to cool the engine oil down after

driving.

• Replace the exhaust manifold and turbocharger assembly when any malfunction is found after unit

inspections specified in the table below.

• If no malfunction is found after the unit inspections, judge that the turbocharger body has no non-stan-

dard conditions. Check the other parts again.
