G SENSOR

Component Function Check

INFOID:0000000012198740

1.

CHECK G SENSOR FUNCTION

1. Turn ignition switch ON.

2. Check the voltage between ECM harness connector terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-1209, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012198741

1.

CHECK G SENSOR POWER SUPPLY CIRCUIT-I

1. Turn ignition switch OFF.

2. Disconnect G sensor harness connector.

3. Turn ignition switch ON.

4. Check the voltage between G sensor harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK G SENSOR SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between G sensor harness connector and ECM harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK G SENSOR

Check G sensor. Refer to

EC-1210, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> 1. Replace G sensor.

ECM

Condition

Voltage

(Approx.)

Connector

+

Terminal

F23

34

13

[Engine is running]
• Warm-up condition
• Idle speed

0 V

G sensor

Voltage

(Approx.)

Connector

+

Terminal

B32

3

2

5 V

+

Continuity

G sensor

ECM

Connector

Terminal

Connector

Terminal

B32

1

F23

34

Existed

EC-1210

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

G SENSOR

2. Perform calibration of G sensor.

4.

CHECK G SENSOR POWER SUPPLY CIRCUIT-II

Check the voltage between G sensor harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 7.

5.

CHECK G SENSOR GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between G sensor harness connector and ECM harness connector.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK ECM GROUND CIRCUIT

Check the continuity between ECM harness connector and ground.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Repair or replace error-detected parts.

7.

CHECK SENSOR POWER SUPPLY 2 CIRCUIT

Perform

EC-1240, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

Component Inspection

INFOID:0000000012198742

1.

CHECK G SENSOR

+

Voltage

(Approx.)

G sensor

Connector

Terminal

B32

3

Ground

5 V

+

Continuity

G sensor

ECM

Connector

Terminal

Connector

Terminal

B32

2

F23

13

Existed

ECM

Ground

Continuity

Connector

Terminal

F23

9

Ground

Existed

10

50

F24

60

110

E19

147

149

152

G SENSOR

EC-1211

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

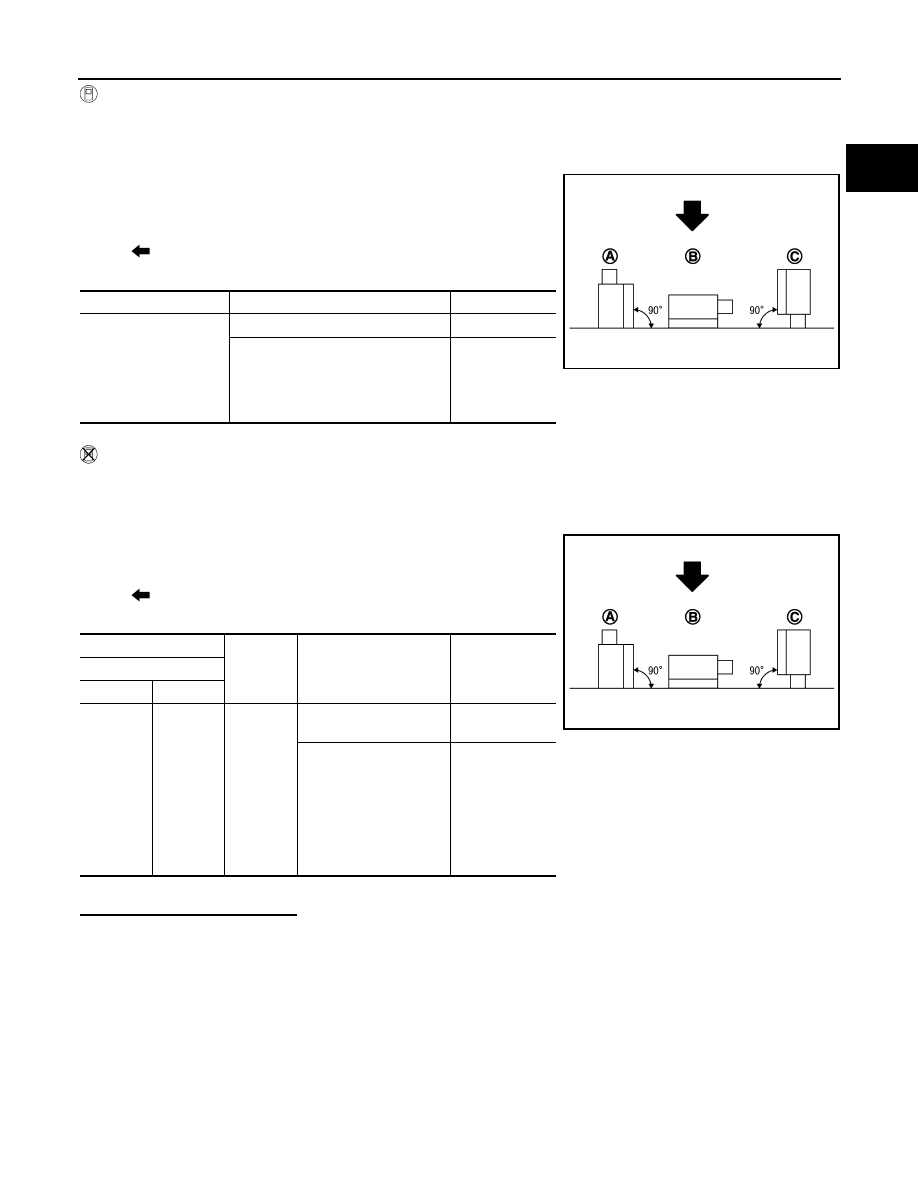

With CONSULT

1. Remove G sensor.

2. Reconnect all harness connectors disconnected.

3. Place the G sensor on a flat table.

4. Turn ignition switch ON.

5. Select “G SENSOR” in “DATA MONITOR” mode of “ENGINE”

using CONSULT to check indications according to the following

conditions:

*: Check that voltage rises as the G sensor measurement condition changes in the order of (A), (B), and (C).

Without CONSULT

1. Remove G sensor.

2. Reconnect all harness connectors disconnected.

3. Place the G sensor on a flat table.

4. Turn ignition switch ON.

5. Check the voltage between ECM harness connector terminal

and ground.

*: Check that voltage rises as the G sensor measurement condition changes in the order of (A), (B), and (C).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace G sensor.

: Direction of gravitational force

Monitor item

Condition

Value (V)

G SENSOR

Parallel with the table (0G) (B)

2.18 – 2.82

Vertical to the table (

−1G) (A)

Parallel with the table (0G) (B)

Vertical to the table (1G) (C)

0.85 – 1.49*

2.18 – 2.82*

3.51 – 4.15*

: Direction of gravitational force

+

Condition

Voltage (V)

ECM

Connector

Terminal

F23

34

Ground

Parallel with the table

(0G) (B)

2.18 – 2.82

Vertical to the table (

−1G)

(A)

Parallel with the table

(0G) (B)

Vertical to the table (1G)

(C)

0.85 – 1.49*

2.18 – 2.82*

3.51 – 4.15*

SCIA8343J

SCIA8343J

EC-1212

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

HIGH PRESSURE FUEL PUMP

HIGH PRESSURE FUEL PUMP

Component Function Check

INFOID:0000000012198743

1.

CHECK HIGH PRESSURE FUEL PUMP FUNCTION

With CONSULT

1. Start engine.

2. Check “FUEL PRES SEN V” in “DATA MONITOR” mode of “ENGINE” using CONSULT.

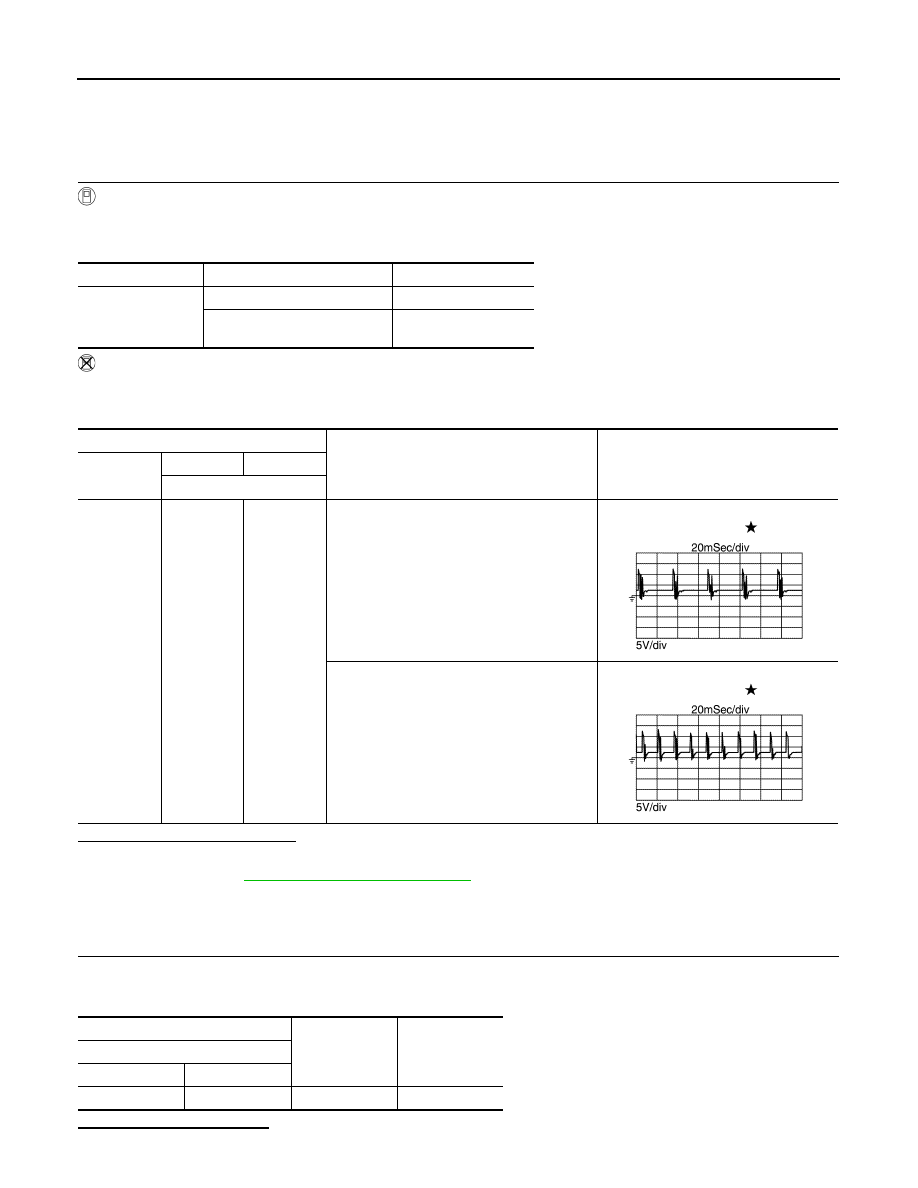

Without CONSULT

1. Start engine.

2. Check the voltage between ECM harness connector terminals as per the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-1212, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012198744

1.

CHECK HIGH PRESSURE FUEL PUMP POWER SUPPLY

1. Turn ignition switch ON.

2. Check the voltage between ECM harness connector and ground.

Is inspection result normal?

Monitor Item

Condition

Values/Status

FUEL PRES SEN V

Engine speed: Idle

1,140 – 1,460 mV

Engine speed: Revving engine
from idle to 4,000 rpm quickly

1,300 – 2,900 mV

ECM

Condition

Voltage

Connector

+

Terminal

F23

48

49

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes depending on rpm
at idle

BATTERY VOLTAGE

(11 - 14 V)

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

BATTERY VOLTAGE

(11 - 14 V)

JPBIA4722ZZ

JPBIA4723ZZ

+

Voltage

ECM

Connector

Terminal

F24

47

Ground

Battery voltage
