Nissan Juke F15. Manual - part 597





EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-1201

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Component Function Check

INFOID:0000000012198733

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE FUNCTION

With CONSULT

1. Turn ignition switch OFF.

2. Disconnect the EVAP purge hose from EVAP canister purge volume control solenoid valve (EVAP canis-

ter side).

3. Start engine and let it idle.

4. Select “PURG VOL CONT/V” in “ACTIVE TEST” mode wit CONSULT.

5. Touch “Qu” and “Qd” on CONSULT screen to adjust “PURG VOL CONT/V” and check vacuum existence

under the following conditions.

Without CONSULT

1. Turn ignition switch OFF.

2. Disconnect the EVAP purge hose from EVAP canister purge volume control solenoid valve (EVAP canis-

ter side).

3. Start engine and let it idle for at least 100 seconds.

4. Check vacuum existence under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-1201, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012198734

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect EVAP canister purge volume control solenoid valve harness connector.

3. Turn ignition switch ON.

4. Check the voltage between EVAP canister purge volume control solenoid valve harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R harness connector.

3. Check the continuity between EVAP canister purge volume control solenoid valve harness connector and

IPDM E/R harness connector.

PURG VOL CONT/V

Vacuum

100%

Existed

0 %

Not existed

Condition

Vacuum

At idle

Not existed

Approx. 2,000 rpm

Existed

+

Voltage

EVAP canister purge volume

control solenoid valve

Connector

Terminal

F106

1

Ground

Battery voltage

EC-1202

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

4. Also check harness for short to ground.
Is the inspection result normal?

YES-1 >> With CONSULT: GO TO 4.

YES-2 >> Without CONSULT: GO TO 5.

NO

>> Repair or replace error-detected parts.

3.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between EVAP canister purge volume control solenoid valve harness connector and

ECM harness connector.

4. Also check harness for short to power.
Is the inspection result normal?

YES-1 >> With CONSULT: GO TO 4.

YES-2 >> Without CONSULT: GO TO 5.

NO

>> Repair or replace error-detected parts.

4.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

With CONSULT

1. Reconnect all harness connectors disconnected.

2. Start engine.

3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

4. Check that engine speed varies according to the valve opening.
Does engine speed vary according to the valve opening?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> GO TO 5.

5.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Check the EVAP canister purge volume control solenoid valve. Refer to

EC-1202, "Component Inspection"

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace EVAP canister purge volume control solenoid valve. Refer to

EM-197, "Exploded View"

.

Component Inspection

INFOID:0000000012198735

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT

1. Turn ignition switch OFF.

2. Reconnect all harness connectors disconnected.

3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.

4. Start engine.

5. Select “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

+

Continuity

EVAP canister purge volume

control solenoid valve

IPDM E/R

Connector

Terminal

Connector

Terminal

F106

1

E14

35

Existed

+

Continuity

EVAP canister purge volume

control solenoid valve

ECM

Connector

Terminal

Connector

Terminal

F106

2

F24

115

Existed

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-1203

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

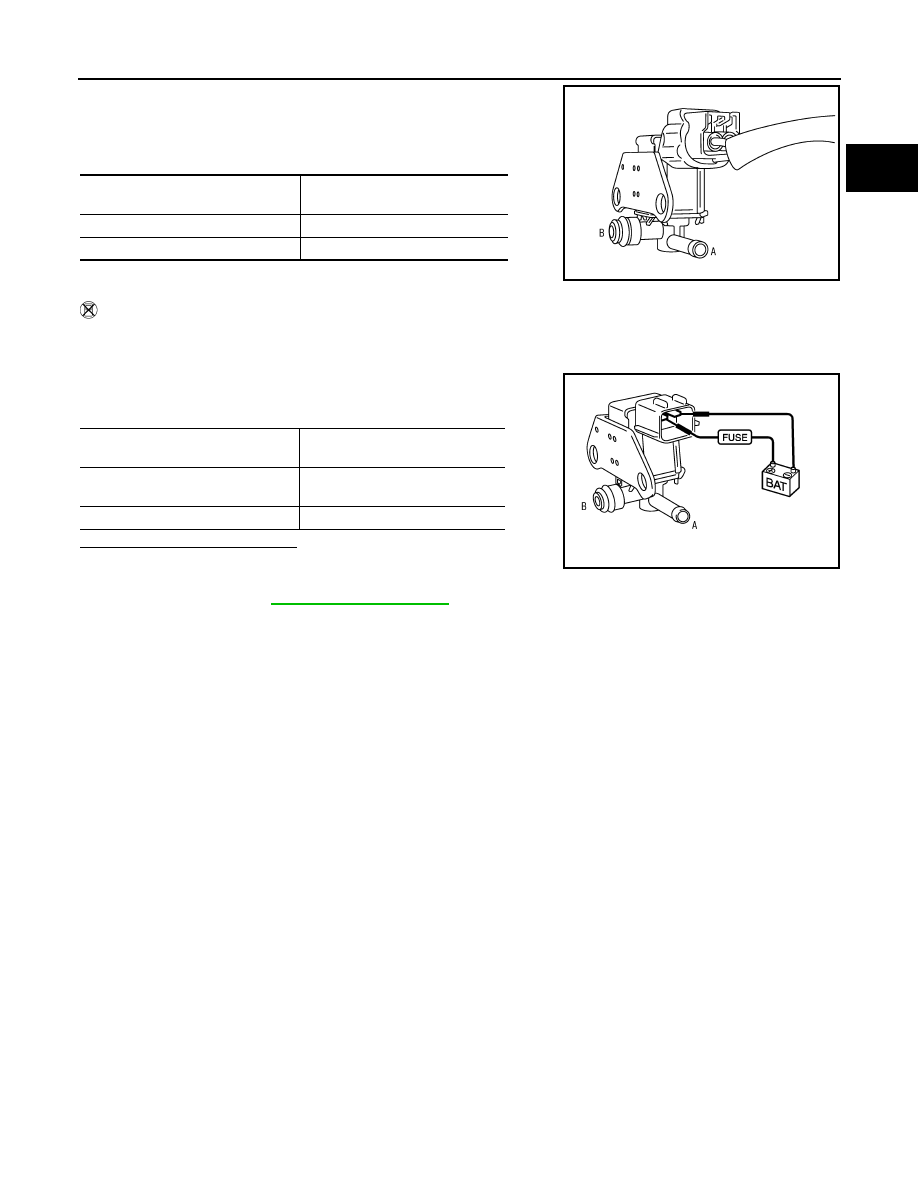

6. Touch “Qd” and “Qu” on CONSULT screen to adjust “PURG

VOL C/V” opening and check air passage continuity of EVAP

canister purge volume control solenoid valve as per the follow-

ing conditions.

Without CONSULT

1. Turn ignition switch OFF.

2. Disconnect EVAP canister purge volume control solenoid valve harness connector.

3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.

4. Check air passage continuity of EVAP canister purge volume

control solenoid valve as per the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace EVAP canister purge volume control solenoid

valve. Refer to

EM-197, "Exploded View"

.

Condition

(PURG VOL C/V value)

Air passage continuity

between (A) and (B)

100%

Existed

0%

Not existed

PBIA9668J

Condition

Air passage continuity

between (A) and (B)

12 V direct current supply between
terminals 1 and 2

Existed

No supply

Not existed

PBIA9560J

EC-1204

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

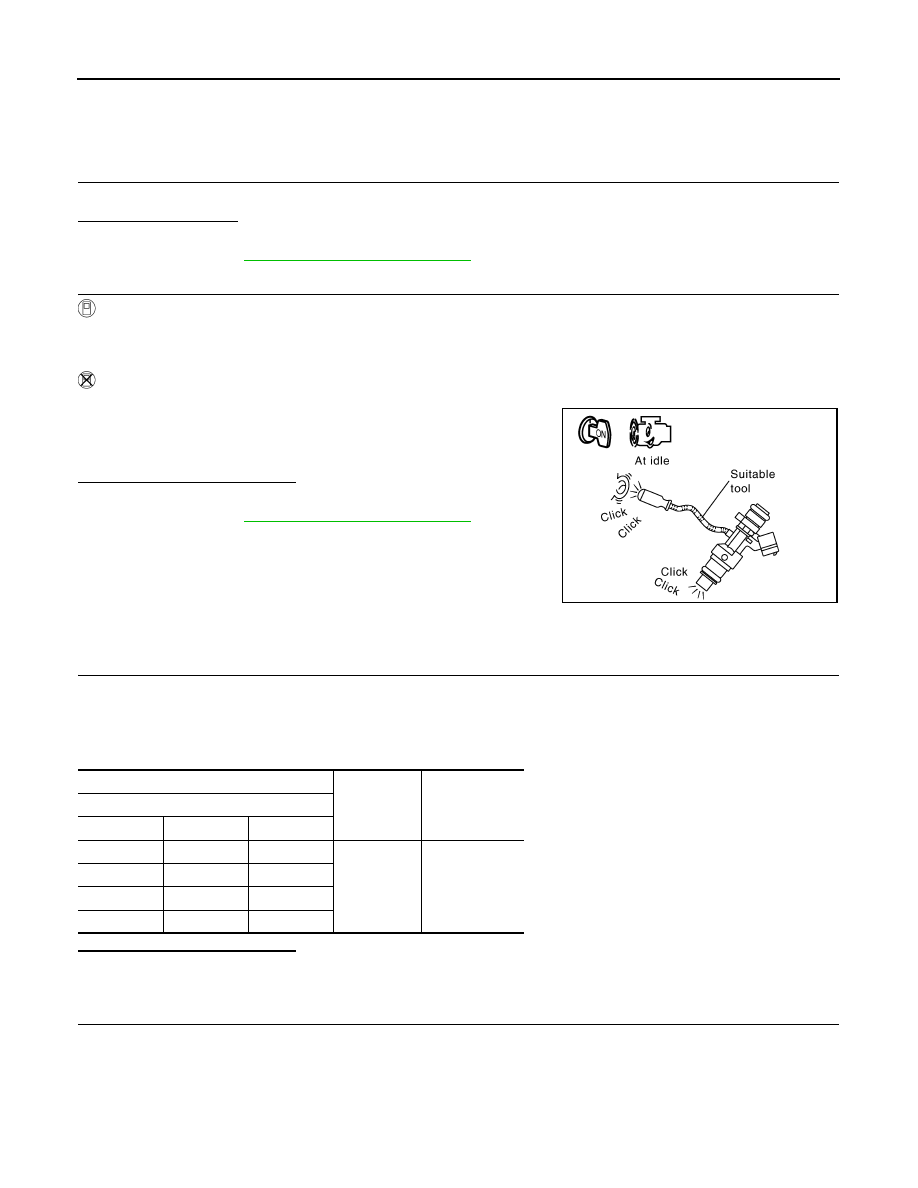

FUEL INJECTOR

FUEL INJECTOR

Component Function Check

INFOID:0000000012198736

1.

INSPECTION START

Turn ignition switch to START.
Is any cylinder ignited?

YES

>> GO TO 2.

NO

>> Proceed to

EC-1204, "Diagnosis Procedure"

.

2.

CHECK FUEL INJECTOR FUNCTION

With CONSULT

1. Start engine.

2. Perform “POWER BALANCE” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

3. Check that each circuit produces a momentary engine speed drop.

Without CONSULT

1. Let engine idle.

2. Listen to each fuel injector operating sound.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-1204, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012198737

1.

CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect fuel injector harness connector.

3. Turn ignition switch ON.

4. Check the voltage between fuel injector harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> GO TO 2.

2.

CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between fuel injector harness connector and ECM harness connector.

Clicking noise should be heard.

PBIB3332E

+

Voltage

Fuel injector

Cylinder

Connector

Terminal

1

F65

1

Ground

Battery voltage

2

F66

1

3

F67

1

4

F68

1
