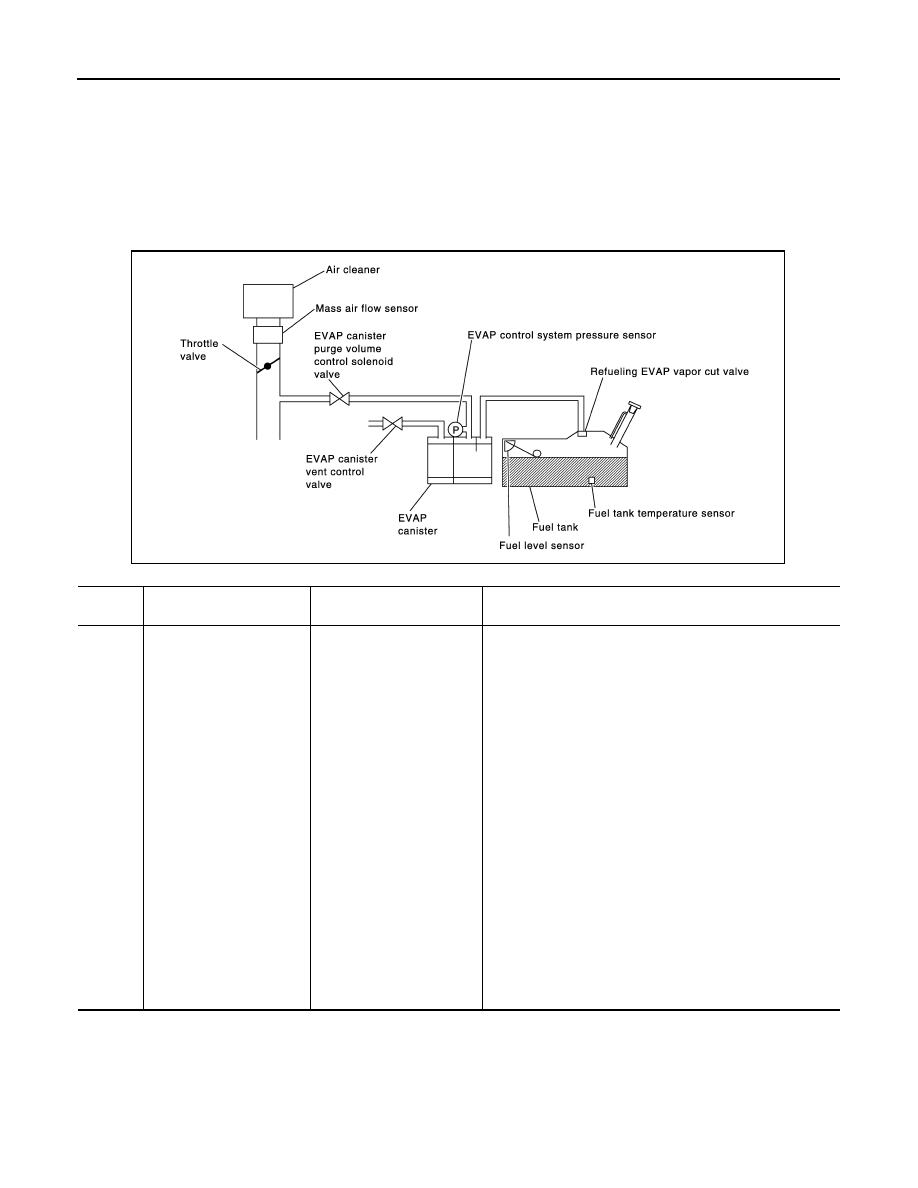

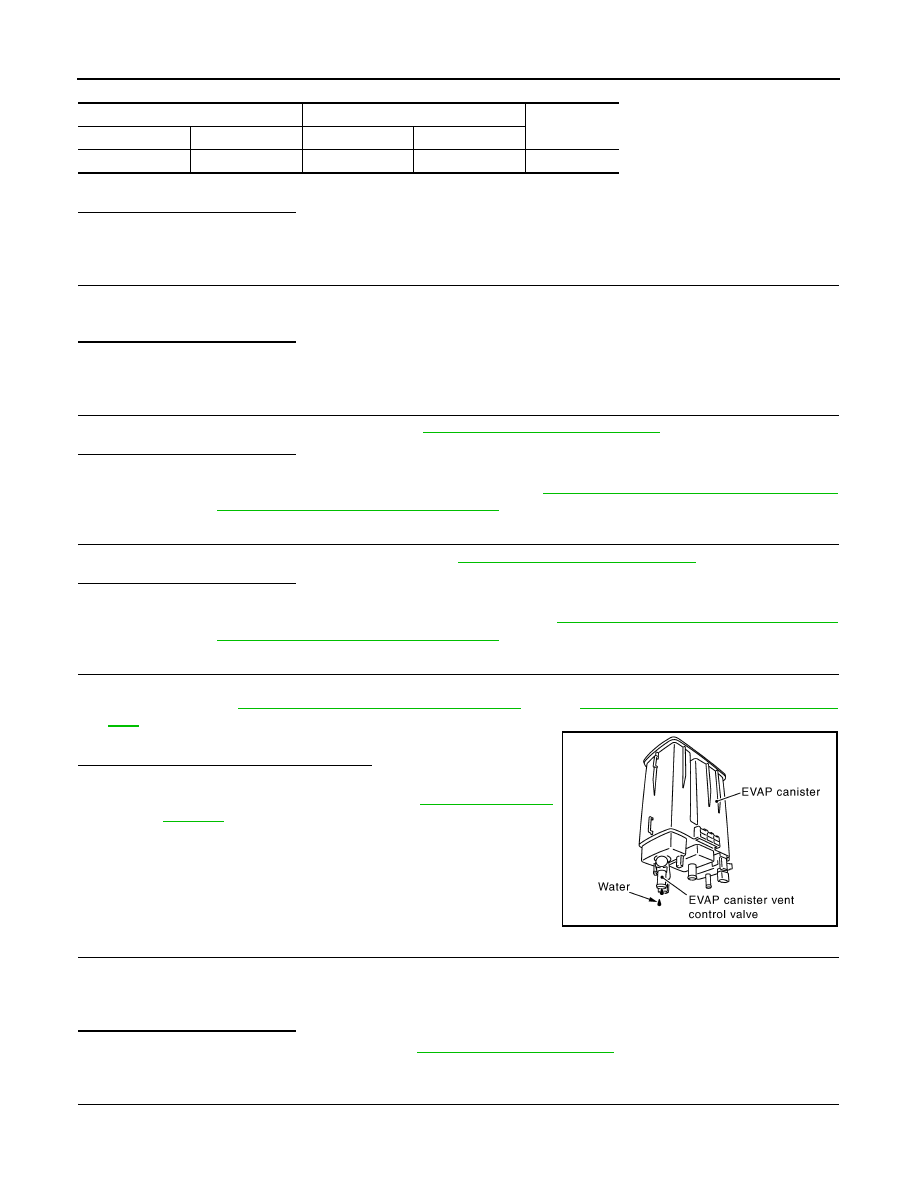

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-1009 < DTC/CIRCUIT DIAGNOSIS > [MR EXCEPT FOR NISMO RS MODELS] C D E F G H I J K L M A EC N P O NO >> INSPECTION END Diagnosis Procedure INFOID:0000000012198501 1. CHECK CONNECTOR 1. Disconnect EVAP control system pressure sensor harness connector. 2. Check that water is not inside connectors. YES >> GO TO 2. NO >> Repair or replace harness connector. 2. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY 1. Turn ignition switch ON. 2. Check the voltage between EVAP control system pressure sensor harness connector and ground. Is the inspection result normal? YES >> GO TO 4. NO >> GO TO 3. 3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check the continuity between EVAP control system pressure sensor harness connector and ECM har- ness connector. Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-45, "Intermittent Incident" . NO >> Repair open circuit. 4. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check the continuity between EVAP control system pressure sensor harness connector and ECM har- ness connector. 4. Also check harness for short to ground and short to power. YES >> GO TO 5. NO >> Repair open circuit, short to ground or short to power in harness or connectors. 5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT 1. Check the continuity between EVAP control system pressure sensor harness connector and ECM har- ness connector. + − Voltage (V) EVAP control system pressure sensor Connector Terminal B22 3 Ground Approx. 5 EVAP control system pressure sensor ECM Continuity Connector Terminal Connector Terminal B22 3 E19 125 Existed EVAP control system pressure sensor ECM Continuity Connector Terminal Connector Terminal B22 1 E19 148 Existed |
