P0447 EVAP CANISTER VENT CONTROL VALVE

EC-985

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0447 EVAP CANISTER VENT CONTROL VALVE

DTC Logic

INFOID:0000000012198479

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm battery voltage is more than 11 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and wait at least 8 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-985, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012198480

1.

INSPECTION START

Will CONSULT be used?
Will CONSULT be used?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK EVAP CANISTER VENT CONTROL VALVE CIRCUIT

With CONSULT

1. Turn ignition switch OFF and then ON.

2. Select “VENT CONTROL/V” in “ACTIVE TEST” mode with CONSULT.

3. Touch “ON/OFF” on CONSULT screen.

4. Check for operating sound of the valve.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 3.

3.

CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect EVAP canister vent control valve harness connector.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P0447

VENT CONTROL VALVE
(Evaporative emission sys-
tem vent control circuit open)

An improper voltage signal is sent to ECM
through EVAP canister vent control valve.

• Harness or connectors

(The valve circuit is open or shorted.)

• EVAP canister vent control valve
• Hoses

(Hoses are connected incorrectly or
clogged.)

Clicking sound should be heard.

EC-986

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P0447 EVAP CANISTER VENT CONTROL VALVE

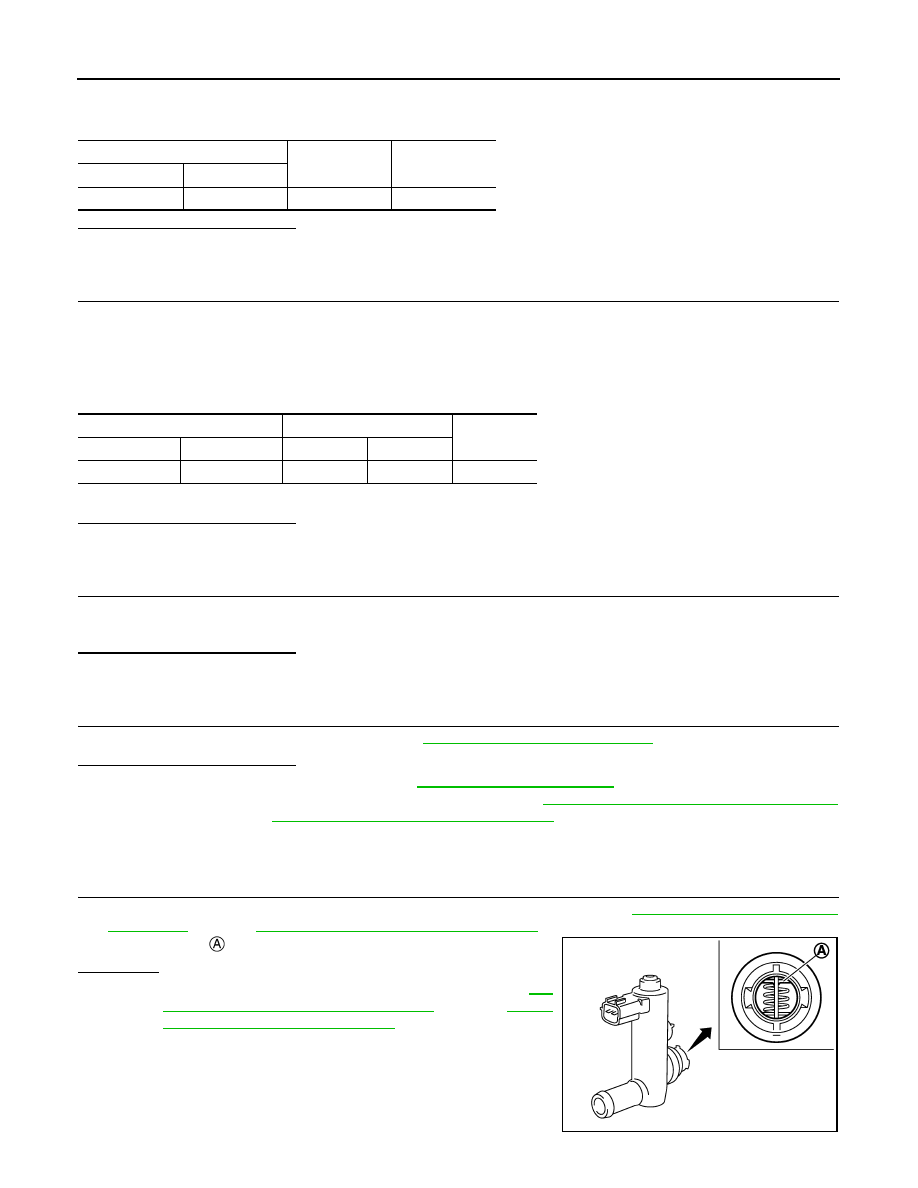

3. Turn ignition switch ON.

4. Check the voltage between EVAP canister vent control valve harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Perform the trouble diagnosis for power supply circuit.

4.

CHECK EVAP CANISTER VENT CONTROL VALVE OUTPUT SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between ECM harness connector and EVAP canister vent control valve harness con-

nector.

Refer to Wiring Diagram.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

5.

CHECK RUBBER TUBE FOR CLOGGING

1. Disconnect rubber tube connected to EVAP canister vent control valve.

2. Check the rubber tube for clogging.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Clean the rubber tube using an air blower.

6.

CHECK EVAP CANISTER VENT CONTROL VALVE

Check EVAP canister vent control valve. Refer to

EC-986, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace EVAP canister vent control valve. Refer to

FL-27, "2WD : Removal and Installation"

(2WD models),

FL-30, "AWD : Removal and Installation"

 (AWD models).

Component Inspection

INFOID:0000000012198481

1.

CHECK EVAP CANISTER VENT CONTROL VALVE-I

1. Remove EVAP canister vent control valve from EVAP canister. Refer to

FL-27, "2WD : Removal and

Installation"

(2WD) or

FL-30, "AWD : Removal and Installation"

(AWD).

2. Check portion   of EVAP canister vent control valve for rust.
Is it rusted?

YES

>> Replace EVAP canister vent control valve. Refer to

FL-

27, "2WD : Removal and Installation"

(2WD) or

FL-30,

"AWD : Removal and Installation"

(AWD).

NO

>> GO TO 2.

EVAP canister vent control valve

Ground

Voltage

Connector

Terminal

B21

1

Ground

Battery voltage

EVAP canister vent control valve

ECM

Continuity

Connector

Terminal

Connector

Terminal

B21

2

E19

141

Existed

JMBIA0168ZZ

P0447 EVAP CANISTER VENT CONTROL VALVE

EC-987

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

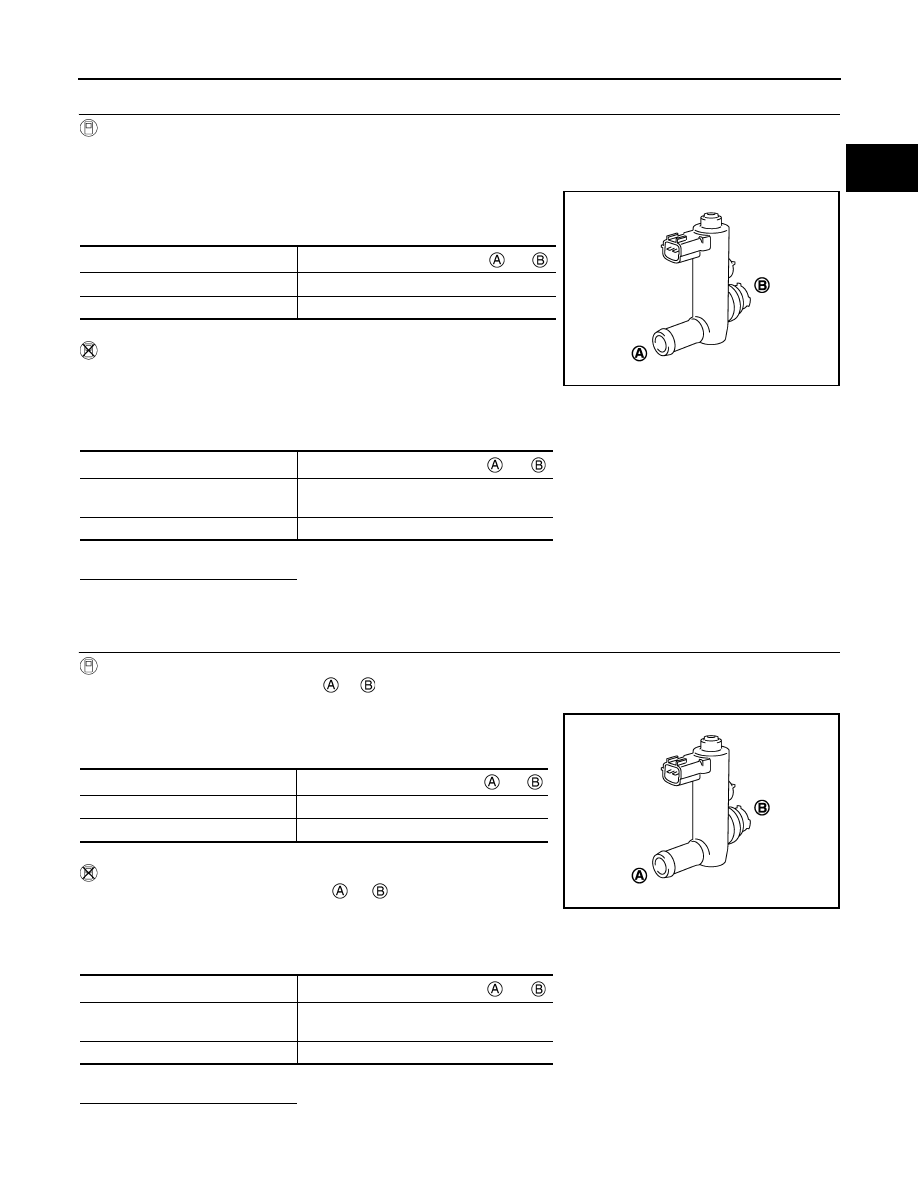

2.

CHECK EVAP CANISTER VENT CONTROL VALVE-II

With CONSULT

1. Reconnect harness connectors disconnected.

2. Turn ignition switch ON.

3. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.

4. Check air passage continuity and operation delay time.

Check that new O-ring is installed properly.

Operation takes less than 1 second.

Without CONSULT

1. Disconnect EVAP canister vent control valve harness connector.

2. Check air passage continuity and operation delay time under the

following conditions.

Check that new O-ring is installed properly.

Operation takes less than 1 second.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

CHECK EVAP CANISTER VENT CONTROL VALVE-III

With CONSULT

1. Clean the air passage [portion   to  ] of EVAP canister vent control valve using an air blower.

2. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.

3. Check air passage continuity and operation delay time.

Check that new O-ring is installed properly.

Operation takes less than 1 second.

Without CONSULT

1. Clean the air passage [portion   to  ] of EVAP canister vent

control valve using an air blower.

2. Check air passage continuity and operation delay time under the following conditions.

Check that new O-ring is installed properly.

Operation takes less than 1 second.

Is the inspection result normal?

YES

>> INSPECTION END

Condition VENT CONTROL/V

Air passage continuity between

 and

ON

Not existed

OFF

Existed

Condition

Air passage continuity between

 and

12 V direct current supply between
 terminals 1 and 2

Not existed

OFF

Existed

JMBIA0169ZZ

Condition VENT CONTROL/V

Air passage continuity between

 and

ON

No

OFF

Yes

Condition

Air passage continuity between

 and

12 V direct current supply between
 terminals (1) and (2)

No

OFF

Yes

JMBIA0169ZZ

EC-988

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P0447 EVAP CANISTER VENT CONTROL VALVE

NO

>> Replace EVAP canister vent control valve. Refer to

FL-27, "2WD : Removal and Installa-

tion"

(2WD) or

FL-30, "AWD : Removal and Installation"

(AWD).
